    SMD 1210 LED Pak 100 Pcs 5 Colors

    SKU: EP518

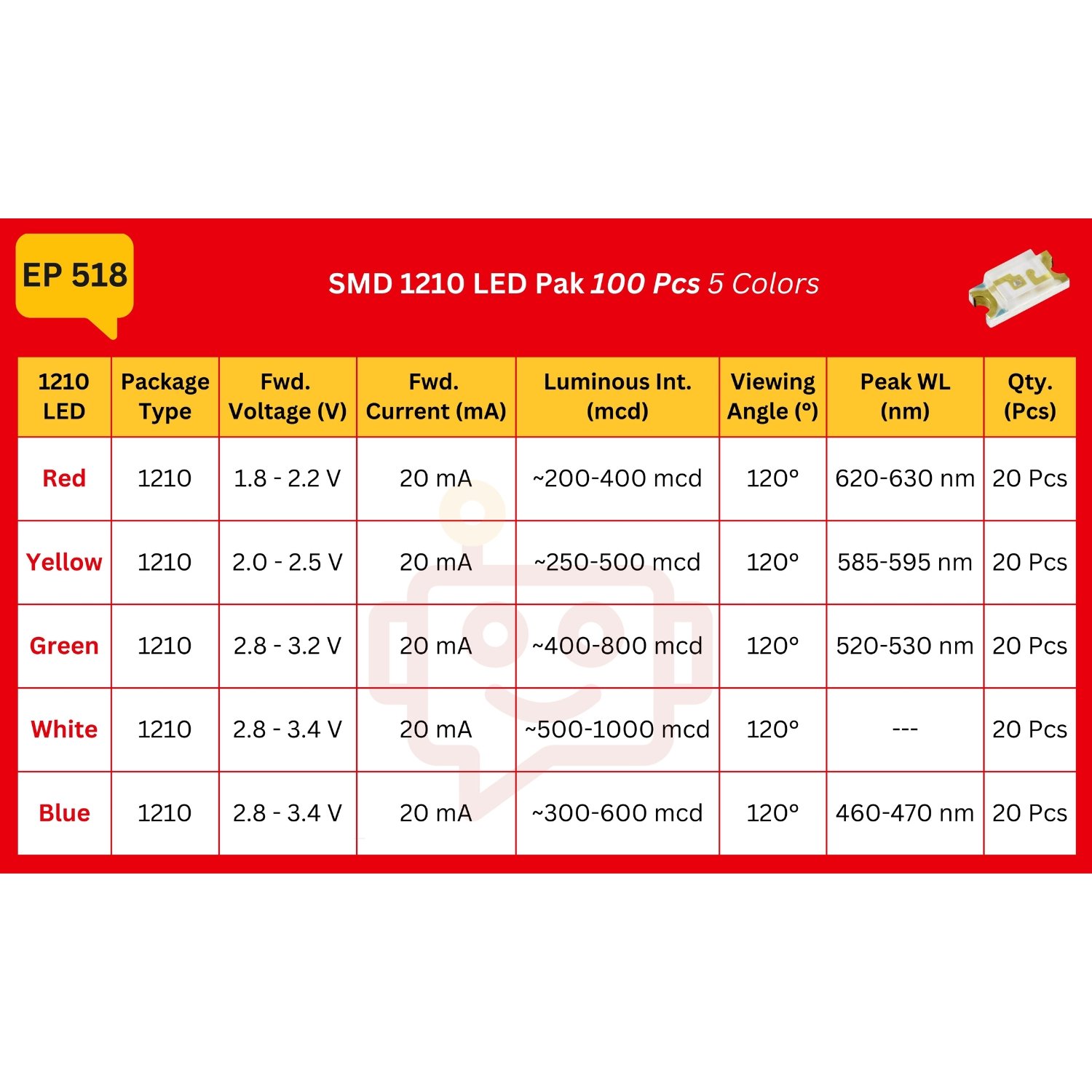

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 1210
    • Color: Red, Yellow, Green, White, Blue
    • Fwd. Current: 20mA
    • Viewing Angle: 120°
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~200 – 400 mcd, Yellow: ~250 – 500 mcd, Green: ~400 – 800 mcd,
      • White: ~500 – 1000 mcd, Blue: ~300 – 600 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹195.00

    Add to wishlist

    Description

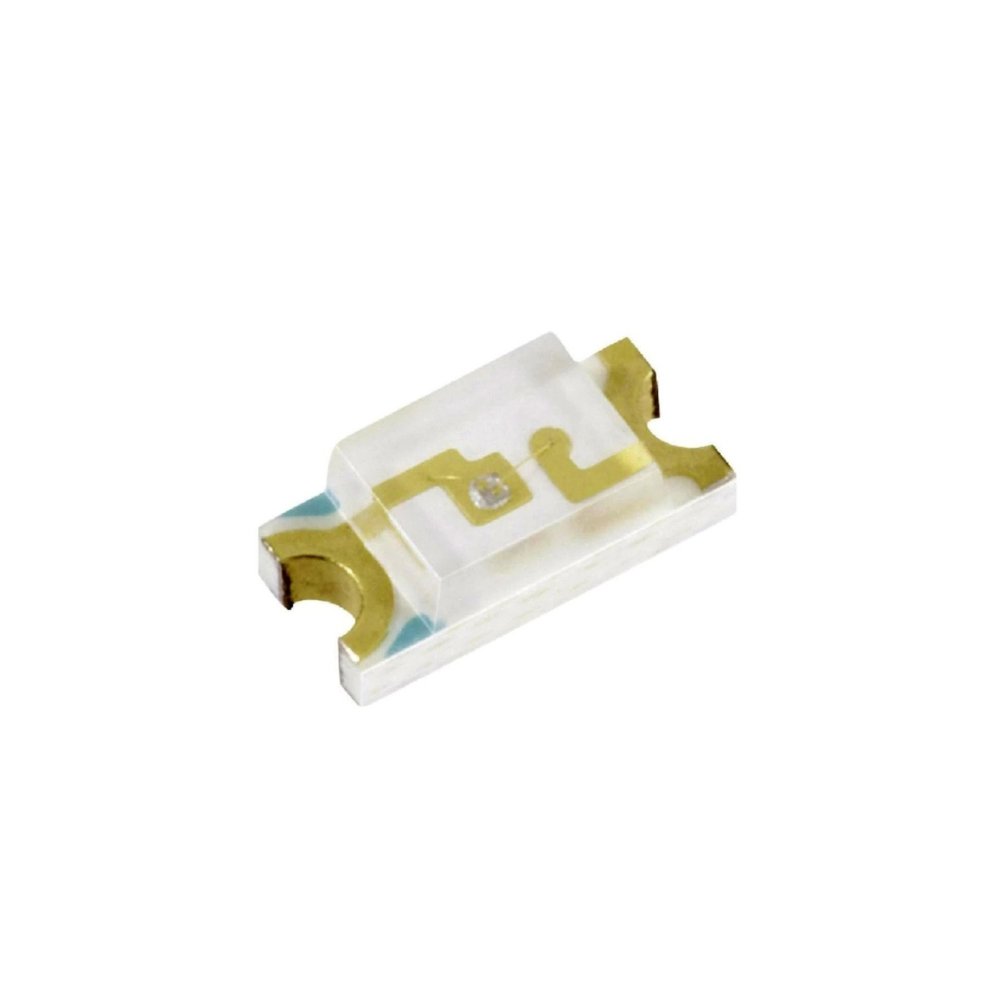

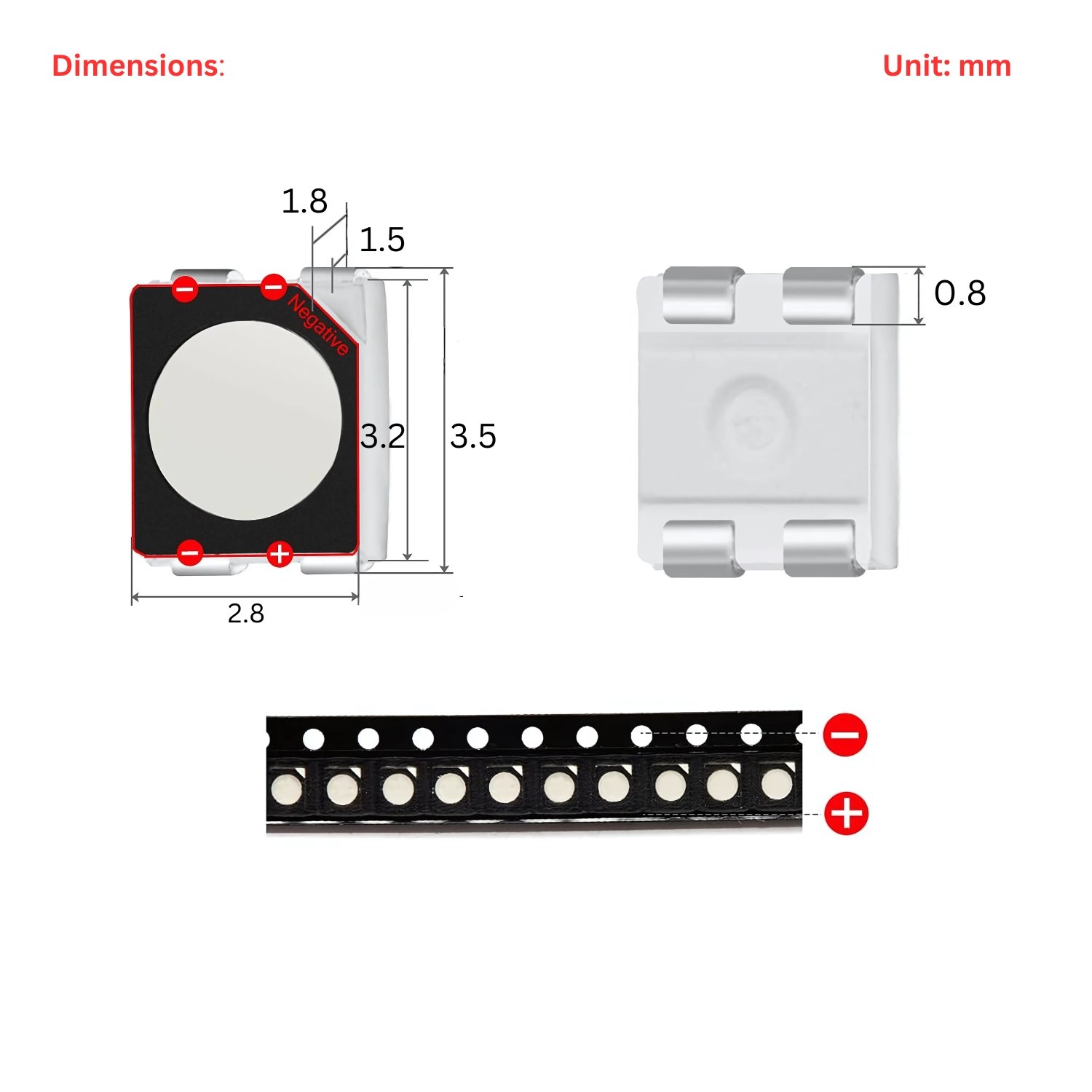

    The 1210 SMD LED, also known as the 3528 LED, is a compact and efficient surface-mount light-emitting diode widely used in a variety of electronic and lighting applications. With its small footprint of 3.2mm x 2.8mm, it is ideal for high-density circuit board layouts where space is limited.

    This pack includes 100 high-quality Surface Mount Device (SMD) LEDs in the 1210 package size, perfect for compact and professional-looking electronic projects.

    1210 LED Symbol:

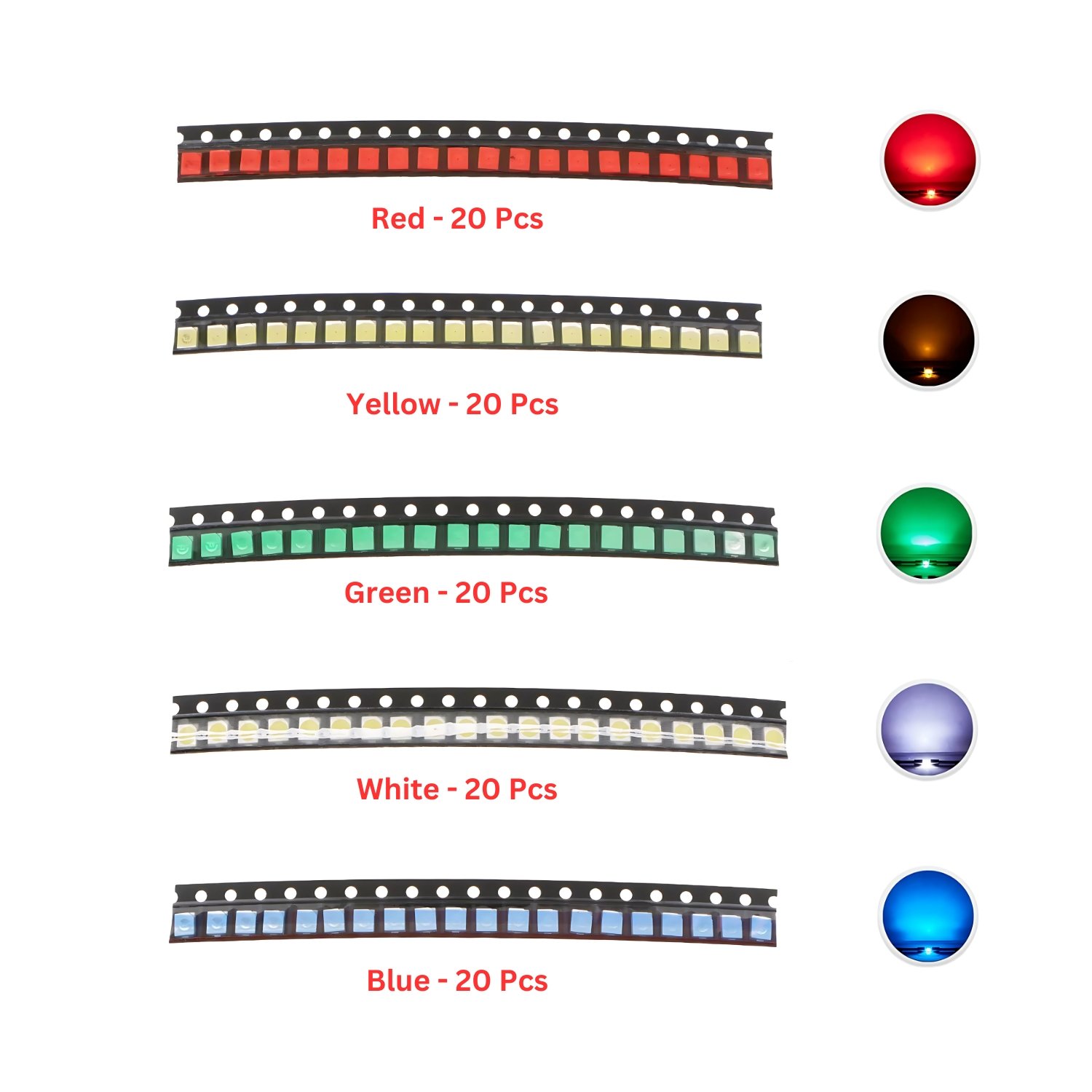

    Package Includes

    100 SMD 1210 LED 5 Colors

    • Red – 20 Pcs
    • Yellow – 20 Pcs
    • Green – 20 Pcs
    • White – 20 Pcs
    • Blue – 20 Pcs

    Features:

    • Compact size for space-saving PCB designs
    • Low power consumption
    • Bright and consistent light output
    • Long operational lifespan
    • Fast switching response

    Applications:

    • Indicator Lights – Used in control panels, electronics, and circuits for visual status signals.
    • Backlighting – Ideal for illuminating LCDs, keypads, and small displays.
    • Decorative & Ambient Lighting – Common in LED strips for aesthetic and mood lighting.
    • DIY & Hobby Electronics – Perfect for compact, creative electronic projects and prototyping.
    • Automotive & Industrial Use – Suitable for dashboards, indicators, and other low-voltage lighting setups.
    1. What is the difference between 1210 and 3528 LED?

    ⋙ They are the same — 1210 is the imperial measurement (in inches) and 3528 is the metric (in mm).

    2. What is the polarity of a 1210 SMD LED?

    ⋙ They are polarized components; the cathode is usually marked with a notch or dot on the package.

    3. Can I use 1210 SMD LEDs for both low and high-power applications?

    ⋙ While 1210 SMD LEDs are suitable for low-power applications, high-power LEDs usually require larger packages for better heat dissipation.

    4. Are 1210 SMD LEDs dimmable ?

    ⋙ Yes, 1210 SMD LEDs can be dimmed with proper control circuitry, such as PWM (Pulse Width Modulation).

    5. Can I connect multiple 1210 SMD LEDs in series or parallel?

    ⋙ Yes, you can connect them in series or parallel, but make sure to use appropriate resistors and ensure proper voltage and current ratings.

    6. What is the difference between a 1210 SMD LED and a 5050 SMD LED?

    ⋙ The 5050 SMD LED is larger and typically designed for higher brightness and power applications, whereas the 1210 is smaller and often used for low-power, compact applications.

    7. Are 1210 SMD LEDs compatible with Arduino or Raspberry Pi?

    ⋙ Yes, 1210 SMD LEDs can be controlled with microcontrollers like Arduino or Raspberry Pi using appropriate resistors or drivers.

    8. Are packs of 1210 SMD LEDs suitable for hobby and DIY projects?

    ⋙ Yes, these packs are ideal for hobbyists and DIYers due to their variety, affordability, and ease of use.

    9. How do I connect 1210 SMD LEDs from the pack to a circuit?

    ⋙ Connect them to the circuit using appropriate resistors to limit the current.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
