    SMD 5050 LED Pak 100 Pcs 5 Colors

    SKU: EP519

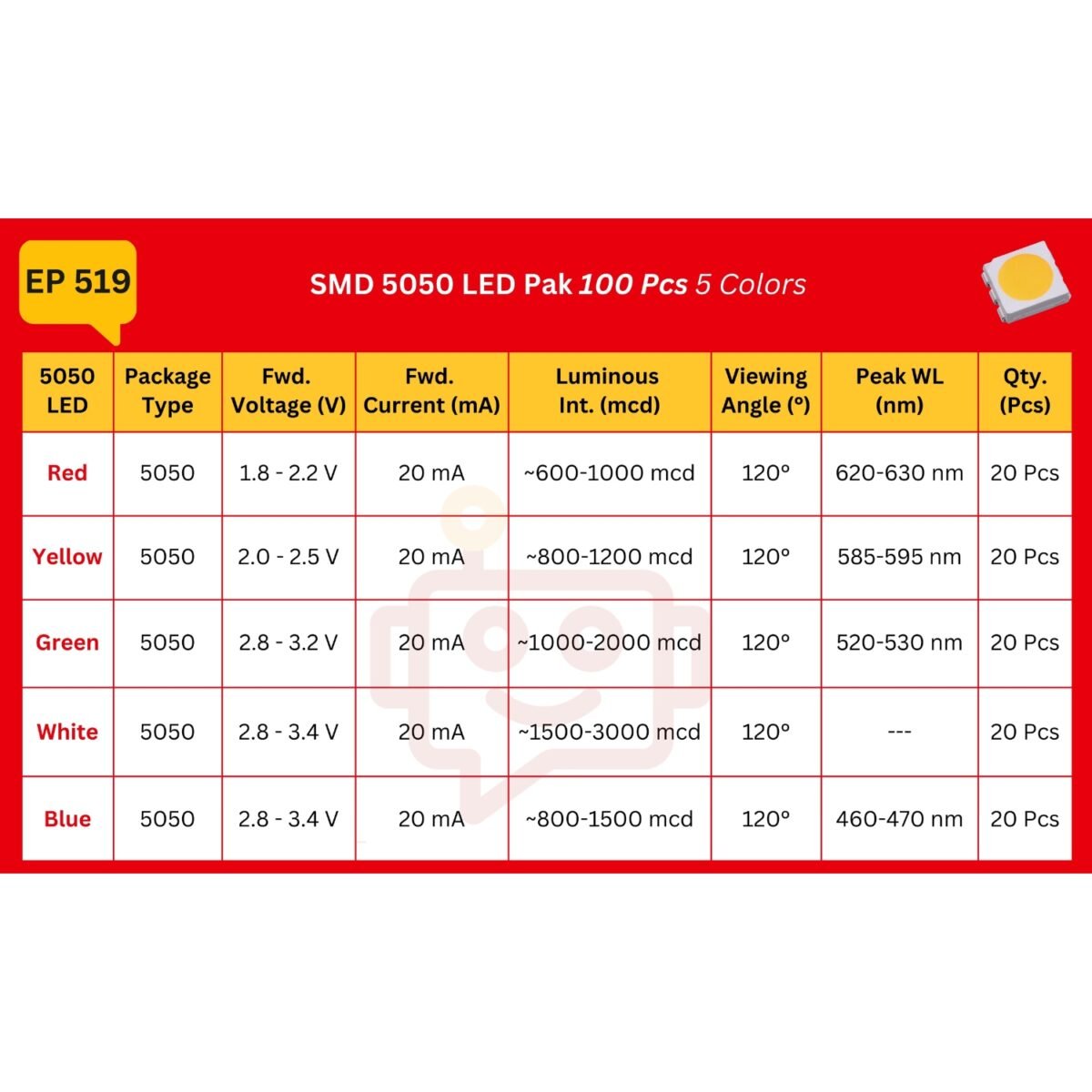

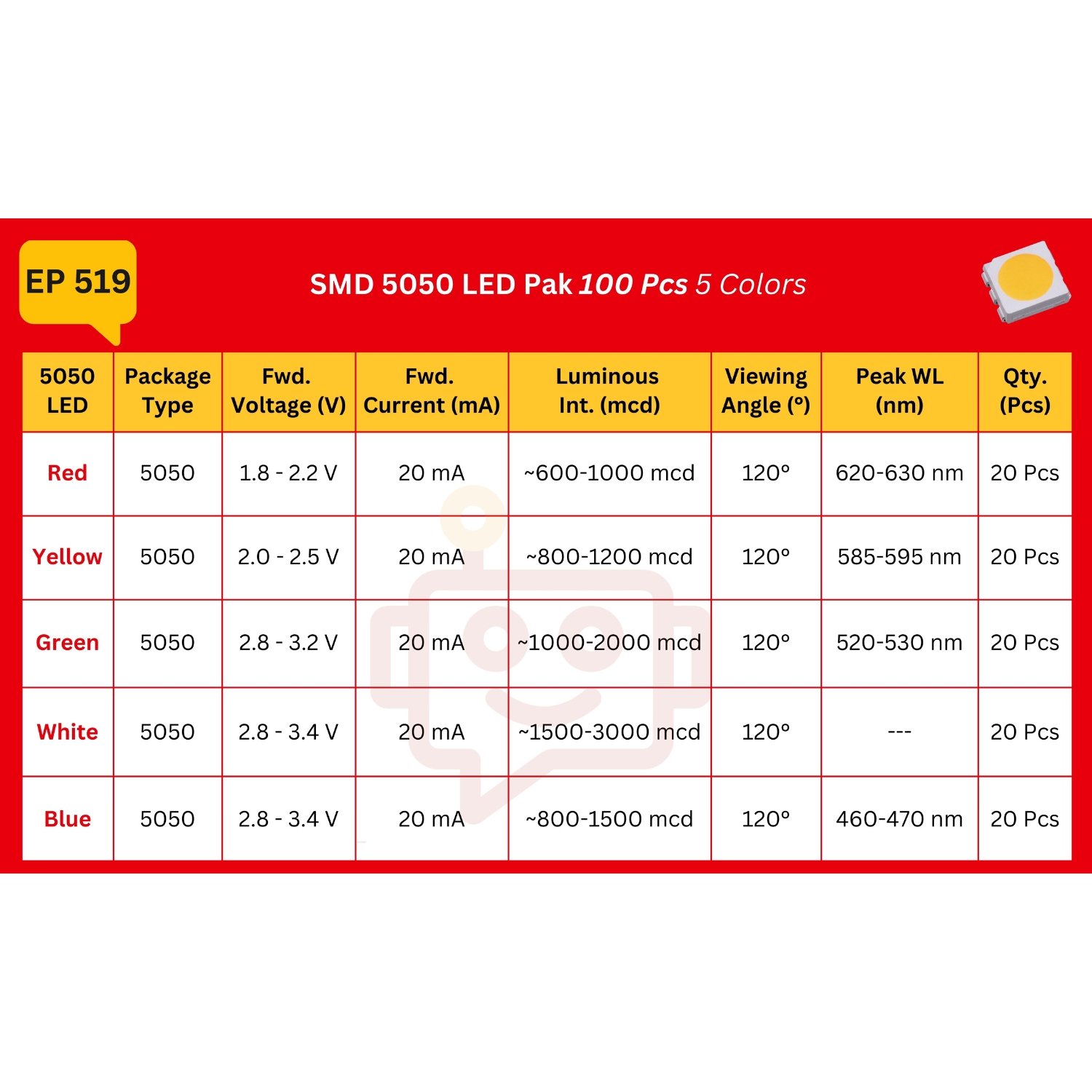

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 5050
    • Color: Red, Yellow, Green, White, Blue
    • Fwd. Current: 20 mA
    • Viewing Angle: 120°
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~600 – 1000 mcd, Yellow: ~800 – 1200 mcd, Green: ~1000 – 2000 mcd,
      • White: ~1500 – 3000 mcd, Blue: ~800 – 1500 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹240.00

    Add to wishlist

    Description

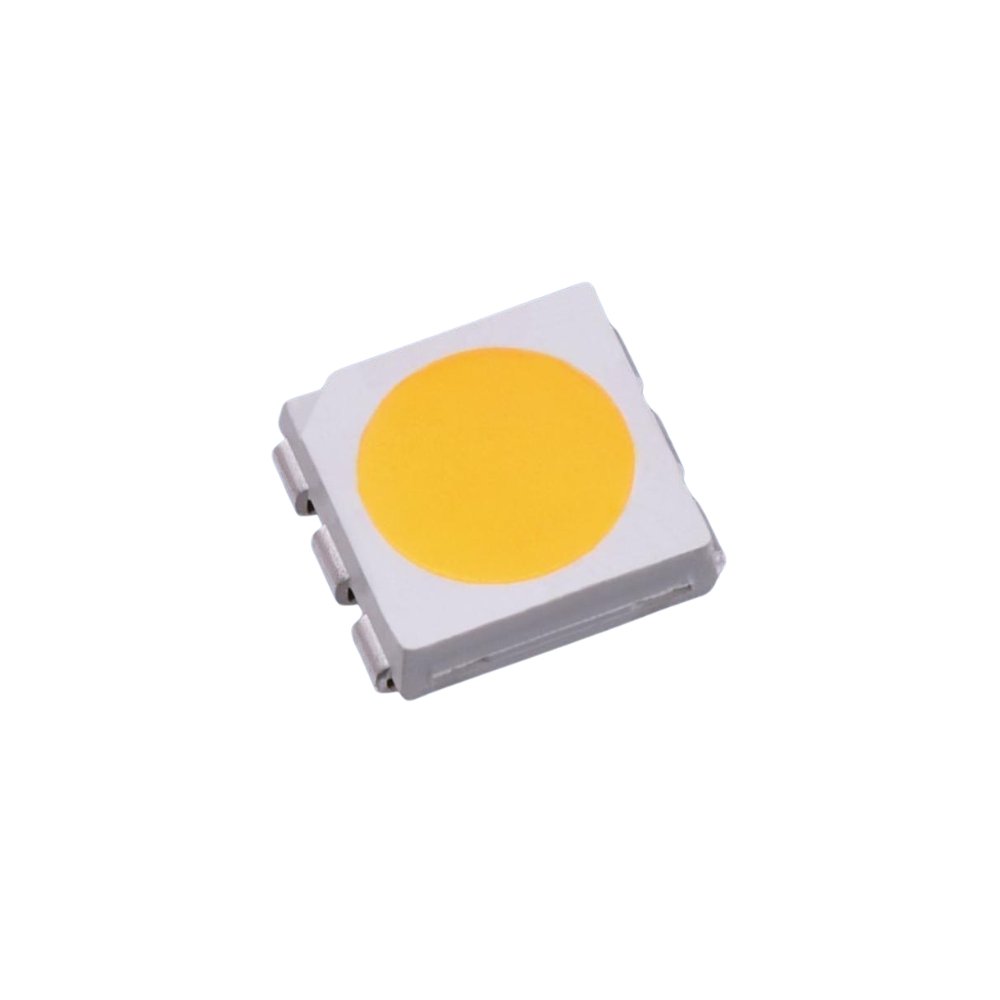

    The SMD 5050 LED is a surface-mount, high-brightness light-emitting diode housed in a compact 5.0mm x 5.0mm package. Known for its superior luminosity and wide viewing angle, the 5050 LED is capable of emitting high-intensity light while maintaining energy efficiency.

    This pack includes 100 high-brightness SMD 5050 LEDs in 5 vibrant colors – Red, Yellow, Green, White, and Blue – with 20 pieces of each color.

    5050 LED Symbol:

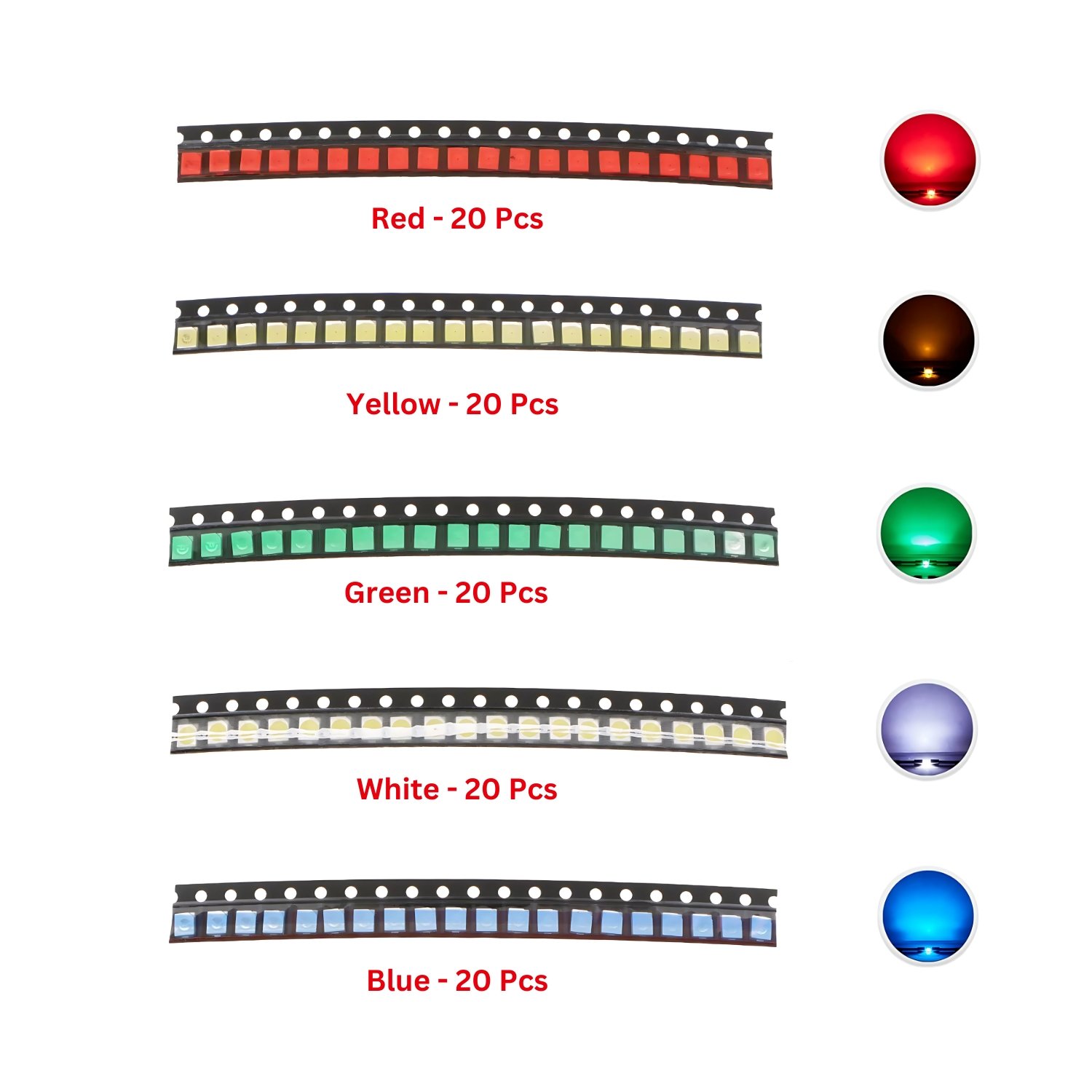

    Package Includes

    100 SMD 5050 LED 5 Colors

    • Red – 20 Pcs
    • Yellow – 20 Pcs
    • Green – 20 Pcs
    • White – 20 Pcs
    • Blue – 20 Pcs

    Features:

    • High brightness

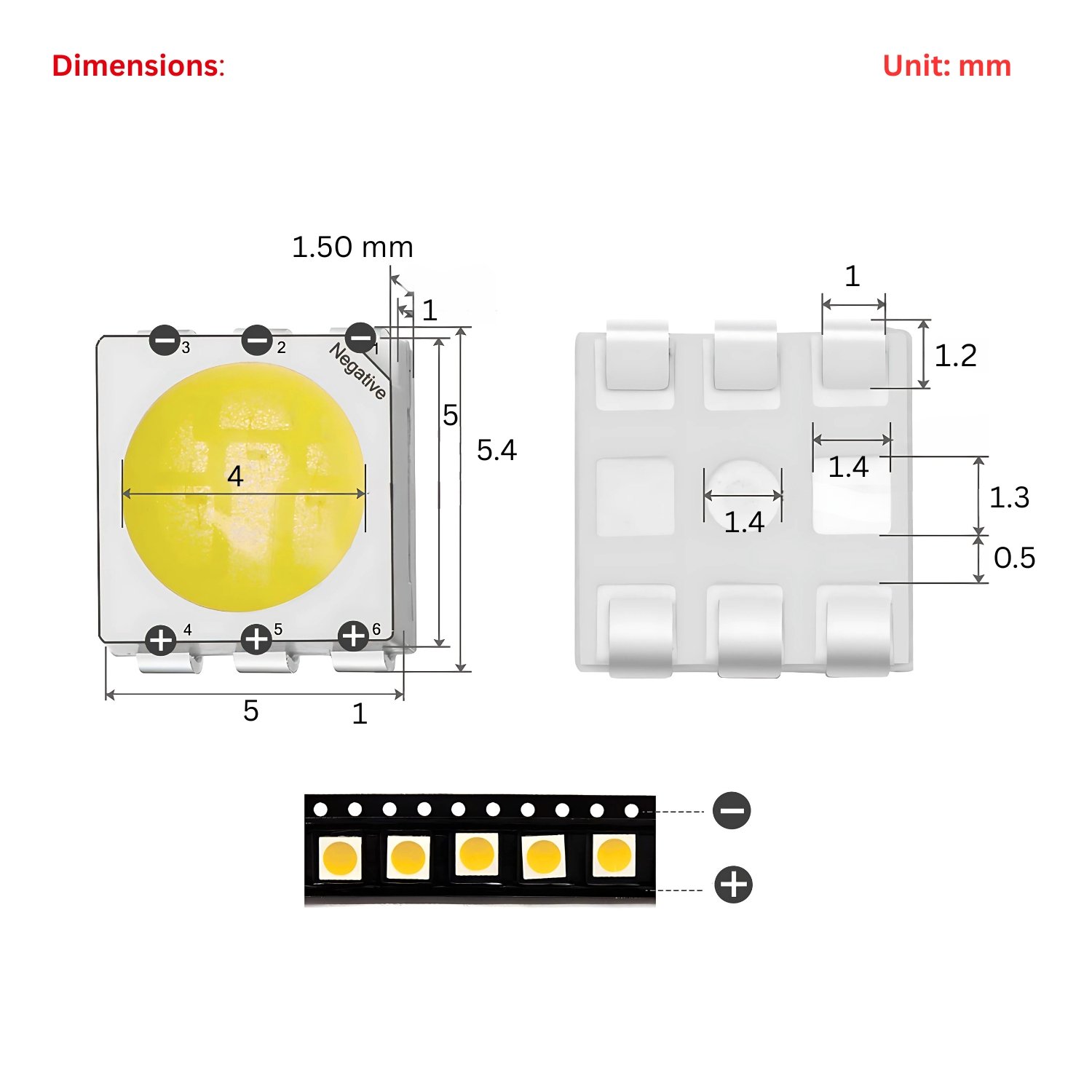

    • Compact 5.0mm x 5.0mm size
    • Wide viewing angle (120°–140°)
    • Low power consumption
    • Long operational lifespan

    Applications:

    • LED strip lighting – Used in flexible light strips for homes, signage, and displays.
    • Decorative and ambient lighting – Creates mood lighting for events, interiors, and showcases.
    • Backlighting for displays and panels – Provides uniform illumination behind screens and keypads.
    • Automotive interior/exterior lighting – Enhances dashboard, footwell, and external vehicle lighting.
    • DIY electronics and hobby projects – Ideal for prototyping and custom lighting setups.
    1. How is 5050 LED different from 3528 LED?

    ⋙ 5050 LEDs are larger, brighter, and can house three diodes for RGB color, unlike the smaller single-diode 3528.

    2. Are SMD 5050 LEDs dimmable?

    ⋙ Yes, if connected to a compatible dimmer or controller, you can adjust the brightness.

    3. Can I use SMD 5050 LEDs with Arduino or Raspberry Pi?

    ⋙ Yes, they are commonly used in DIY projects with microcontrollers like Arduino or Raspberry Pi for creating interactive lighting setups.

    4. Can I use these LEDs for DIY projects?

    ⋙ Yes, they are ideal for DIY lighting, displays, and decor.

    5. Can I use these LEDs with an Arduino or Raspberry Pi?

    ⋙ Yes, with appropriate controllers like PWM drivers.

    6. How should I mount these individual SMD 5050 LEDs?

    ⋙ These LEDs should be soldered onto a PCB (Printed Circuit Board) or placed into a compatible holder.

    7. Can I connect these individual LEDs in parallel or series?

    ⋙ These LEDs can be wired in parallel or series, but in series, you must match the voltage properly. Parallel wiring will require individual current-limiting resistors for each LED.

    8. How do I power multiple 5050 LEDs in a large project?

    ⋙ Use a higher-rated power supply to handle the combined current of all LEDs.

    9. How many LEDs can I connect to a 12V power supply?

    ⋙ The number of LEDs depends on their current draw, but typically you can connect around 50-60 5050 LEDs to a 12V power supply.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
