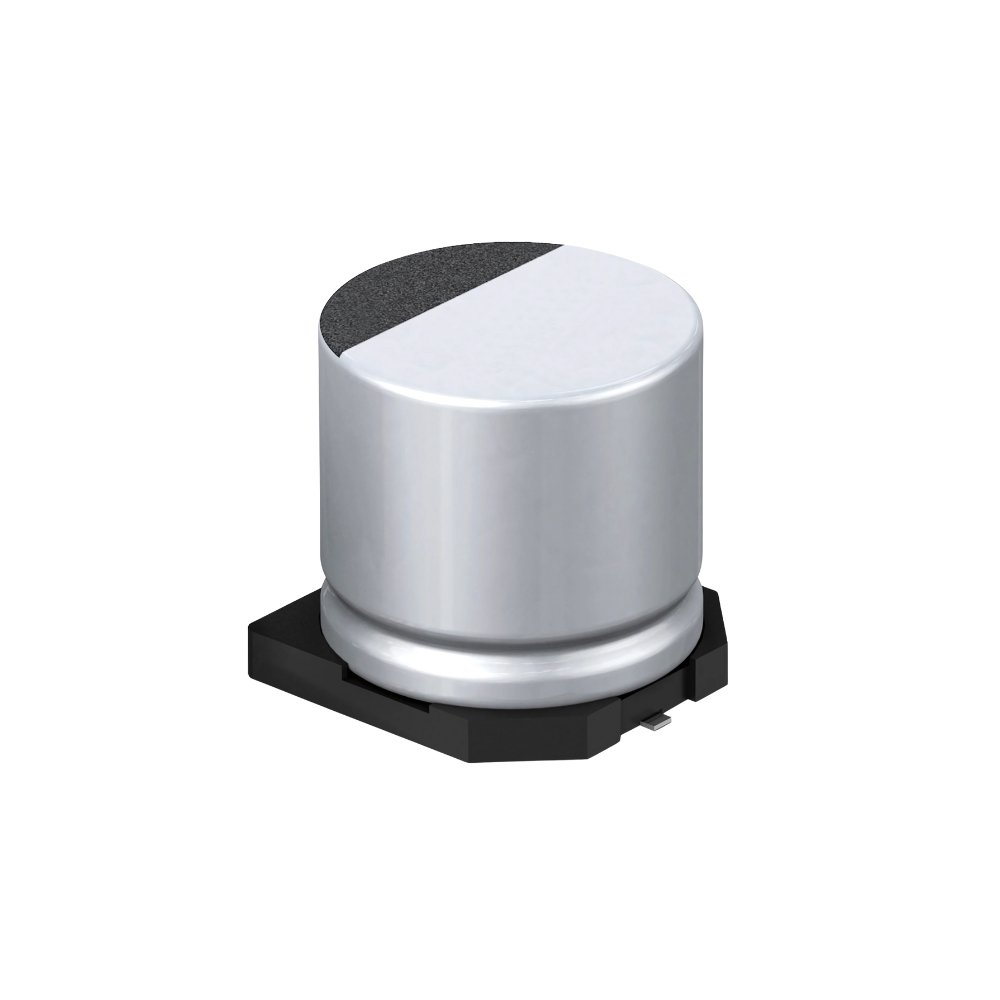

    SMD Electrolytic Capacitor Pak 1µF to 220µF 120 Pcs 13 Values

    SKU: EP501

    Technical Specification:

    • Type: SMD
    • Model: Electrolytic Capacitor
    • Capacitance Range: 1 µF – 220 µF
    • Voltage Ratings: 10 V, 16 V, 25 V, 50 V

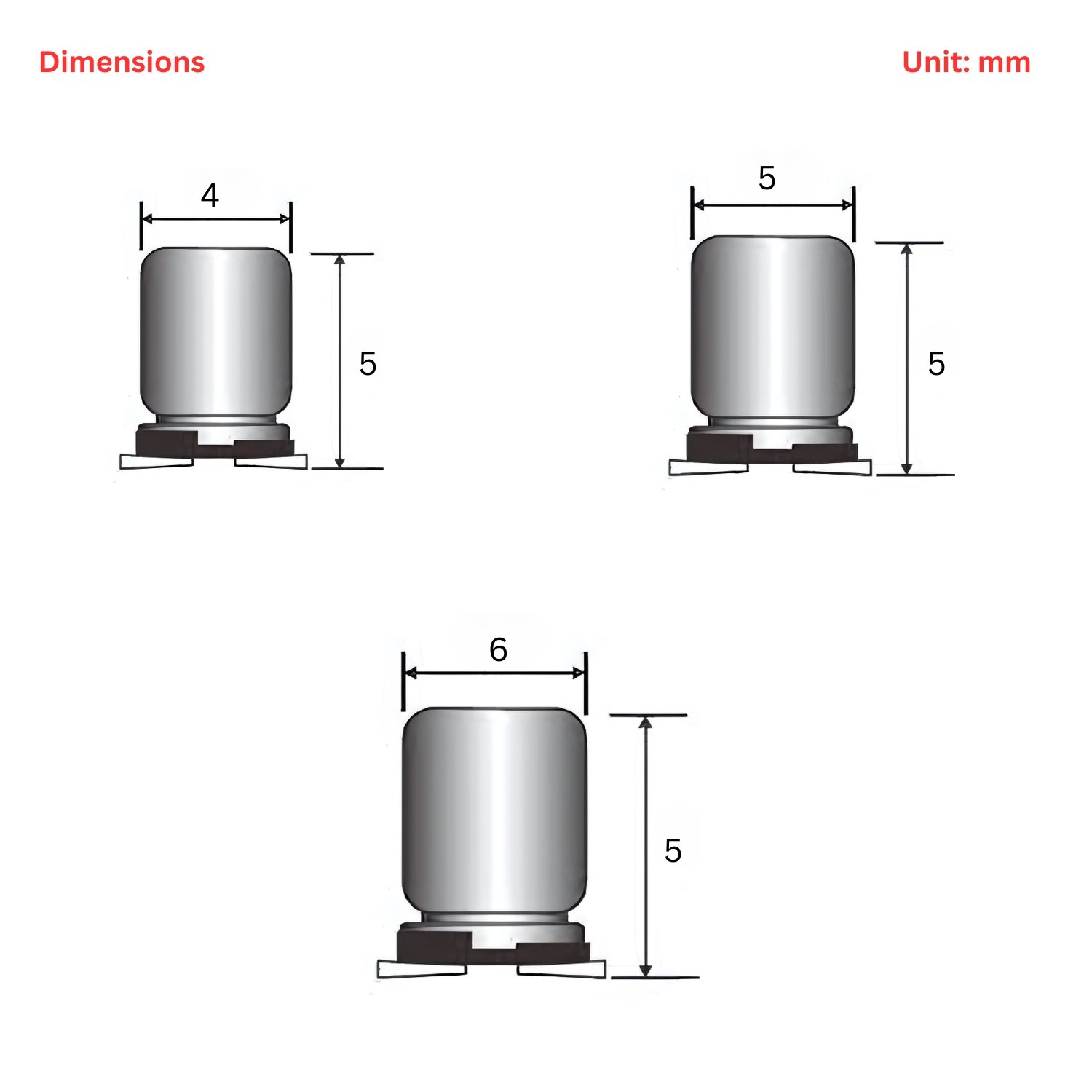

    • Size: 4 x 5 mm, 5 x 5 mm, 6 x 5 mm
    • Pak Weight: 80 gm
    • Pak Dimensions: 150 x 100 x 35 mm

    ₹545.00

    Add to wishlist

    Description

    SMD Aluminium Electrolytic Capacitors are a type of polarized capacitor that use aluminium as the anode and an electrolyte as the cathode. These capacitors are designed for surface-mount applications, meaning they are intended to be soldered directly onto the surface of a printed circuit board (PCB) rather than inserted through holes.

    This SMD Electrolytic Capacitor Assortment includes 120 capacitors in 13 different values, providing a comprehensive selection for various electronic projects and repairs. These capacitors are compact, high-performance, and suitable for applications requiring low ESR and high ripple current handling.

    Electrolytic Cap Symbol:

    Electrolytic Cap Structure:



    Electrolytic Cap Part Code:

    Package Includes

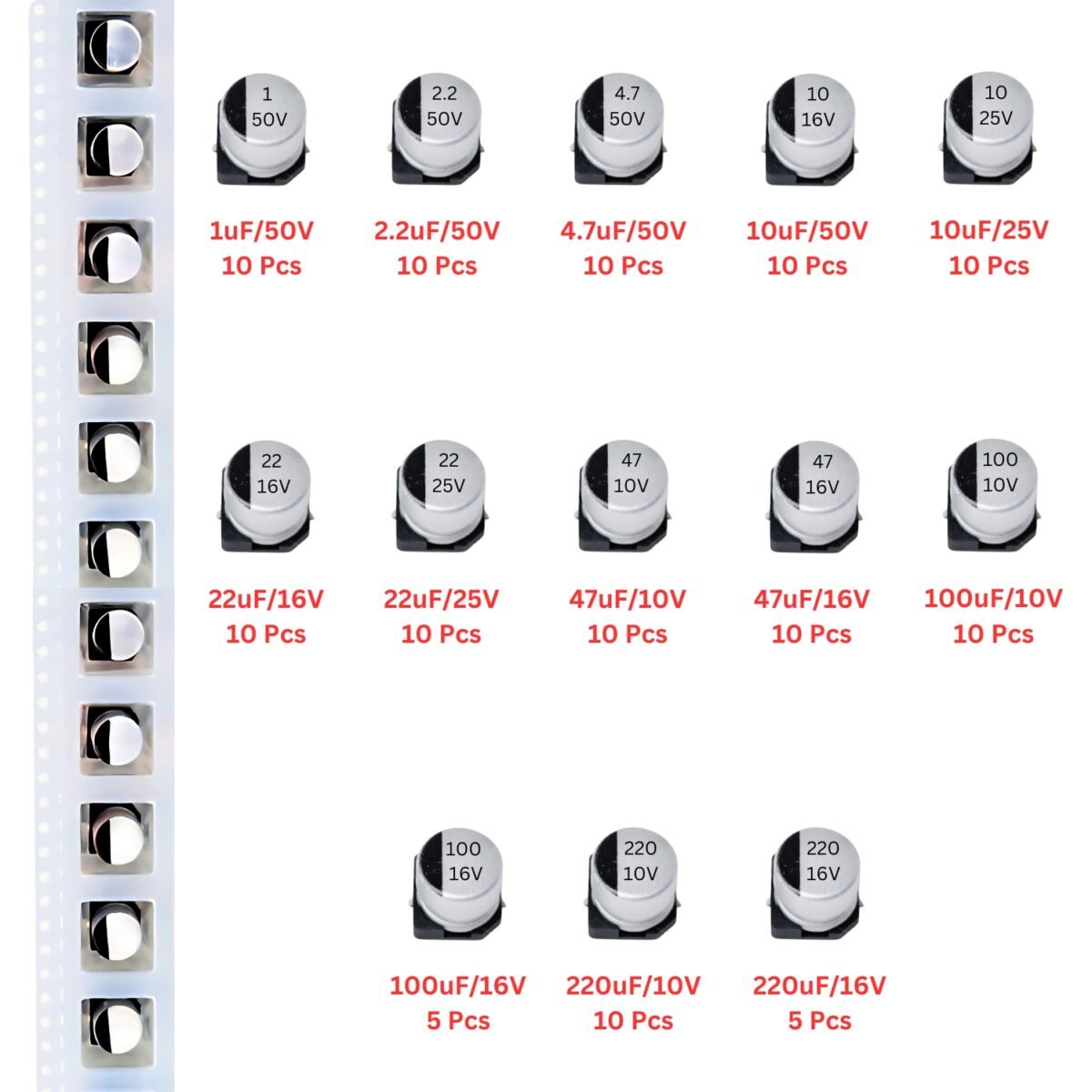

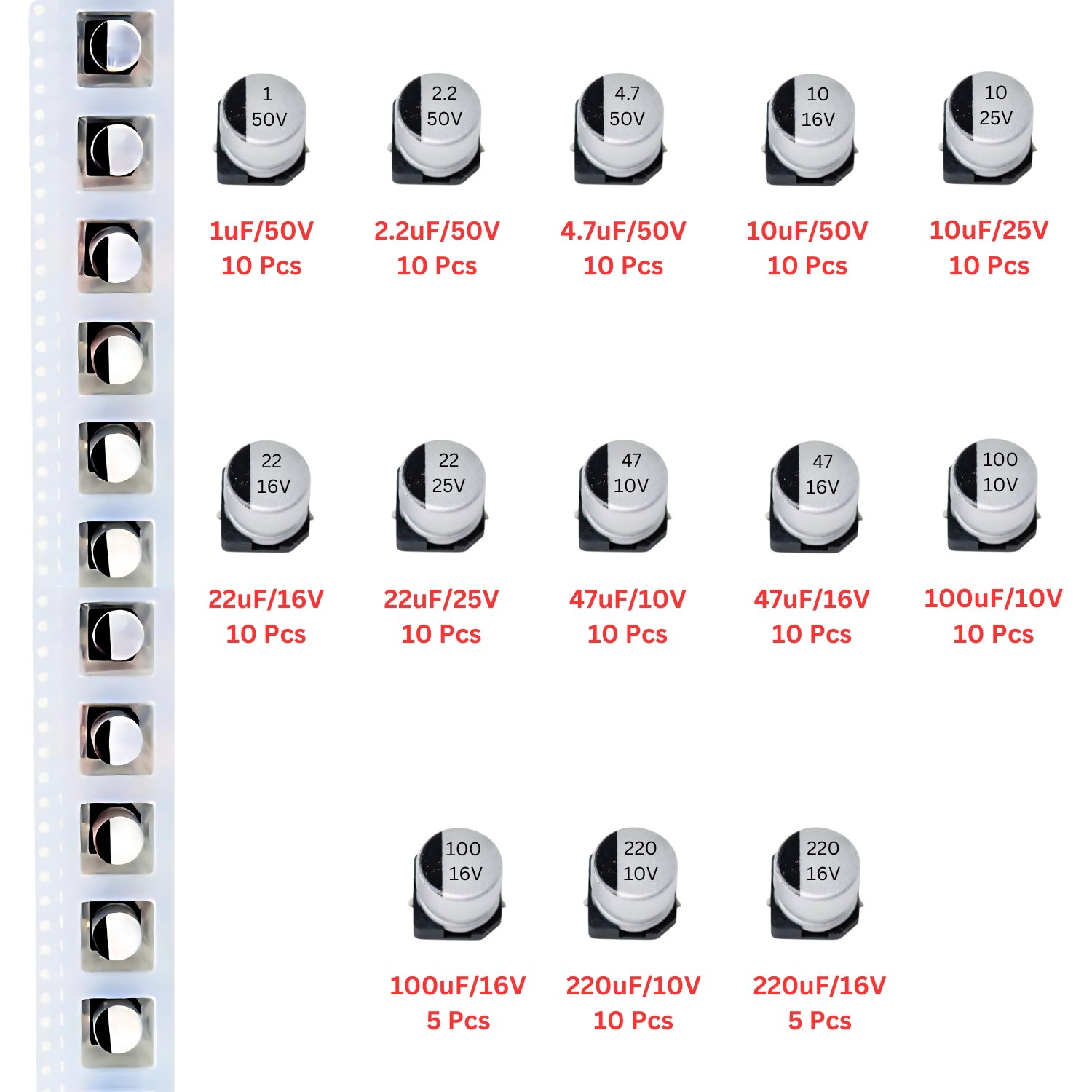

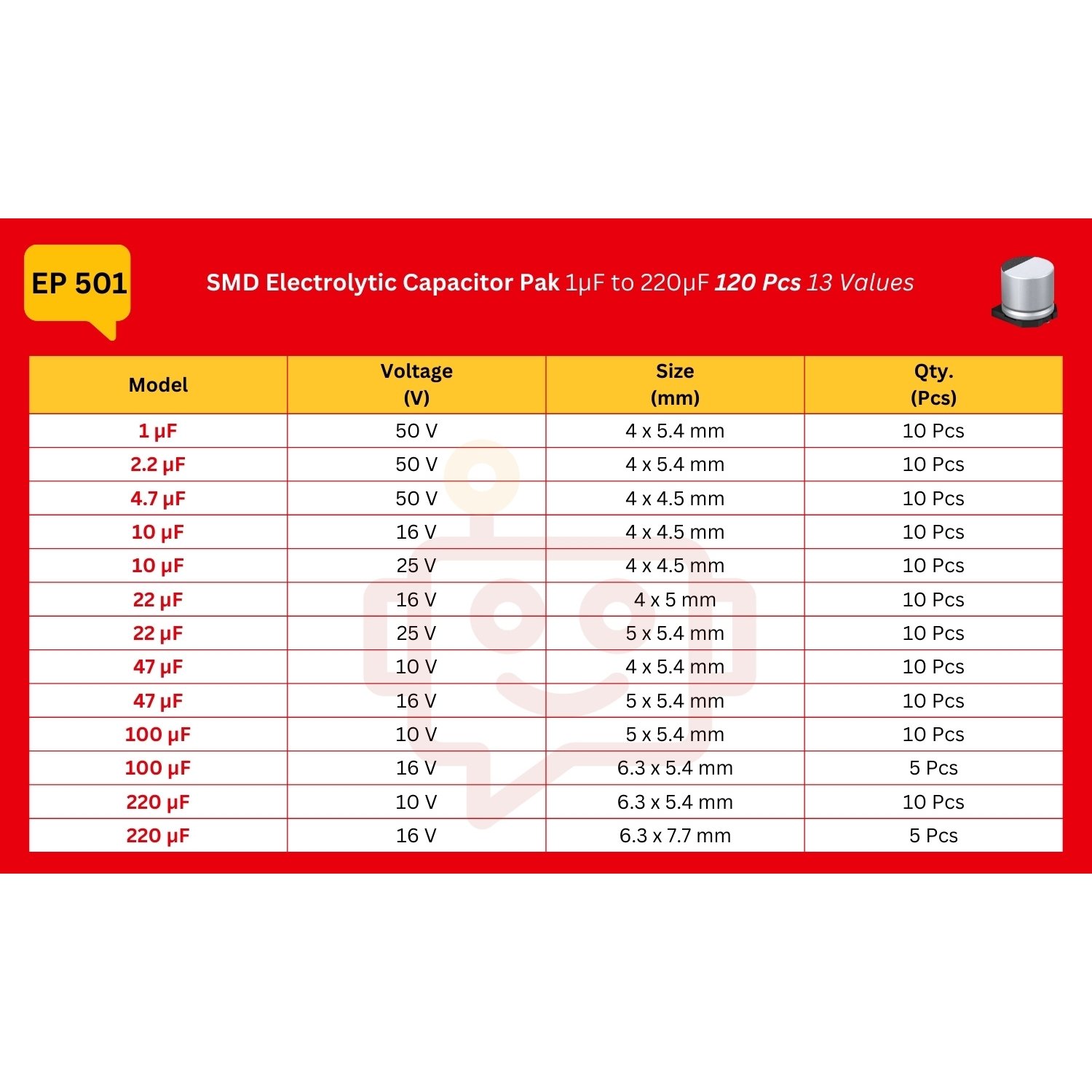

    120 SMD Electrolytic Capacitor 13 Types

    • 1µF / 50V - 4 x 5 mm - 10 Pcs
    • 2.2µF / 50V - 4 x 5 mm - 10 Pcs
    • 4.7µF / 50V - 4 x 5 mm - 10 Pcs
    • 10µF / 16V - 4 x 5 mm - 10 Pcs
    • 10µF / 25V - 4 x 5 mm - 10 Pcs
    • 22µF / 16V - 4 x 5 mm - 10 Pcs
    • 22µF / 25V - 4 x 5 mm - 10 Pcs
    • 47µF / 10V - 5 x 5 mm - 10 Pcs
    • 47µF / 16V - 5 x 5 mm - 10 Pcs
    • 100µF / 10V - 6 x 5 mm - 10 Pcs
    • 100µF / 16V - 6 x 5 mm - 5 Pcs
    • 220µF / 10V - 6 x 5 mm - 10 Pcs
    • 220µF / 16V - 6 x 5 mm - 5 Pcs

    Features:

    • Compact size
    • Wide capacitance range
    • High voltage ratings
    • Low ESR
    • High ripple current handling
    • Long lifespan
    • Stable performance
    • Automated PCB assembly compatible
    • Ideal for filtering & decoupling

    Applications:

    • Power Supply Filtering: Smooths voltage fluctuations in power circuits
    • Voltage Regulation: Stabilizes voltage in regulator circuits
    • DC-DC Converters: Ensures efficient energy transfer in switching circuits
    • Signal Coupling & Decoupling: Blocks DC components while allowing AC signals
    • Embedded Systems & IoT Devices: Used in compact, low-power electronic devices
    • Consumer Electronics Repair: Replaces faulty capacitors in electronic gadgets
    • Automotive Electronics: Supports power management in vehicle control systems
    • Industrial Equipment: Used in control circuits and power electronics
    • Audio & RF Circuits: Reduces noise and improves signal quality
    • LED Drivers & Lighting Systems: Regulates power for stable LED operation
    1. How do I choose the right SMD electrolytic capacitor?

    ⋙ Match capacitance, voltage rating, ESR, and physical size based on circuit requirements.

    2. What happens if I install an electrolytic capacitor backward?

    ⋙ It may overheat, leak, or explode due to reversed polarity.

    3. How do I test an SMD electrolytic capacitor?

    ⋙ Use a multimeter in capacitance mode or check for voltage drop using a continuity test.

    4. What is the ESR of an electrolytic capacitor?

    ⋙ ESR (Equivalent Series Resistance) affects performance and should be low for power applications.

    5. Can I parallel electrolytic capacitors?

    ⋙ Yes, this increases the total capacitance while maintaining the same voltage rating.

    6. Can I series electrolytic capacitors?

    ⋙ Yes, this increases the voltage rating but reduces the total capacitance.

    7. Are SMD electrolytic capacitors polarized?

    ⋙ Yes, they have a positive and a negative terminal, unlike ceramic capacitors.

    8. Can an electrolytic capacitor be used in AC circuits?

    ⋙ Only if it is a non-polarized electrolytic capacitor; standard ones are for DC only.

    9. Do SMD electrolytic capacitors have inductance?

    ⋙ Yes, but the inductance is lower compared to through-hole electrolytic capacitors.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
