Brand: Generic
Type: Through Hole
Model: Variable Capacitor
Series: 6mm Lead Type
Capacitance Min: 1.5 pF
Capacitance Max: 5 pF
Voltage Rating: 50 V – 100 V
Terminal Shape: Top Adjustment
Case Colour: Blue, Green, Red, White, Brown
Operating Temperature: -25 °C to +85 °C
Temperature Characteristics: NPO ± 200 ppm/ °C
₹430.00
Variable capacitors are used for precise tuning in electronic circuits, particularly in RF (radio frequency), communication, and signal-processing applications.

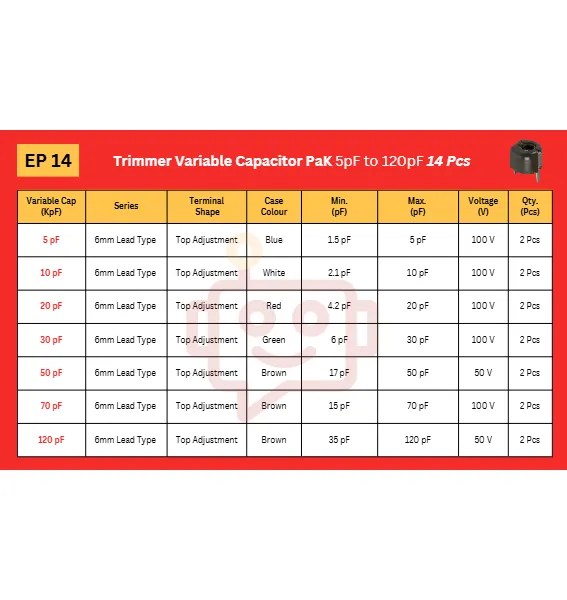

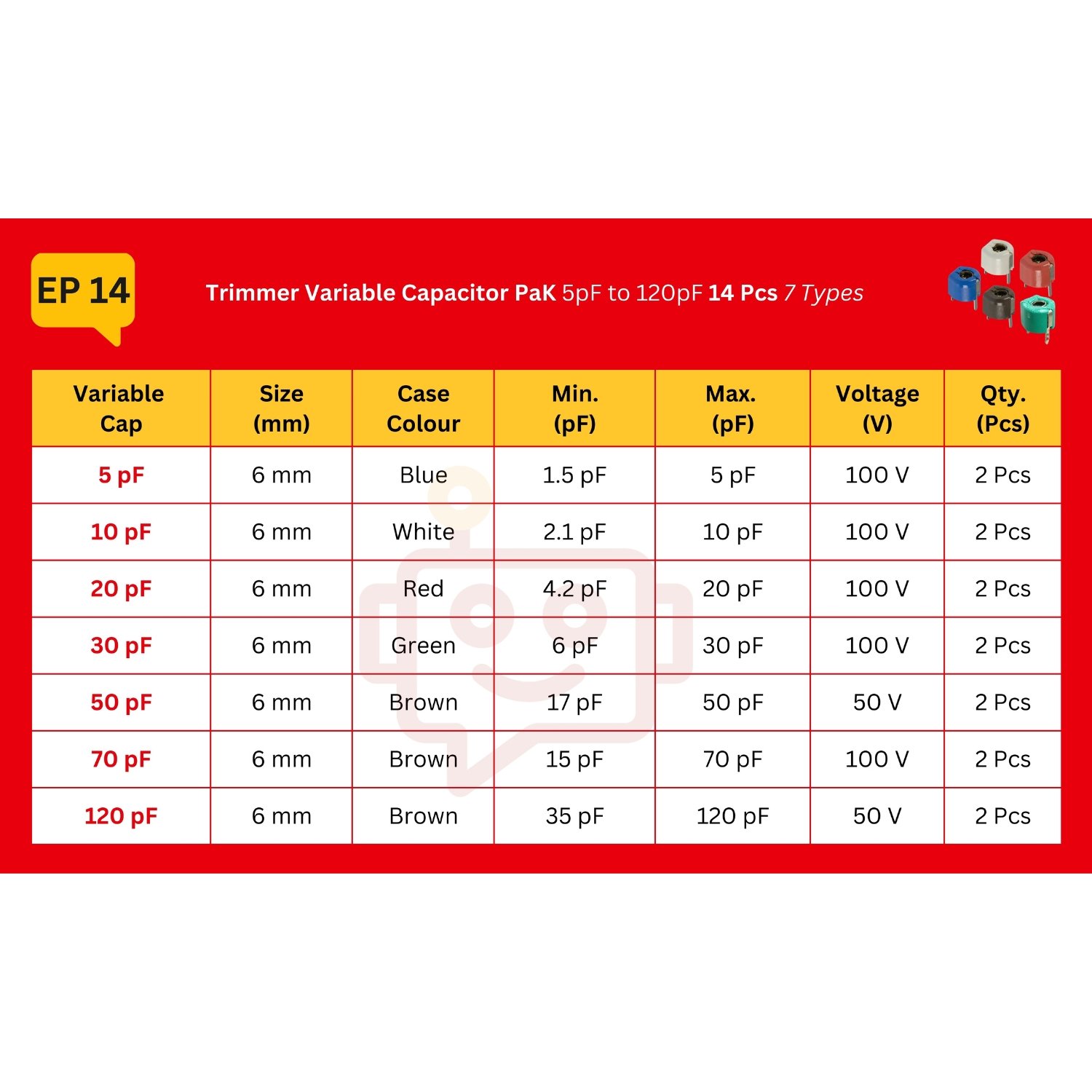

These variable capacitor set consists of 14 capacitors in 7 different capacitance values, with 2 pieces of each type. These capacitors allow for adjustable capacitance, making them useful in circuits where fine-tuning is required.
Symbol:
Variable Capacitor Structure:

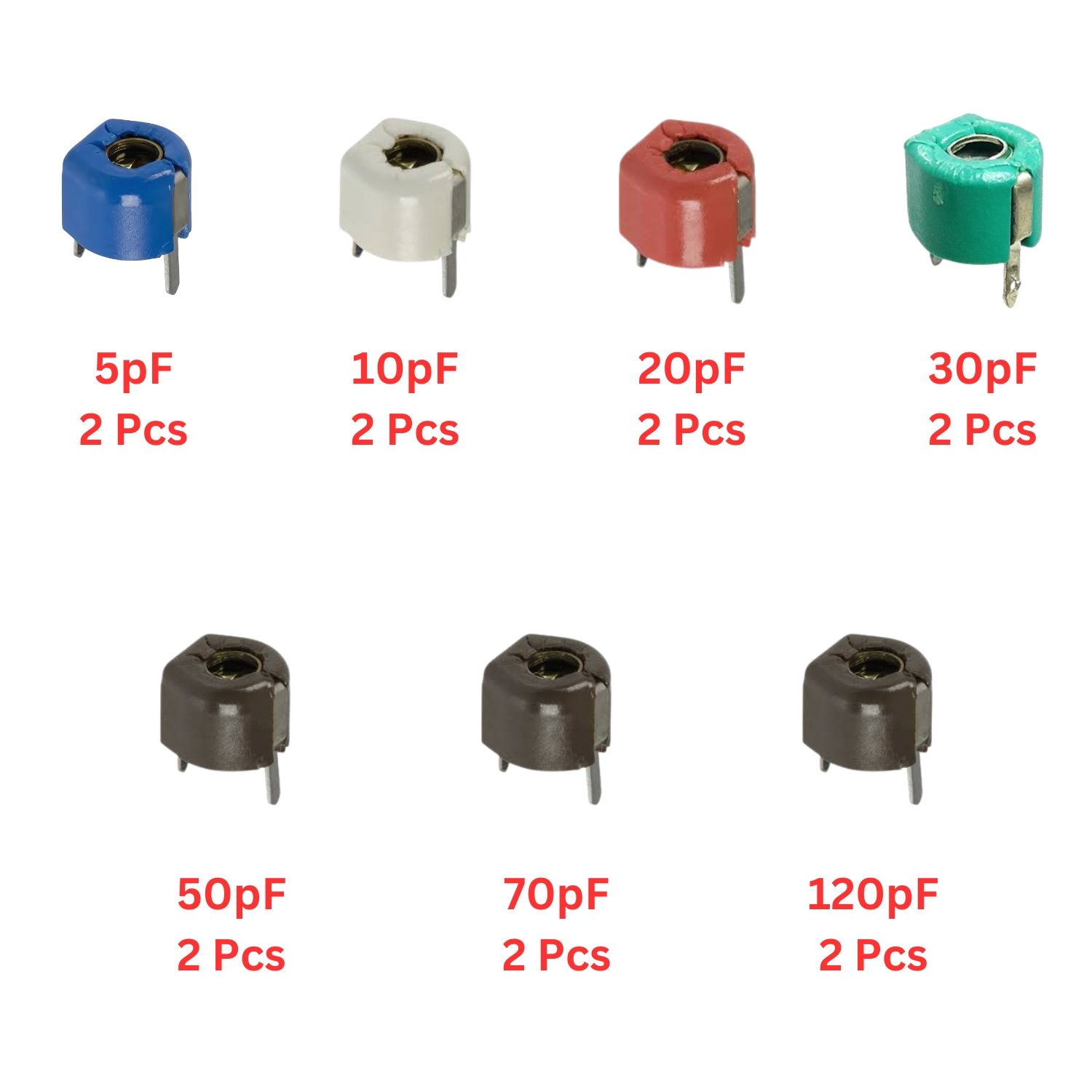

14 Variable Capacitor 7 Types
Features:
Applications:
A variable capacitor adjusts capacitance by changing the distance or overlap between its internal plates.
Yes, they are designed for RF and high-frequency circuits where precise capacitance control is needed.
No, variable capacitors are non-polarized, meaning they can be connected in any direction.
You can use a capacitance meter or LCR meter to measure its adjustable range.
A JML06 is adjustable, while a fixed capacitor has a constant capacitance value.
Use low-temperature soldering and avoid excessive heat to prevent damage.
Use a high-value resistor (e.g., 1MΩ) to slowly discharge it, avoiding short circuits that may damage the component.
It may break down or fail permanently, potentially short-circuiting the circuit.
Common failure modes include capacitance drift, internal short circuits, or dielectric breakdown.
This product is sold as a complete pack, but individual types may be available separately upon request.
