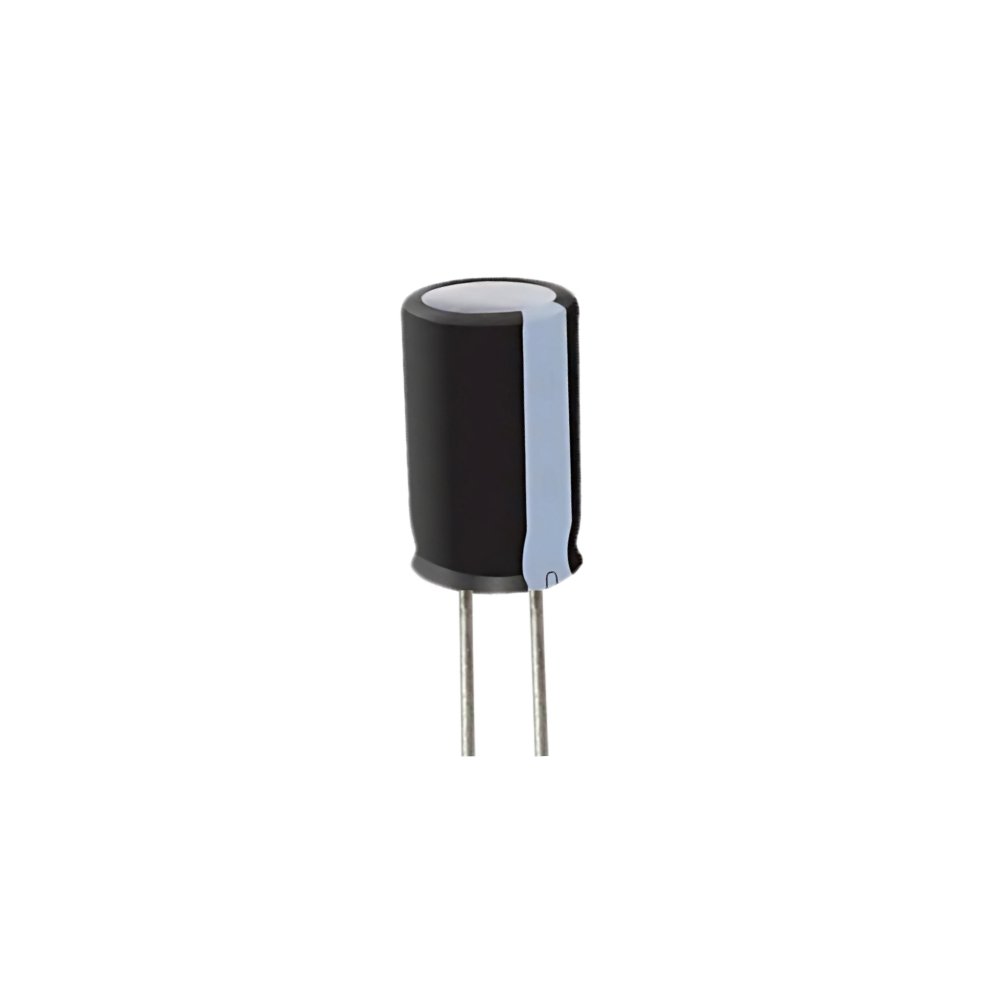

    Electrolytic Capacitor Pak 1µF to 2200µF 150 Pcs 11 Values

    SKU: EP11

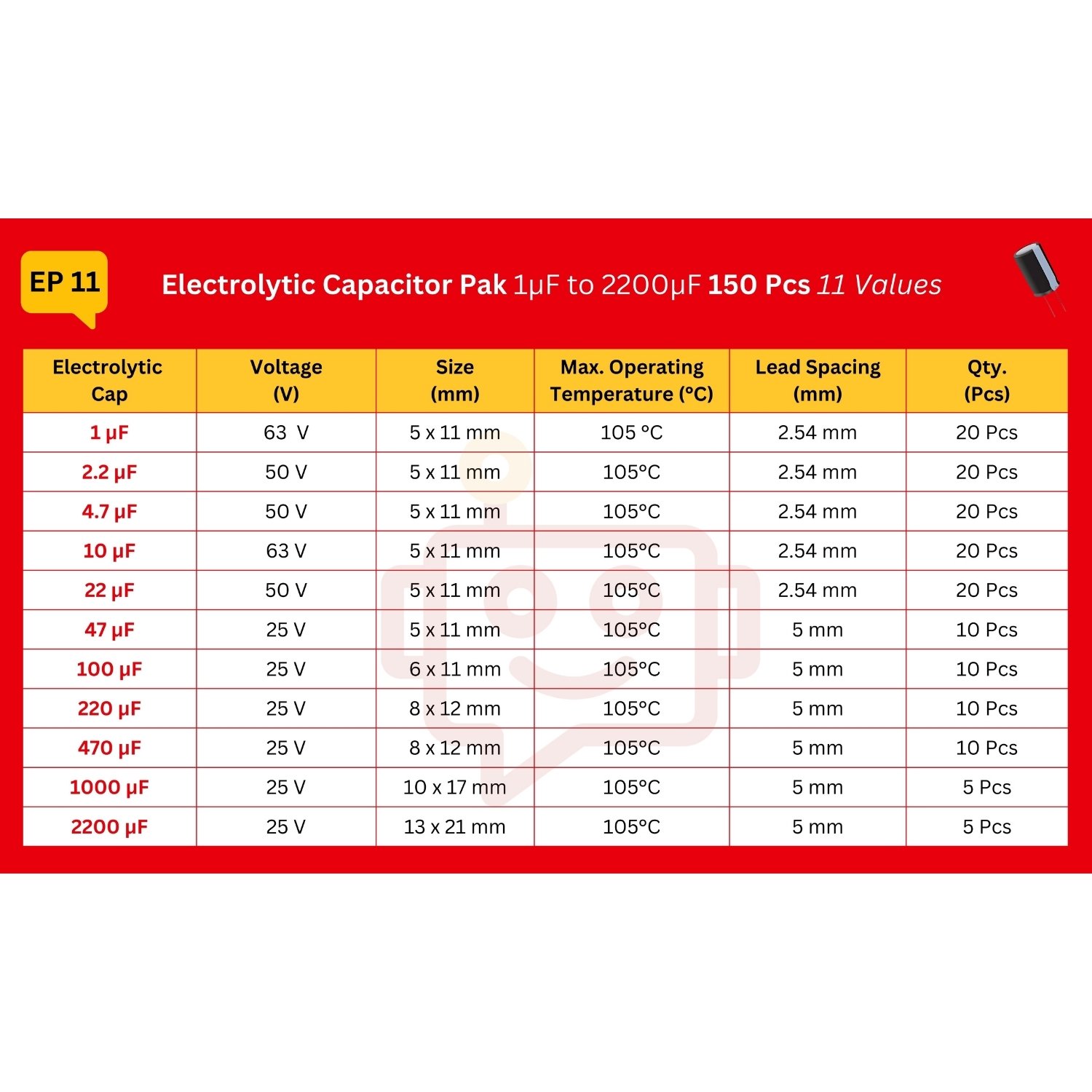

    Technical Specification:

    • Type: Through Hole
    • Model: Electrolytic Capacitor
    • Capacitance Range: 1 µF – 2200 µF
    • Voltage Rating: 25 V – 63 V
    • Lead Spacing: 2.54 mm – 5 mm

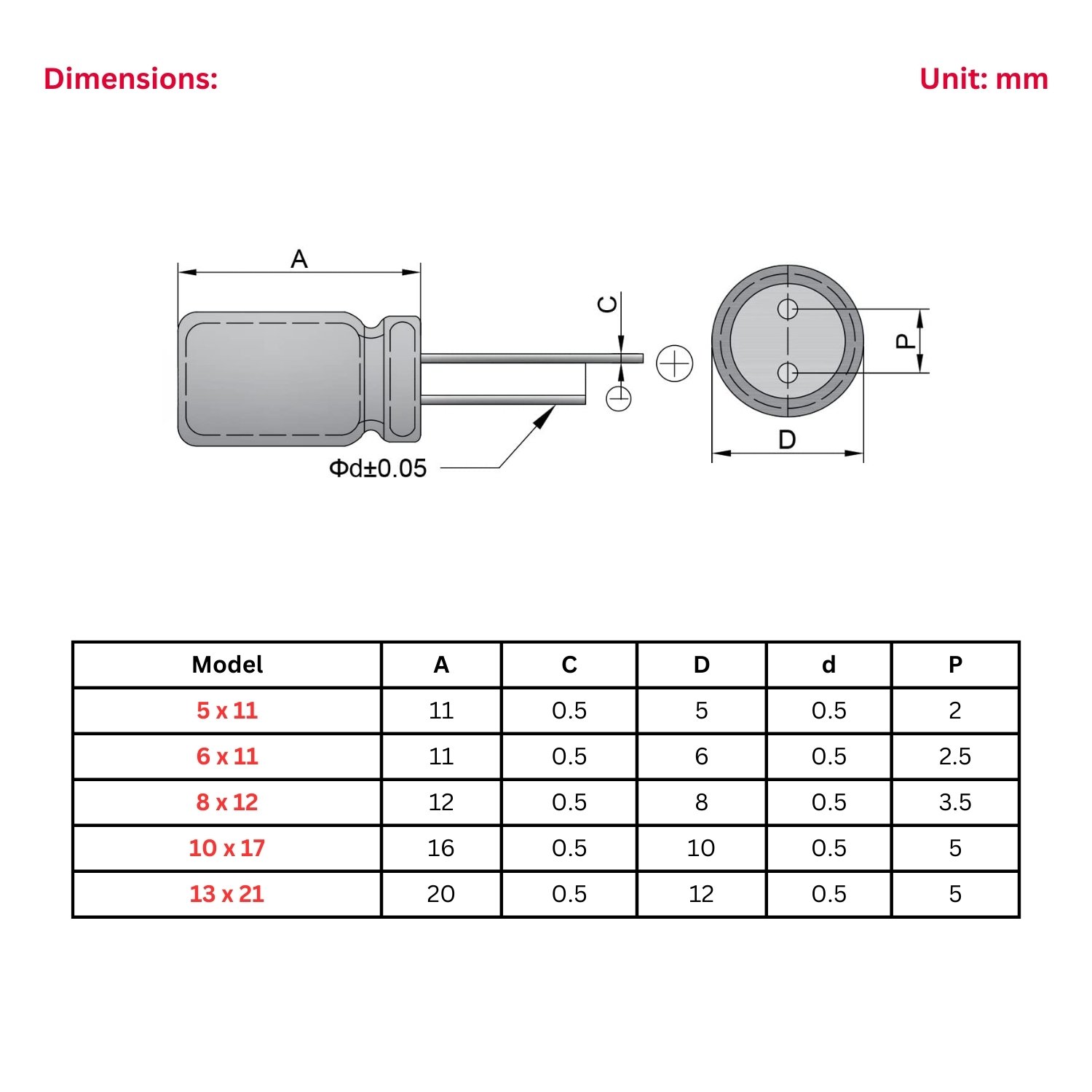

    • Size: 5×11, 6×11, 8×12, 10×17, 13×21 mm
    • Temperature Range: 105 °C
    • Pak Weight: 200 gm
    • Pak Dimensions: 150 x 100 x 35 mm

    ₹385.00

    Add to wishlist

    Description

    An electrolytic capacitor is a type of polarized capacitor that uses an electrolyte to achieve a larger capacitance value compared to other capacitor types.

    The 150 Electrolytic Capacitor Pack is a versatile assortment of 11 essential capacitance values commonly used in a wide range of electronic circuits. With values ranging from 1µF to 2200µF, this pack is perfect for hobbyists, students, technicians, and repair professionals. Whether you’re building power supplies, filtering signals, or repairing electronics, this organized assortment offers the most frequently used capacitor types, conveniently sorted for quick access.

    Capacitor Symbol:

    Electrolytic Cap Structure:

    Package Includes

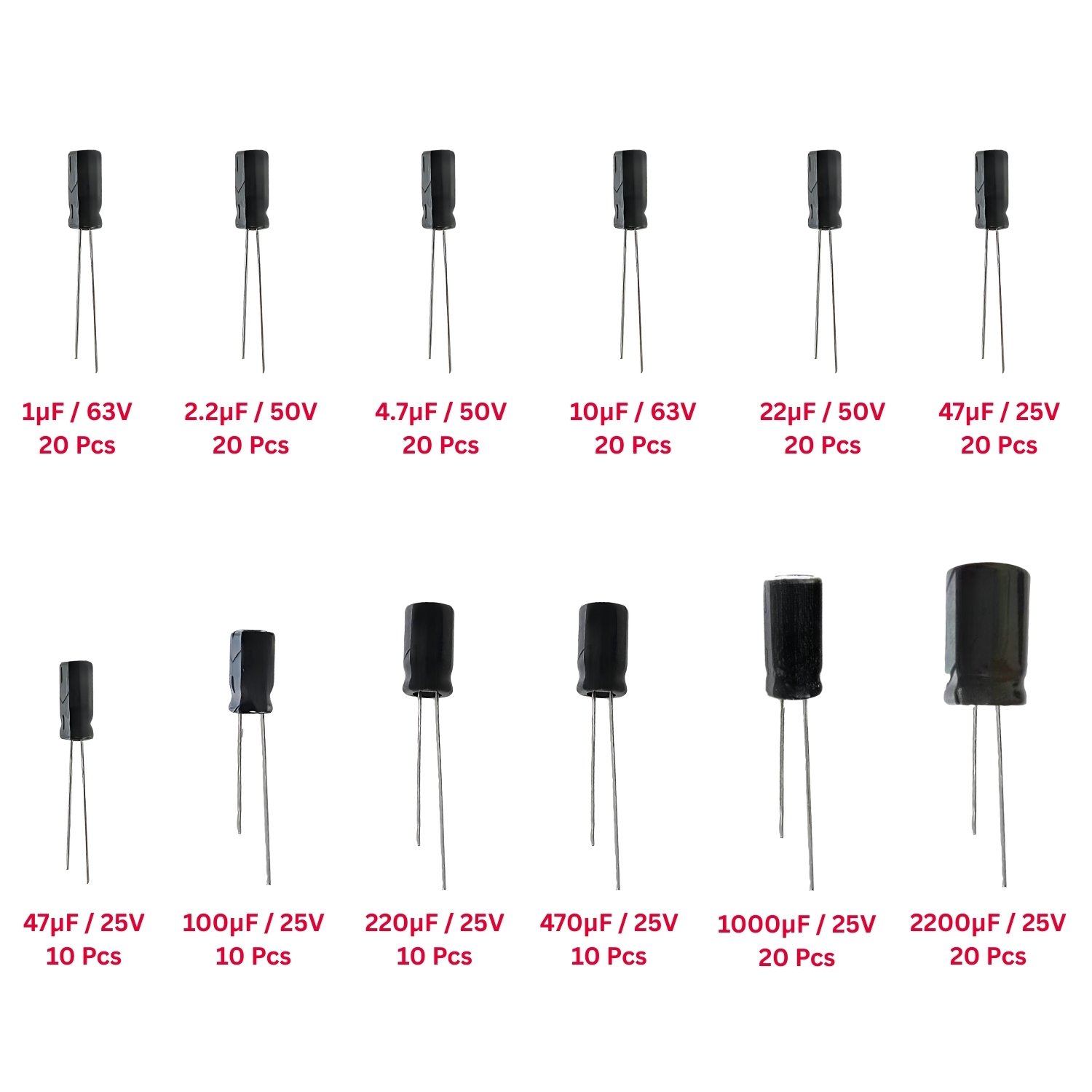

    150 Electrolytic Capacitor 11 Types

    • 1 µF / 63V – 20 Pcs
    • 2.2 µF / 50V – 20 Pcs
    • 4.7 µF / 50V – 20 Pcs
    • 10 µF / 63V – 20 Pcs
    • 22 µF / 50V – 20 Pcs
    • 47 µF / 25V – 10 Pcs
    • 100 µF / 25V – 10 Pcs
    • 220 µF / 25V – 10 Pcs
    • 470 µF / 25V – 10 Pcs
    • 1000 µF / 25V – 5 Pcs
    • 2200 µF / 25V – 5 Pcs

    Features:

    • Ideal for bulk energy storage and filtering
    • Clearly marked positive and negative leads for correct installation
    • High capacitance in a relatively small footprint
    • Commonly available from 6.3V to over 100V
    • Affordable and widely used in consumer and industrial electronics

    Applications:

    • Power Supply Filtering – Smooths out rectified DC by filtering voltage ripples
    • Energy Storage – Stores and releases energy in circuits like camera flashes or backup power
    • Coupling and Decoupling – Passes AC signals between stages while blocking DC, or isolates noise
    • Timing Circuits – Works with resistors in delay and timing applications (e.g., 555 timer circuits)
    • Voltage Smoothing – Maintains steady voltage levels in DC circuits and regulators
    1. What is the main use of an electrolytic capacitor?

    ⋙ Mainly used for filtering and energy storage in DC power supplies.

    2. Why are electrolytic capacitors polarized?

    ⋙ Because of their internal construction using an electrolyte and aluminum foil.

    3. How do I read the value codes on 3KV ceramic capacitors?

    ⋙ No, unless it’s a special non-polar type or used with proper orientation in specific configurations.

    4. What happens if I reverse the polarity of an electrolytic capacitor?

    ⋙ It may leak, bulge, or even explode due to internal damage.

    5. How do I identify the polarity of an electrolytic capacitor?

    ⋙ The negative lead is usually marked with a stripe on the body.

    6. Are the capacitors suitable for beginner electronics projects?

    ⋙ Yes, this pack is perfect for beginners, hobbyists, and repair work.

    7. Are these capacitors suitable for breadboard use?

    ⋙ Yes, the leads are long enough to be used on a breadboard.

    8. Can I use these capacitors in Arduino projects?

    ⋙ Absolutely, they are commonly used in Arduino and other microcontroller circuits.

    9. How can I test the condition of an electrolytic capacitor?

    ⋙ Use a multimeter with capacitance measurement capability or a dedicated capacitor tester.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
