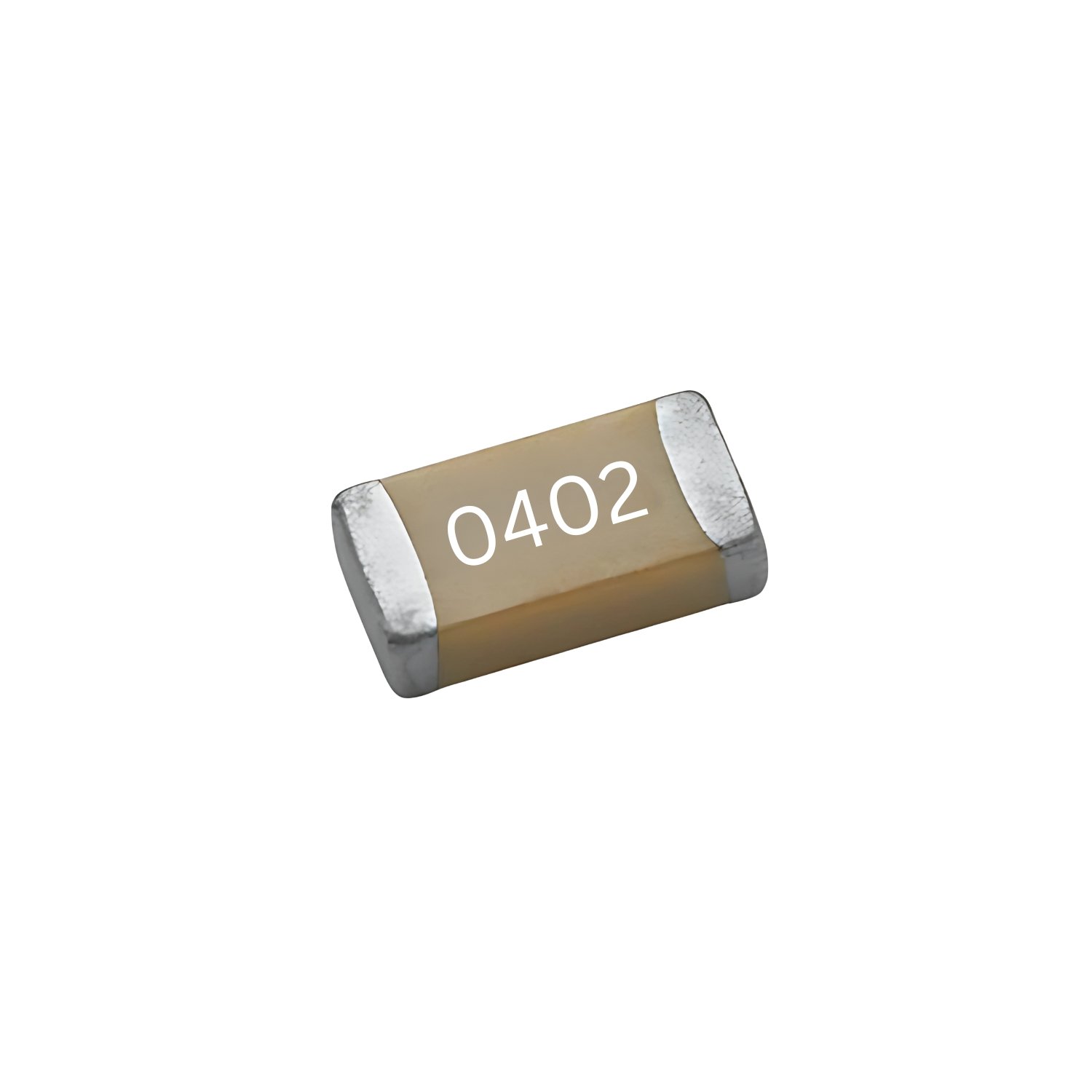

    SMD 0402 Capacitor Pak 1pF to 10µF 2500 Pcs 50 Values

    SKU: EP502

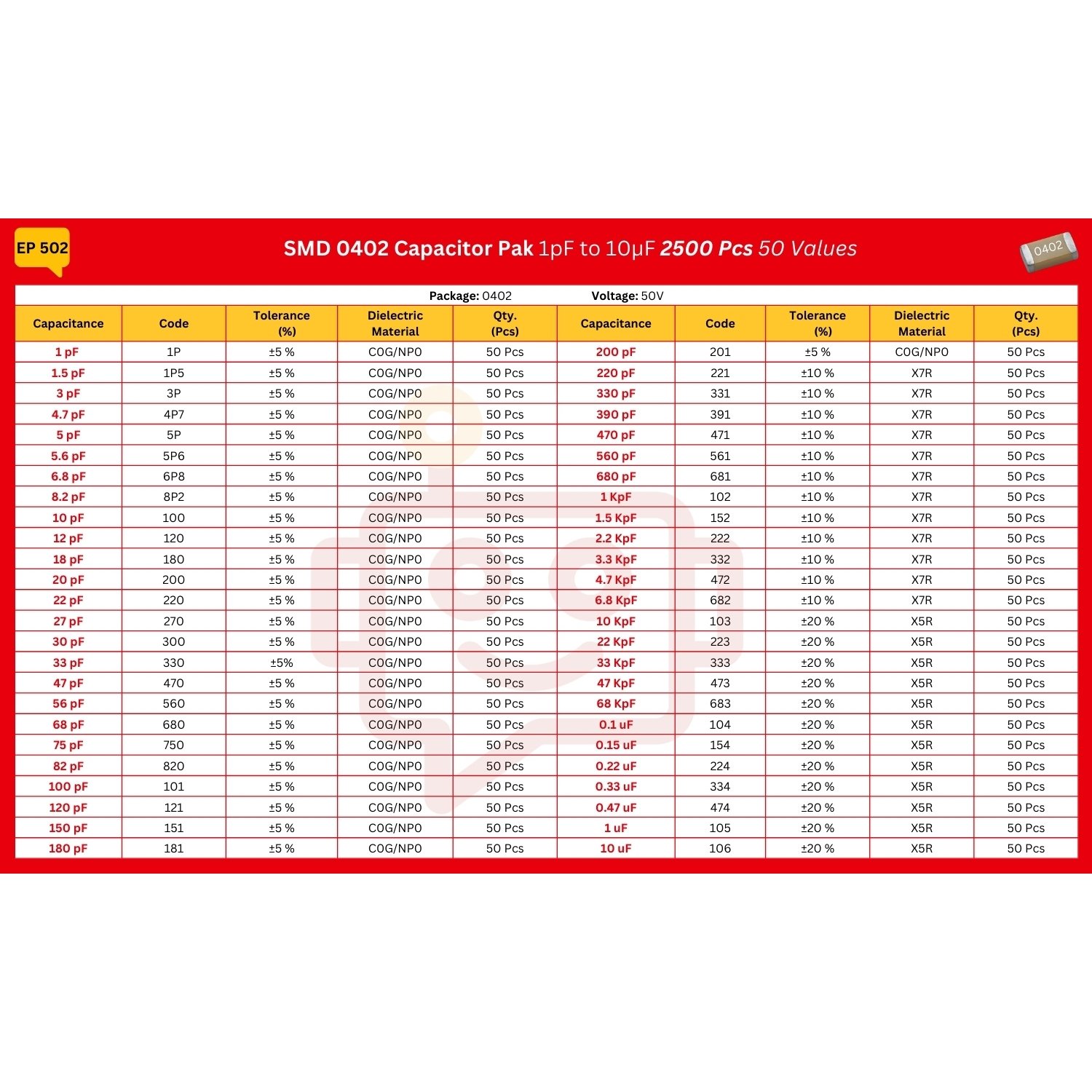

    Technical Specification:

    • Type: SMD
    • Model: 0402 Capacitor
    • Package Size: 0402
    • Capacitance Range: 1 pF – 10 µF
    • Tolerance:
      • ±5% for lower capacitance values
      • ±10% for mid-range capacitance values
      • ±20% for higher capacitance values
    • Voltage Rating: 50 V
    • Pak Weight: 105 gm
    • Pak Dimensions: 150 x 100 x 35 mm

    ₹880.00

    Add to wishlist

    Description

    The 0402 chip capacitor package is a miniature, surface-mount component widely used in modern electronic designs. Its small size allows for efficient use of space on densely packed circuit boards, making it a popular choice for compact and portable devices. The 0402 package is typically made from multi-layer ceramic material and offers high reliability in various electronic systems. Its compact form factor makes it suitable for mass production, and it is compatible with automated assembly processes.
    Due to its small footprint, the 0402 chip capacitor is often chosen for applications where space optimization is critical. This is a comprehensive assortment of SMD 0402 capacitors, consisting of 50 different capacitance values with a total of 2500 pieces. The capacitors come with a 50V voltage rating and varying tolerance level, making them suitable for a wide range of electronic applications.

    0402  Capacitor Symbol:

    0402 Capacitor Structure:

    Package Includes

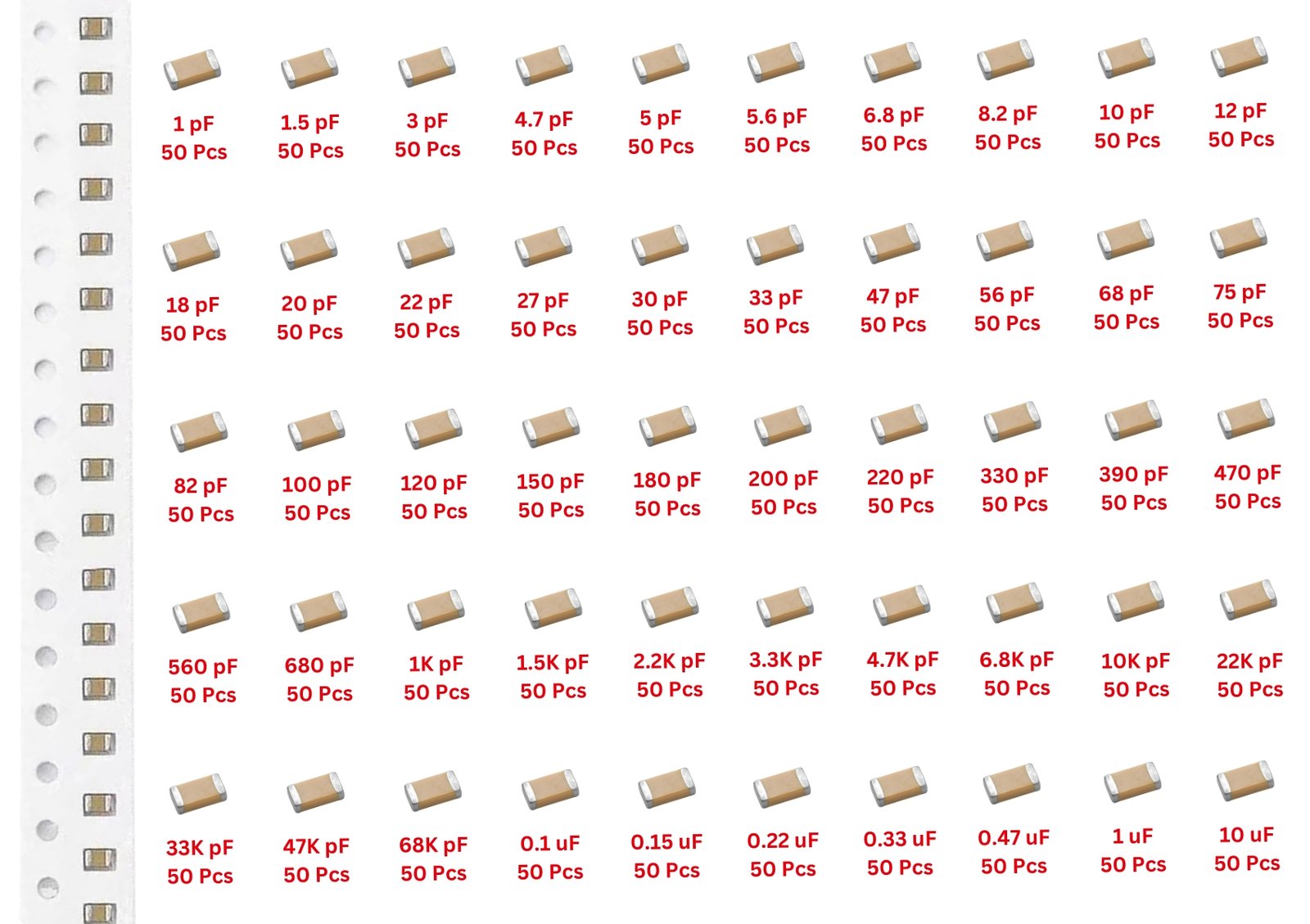

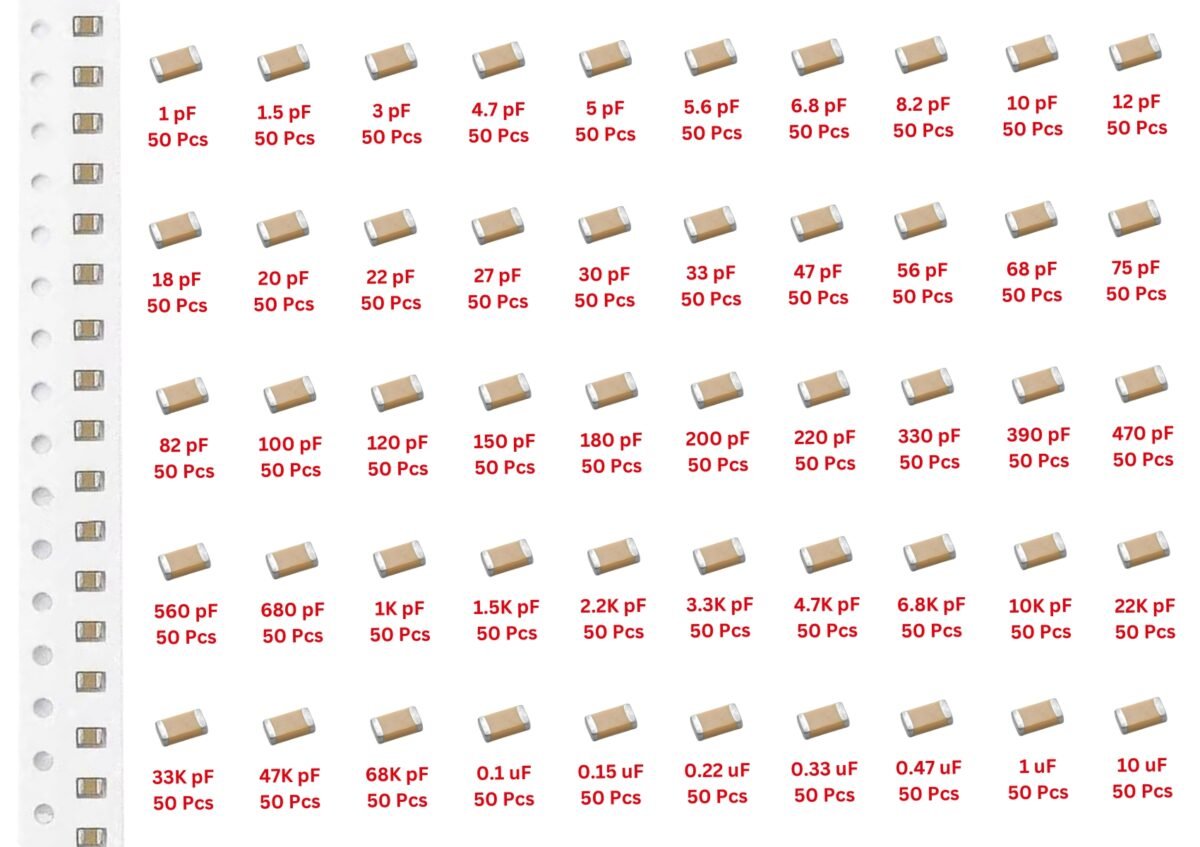

    2500 SMD 0402 Capacitor 50 Types

    • 1pF - 50 Pcs
    • 1.5pF - 50 Pcs
    • 3pF - 50 Pcs
    • 4.7pF - 50 Pcs
    • 5pF - 50 Pcs
    • 5.6pF - 50 Pcs
    • 6.8pF - 50 Pcs
    • 8.2pF - 50 Pcs
    • 10pF - 50 Pcs
    • 12pF - 50 Pcs
    • 18pF - 50 Pcs
    • 20pF - 50 Pcs
    • 22pF - 50 Pcs
    • 27pF - 50 Pcs
    • 30pF - 50 Pcs
    • 33pF - 50 Pcs
    • 47pF - 50 Pcs
    • 56pF - 50 Pcs
    • 68pF - 50 Pcs
    • 75pF - 50 Pcs
    • 82pF - 50 Pcs
    • 100pF - 50 Pcs
    • 120pF - 50 Pcs
    • 150pF - 50 Pcs
    • 180pF - 50 Pcs
    • 200pF - 50 Pcs
    • 220pF - 50 Pcs
    • 330pF - 50 Pcs
    • 390pF - 50 Pcs
    • 470pF - 50 Pcs
    • 560pF - 50 Pcs
    • 680pF - 50 Pcs
    • 1KpF (1nF) - 50 Pcs
    • 1.5KpF (1.5nF) - 50 Pcs
    • 2.2KpF (2.2nF) - 50 Pcs
    • 3.3KpF (3.3nF) - 50 Pcs
    • 4.7KpF (4.7nF) - 50 Pcs
    • 6.8KpF (6.8nF) - 50 Pcs
    • 10KpF (10nF) - 50 Pcs
    • 22KpF (22nF) - 50 Pcs
    • 33KpF (33nF) - 50 Pcs
    • 47KpF (47nF) - 50 Pcs
    • 68KpF (68nF) - 50 Pcs
    • 0.1uF (100nF) - 50 Pcs
    • 0.15uF (150nF) - 50 Pcs
    • 0.22uF (220nF) - 50 Pcs
    • 0.33uF (330nF) - 50 Pcs
    • 0.47uF (470nF) - 50 Pcs
    • 1uF (1000nF) - 50 Pcs
    • 10uF - 50 Pcs

    Features:

    • Compact 0402 size for high-density circuits
    • Wide capacitance range (1pF to 10µF)
    • High reliability and stable performance
    • Surface Mount Technology (SMT) for automated assembly
    • Low ESR & ESL for high-frequency applications
    • Versatile use in signal filtering, power decoupling, and RF circuits
    • Uniform 50V voltage rating for broad compatibility
    • Multiple tolerance options (±5%, ±10%, ±20%)
    • Cost-effective assortment for various needs
    • Ideal for prototyping, circuit design, and repairs

    Applications:

    • Power Supply Decoupling: Reduces noise and voltage fluctuations in circuits
    • Signal Filtering: Removes unwanted noise and stabilizes signals in communication systems
    • RF and Microwave Circuits: Ensures stable performance in high-frequency applications
    • Oscillators and Timing Circuits: Helps in maintaining precise signal timing
    • Coupling and Bypassing: Blocks DC components while allowing AC signals to pass
    • Consumer Electronics: Used in smartphones, laptops, and wearables for various functions
    • Automotive Electronics: Supports engine control units (ECUs) and sensor modules
    • Medical Devices: Provides stability in precision electronic instruments
    • Industrial Equipment: Used in automation, control systems, and embedded electronics
    • IoT and Smart Devices: Enhances performance in wireless communication modules
    1. Can these capacitors be used in high-frequency applications?

    ⋙ Yes, these capacitors have low ESR and ESL, making them suitable for high-frequency circuits and RF applications.

    2. Are these capacitors suitable for automated assembly?

    ⋙ Yes, they are designed for Surface Mount Technology (SMT), making them ideal for automated PCB assembly.

    3. What is the difference between SMD 0402 and other capacitor sizes?

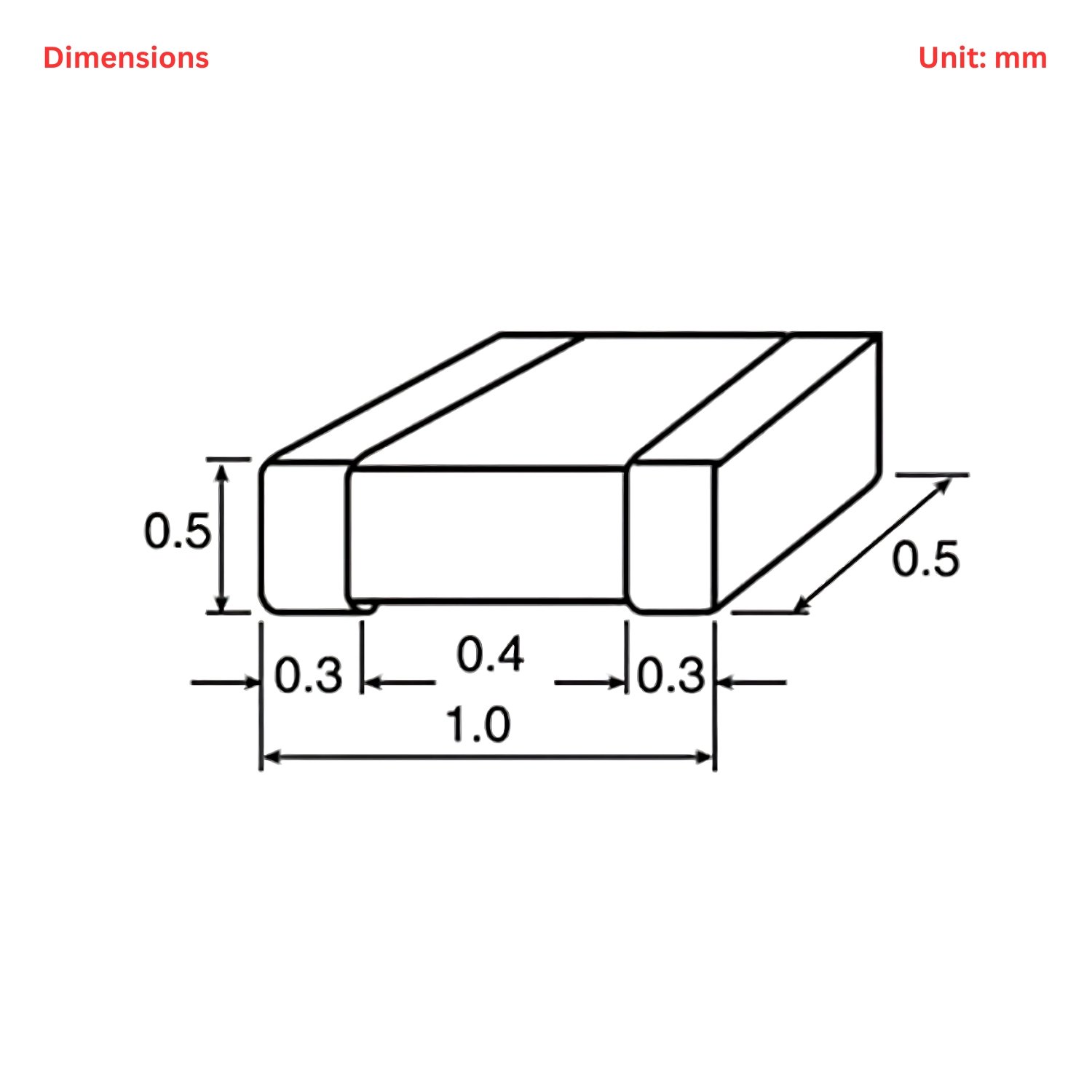

    ⋙ The 0402 package (0.4mm × 0.2mm) is smaller than 0603, 0805, and 1206, making it ideal for compact circuit designs.

    4. Are these capacitors polarized?

    ⋙ No, these are ceramic capacitors, which are non-polarized and can be placed in any orientation.

    5. Do these capacitors work with both AC and DC circuits?

    ⋙ Yes, they can be used in both AC and DC circuits, but their voltage rating should not be exceeded.

    6. How do I measure the capacitance of an SMD 0402 capacitor?

    ⋙ Use an LCR meter or a digital multimeter with a capacitance function, ensuring proper contact with the small terminals.

    7. What is the main difference between X7R, X5R, and C0G (NP0) capacitors?

    ⋙   X7R: Good stability, moderate capacitance change with temperature.

            X5R: Higher capacitance but less stable than X7R.

            C0G (NP0): Very stable, minimal capacitance change, best for precision circuits.

    8. Can these capacitors be used in analog filter circuits?

    ⋙ Yes, MLCC capacitors in the nF and µF range are widely used in low-pass, high-pass, and band-pass filters.

    9. Is this pack suitable for beginners in electronics?

    ⋙ Yes, this pack is great for hobbyists, students, and professionals who need a wide range of capacitors.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
