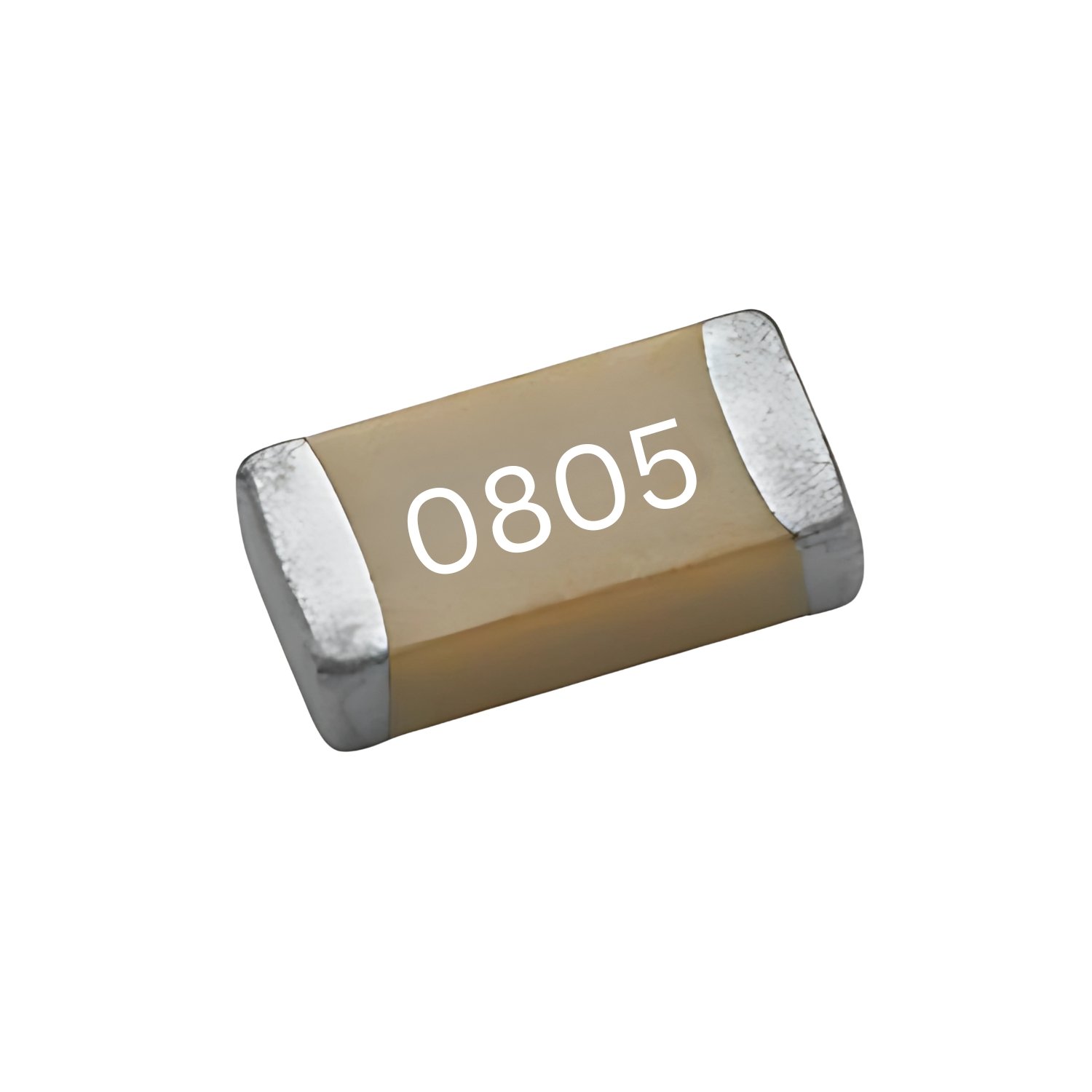

    SMD 0805 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

    SKU: EP504

    Technical Specification:

    • Type: SMD
    • Model: 0805 Capacitor
    • Package Type: 0805
    • Capacitance Range: 10 pF – 22 µF
    • Voltage Rating: 10 V
      • ±5% for high precision
      • ±10% for standard tolerance
      • ±20% for general-purpose use
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹465.00

    Add to wishlist

    Description

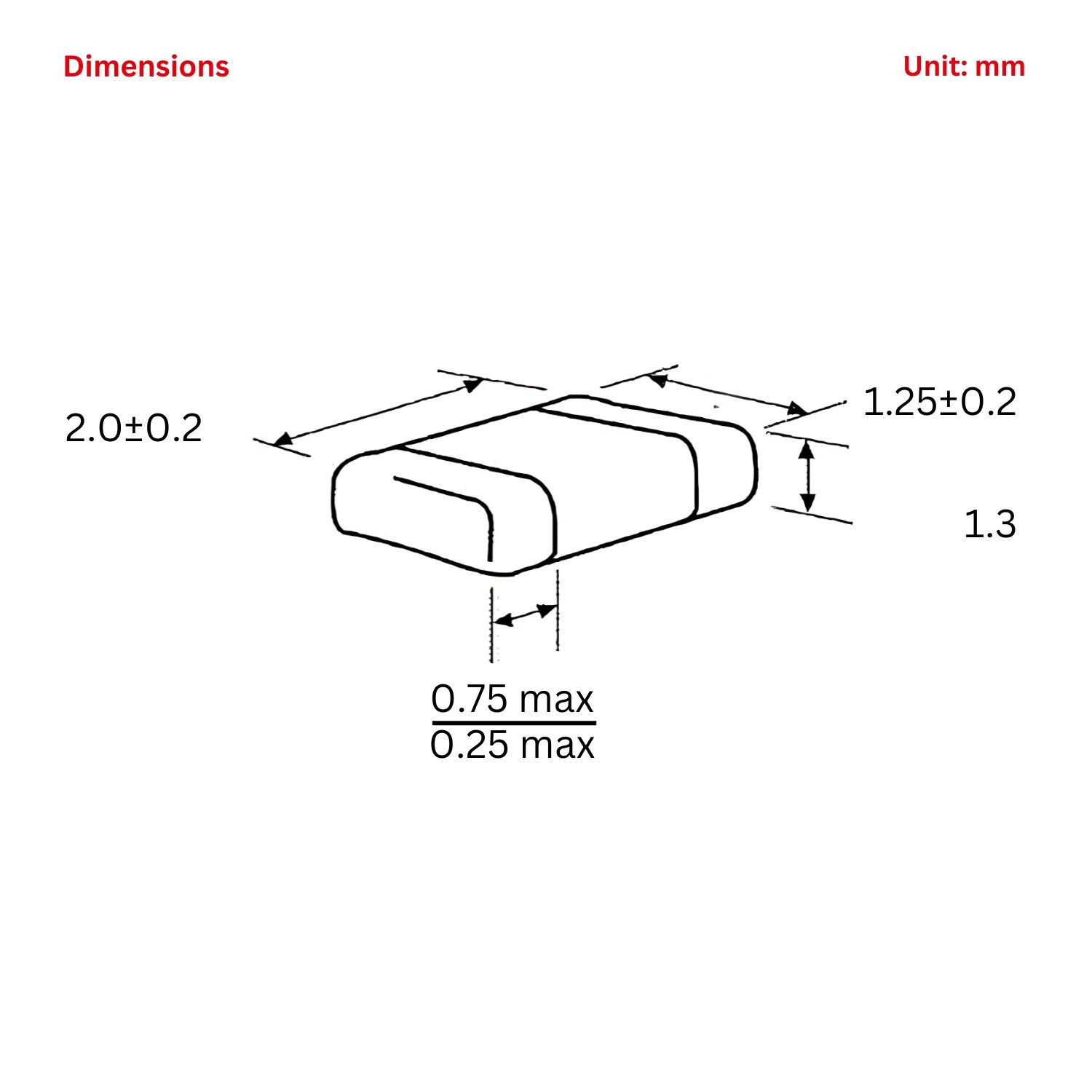

    SMD 0805 Capacitors are small-sized surface-mount devices (SMD) with a package size of 0805, which is approximately 2.0mm x 1.25mm. They are widely used in electronic circuits for various purposes, such as decoupling, filtering, signal processing, and energy storage. These capacitors are typically made from ceramic materials and are commonly found in a wide range of consumer electronics, automotive electronics, telecommunications, and industrial devices.This 280-piece SMD 0805 capacitor assortment includes 16 different capacitance values with varying voltage ratings, making it an ideal selection for electronics prototyping, repair, and circuit design.

    0805 Capacitor Symbol:

    0805 Capacitor Structure:

    Package Includes

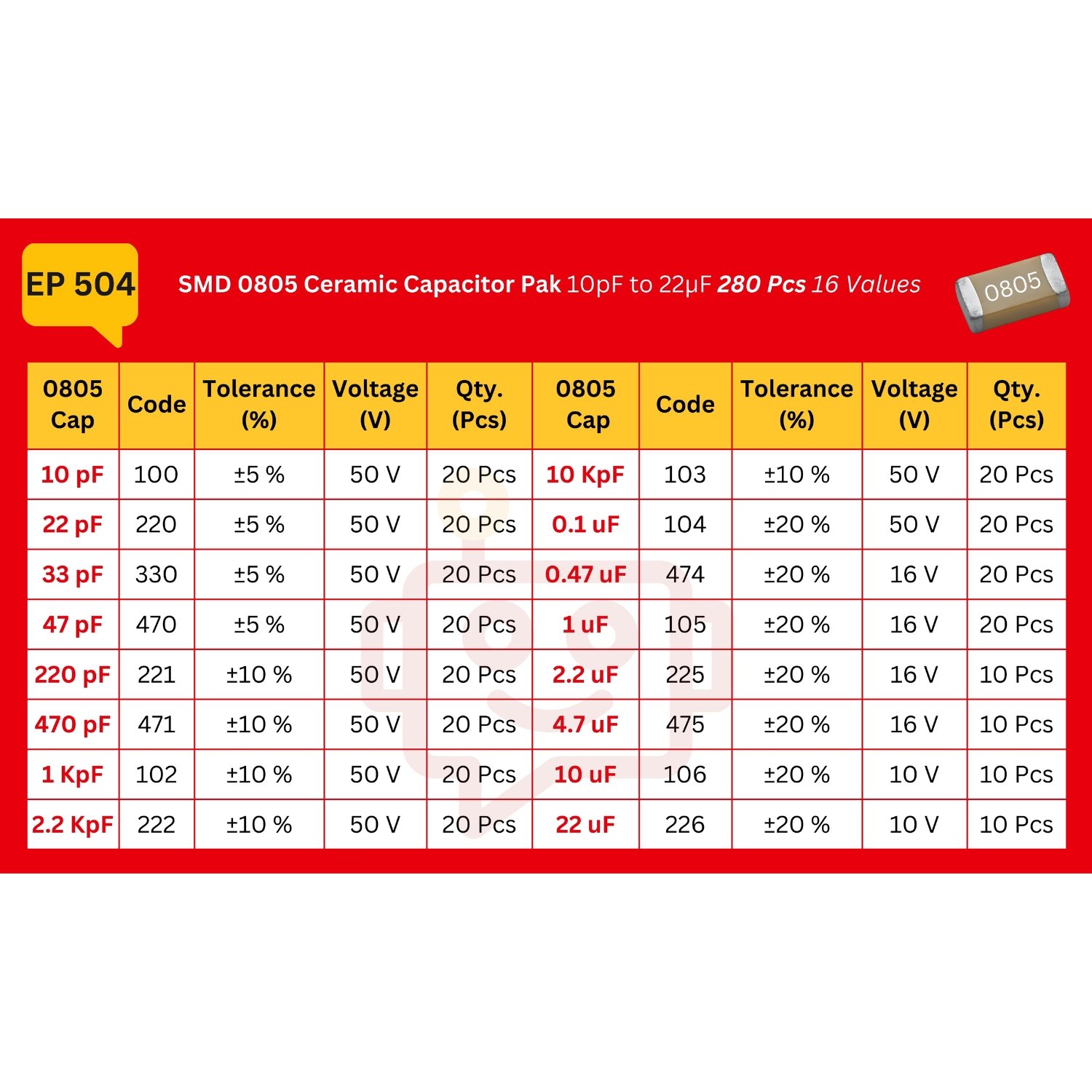

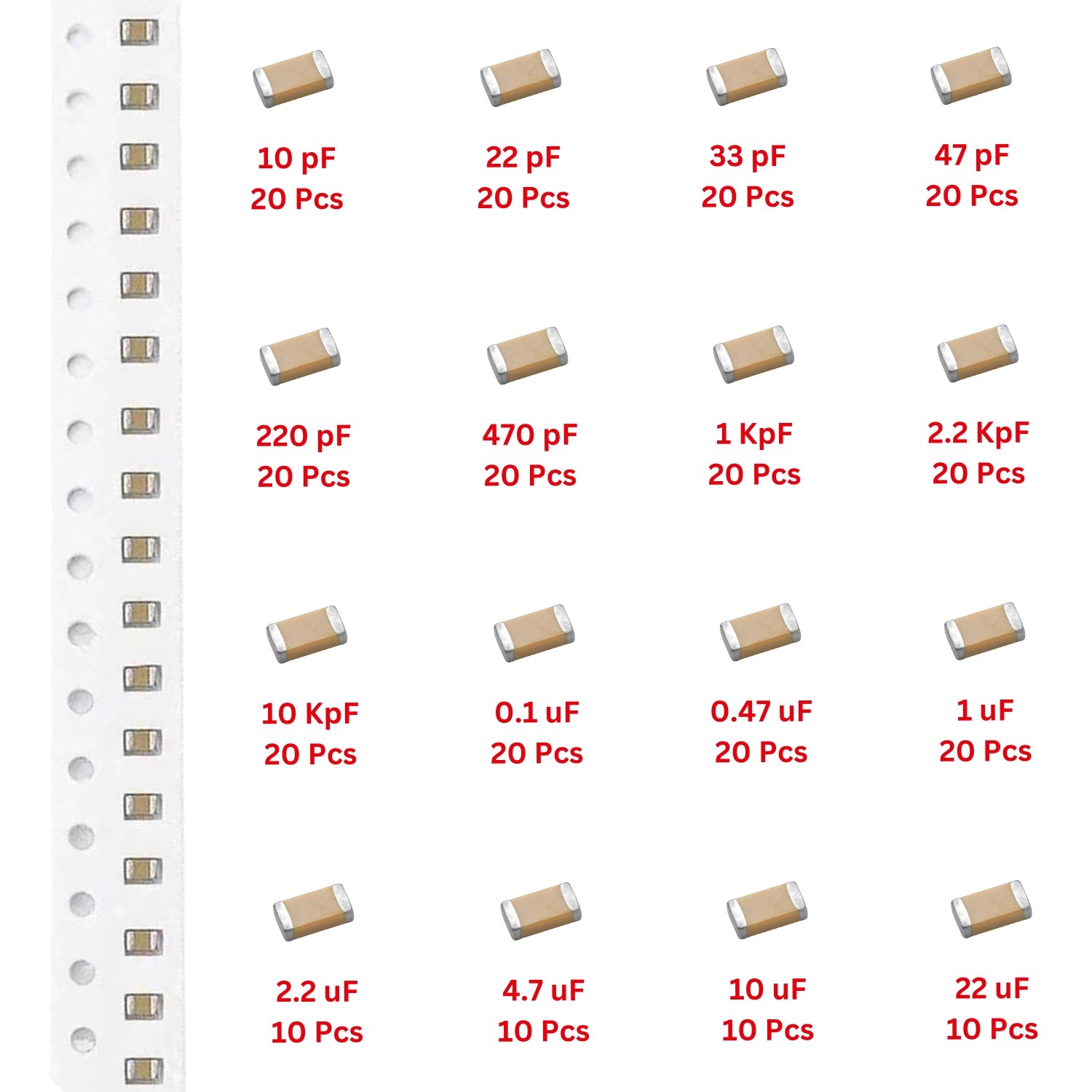

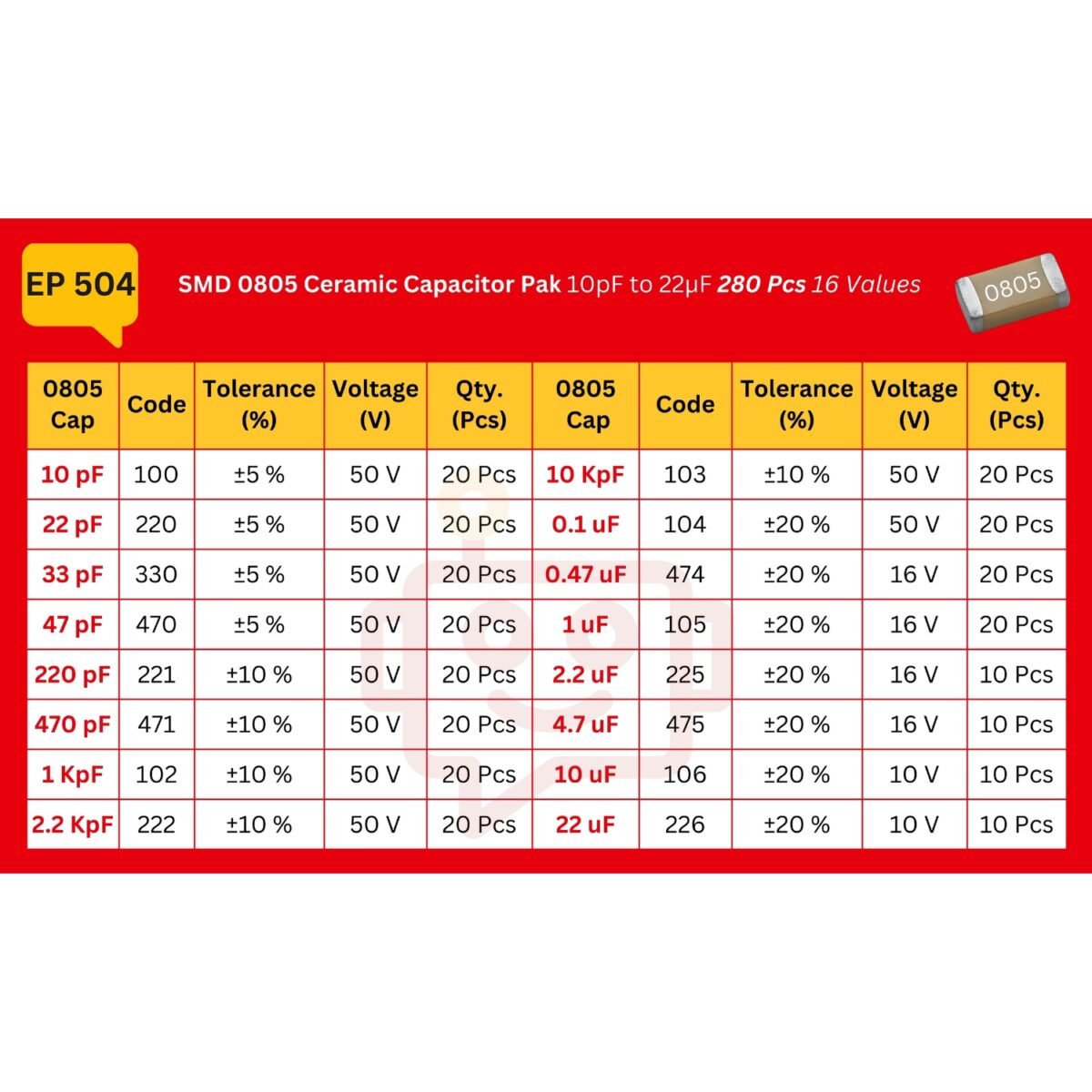

    280 SMD 0805 Capacitor 16 Types

    • 10pF - 20 Pcs
    • 22pF - 20 Pcs
    • 33pF - 20 Pcs
    • 47pF - 20 Pcs
    • 220pF - 20 Pcs
    • 470pF - 20 Pcs
    • 1nF (102K) - 20 Pcs
    • 2nF (222K) - 20 Pcs
    • 10nF (103K) - 20 Pcs
    • 1µF (104M) - 20 Pcs
    • 47µF (474M) - 20 Pcs
    • 1µF (105M) - 20 Pcs
    • 2µF (225M) - 10 Pcs
    • 7µF (475M) - 10 Pcs
    • 10µF (106M) - 10 Pcs
    • 22µF (226M) - 10 Pcs

    Features:

    • Wide Capacitance & Voltage
    • Compact 0805 SMD Package
    • Low ESR & High Stability
    • SMT Assembly Compatible
    • Pre-Sorted & Organized

    Applications:

    • Power Supply Filtering - Reduces noise and stabilizes voltage
    • Decoupling & Bypassing - Prevents signal interference in circuits
    • RF & High-Frequency Circuits - Used in oscillators and communication devices
    • Signal Coupling & Blocking - Passes AC signals while blocking DC components
    • Embedded Systems & Microcontrollers - Ensures stable operation in digital circuits
    1. Can I use these for Arduino projects?

    ⋙ Yes, they are perfect for Arduino, Raspberry Pi, and other embedded system applications.

    2. Do these capacitors have polarity like electrolytic capacitors?

    ⋙ No, ceramic capacitors are non-polarized and can be placed in any direction.

    3. What is the main advantage of SMD capacitors over through-hole capacitors?

    ⋙ SMD capacitors save space, support automated assembly, and improve high-frequency performance.

    4. Are these capacitors polarized?

    ⋙ No, these are ceramic capacitors, which are non-polarized and can be placed in any orientation.

    5. Can I stack multiple capacitors to increase capacitance?

    ⋙ Yes, you can connect capacitors in parallel to increase capacitance and in series to increase voltage rating.

    6. How can I test the capacitance of a capacitor?

    ⋙ You can use a multimeter with capacitance measurement or an LCR meter to test the capacitance.

    7. How do I choose the right capacitor value for my circuit?

    ⋙ Yes, ceramic capacitors typically have a stable performance over a wide range of temperatures.

    8. Are these capacitors compatible with all PCB designs?

    ⋙ Select based on capacitance, voltage rating, and application (filtering, coupling, timing, etc.).

    9. How are the capacitors packaged and organized?

    ⋙ They are pre-sorted and labelled for easy identification, making component selection faster and more efficient.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
