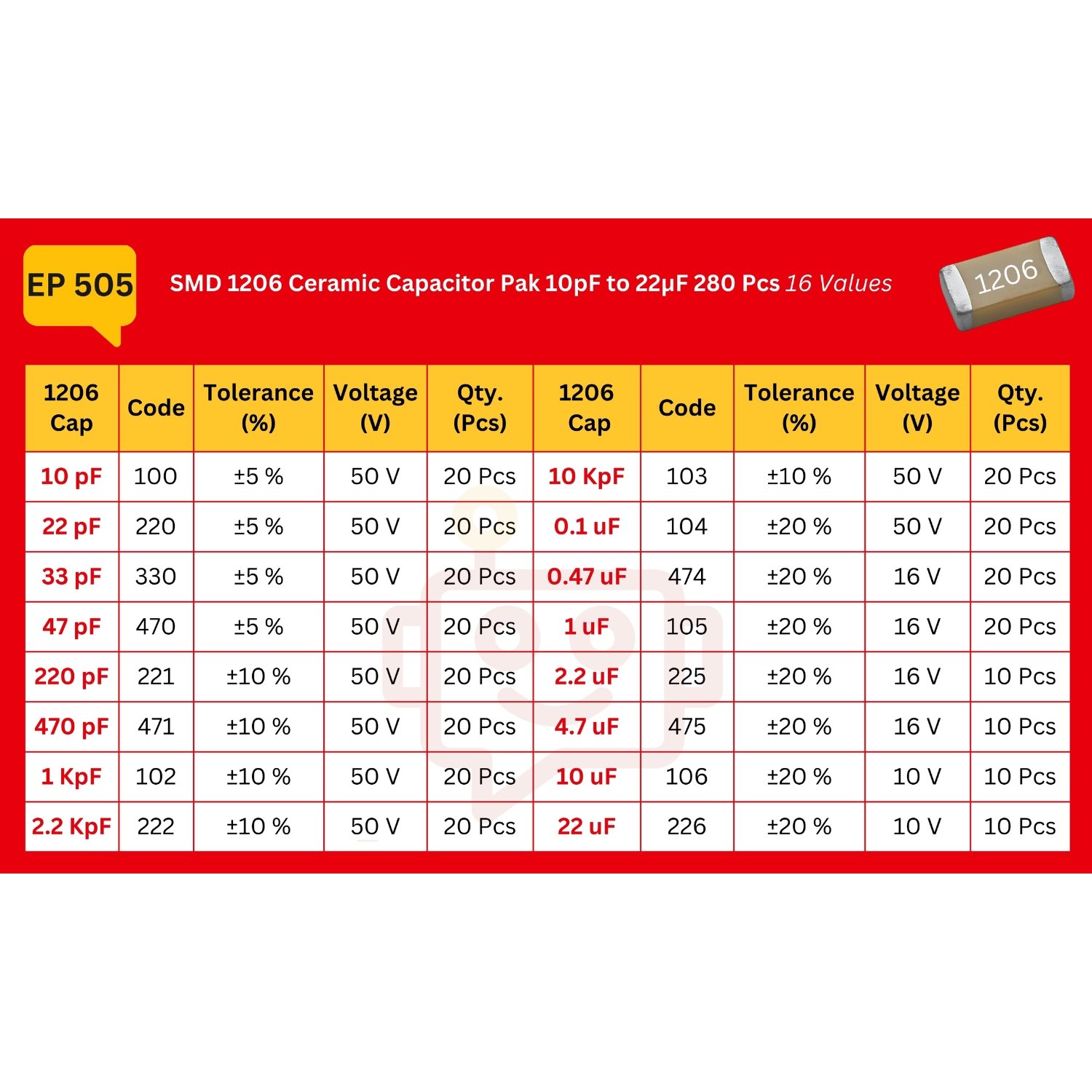

    SMD_1206_Capacitor_Spec_Table

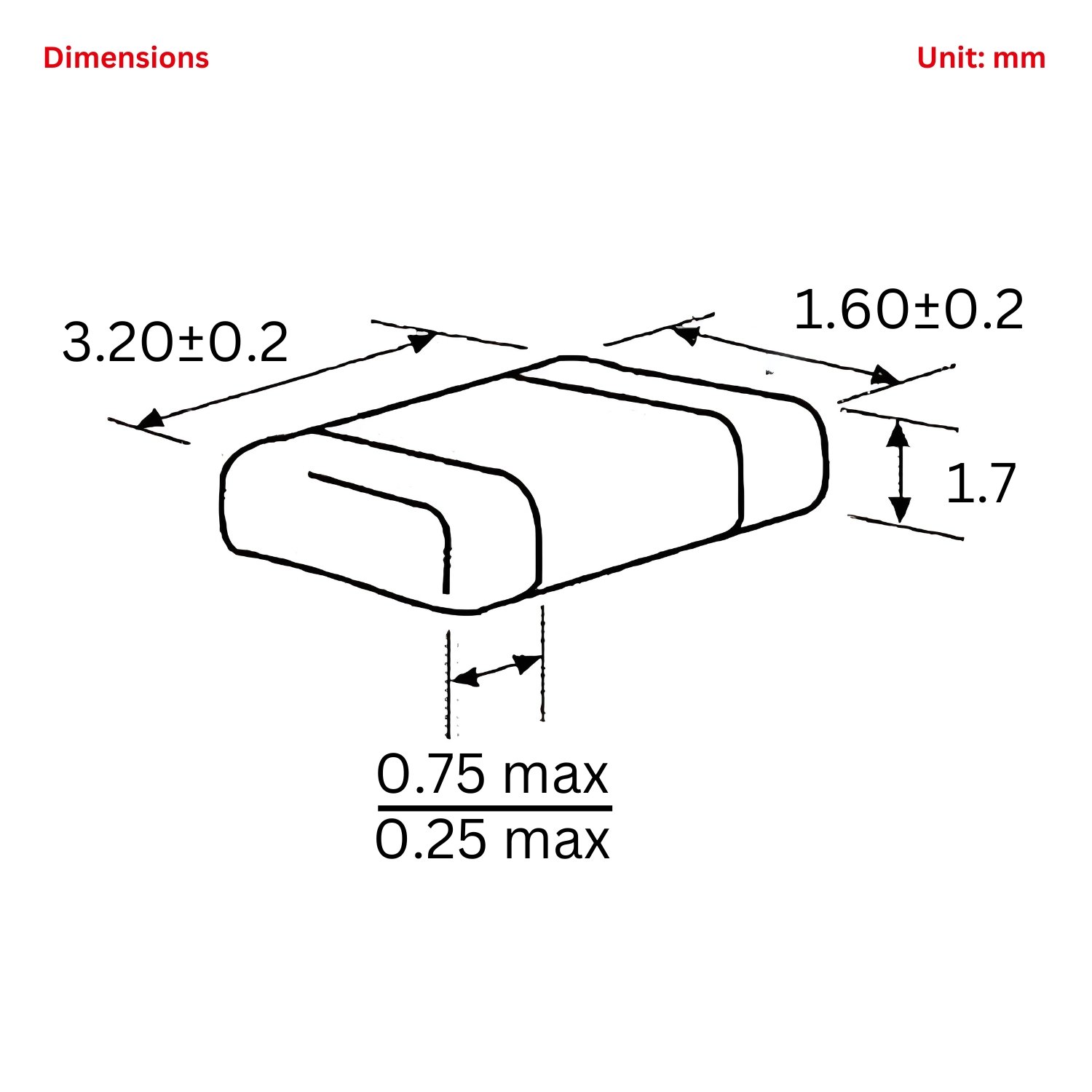

    SMD_1206_Capacitor_Dimensions

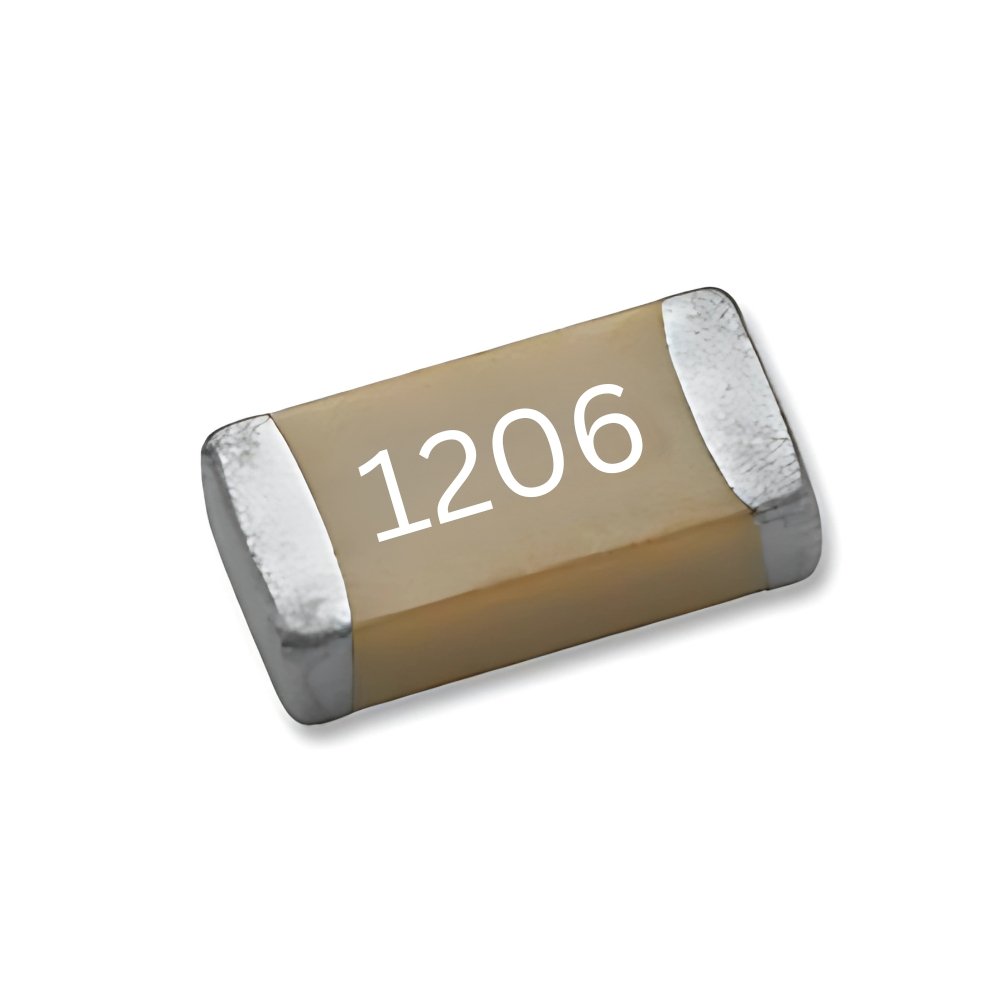

    SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

    SKU: EP505

    Technical Specification:

    • Type: SMD
    • Model: 0805 Capacitor
    • Package Type: 0805
    • Capacitance Range: 10 pF – 22 µF
    • Voltage Ratings: 10 V,16 V, 50 V
    • Tolerance:
      • ±5% for high precision
      • ±10% for standard tolerance
      • ±20% for general-purpose use
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹565.00

    Add to wishlist

    Description

    SMD 1206 capacitors are surface-mount ceramic capacitors designed for compact electronic circuits. The 1206 package (3.2mm × 1.6mm) is a widely used industry standard in PCB design, offering a balance between size, capacitance range, and voltage handling.

    This SMD 1206 Capacitor Value Pack is a comprehensive assortment of 280 capacitors covering a wide range of values from 10pF to 22µF. Designed for electronics hobbyists, engineers, and professionals, this kit ensures you have the right capacitor for various circuit applications, including signal filtering, decoupling, and power management.

    1206 Capacitor Symbol:

    1206 Capacitor Structure:

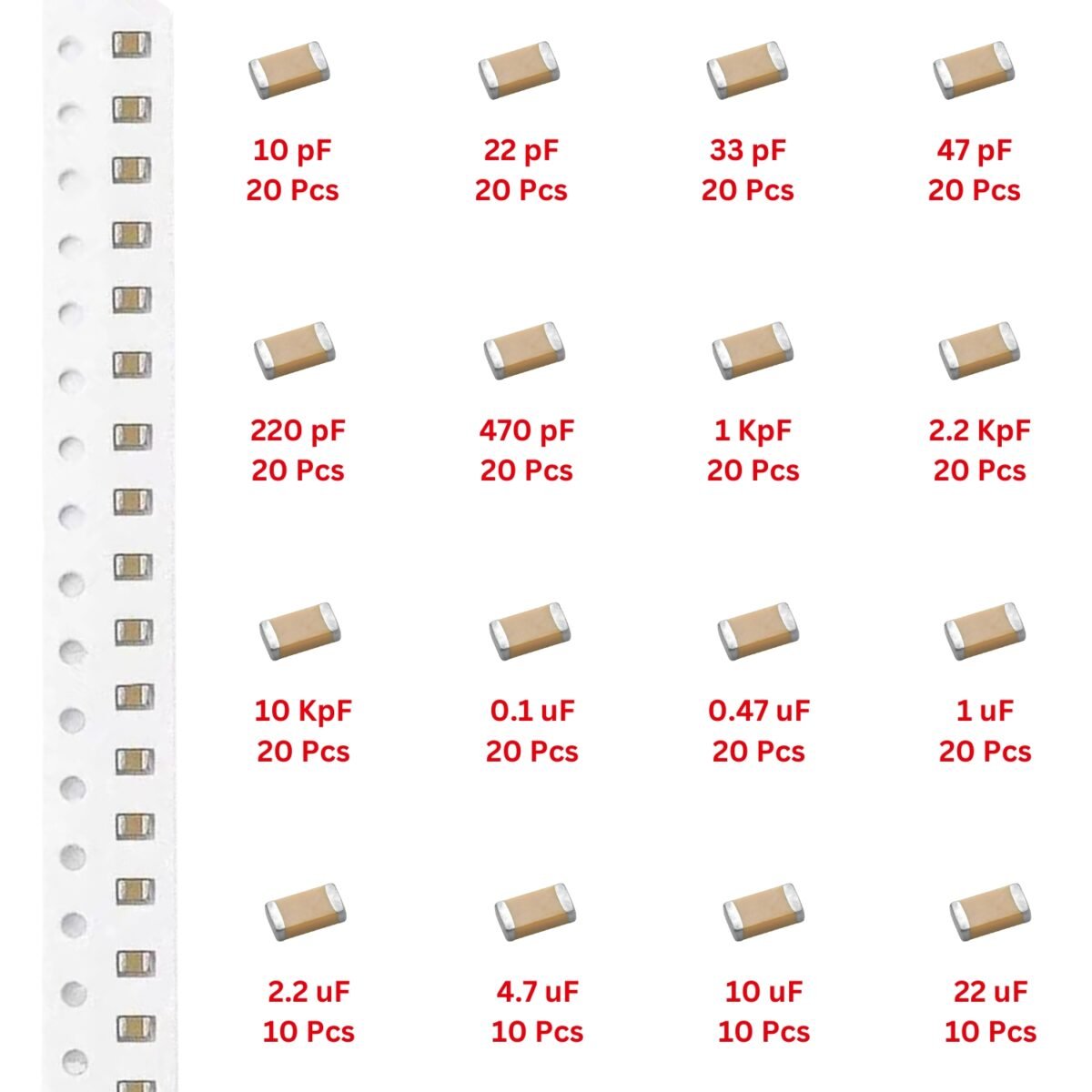

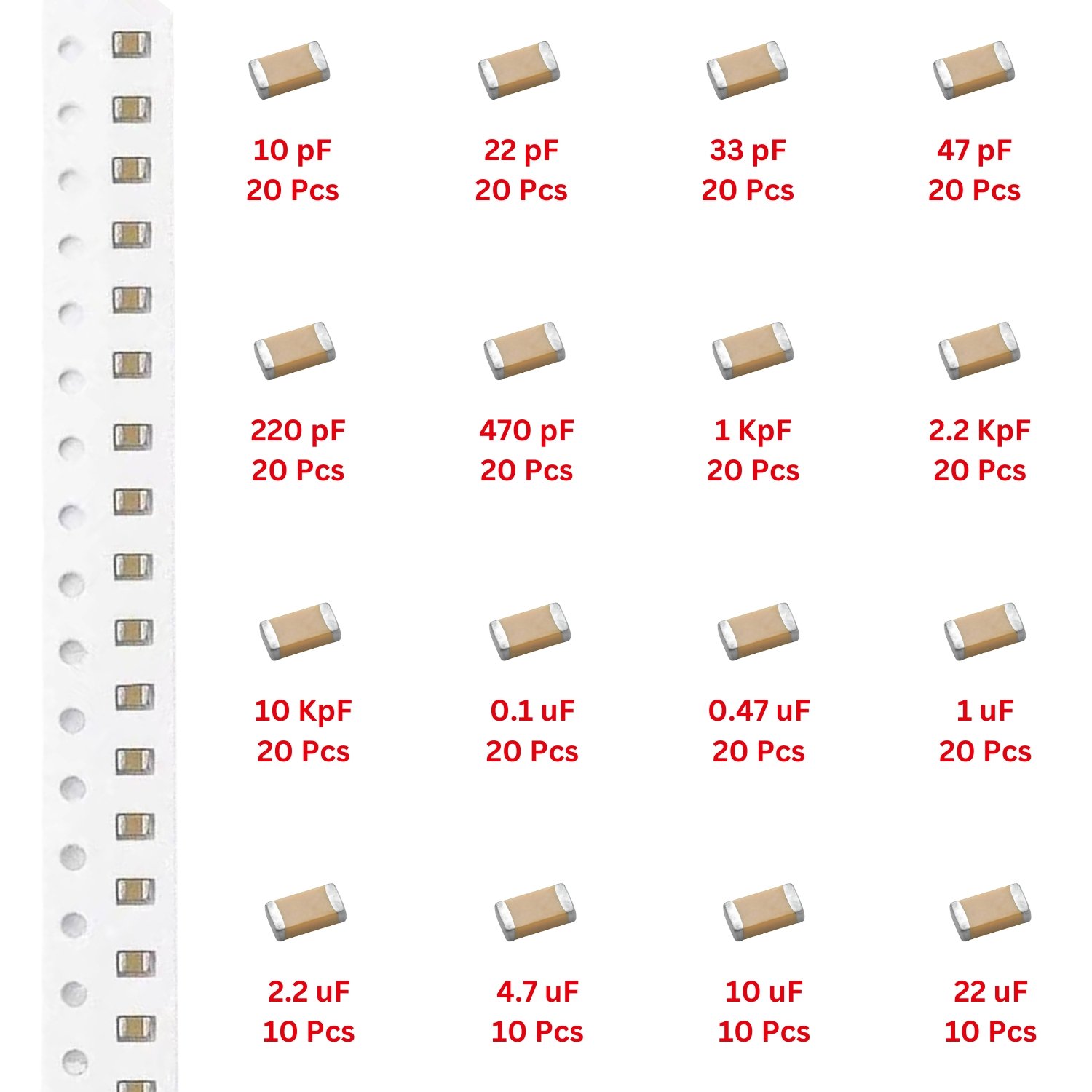

    Package Includes

    280 SMD 1206 Capacitor 16 Types

    • 10pF - 20 Pcs
    • 22pF - 20 Pcs
    • 33pF - 20 Pcs
    • 47pF - 20 Pcs
    • 220pF - 20 Pcs
    • 470pF - 20 Pcs
    • 1nF (102K) - 20 Pcs
    • 2nF (222K) - 20 Pcs
    • 10nF (103K) - 20 Pcs
    • 1µF (104M) - 20 Pcs
    • 47µF (474M) - 20 Pcs
    • 1µF (105M) - 20 Pcs
    • 2µF (225M) - 10 Pcs
    • 7µF (475M) - 10 Pcs
    • 10µF (106M) - 10 Pcs
    • 22µF (226M) - 10 Pcs

    Features:

    • Compact size
    • High reliability and durability
    • Wide capacitance range
    • Good voltage handling
    • Low ESR & ESL (reduces power loss and noise)
    • Supports automated SMT assembly
    • Excellent thermal stability
    • Versatile applications (decoupling, filtering, signal processing)

    Applications:

    • Power Supply Decoupling - Stabilizes voltage and reduces noise in circuits
    • Signal Filtering - Removes unwanted high-frequency interference
    • Timing Circuits - Helps set frequency in oscillators and timers
    • Energy Storage - Temporarily holds charge for power regulation
    • Consumer Electronics - Used in smartphones, laptops, and wearable
    1. Can I use these capacitors in both AC and DC circuits?

    ⋙ Yes, these capacitors can be used in both AC and DC circuits, but their performance is optimized for specific applications.

    2. What is the difference between 1206 and 0805 capacitors?

    ⋙ 1206 is larger and handles higher power, while 0805 is smaller with lower ratings.

    3. How do I know which capacitor to use for my circuit?

    ⋙ Choose based on capacitance, voltage rating, and tolerance for your specific application needs.

    4. Are 1206 capacitors polarized?

    ⋙ No, these are ceramic capacitors, which are non-polarized and can be placed in any orientation.

    5. Can I use multiple 1206 capacitors in parallel?

    ⋙ Yes, it increases capacitance and reduces ESR for better power filtering.

    6. Why are 1206 capacitors widely used in PCB design?

    ⋙ They offer a balance between size, capacitance, and ease of handling for automated assembly.

    7. How do I measure the capacitance of a 1206 capacitor?

    ⋙ Yes, ceramic capacitors typically have a stable performance over a wide range of temperatures.

    8. Are these capacitors compatible with all PCB designs?

    ⋙ Use an LCR meter or a digital multimeter with capacitance mode.

    9. Are the capacitors labelled clearly in the pack?

    ⋙ Yes, each capacitor is clearly marked with its value (in pF, nF, or uF) and voltage rating.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
