2KV HV Ceramic Disc Capacitor Pak 22pF to 10KpF 60 Pcs 12 Values

SKU: EP9

Type: Through Hole

Model: HV Ceramic Cap

Capacitance Range: 22 pF to 10 nF

Voltage Rating: 2 KV

Tolerance: ±10 %

₹375.00

Add to wishlist

Description

The 2KV Ceramic Disc Capacitor is designed for high-voltage electronic circuits where stability, reliability, and safety are essential. This assortment pack includes 60 pieces of 2KV-rated ceramic disc capacitors, perfect for high-voltage applications in electronics projects, repairs, or prototyping. Each capacitor is clearly marked and sorted for easy identification and use.

Symbol:

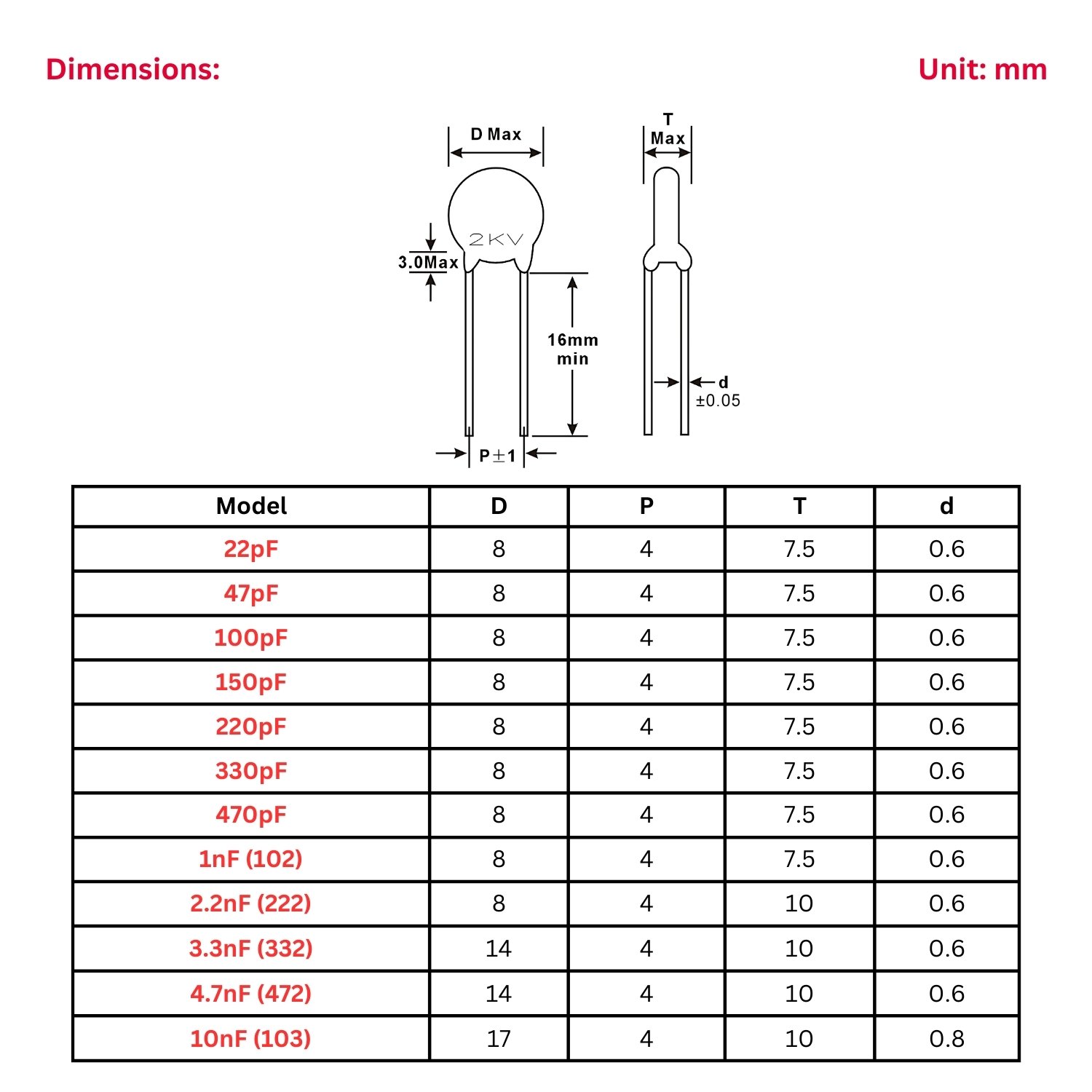

2KV Ceramic Cap Structure:

2KV Ceramic Cap Part Code:

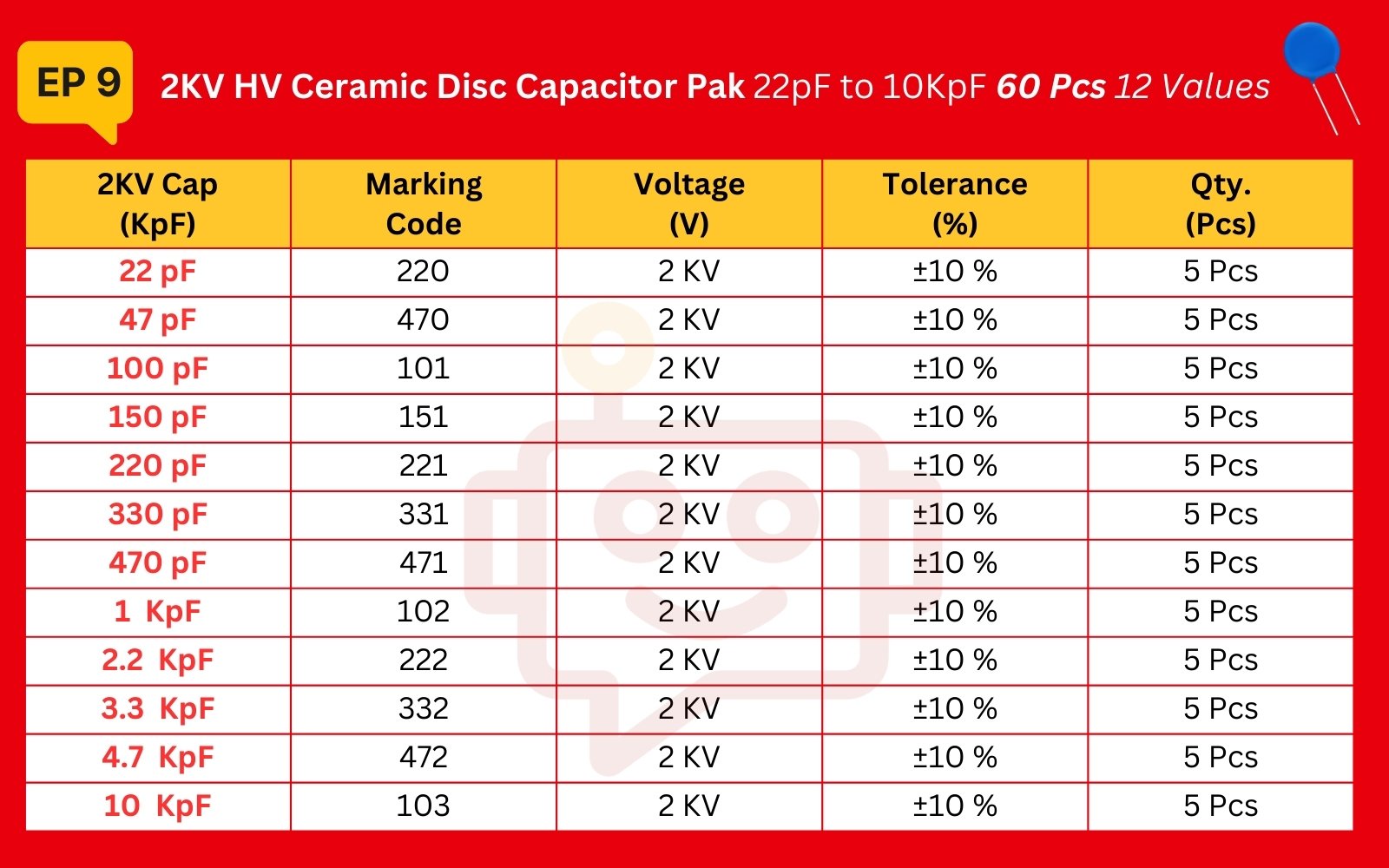

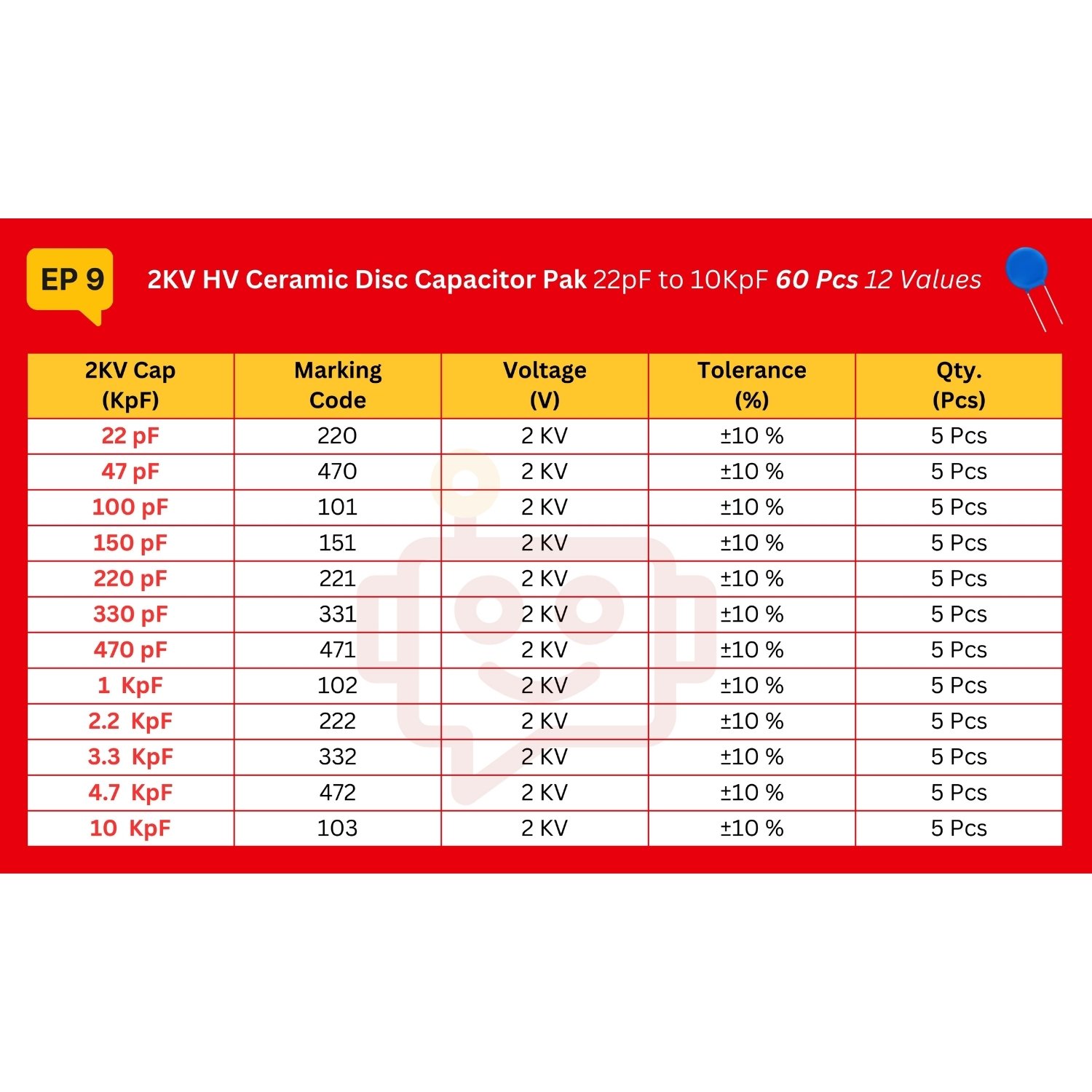

Package Includes

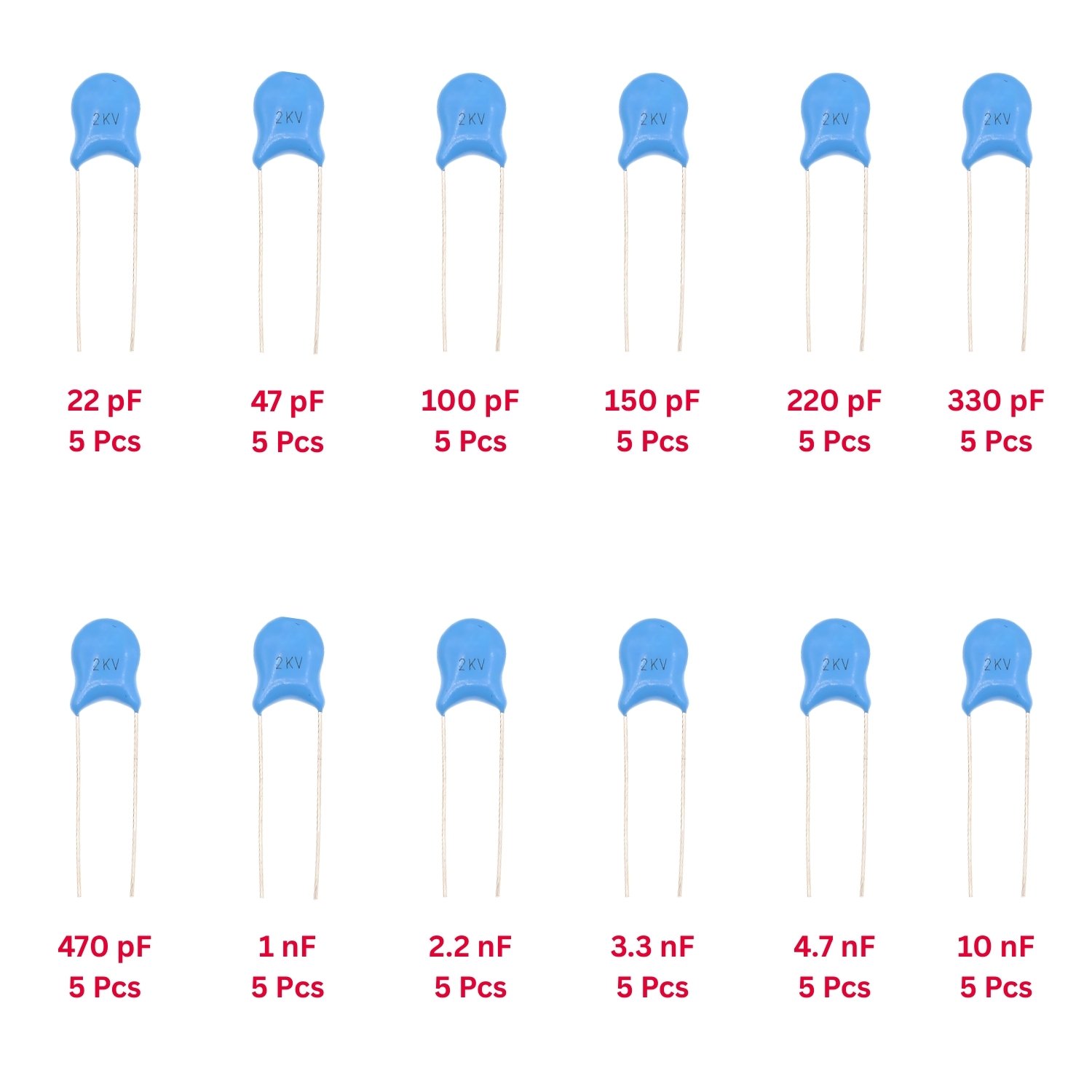

60 2KV HV Ceramic Disc Capacitor 12 Types

  • 22pF – 5 Pcs
  • 47pF – 5 Pcs
  • 100pF – 5 Pcs
  • 150pF – 5 Pcs
  • 220pF – 5 Pcs
  • 330pF – 5 Pcs
  • 470pF – 5 Pcs
  • 1nF (102) – 5 Pcs
  • 2nF (222) – 5 Pcs
  • 3nF (332) – 5 Pcs
  • 7nF (472) – 5 Pcs
  • 10nF (103) – 5 Pcs

Features:

  • High voltage rating of 2KV
  • Excellent temperature and frequency stability
  • Low dissipation and minimal power loss
  • Compact ceramic disc design with radial leads
  • High insulation resistance for reliable performance

Applications:

  • High-Voltage Power Supplies – Used for filtering and energy storage in HV circuits
  • CRT and Flyback Transformer Circuits – Ideal for use in legacy displays and HV switching
  • X-ray and Medical Equipment – Ensures insulation and reliability in high-voltage sections
  • RF and Oscillator Circuits – Maintains stability at high frequencies
  • Surge Suppression and Noise Filtering – Protects sensitive components from voltage spikes
1. Are ceramic disc capacitors polarized?

⋙ No, ceramic capacitors are non-polarized and can be connected either way.

2. How do I read the value codes like 102, 222, 103?

⋙ These are 3-digit codes representing capacitance in picofarads (e.g., 102 = 1000pF).

3. Is a 2KV capacitor suitable for AC applications?

⋙ These are 3-digit codes representing capacitance in picofarads (e.g., 102 = 1000pF).

4. Can I stack ceramic capacitors to increase capacitance?

⋙ Stacking capacitors is not recommended; use the correct rated value capacitor for your application.

5. What is the difference between a 2KV ceramic capacitor and a 1KV ceramic capacitor?

⋙  A 2KV capacitor can withstand twice the voltage compared to a 1KV capacitor.

6. What is the best way to mount a ceramic disc capacitor in a circuit?

⋙ They are typically mounted using radial leads for through-hole soldering.

7. Can I use the 2KV ceramic disc capacitor pack for various electronic projects?

⋙ Yes, this pack provides a versatile range of values, ideal for multiple types of projects.

8. Is this capacitor pack suitable for beginners or DIY projects?

⋙ Yes, it is perfect for hobbyists, students, and DIY electronics enthusiasts due to its variety and high voltage rating.

9. Are these capacitors compatible with other types of electronic components?

⋙ Yes, they can be used in conjunction with other electronic components like resistors and inductors in circuits.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon request.
