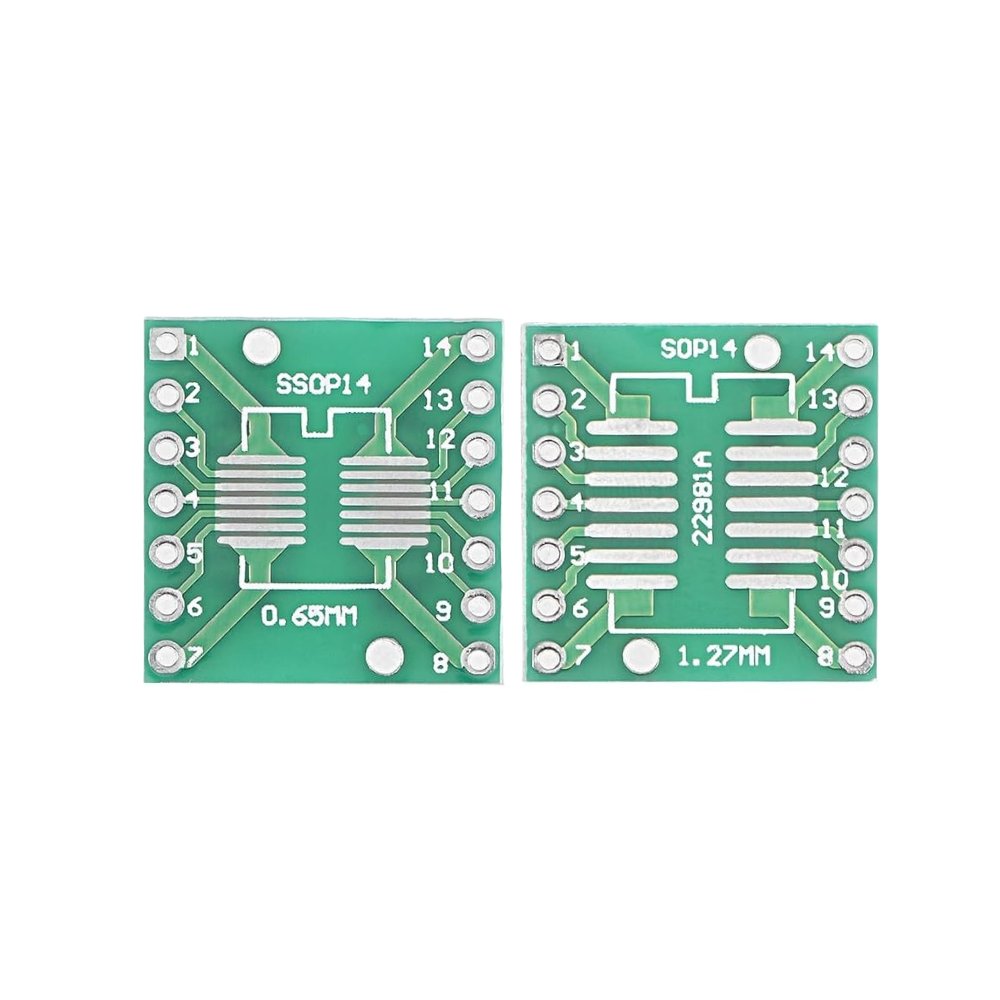

    SMD to DIP Adapter PCB Pak SOP/SSOP/TSOP 50 Pcs 7 Types

    SKU: EP37

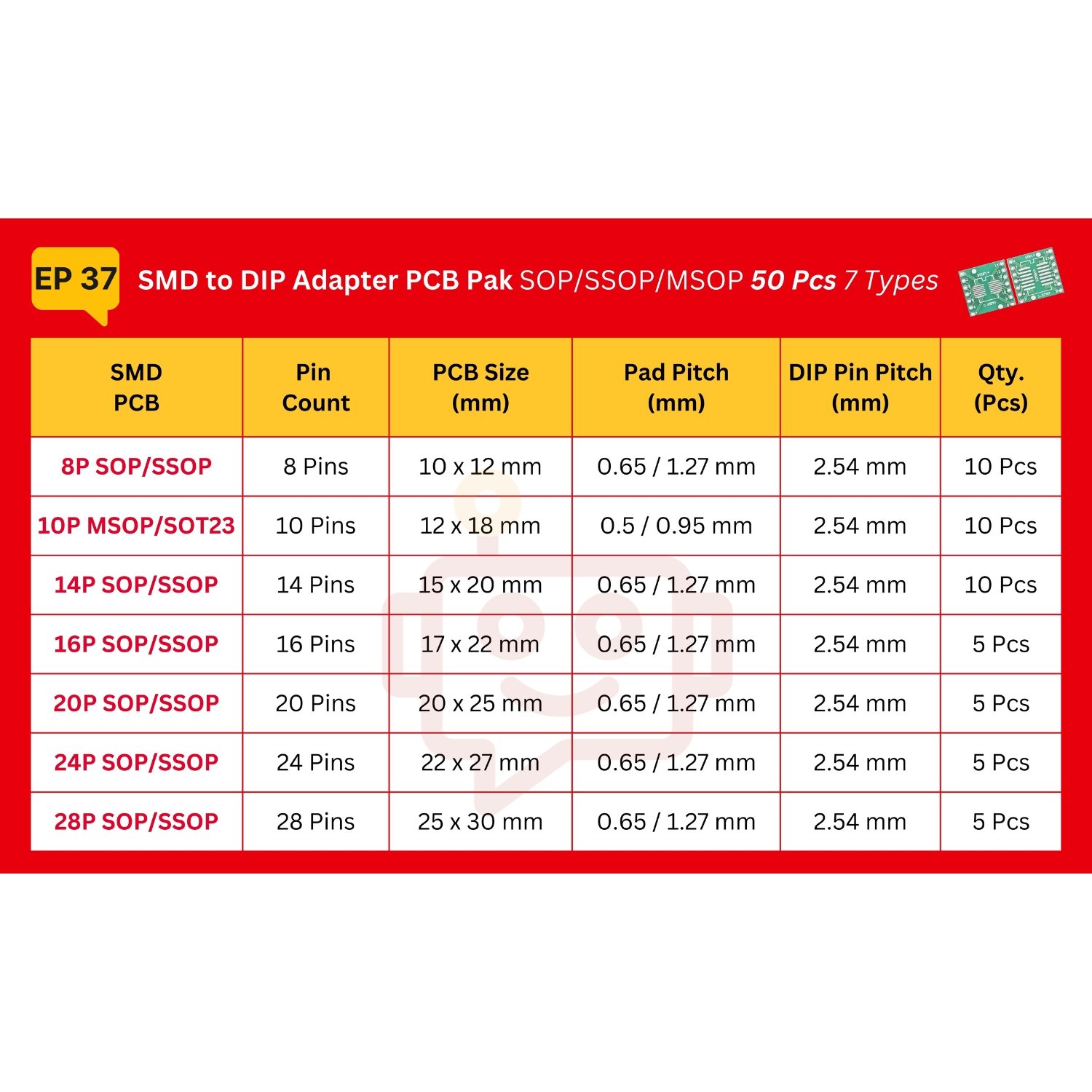

    Technical Specification:

    • Type: Through Hole
    • Model: SMD PCB
    • Supported Packages: SOP, SSOP, MSOP, SOT23
    • Pin Configurations: 8 – 28 Pins
    • Board Thickness: 1.6 mm
    • Copper Layer Thickness: 35 µm
    • Pin Pitch: 2.54 mm
    • Pad Pitch: 0.65 / 1.27 mm, 0.5 / 0.95 mm
    • Pak Weight: 80 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹365.00

    Add to wishlist

    Description

    An SOP/SSOP/TSOP to DIP Adapter PCB is a small printed circuit board designed to convert surface-mount integrated circuits (ICs) with Small Outline Package (SOP), Shrink Small Outline Package (SSOP), or Thin Small Outline Package (TSOP) footprints into a Dual In-Line Package (DIP) format. This allows surface-mount components to be used with breadboards, perfboards, and through-hole PCBs, making them easier to test, prototype, and integrate into various projects.

    This SOP/SSOP/TSOP to DIP Adapter PCB set is designed to convert various SOP, SSOP, and TSOP surface-mount IC packages into a dual in-line package (DIP) format. These adapters make it easy to use surface-mount devices (SMDs) with breadboards, perfboards, and through-hole PCBs for prototyping and testing.

    PCB Symbol:

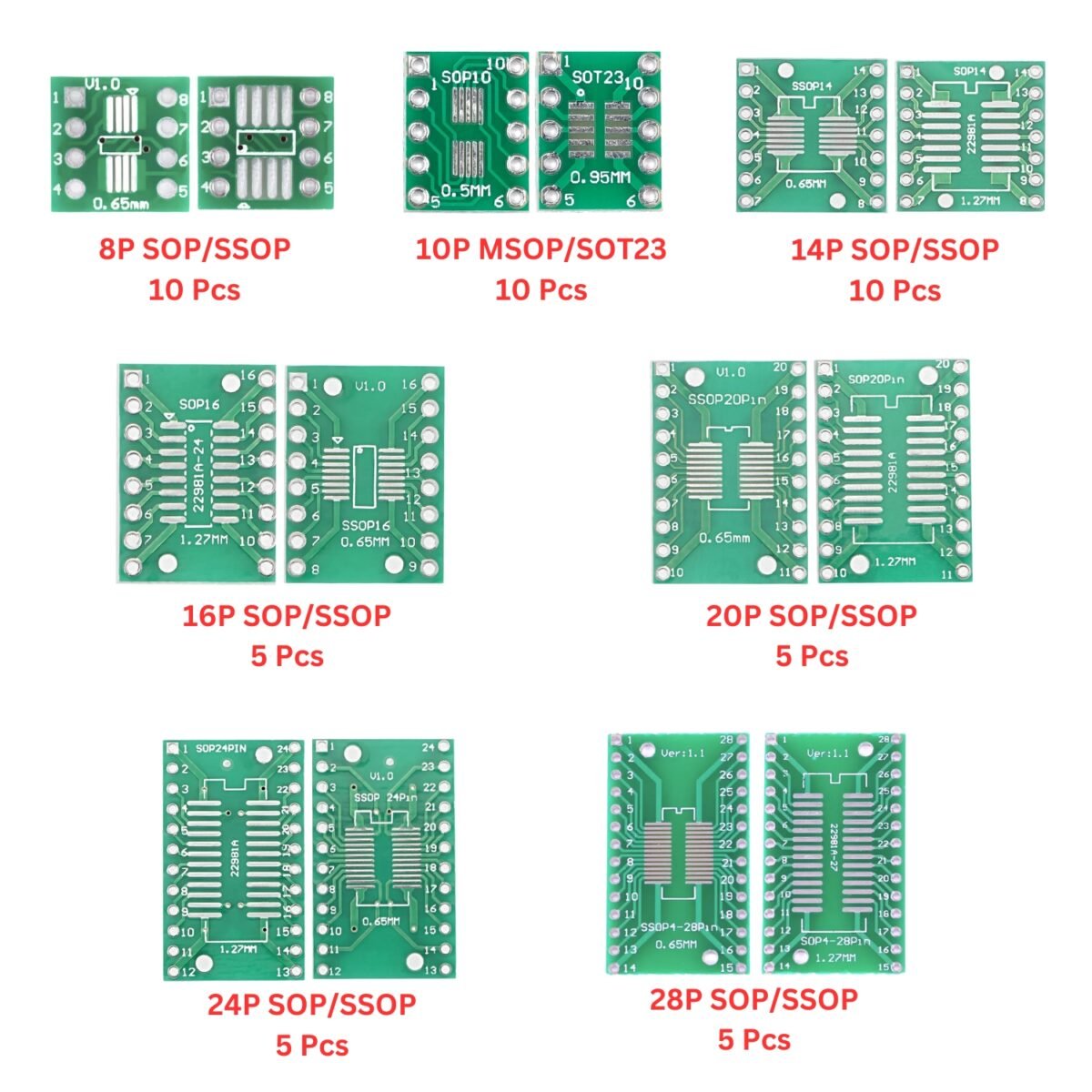

    Package Includes

    50 SOP/SSOP/MSOP/SOT23 to DIP Adapter PCB 7 Types

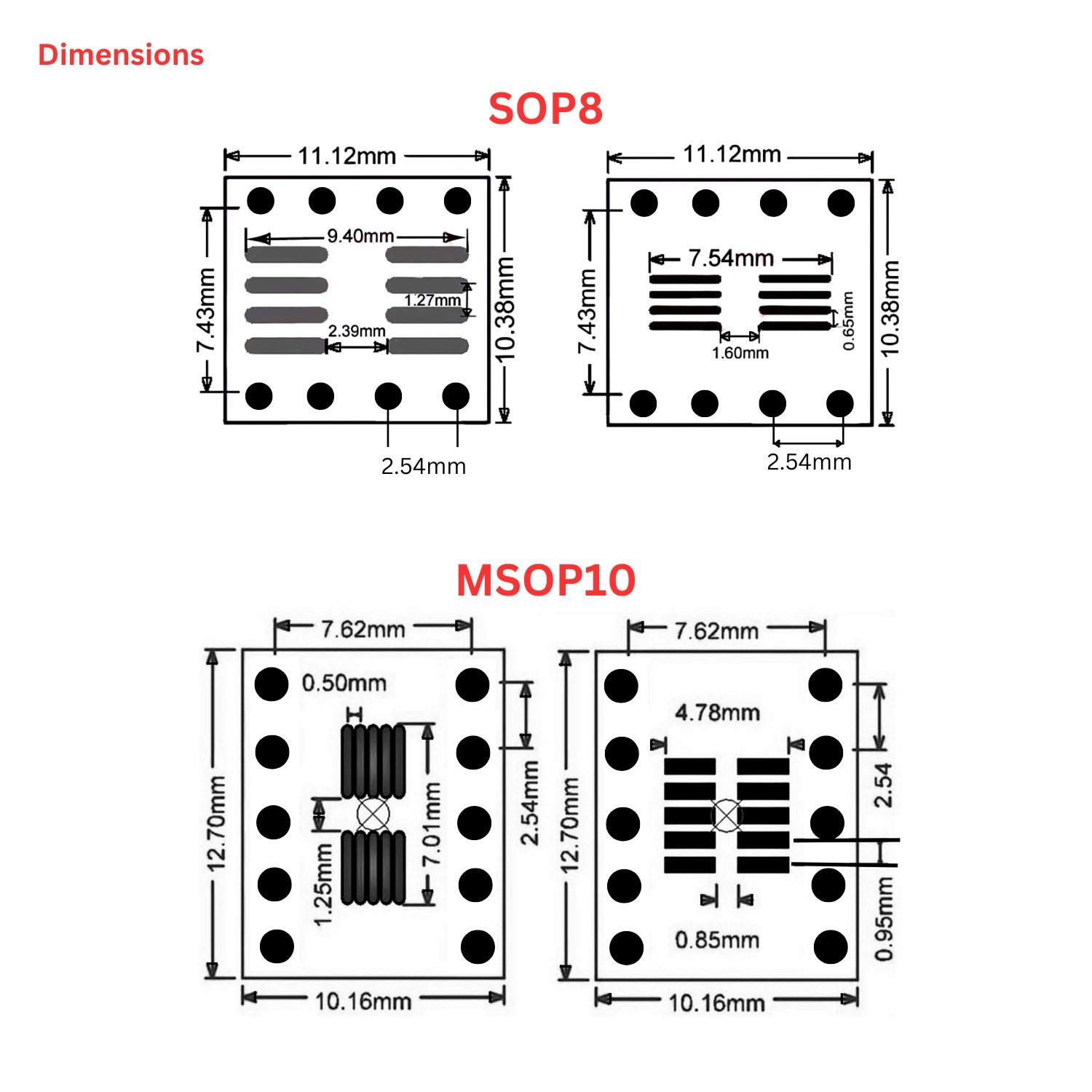

    • 8 Pin SOP/SSOP - 10 Pcs
    • 10 Pin MSOP/SOT23 - 10 Pcs

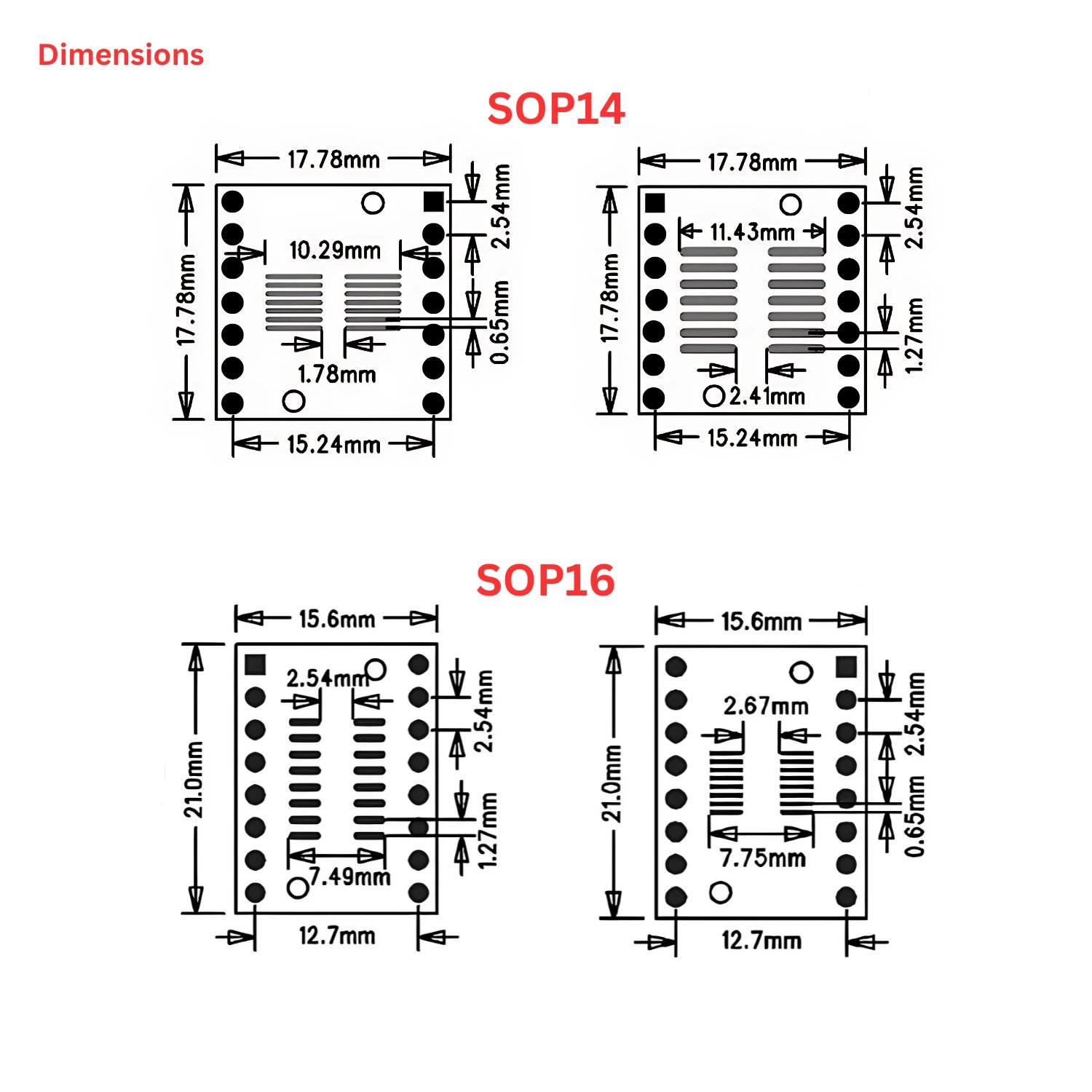

    • 14 Pin SOP/SSOP - 10 Pcs
    • 16 Pin SOP/SSOP - 5 Pcs

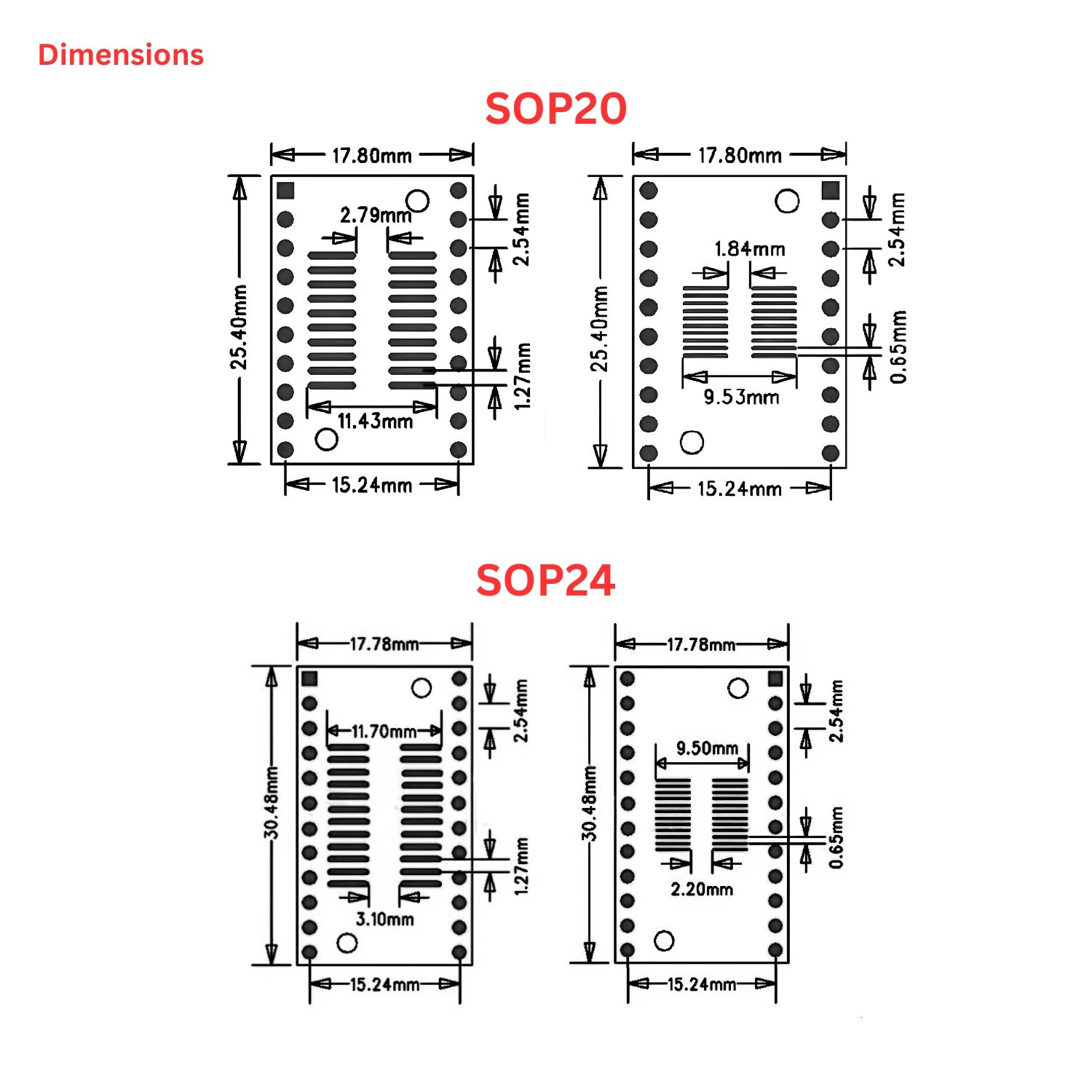

    • 20 Pin SOP/SSOP - 5 Pcs
    • 24 Pin SOP/SSOP - 5 Pcs

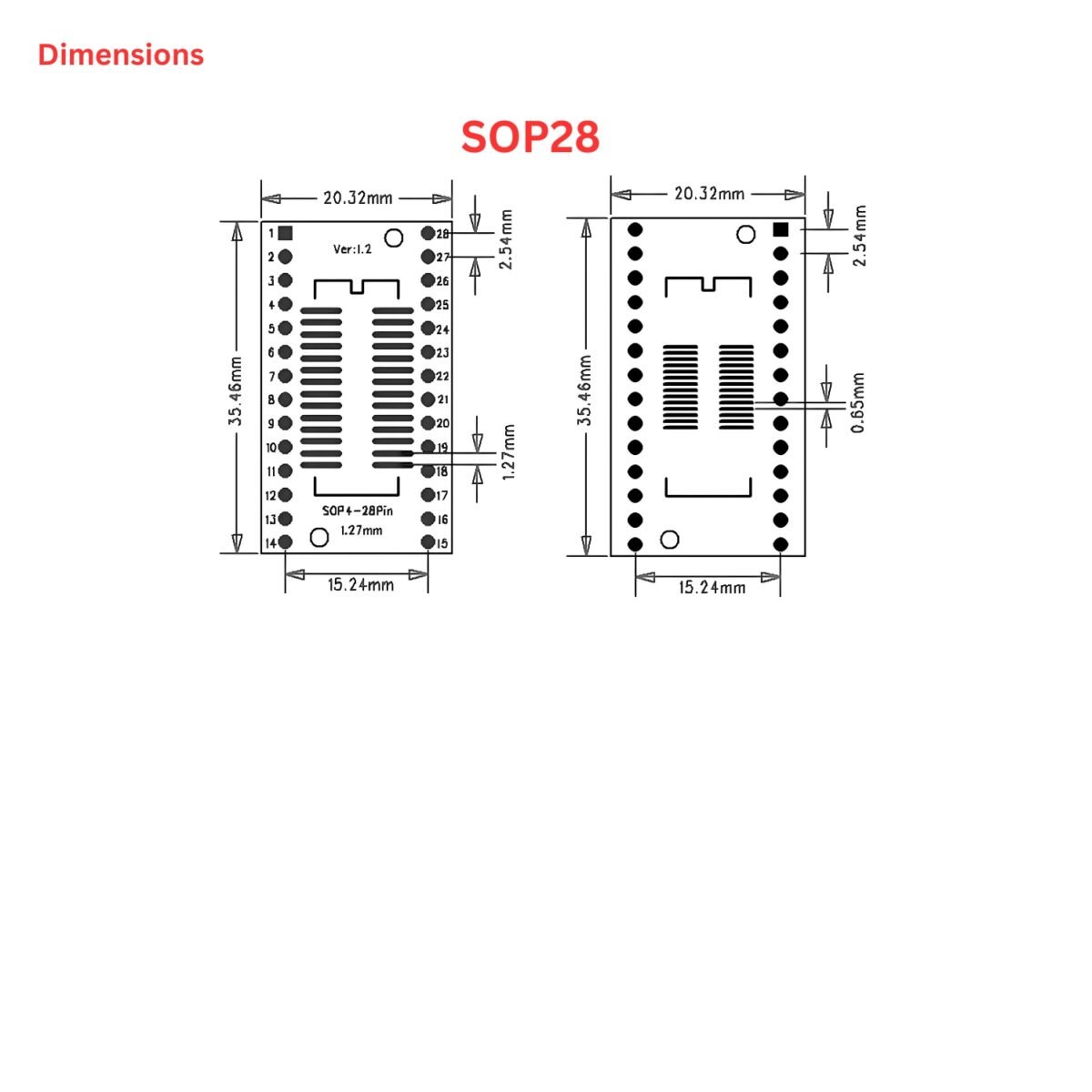

    • 28 Pin SOP/SSOP - 5 Pcs

    Features:

    • Easy prototyping with breadboards and DIP circuits
    • Simplifies soldering of small-pitch SMD components
    • Compatible with standard DIP sockets and through-hole PCBs
    • Double-sided design supports multiple package types
    • Gold-plated or tinned pads for reliable connections
    • No need for expensive reflow soldering equipment
    • Reduces risk of damage to delicate SMD components
    • Useful for electronics development, testing, and repair

    Applications:

    • Prototyping: Easily test surface-mount ICs with breadboards and through-hole circuits
    • Circuit Development: Use SMD components in DIP-based PCB designs
    • Component Testing: Evaluate and troubleshoot SMD ICs before final integration
    • Electronics Repair: Replace faulty SMD components with easier-to-handle DIP alternatives
    • Educational Projects: Help students and beginners learn about surface-mount technology
    • Custom Module Design: Convert SMD sensors, controllers, or ICs into user-friendly DIP modules
    • Embedded Systems: Integrate small-pitch microcontrollers and memory ICs into experimental setups
    1. How do I convert an SMD IC to DIP?

    You can use an SOP/SSOP/TSOP to DIP adapter PCB by soldering the SMD IC onto it and connecting the DIP pins.

    2. Can I use these adapters for Arduino projects?

    Yes, they help integrate SMD sensors, ICs, and modules into Arduino-based projects.

    3. Can I hand-solder an SMD IC onto the adapter PCB?

    Yes, but fine-tip soldering irons and flux are recommended for precision.

    4. Can I use these adapters for dual-row SMD components?

    No, these are designed for single-row SOP/SSOP/TSOP ICs. Dual-row components require different adapters.

    5. How do I choose between SSOP and TSOP adapters?

    TSOP adapters are used for thinner ICs with smaller pitches, while SSOP is a compact version of SOP with a moderate pitch.

    6. Are there adapters for fine-pitch TSOP ICs (≤0.5mm pitch)?

    Yes, but soldering very fine-pitch ICs (0.4mm or lower) requires precise tools like hot air or reflow stations.

    7. Can I stack multiple adapters for compact designs?

    Yes, but ensure proper alignment, insulation, and signal integrity when stacking multiple adapters.

    8. Do all adapters in a pack have plated through-holes?

    Most have plated through-holes for DIP pin connections, ensuring stronger mechanical support.

    9. Can I use multiple adapters from a pack on a single project?

    Yes, different adapters can be used in various circuit sections based on the ICs required.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
