    SMD Crystal Pak 32.768 KHz to 20 MHz 40 Pcs 8 Values

    SKU: EP507

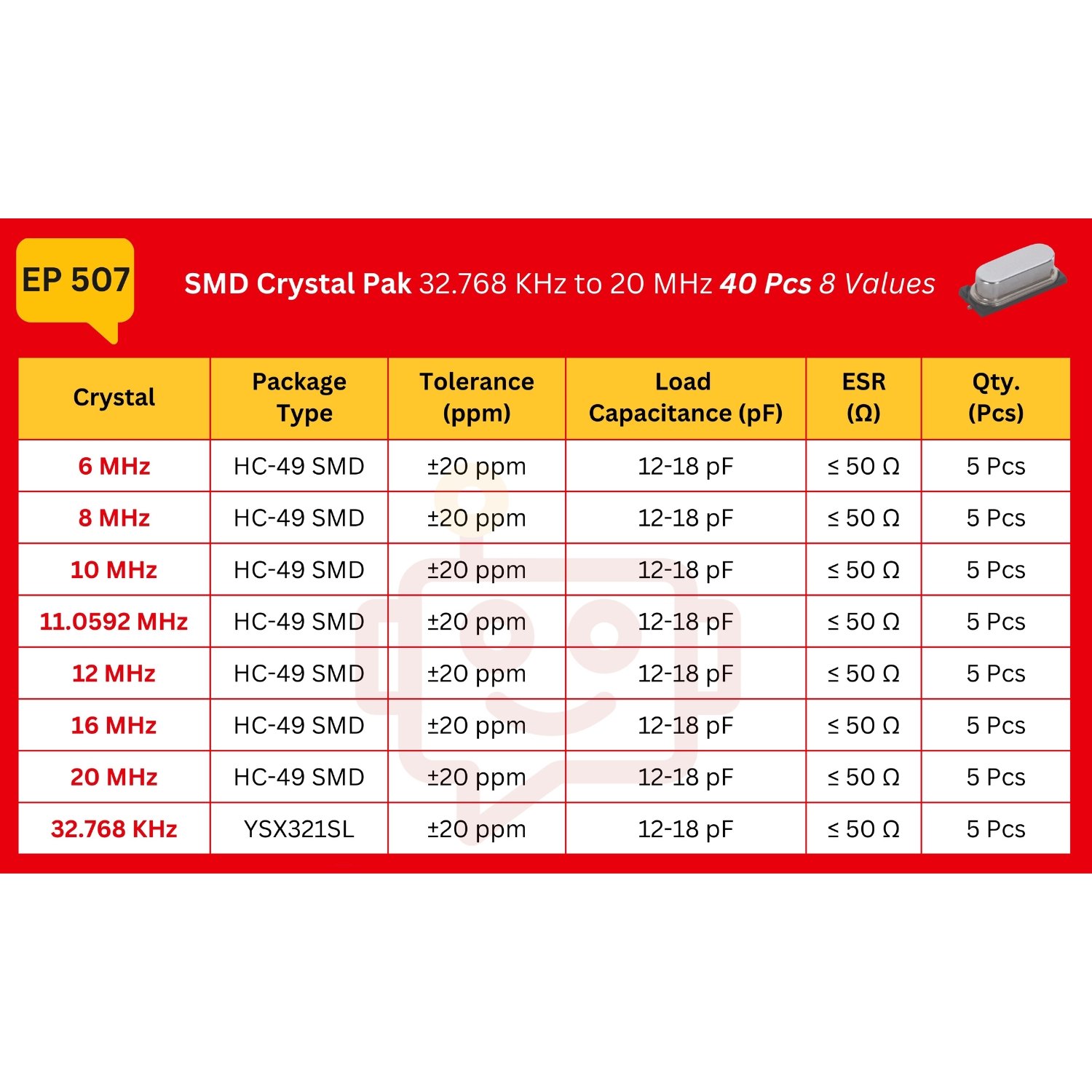

    Technical Specification:

    • Type: SMD
    • Model: Crystal Oscillator
    • Package Type: HC – 49 / YSX321SL
    • Frequency Range: 32.768 KHz, 6 MHz – 20 MHz
    • Load Capacitance: 12 – 18 pF
    • Tolerance: ±20% ppm
    • ESR: ≤ 50 Ω
    • Pak Weight: 80 gm

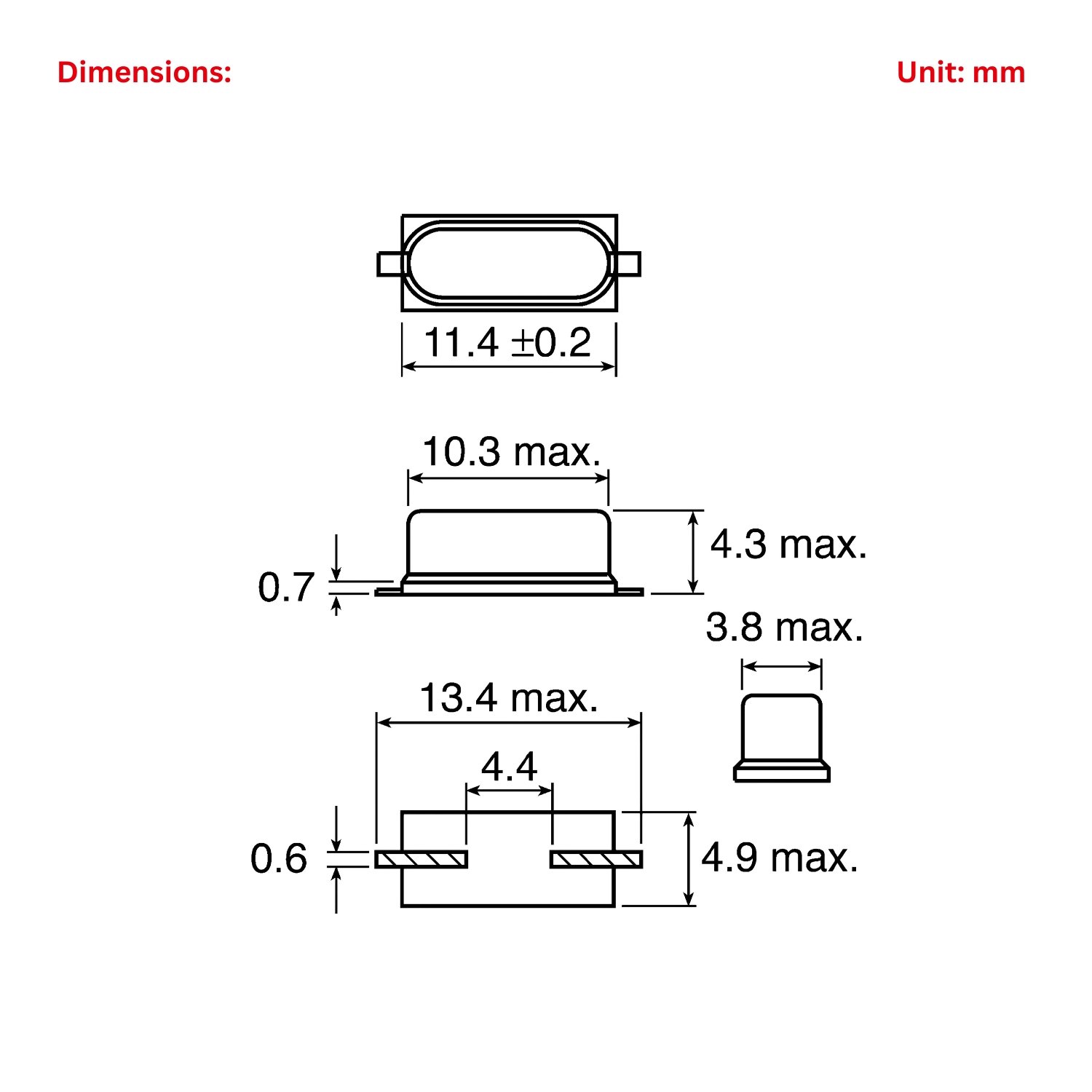

    • Pak Dimensions: 90 x 60 x 24 mm

    ₹365.00

    Add to wishlist

    Description

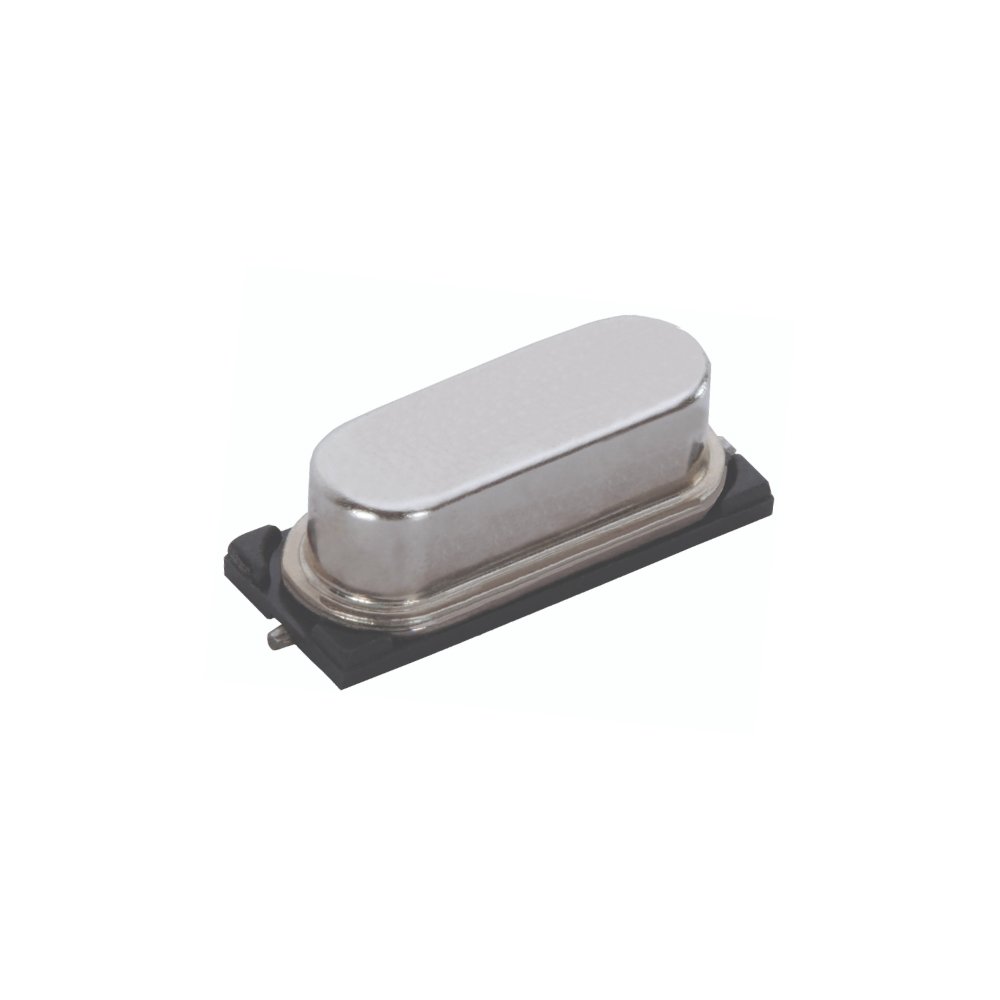

    The SMD Crystal 49S is a surface-mount quartz crystal oscillator widely used in electronic circuits for generating precise clock signals. It provides high-frequency stability and low power consumption, making it ideal for microcontrollers, communication systems, and timing applications.

    This is a 40-piece assortment of SMD (Surface Mount Device) Crystals in the 49S package, featuring 8 different frequencies commonly used in electronic circuits. Each frequency is provided in a set of 5 pieces, making it a versatile collection for prototyping, circuit design, and repairs.

    Crystal Symbol:

    Crystal Structure:

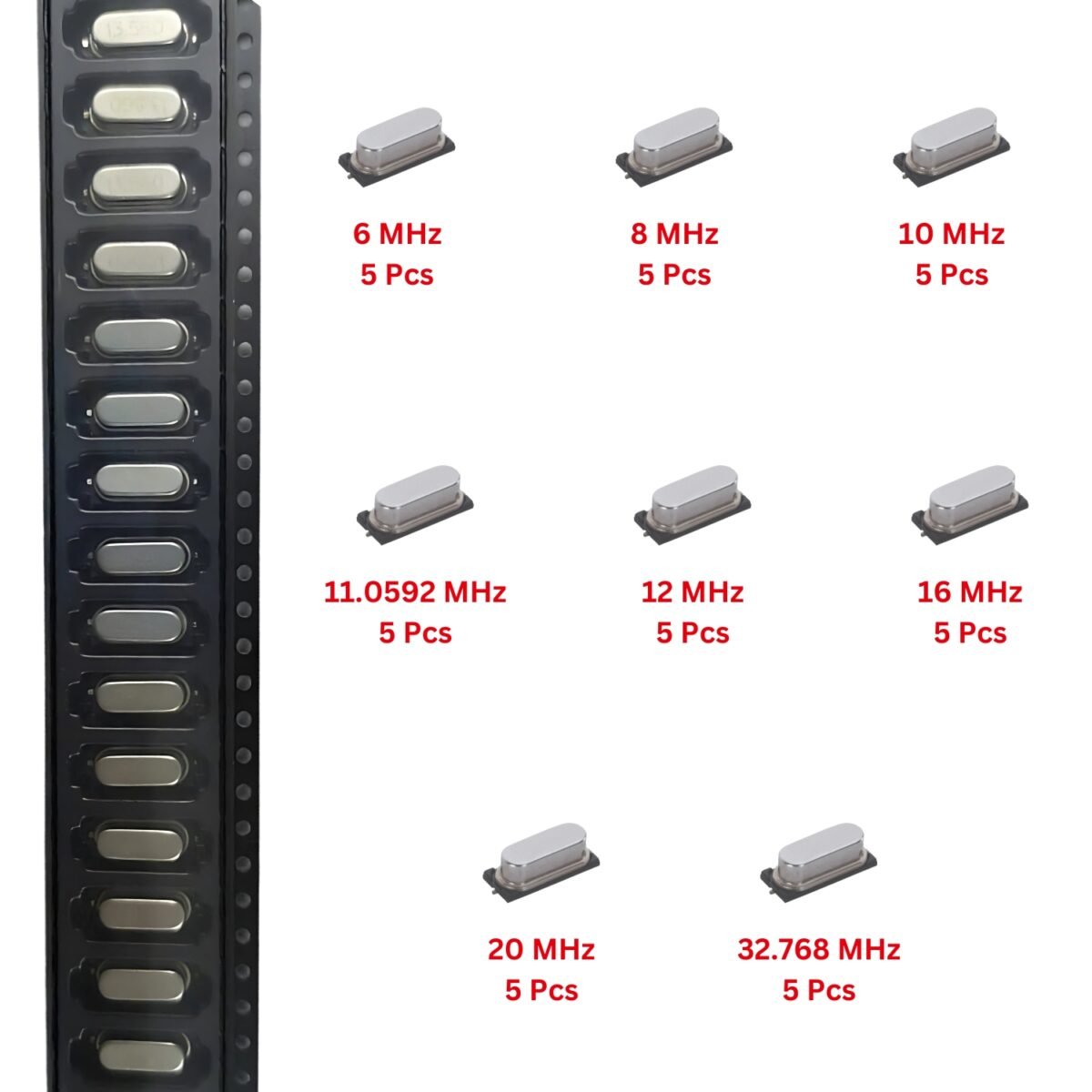

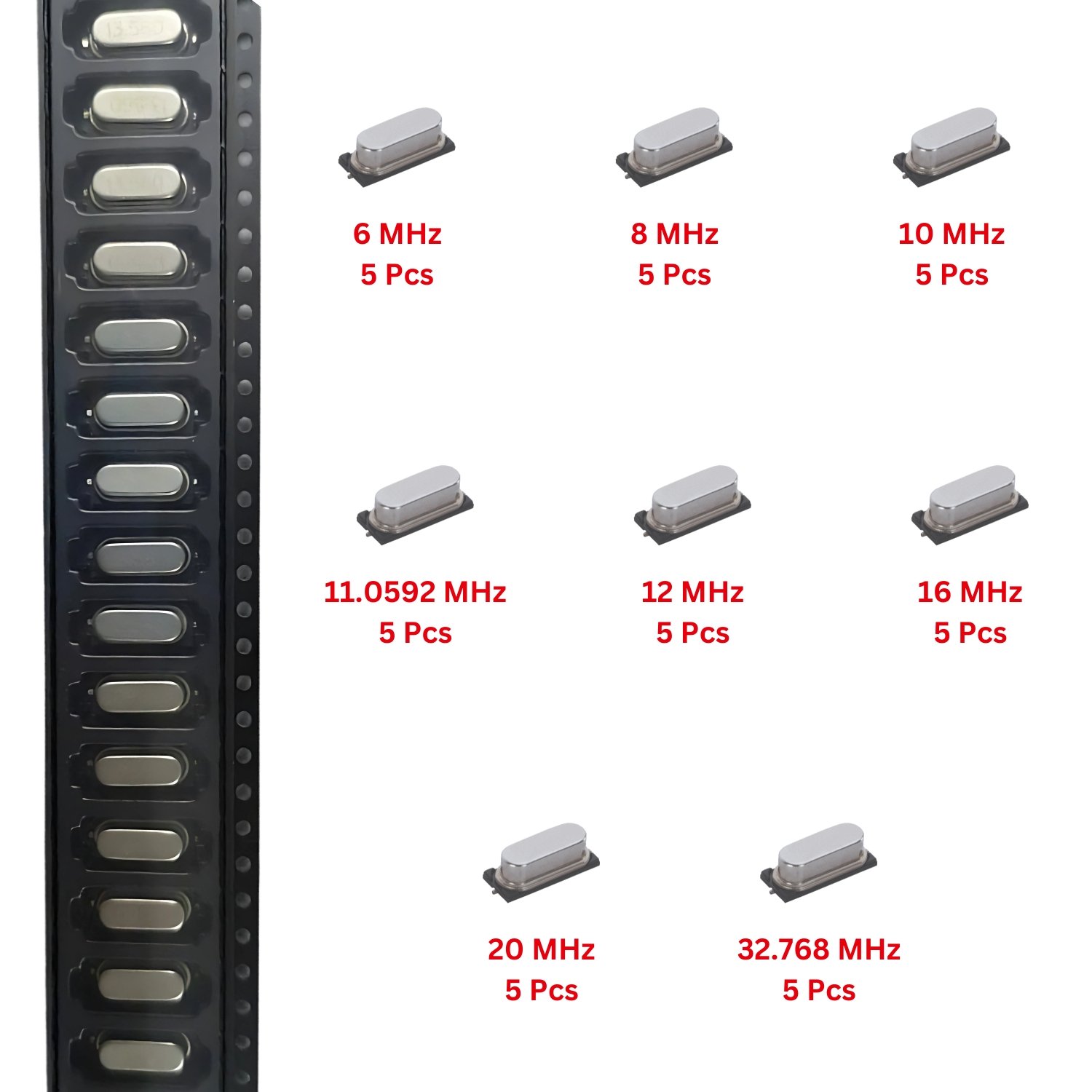

    Package Includes

    40 SMD Crystal 49S 8 Types

    • 32.768 KHz - 5 Pcs
    • 6 MHz - 5 pcs
    • 8 MHz - 5 Pcs
    • 10 MHz - 5 Pcs
    • 11.0592 MHz - 5 Pcs
    • 12 MHz - 5 Pcs
    • 16 MHz - 5 Pcs
    • 20 MHz - 5 Pcs

    Features:

    • Compact SMD 49S Package
    • High Stability & Accuracy
    • Wide Frequency Range
    • Low Power Consumption
    • Durable & Reliable

    Applications:

    • Microcontrollers & Embedded Systems - Provides stable clock signals for processors like Arduino, PIC, and STM32
    • Communication Circuits - Ensures accurate timing for UART, SPI, I2C, and RF modules
    • Timing & Clock Generation - Used in oscillators and precision timing circuits
    • Real-Time Clocks (RTC) - Powers accurate timekeeping in watches, clocks, and RTC modules
    • Consumer & Industrial Electronics - Essential for stable operation in automation, displays, and control systems
    1. How do I connect an SMD Crystal 49S to a microcontroller?

    ⋙ It is typically connected between the XTAL1 and XTAL2 pins of a microcontroller, with two capacitors (10-22pF) to ground for stability.

    2. What is the difference between 49S and 49SMD crystals?

    ⋙ The 49SMD is a surface-mount version of the 49S (through-hole) crystal, making it more compact and suitable for modern PCB designs.

    3. How do I choose the right crystal frequency?

    ⋙ The frequency depends on your circuit’s requirements. For example, 16 MHz is common for Arduino, 11.0592 MHz for UART communication, and 32.768 KHz for RTC modules.

    4. What is an SMD Crystal 49S used for?

    ⋙ SMD Crystal 49S is used for generating precise clock signals.

    5. Does an SMD crystal require an external oscillator?

    ⋙ No, but it usually requires load capacitors (10-22pF) and is used with the built-in oscillator circuit of a microcontroller or clock IC.

    6. Is this pack suitable for beginners?

    ⋙ Yes, it's great for beginners learning about oscillators, microcontrollers, and circuit timing.

    7. Do these crystals work with Raspberry Pi?

    ⋙ Raspberry Pi uses a built-in oscillator, so external crystals are not required in most cases.

    8. Do these crystals work with both parallel and series resonant circuits?

    ⋙ Yes, but you must match the load capacitance and resonance mode (parallel or series) with your circuit design.

    9. Are these crystals programmable?

    ⋙ No, quartz crystals have a fixed frequency and cannot be programmed like oscillators.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
