3296W Trimmer Potentiometer Pak 100E to 1M 50 Pcs 12 Values

SKU: EP38

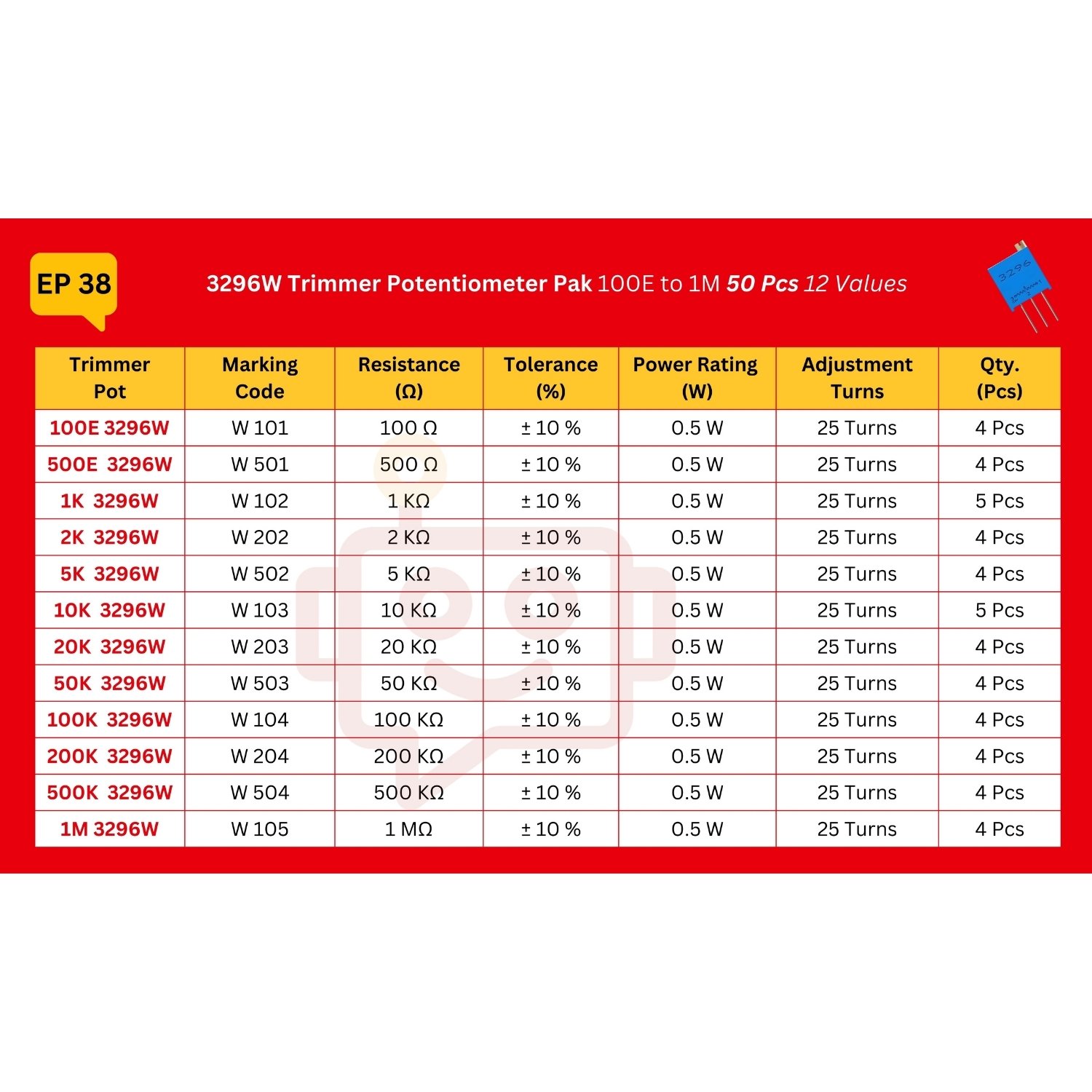

Technical Specification:

  • Type: Through Hole
  • Model: 3296W Trimmer Potentiometer
  • Adjustment Type: Top Adjust
  • Resistance Values: 100 Ω – 1 MΩ
  • Tolerance: ± 10 %
  • Power Rating: 0.5 W
  • Adjustment Turns: 25 Turns
  • Pak Weight: 80 gm
  • Pak Dimensions: 127 x 80 x 24 mm

₹790.00

Add to wishlist

Description

The 3296W Adjustable Resistor is a precision potentiometer designed for adjustable resistance in electronic circuits. It allows users to fine-tune resistance values, providing flexibility for various testing, calibration, and control needs. Known for its accuracy and reliable performance, the 3296W is commonly used in a wide range of electronic applications. With a compact design and easy adjustment, it is ideal for use in both prototyping and production environments. This adjustable resistor is available in different resistance values, offering versatility in circuit design and maintenance.

This 3296W Potentiometer Assortment Pack includes 12 different resistance values, making it ideal for precise voltage and current adjustments in electronic circuits. The multi-turn design provides high accuracy and stability, ensuring smooth and reliable performance in various applications such as signal processing, sensor calibration, and power control.

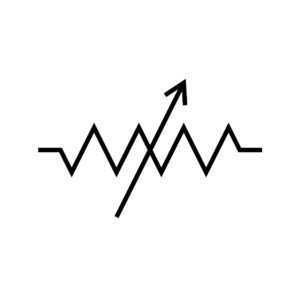

Potentimeter Symbol:

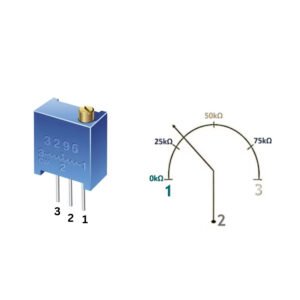

3296W POT Pin Configuration:



  • Pin 1 (CCW): One end of the resistive element
  • Pin 2 (Wiper): Adjustable terminal for variable output
  • Pin 3 (CW): Other end of the resistive element

Package Includes

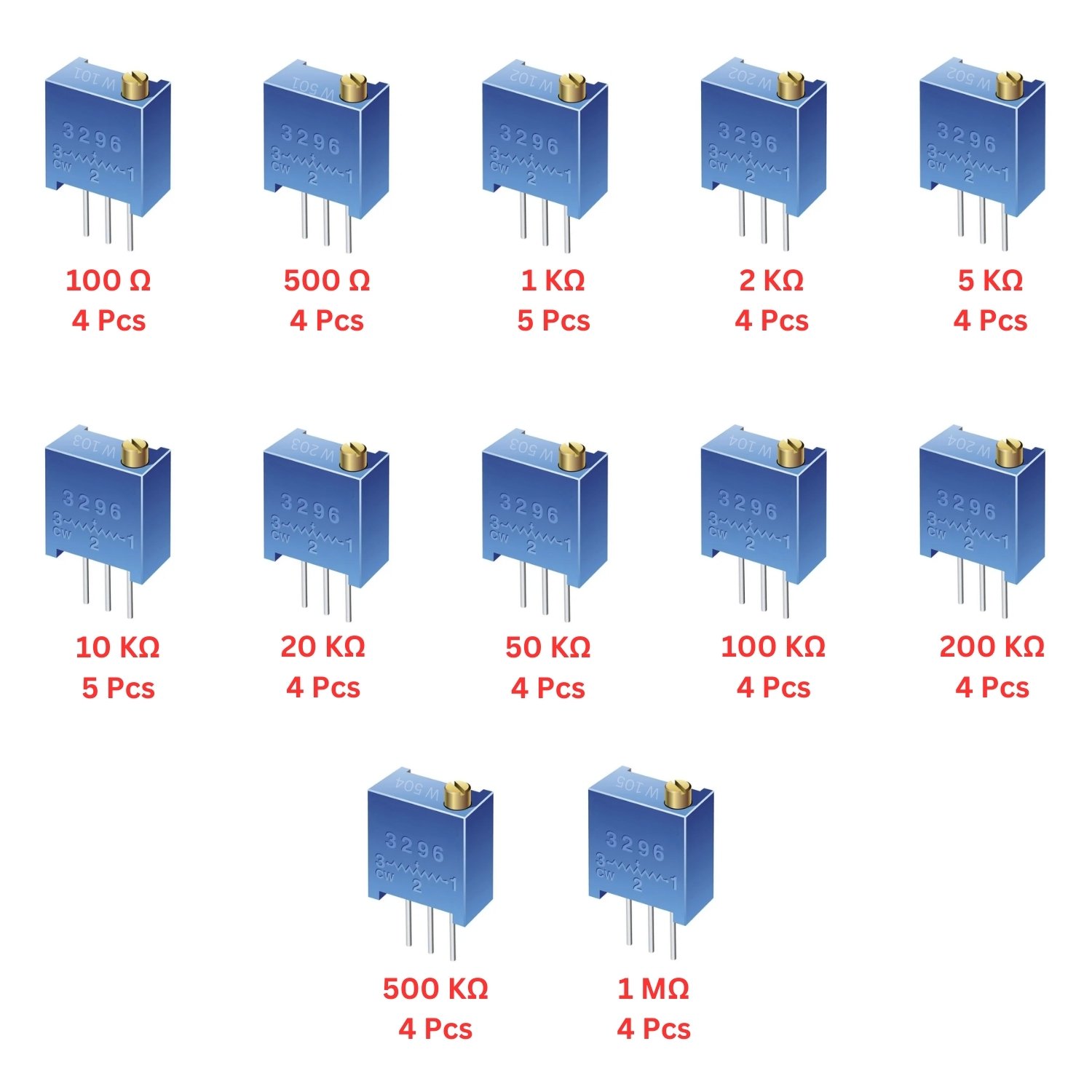

50 3296W Potentiometer 12 Values

  • 100 Ω - 4 Pcs
  • 500 Ω - 4 Pcs
  • 1 KΩ - 5 Pcs
  • 2 KΩ - 4 Pcs
  • 5 KΩ - 4 Pcs
  • 10 KΩ - 5 Pcs
  • 20 KΩ - 4 Pcs
  • 50 KΩ - 4 Pcs
  • 100 KΩ - 4 Pcs
  • 200 KΩ - 4 Pcs
  • 500 KΩ - 4 Pcs
  • 1 MΩ - 4 Pcs

Features:

  • High precision with 25-turn adjustment
  • Stable and reliable cermet element
  • Compact PCB mount design
  • Suitable for signal tuning and calibration
  • Easy to solder and use
  • Durable and long-lasting performance

Applications:

  • Voltage and Current Adjustment: Used for fine-tuning voltage and current in circuits
  • Sensor Calibration: Helps in adjusting sensitivity and accuracy of sensors
  • Signal Processing: Used to modify and balance signal levels in electronic circuits
  • Power Control: Regulates power levels in various electrical applications
  • Oscillator Frequency Tuning: Adjusts frequency in oscillators and timers
  • Audio Equipment: Fine-tunes volume, tone, and balance in sound systems
  • Industrial Automation: Used in control systems for precise settings
  • Medical Devices: Helps in calibrating diagnostic and monitoring equipment
  • Robotics: Used for adjusting motor control parameters
  • LED Brightness Control: Regulates intensity in LED driver circuits
1. How do I adjust a 3296W potentiometer?

You can use an SOP/SSOP/TSOP to DIP adapter PCB by soldering the SMD IC onto it and connecting the DIP pins.

2. Can I use this potentiometer for LED brightness control?

Yes, it can regulate current in LED driver circuits to adjust brightness levels.

3. Can I use this potentiometer in Arduino or Raspberry Pi projects?

Yes, it can be used for adjusting voltage inputs in Arduino and Raspberry Pi circuits.

4. Does this potentiometer have a locking mechanism?

No, it does not have a locking mechanism, but its multi-turn design provides precise control.

5. Can I use multiple potentiometers in the same circuit?

Yes, multiple potentiometers can be used for different tuning and calibration purposes.

6. How do I test if my potentiometer is working?

Use a multimeter to check the resistance across the terminals while adjusting it.

7. Can I use a 3296W potentiometer in AC circuits?

Yes, but it is primarily designed for DC circuits; ensure it meets your voltage and current requirements.

8. How do I wire a 3296W potentiometer in a circuit?

Connect the middle pin (wiper) for variable resistance, and the side pins for the input and output resistance path.

9. Is each resistance value labeled in the pack?

 Yes, each resistance value is clearly marked for easy identification.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
