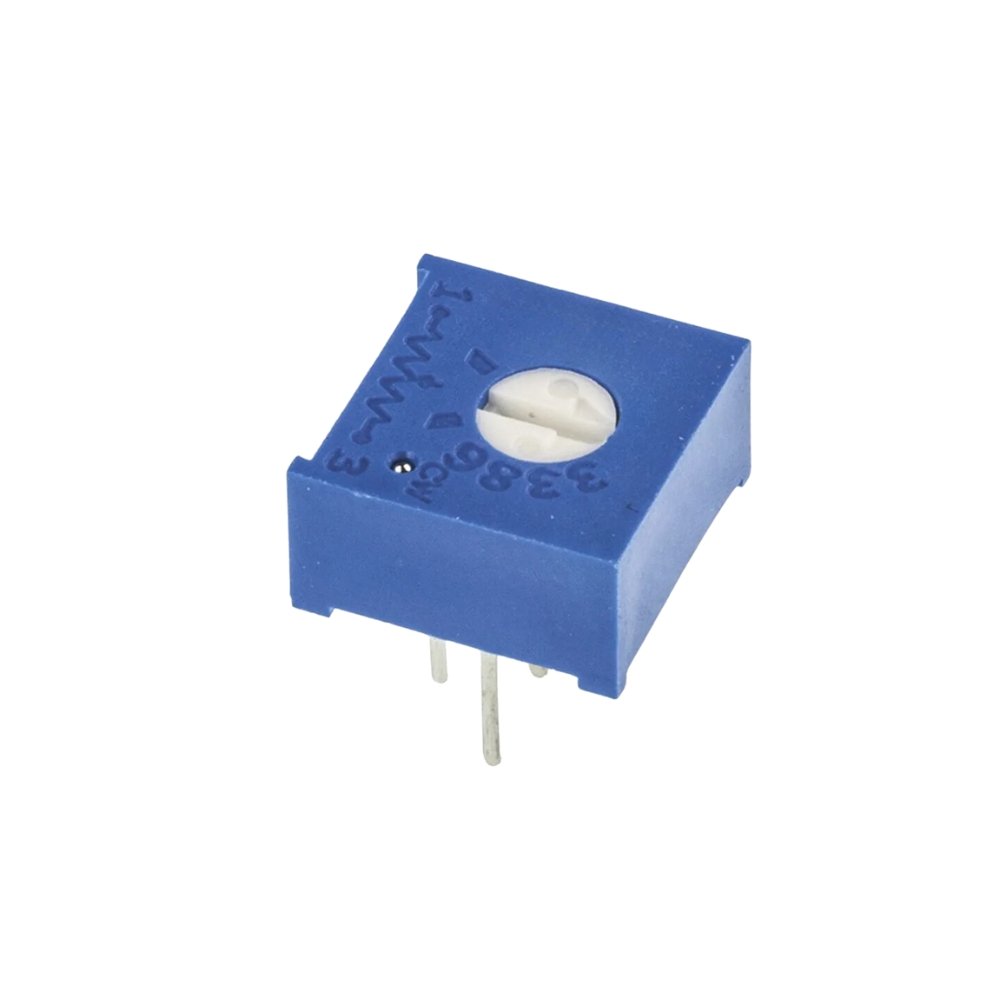

3386P Trimmer Potentiometer Pak 100E to 1M 50 Pcs 12 Values

SKU: EP39

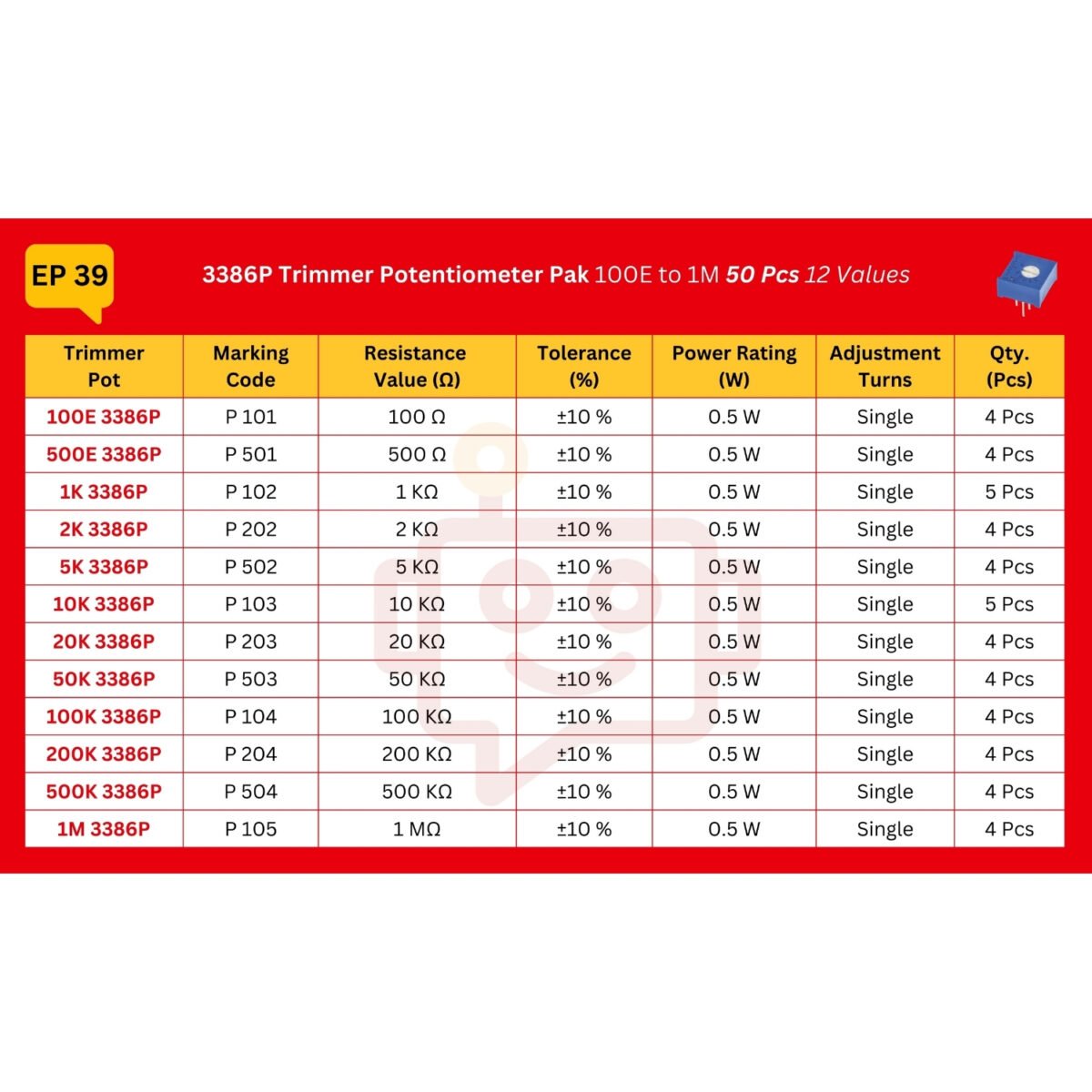

Technical Specification:

  • Type: Through Hole
  • Model: 3386P Trimmer Potentiometer
  • Adjustment Type: Top Adjust
  • Resistance Range: 100 Ω – 1M Ω
  • Tolerance: ±10 %
  • Power Rating: 0.5 W
  • Pins: 3 Pins (Input, Wiper, Ground)
  • Rotation Angle: 200° – 250°
  • Pak Weight: 70 gm

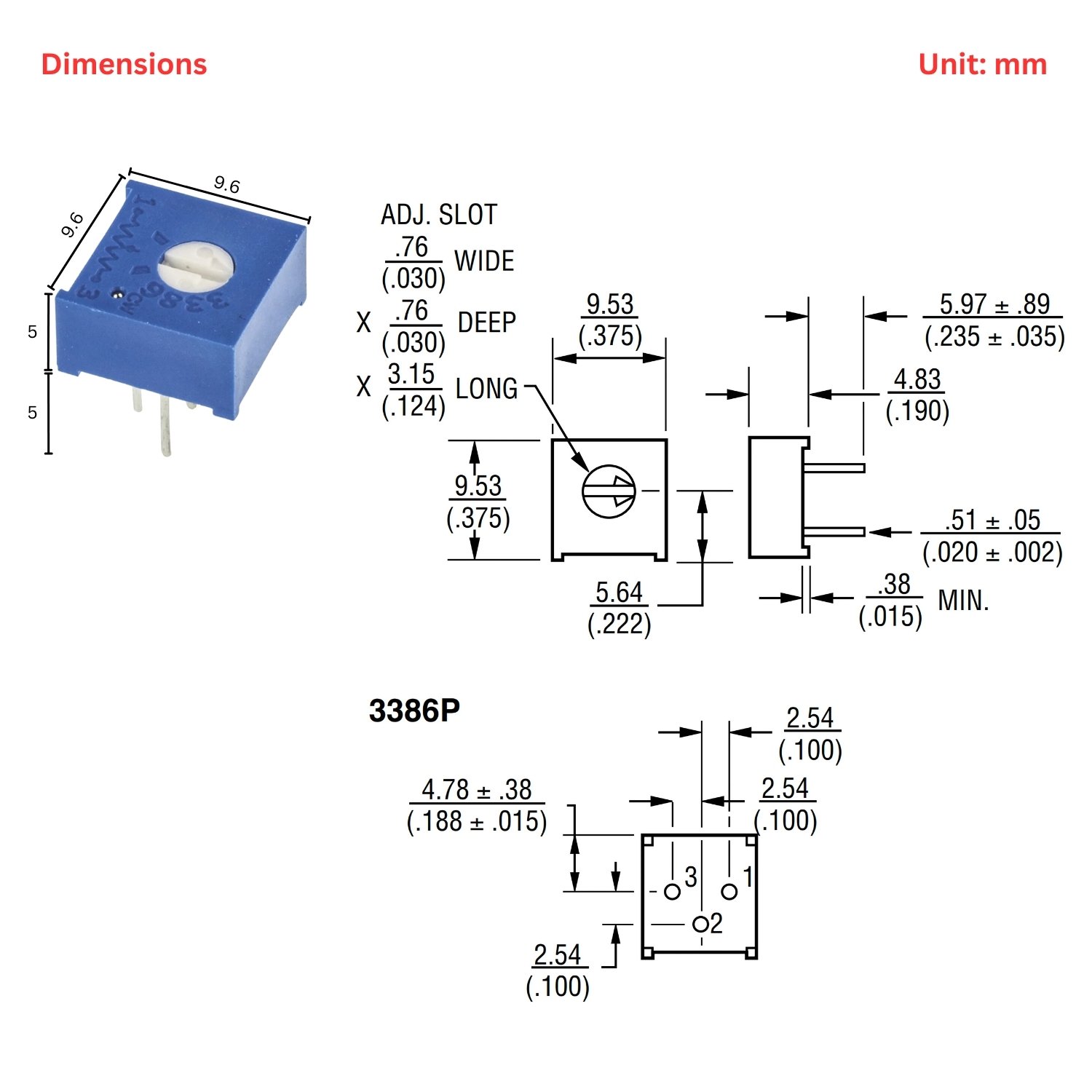

  • Pak Dimensions: 127 x 80 x 24 mm

₹790.00

Add to wishlist

Description

The 3386P potentiometer is a compact, high precision trimpot designed for accurate adjustments in electronic circuits. Featuring a three-pin configuration (input, wiper, and ground), this potentiometer provides adjustable resistance for precise control offering durability and long-lasting performance making it a choice for calibration, troubleshooting, and customization in both professional and DIY electronics projects. With a small form factor and robust construction, the 3386P potentiometer is perfect for surface-mount and through-hole applications.

This pack contains a selection of high-quality 3386P potentiometers, available in various resistance values. These are trimpot style potentiometers, designed for precise adjustments in electronic circuits. The pack includes multiple units, ensuring that you have the right potentiometer on hand for different needs.

Potentiometer Symbol:

3296W POT Pin Configuration:



  • Pin 1: One end of the resistive element
  • Pin 2 (Wiper): Adjustable resistance point
  • Pin 3: Other end of the resistive element

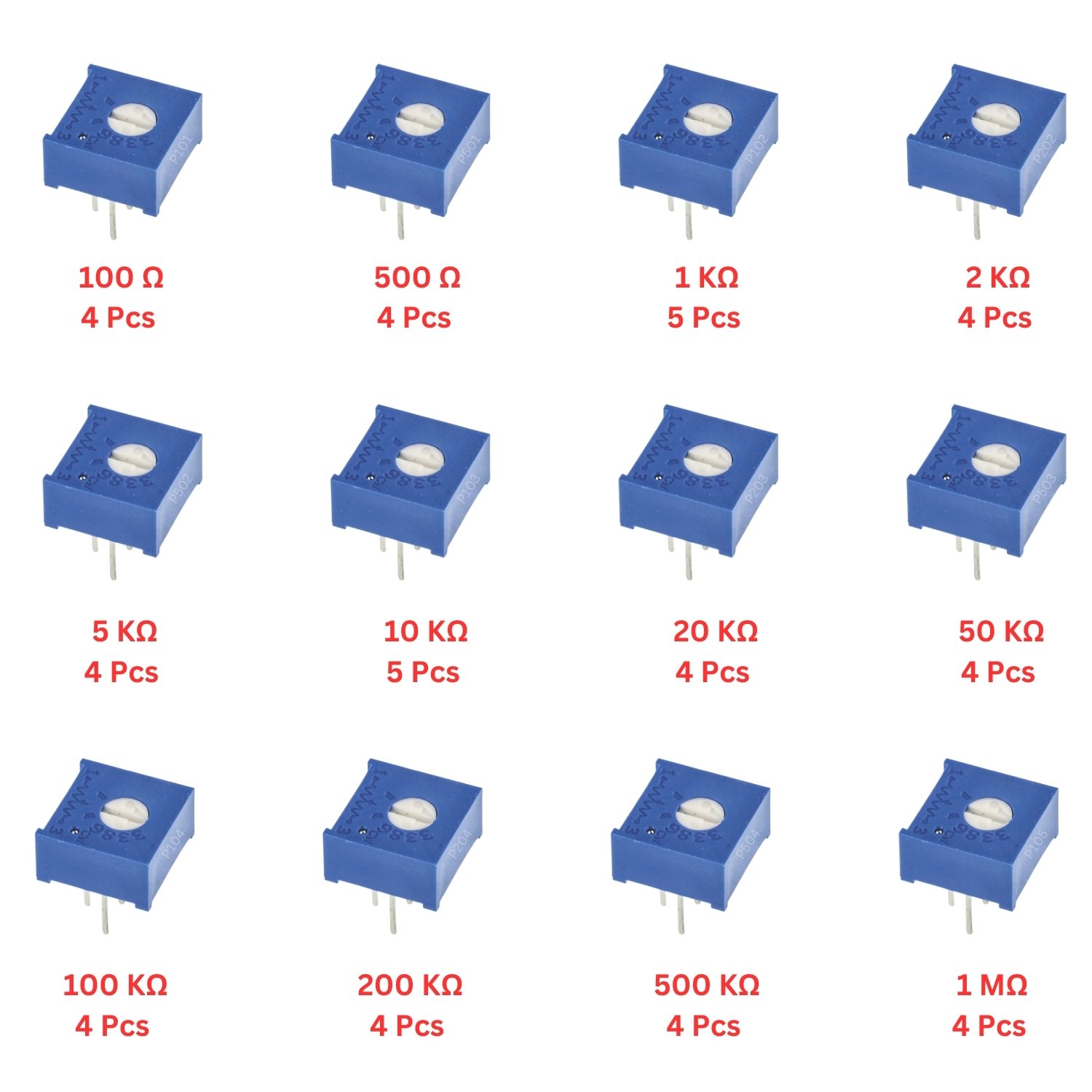

Package Includes

50 3386P Potentiometer 12 Types

  • 100 Ω - 4 Pcs
  • 500 Ω - 4 Pcs
  • 1 KΩ - 5 Pcs
  • 2 KΩ - 4 Pcs
  • 5 KΩ - 4 Pcs
  • 10 KΩ - 5 Pcs
  • 20 KΩ - 4 Pcs
  • 50 KΩ - 4 Pcs
  • 100 KΩ - 4 Pcs
  • 200 KΩ - 4 Pcs
  • 500 KΩ - 4 Pcs
  • 1 MΩ - 4 Pcs

Features:

  • High accuracy for precise adjustments
  • Low power consumption, energy-efficient
  • Easy integration into PCBs for prototyping or production
  • Ideal for calibrating sensors, power supplies, and other components
  • Compact size

Applications:

  • Voltage regulation in power supply circuits: Adjusts output voltage for stable power delivery
  • Signal modulation for audio and video equipment: Fine-tunes signal levels for optimal performance
  • Fine-tuning sensor calibration in electronic devices: Ensures sensors output accurate measurements
  • Adjusting brightness or contrast in display systems: Controls the visual output for better display quality
  • Customizing gain control in audio amplifiers: Regulates audio signal amplification for desired output
  • Setting reference voltages in measurement instruments: Provides precise reference voltages for accurate readings
  • Balancing feedback loops in control systems: Adjusts control signals to achieve stable operation in systems
  • Prototyping and testing in R&D electronics projects: Used for experimental setups to test circuit performance
  • Precision adjustments in industrial machinery controls: Ensures fine control over machine operations for accuracy and efficiency.
1. Are these potentiometers compatible with all electronic projects?

Yes, the 3386P potentiometers are versatile and suitable for a wide range of DIY electronics, prototyping, and professional applications.

2. How do I select the right resistance value from the pack?

Choose the appropriate resistance value based on your circuit requirements, such as adjusting voltage, current, or signal levels.

3. Are the potentiometers in the pack linear or logarithmic?

The 3386P potentiometers typically have a linear taper, meaning the resistance changes uniformly as the wiper is adjusted.

4. Can the 3386P potentiometer be used for both AC and DC circuits?

Yes, the 3386P potentiometer can be used in both AC and DC circuits, as long as the voltage and power ratings are within the specified limits.

5. Can I stack multiple 3386P potentiometers in parallel for higher resistance?

Yes, you can connect multiple potentiometers in parallel or series to achieve a specific resistance value based on your circuit's requirements.

6. How can I integrate the potentiometer into a circuit?

Integrate the potentiometer by connecting its three pins to your circuit's voltage source, ground, and input signal.

7. Can I use multiple potentiometers from the pack in a single circuit?

Yes, you can use multiple potentiometers in parallel or series for more complex control in a single circuit.

8. Does the potentiometer work with both analog and digital systems?

Yes, the 3386P potentiometer can be used in both analog and digital systems for adjusting signals.

9. Is the potentiometer easy to integrate into existing projects?

Yes, the 3386P potentiometer is easy to integrate into most electronics projects with basic wiring.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
