    MF52 NTC Thermistor Pak 1K to 100K 50 Pcs 10 Values

    SKU: EP34

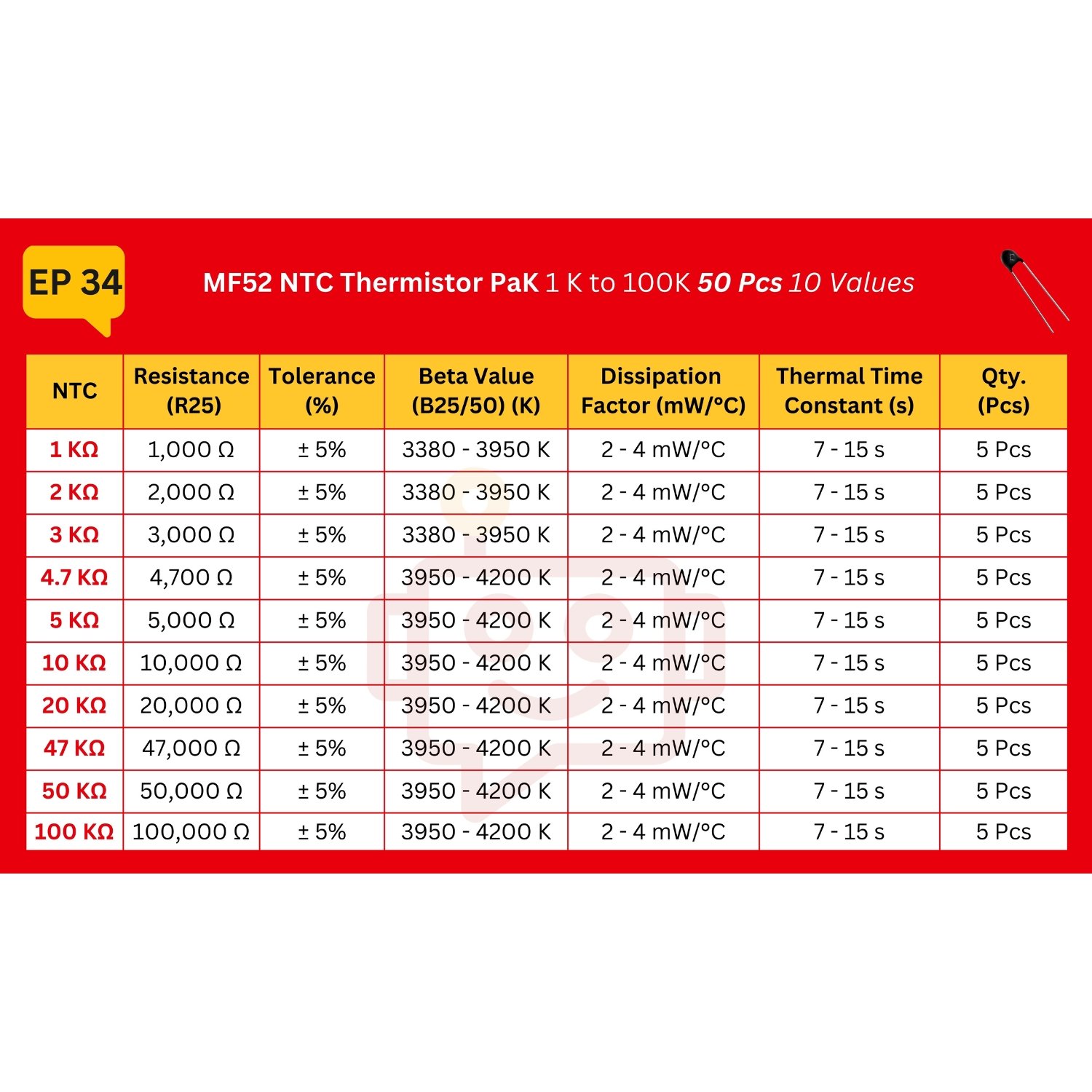

    Technical Specification:

    • Type: Through Hole
    • Model: MF52 NTC Thermistor
    • Resistance Values: 1 KΩ – 100 KΩ
    • Tolerance: ±5 %
    • B-Value (Beta Coefficient): 3380 K – 4200 K
    • Thermal Time Constant: 7 – 15 seconds
    • Power Rating: 300 mW
    • Dissipation Factor: 2 – 4 mW/°C
    • Pak Weight: 80 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹545.00

    Add to wishlist

    Description

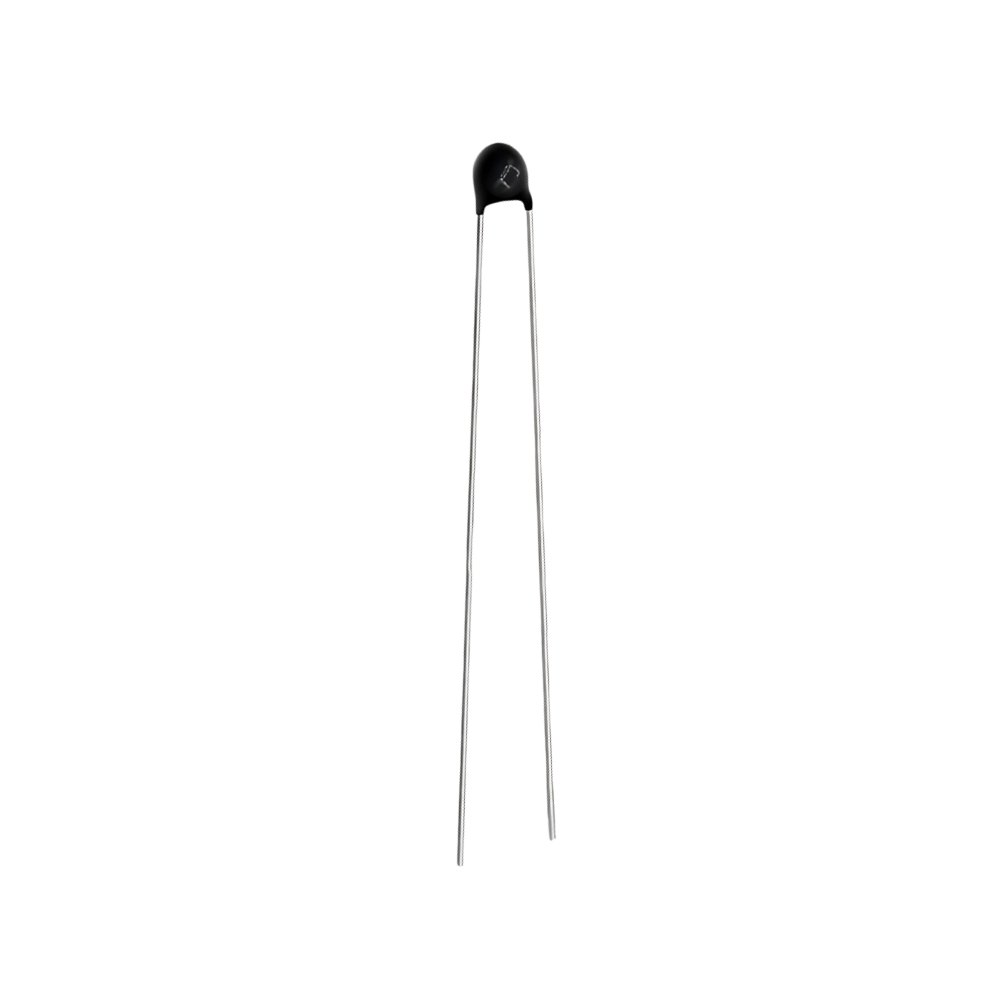

    The MF52 Thermistor is an NTC thermistor that changes its resistance in response to temperature variations. It has a radial leaded design, which makes it suitable for easy integration into through-hole mounting circuits. The MF52 is built for reliable and consistent performance, offering accurate temperature-dependent resistance changes. Its compact form and stable properties make it a versatile component for a wide range of electronic applications.

    This assortment includes 50 pieces of MF52 NTC (Negative Temperature Coefficient) thermistors, offering a range of resistance values for various temperature-sensing and compensation applications. These thermistors decrease in resistance as the temperature increases, making them ideal for temperature measurement, compensation circuits, and protection applications in electronics.

    NTC Symbol:

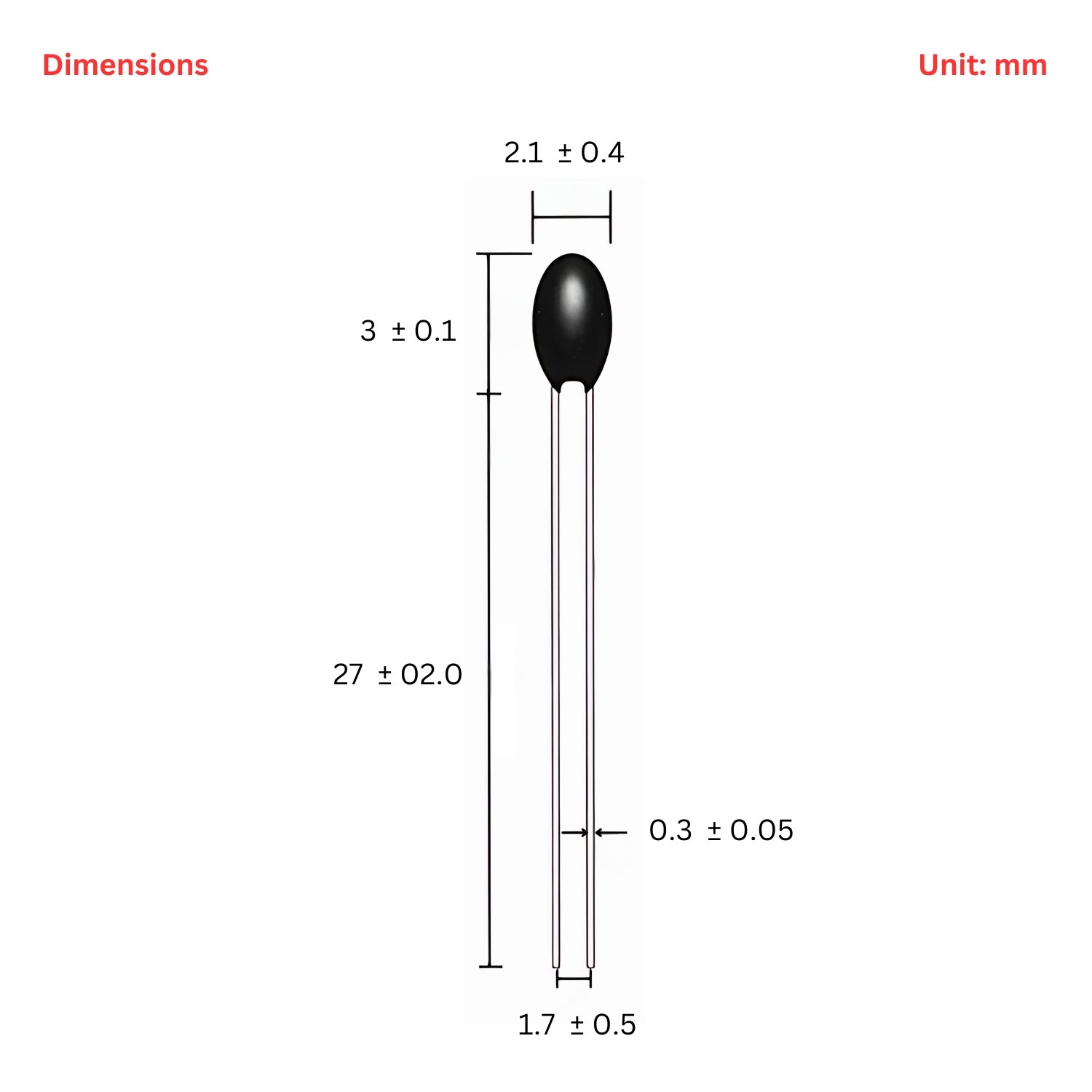

    MF52 NTC Structure:

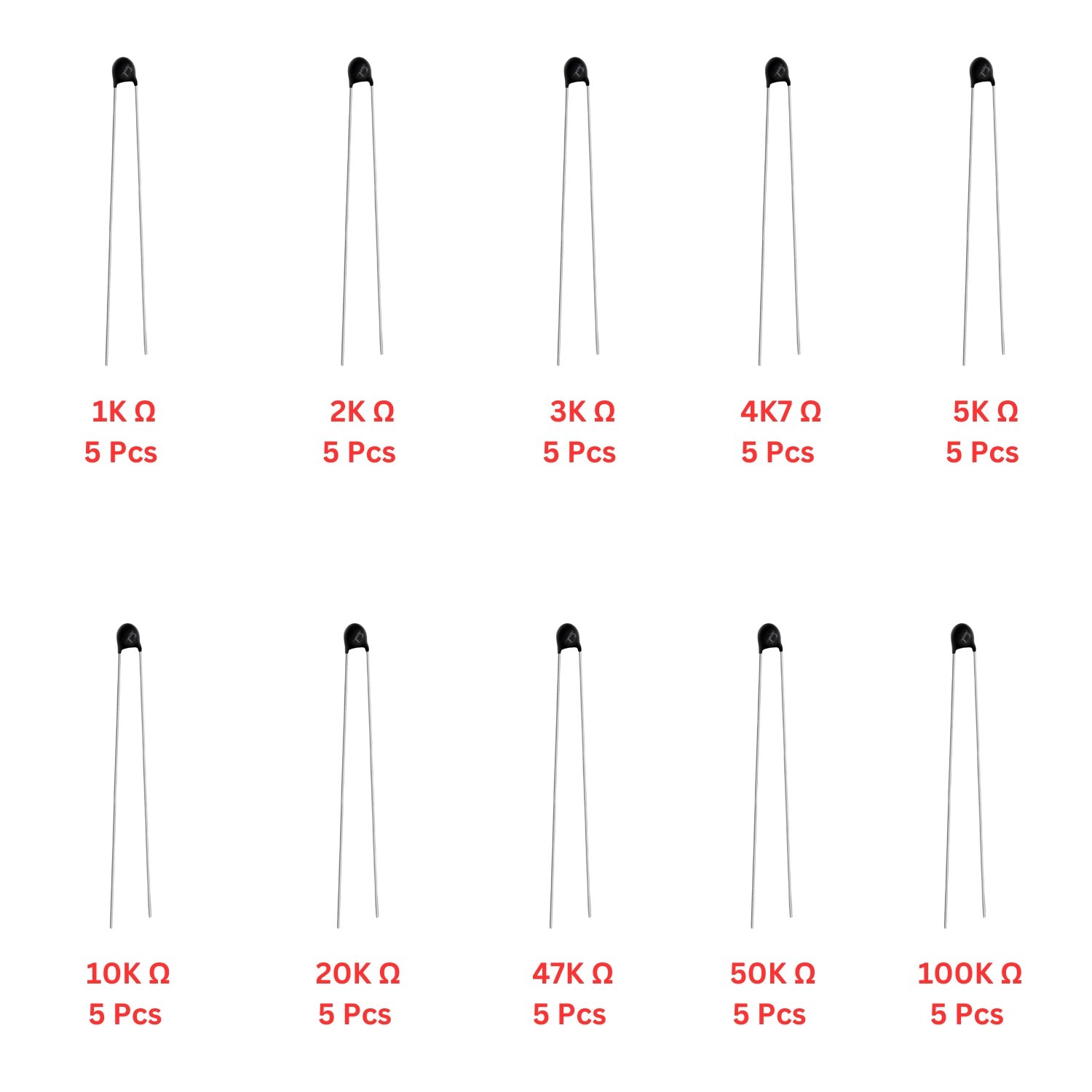

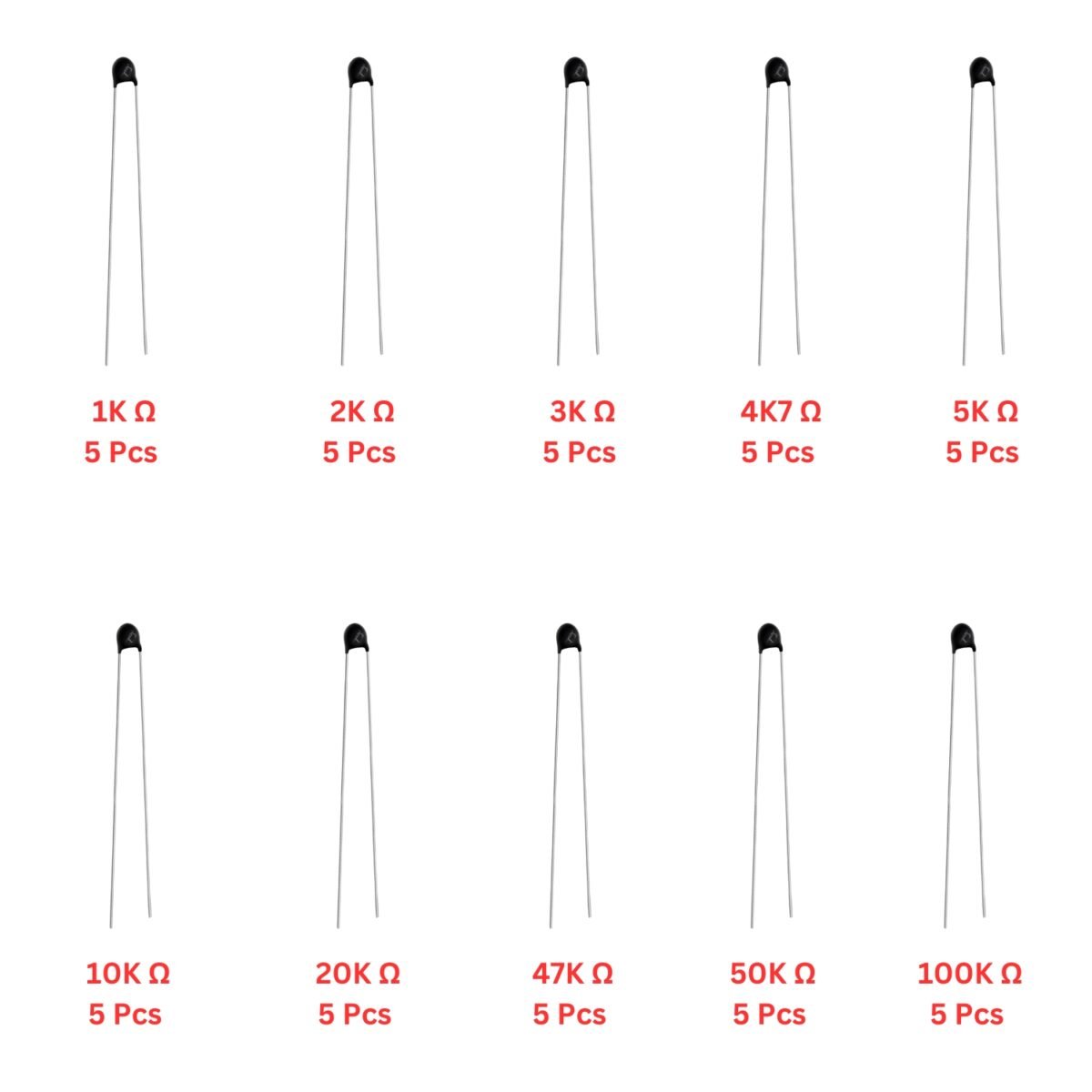

    Package Includes

    50 MF52 NTC Thermistor 10 Types

    • 1 KΩ - 5 Pcs
    • 2 KΩ - 5 Pcs
    • 3 KΩ - 5 Pcs
    • 4.7 KΩ - 5 Pcs
    • 5 KΩ - 5 Pcs
    • 10 KΩ - 5 Pcs
    • 20 KΩ - 5 Pcs
    • 47 KΩ - 5 Pcs
    • 50 KΩ - 5 Pcs
    • 100 KΩ - 5 Pcs

    Features:

    • High sensitivity
    • Compact size
    • Wide resistance range
    • High accuracy
    • Fast thermal response
    • Low cost
    • Reliable performance
    • Wide operating temperature range
    • Easy to use
    • Versatile applications

    Applications:

    • Temperature sensing and measurement - Used in electronic circuits to detect temperature variations
    • Overheat protection in power supplies and batteries - Prevents overheating by monitoring temperature
    • Temperature compensation in electronic circuits - Stabilizes circuit performance against temperature fluctuations
    • HVAC systems - Regulates temperature in air conditioners and heating systems
    • Home appliances - Used in refrigerators, water heaters, and ovens for temperature control
    • Automotive temperature monitoring - Helps regulate engine and battery temperatures
    • Medical devices and equipment - Ensures accurate temperature readings in medical sensors
    • Industrial automation and process control - Maintains optimal working conditions in machinery
    • Solar power systems and inverters - Monitors temperature to prevent overheating in solar panels
    1. How do I connect an MF52 NTC thermistor?

    Connect it in series with a resistor in a voltage divider circuit.

    2. Do MF52 thermistors work in DC and AC circuits?

    They typically work in DC circuits, but can be used in AC circuits with appropriate voltage regulation.

    3. How do I test an MF52 NTC thermistor?

    Measure resistance with a multimeter and check for expected changes with temperature variation.

    4. How do I choose the right MF52 thermistor for my application?

    Select based on resistance value, B-value, and operating temperature range.

    5. How do I solder an MF52 thermistor?

    Use low-temperature soldering and avoid prolonged heat exposure to prevent damage.

    6. Does an MF52 thermistor have polarity?

    No, thermistors are non-polar components and can be connected either way.

    7. Can I replace an MF52 thermistor with a resistor?

    No, a fixed resistor does not respond to temperature changes.

    8. What type of signal does an MF52 thermistor produce?

    It produces a resistance-based signal, which can be converted into a temperature reading.

    9. Can I integrate an MF52 thermistor with a microcontroller?

    Yes, by using an analog-to-digital converter (ADC) to read the voltage drop across the thermistor in a voltage divider setup.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
