SMD Resistor 2512 2W ±1% Pak 0E01 to 1E 50 Pcs 10 Values

SKU: EP524

Brand: Generic

Type: SMD

Model: 2515 2W Resistor

Package Type: 2515

Resistance Range: 0E01 to 1E

Tolerance: ±1%

₹475.00

Add to wishlist

Description

The 2512 2W SMD Resistor series offers low-resistance values ranging from 0.01Ω (10mΩ) to 1Ω, designed for high-power and current-sensing applications. With a 2512 package size, these resistors provide excellent power dissipation and stability, making them ideal for power regulation, battery management systems, motor control, and circuit protection. Featuring a ±1% tolerance, they ensure precision and reliability in electronic designs requiring accurate current measurement and low resistance.

Symbol:

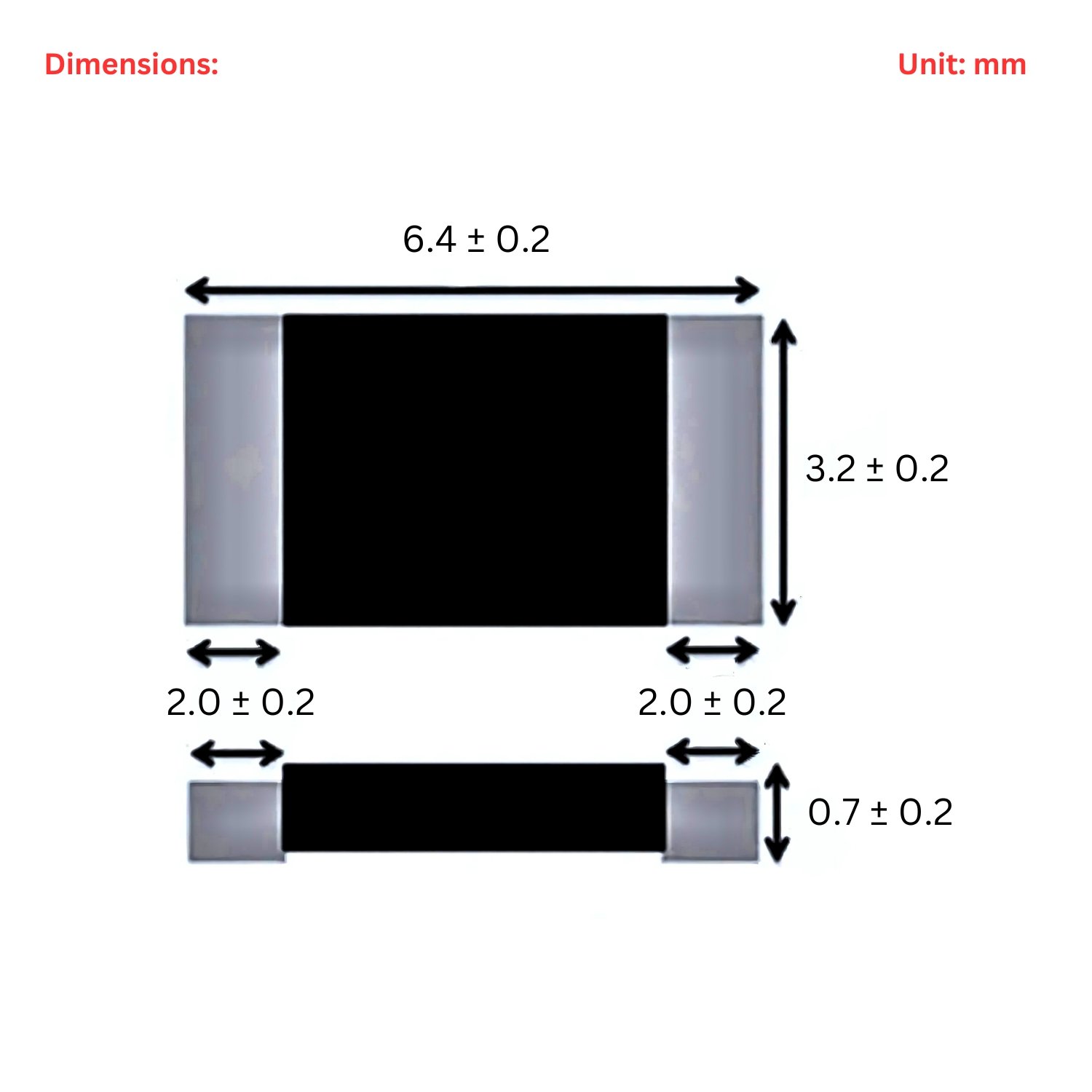

2512 2W Resistor Structure:

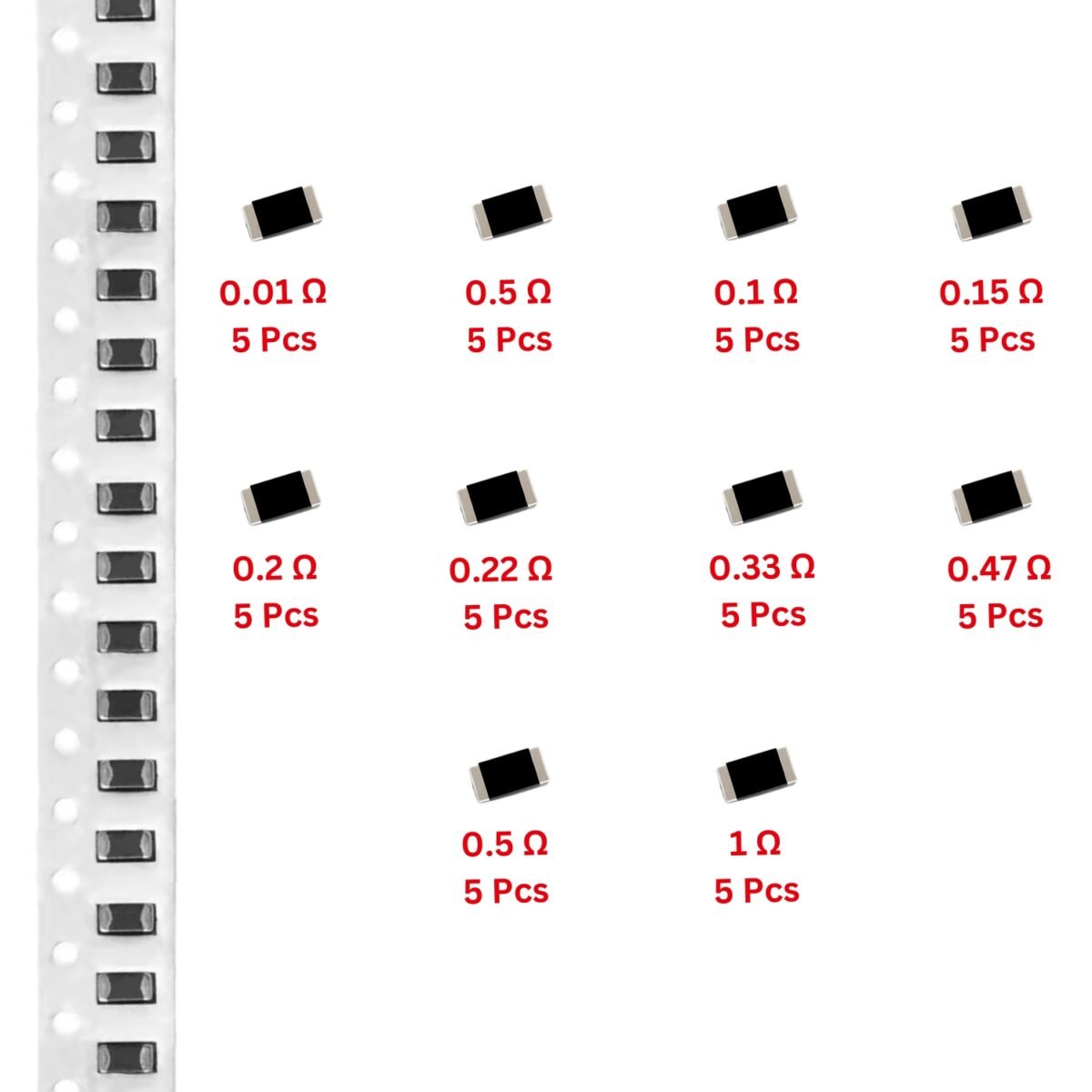

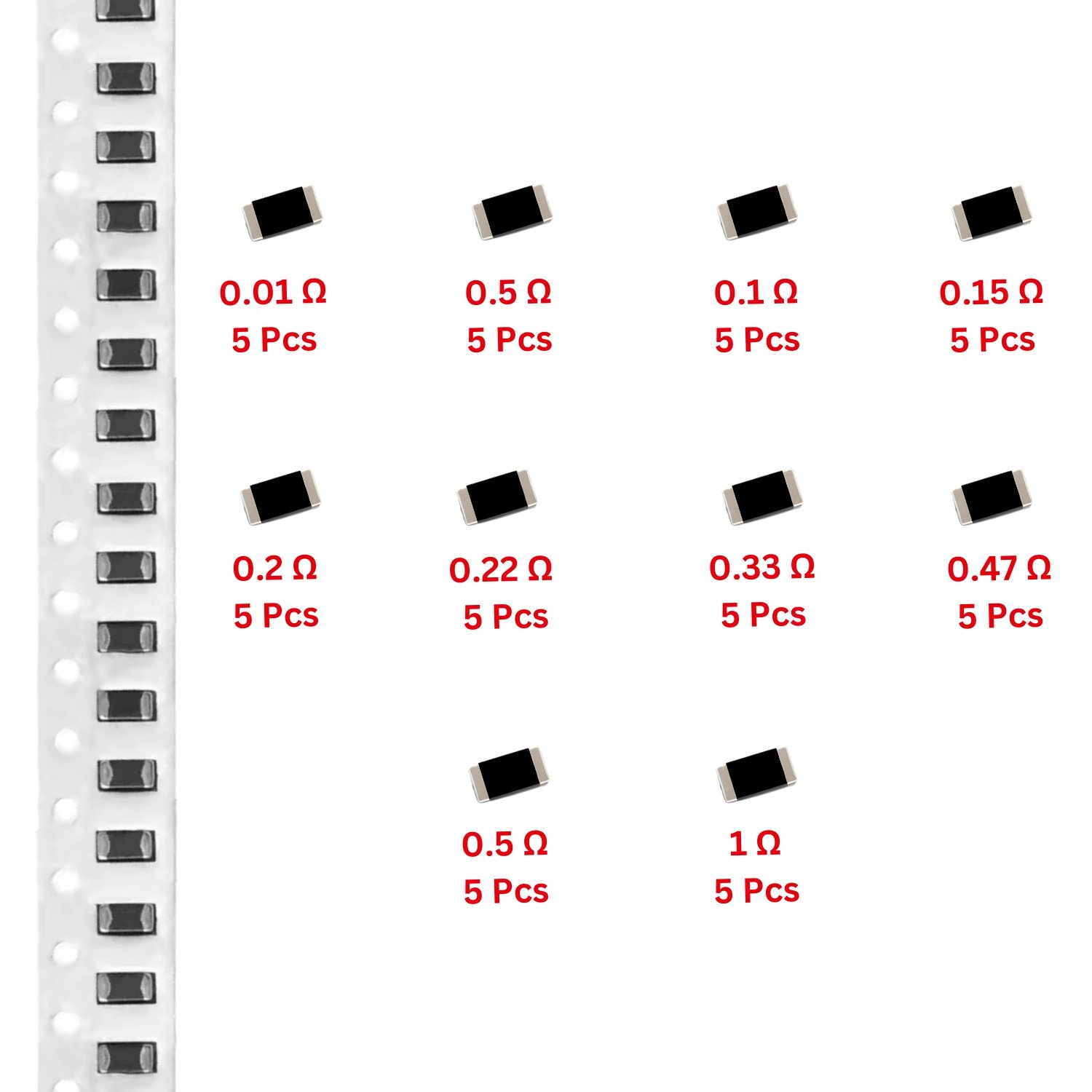

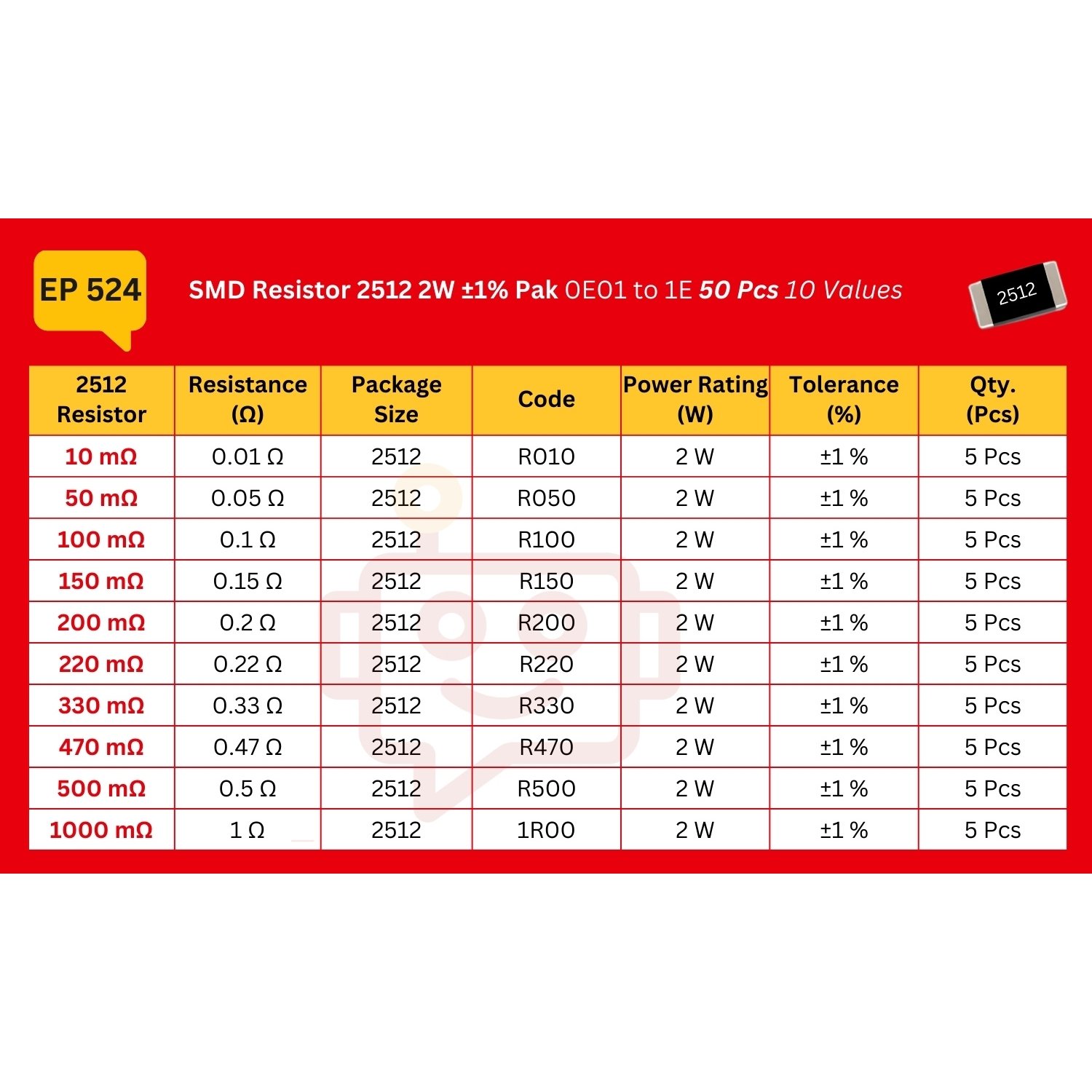

Package Includes

50 SMD Resistor 2512 2W ±1% 0E01 to 1E 10 Types

  • 01Ω (R010) – 5 Pcs
  • 05Ω (R050) – 5 Pcs
  • 1Ω (R100) – 5 Pcs
  • 15Ω (R150) – 5 Pcs
  • 2Ω (R200) – 5 Pcs
  • 22Ω (R220) – 5 Pcs
  • 33Ω (R330) – 5 Pcs
  • 47Ω (R470) – 5 Pcs
  • 5Ω (R500) – 5 Pcs

1Ω (1R00) – 5 Pcs

Features:

  • High Power Rating (2W)
  • Compact 2512 Package
  • Low Resistance Values (0.01Ω to 1Ω)
  • ±1% Tolerance for Accuracy
  • Low Inductance for High-Frequency Circuits
  • Good Thermal Stability
  • Durable and Reliable
  • Wide Application Range

Applications:

  • Current Sensing - Used for measuring current in circuits
  • Battery Management Systems (BMS) - Monitors and controls battery performance
  • Motor Control - Provides accurate current feedback for efficient operation
  • Power Supply Circuits - Ensures stable voltage and current regulation
  • Automotive Electronics - Used in ECUs and other vehicle power applications
1. Are these resistors suitable for PCB mounting?

⋙ Yes, they are surface-mount (SMD) components.

2. Do these resistors work with AC and DC circuits?

⋙ Yes, they are compatible with both AC and DC applications.

3. Do these resistors support automated assembly?

⋙ Yes, they are designed for SMT (Surface Mount Technology).

4. Can these resistors be used in parallel or series configurations?

⋙ Yes, they can be combined for custom resistance values.

5. How do I read the marking on an SMD resistor?

⋙ Usually marked with a 3- or 4-digit code or alphanumeric notation.

6. Are these resistors suitable for DIY electronics projects?

⋙ Yes, but SMD soldering requires special tools and skills.

7. How do I test the resistance of an SMD resistor?

⋙ Use a digital multimeter (DMM) in resistance mode.

8. Are 2512 resistors polarized?

⋙ No, resistors are non-polarized components.

9. Are these resistors individually labelled?

⋙ Yes, each value is clearly marked for easy identification.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon request.
