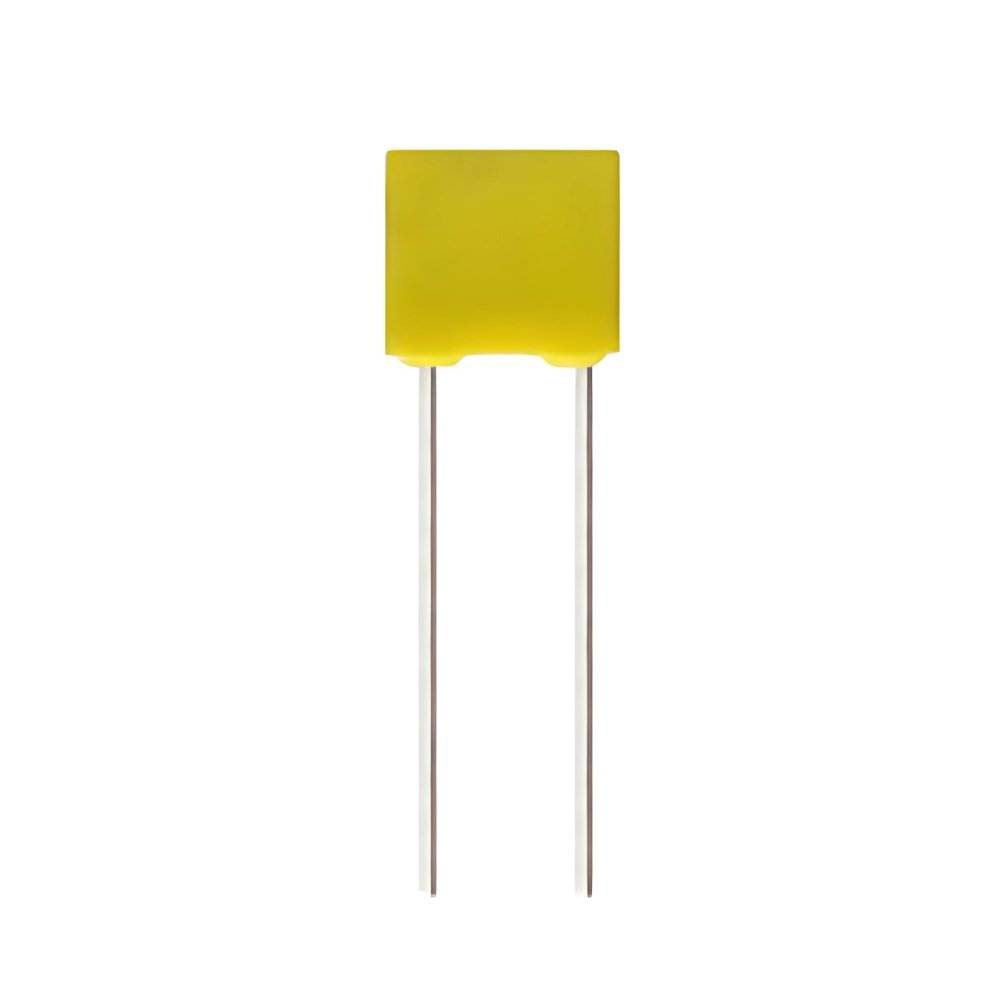

    5mm Box Capacitor 100V Pak 1KpF to 1µF 50 Pcs 10 Values

    SKU: EP5

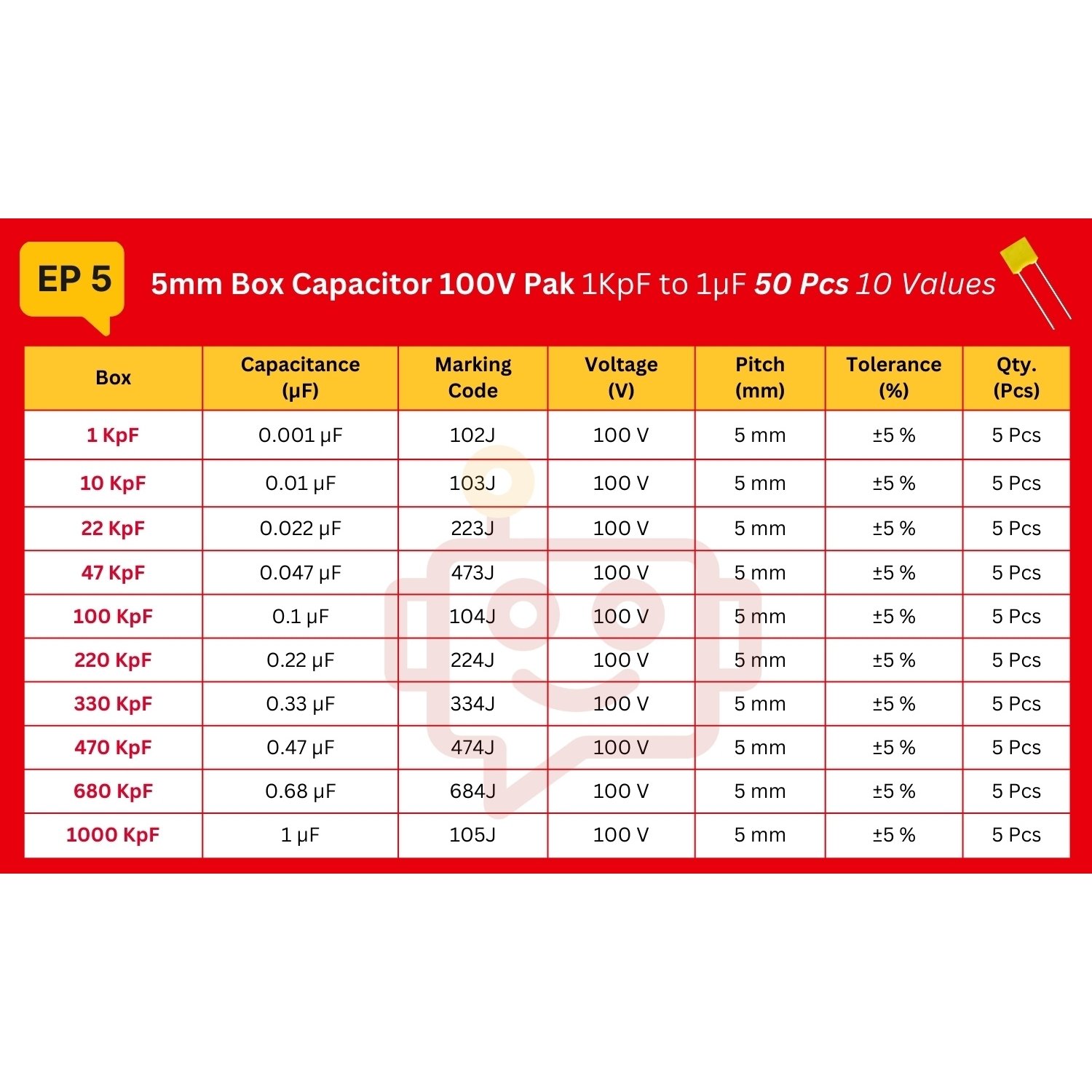

    Technical Specification:

    • Type: Through Hole
    • Model: Box Capacitor
    • Capacitance Range: 1 KpF – 1000 KpF
    • Tolerance: ±5 %

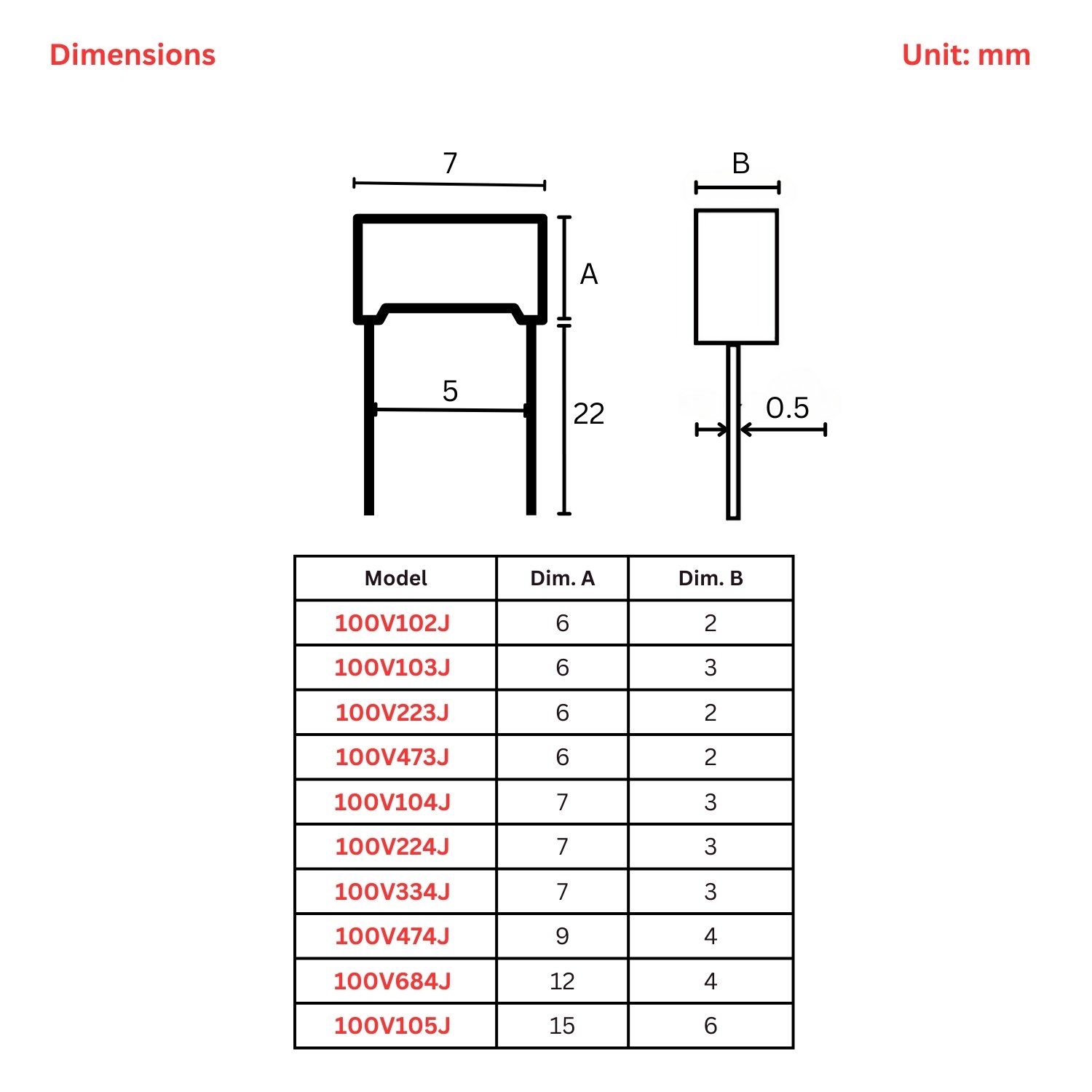

    • Lead Spacing: 5 mm
    • Voltage Rating: 100 V
    • Box Weight: 50 gm
    • Box Dimensions: 127 x 80 x 24 mm

    ₹420.00

    Add to wishlist

    Description

    A box capacitor is a type of film capacitor enclosed in a rectangular plastic or epoxy casing. The box-shaped enclosure provides mechanical protection, better insulation, and resistance to environmental factors.

    Box Cap Symbol:

    Box Cap Part Code:



    Box Cap Structure:

    Package Includes

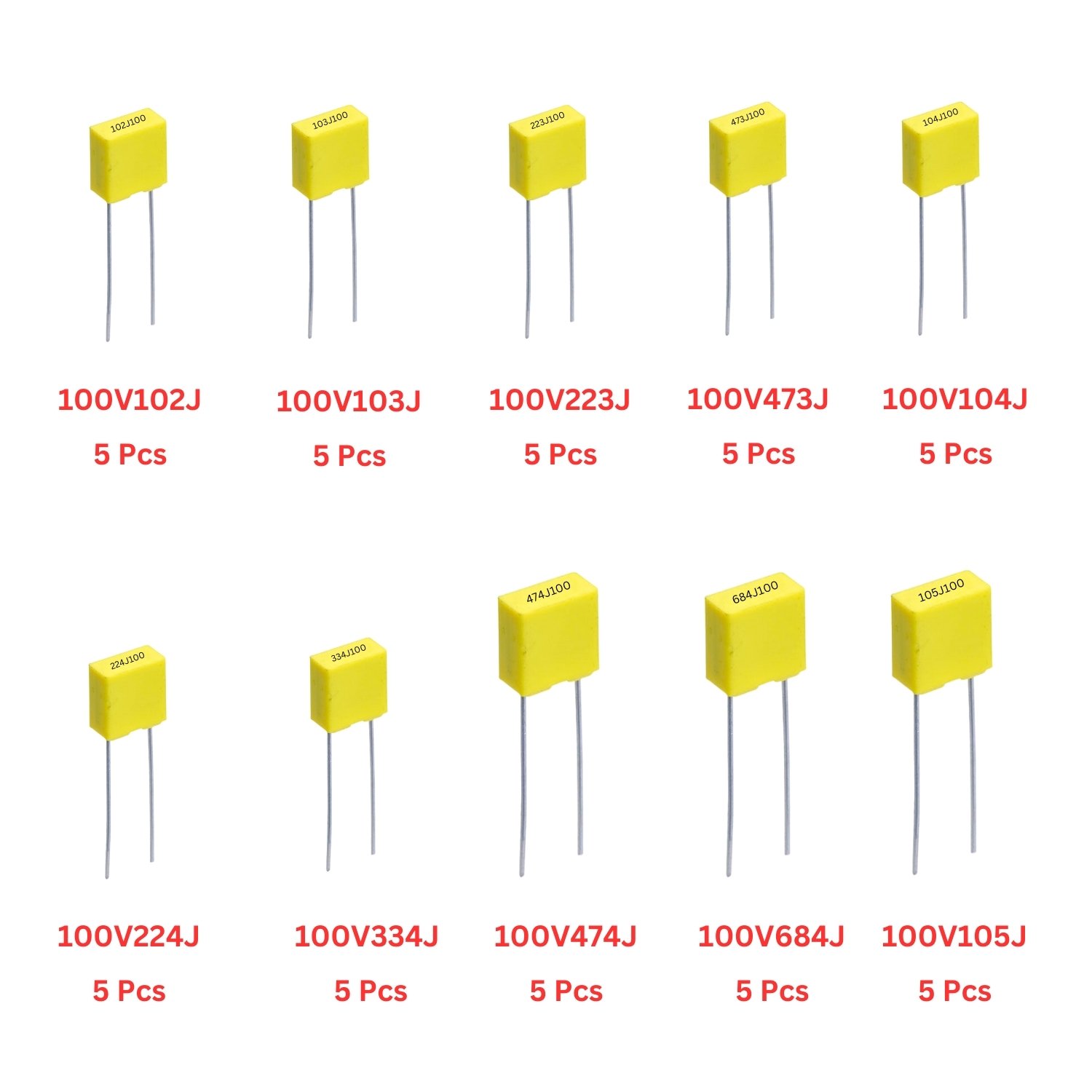

    50 5mm Box Capacitor 100V 10 Types

    • 102J - 0.001 µF - 5 Pcs
    • 103J - 0.01 µF - 5 Pcs
    • 223J - 0.022 µF - 5 Pcs
    • 473J - 0.047 µF - 5 Pcs
    • 104J - 0.1 µF - 5 Pcs
    • 224J - 0.22 µF - 5 Pcs
    • 334J - 0.33 µF - 5 Pcs
    • 474J - 0.47 µF - 5 Pcs
    • 684J - 0.68 µF - 5 Pcs
    • 105J - 1 µF - 5 Pcs

    Features:

    • High stability and reliability
    • Low ESR and minimal energy loss
    • Non-polarized for AC/DC use
    • Moisture and dust-resistant encapsulation
    • Self-healing for longer lifespan

    Applications:

    • Power Supply Circuits: Used for smoothing voltage
    • Audio Systems: Helps reduce noise in signals
    • Timing Devices: Keeps oscillators running smoothly
    • Electronics Protection: Reduces interference in sensitive components
    • Energy Storage: Stores energy for use in circuits
    1. What is the purpose of having multiple capacitance values in the pack?

    It allows users to choose the right capacitor for various calibration and testing needs.

    2. Are the capacitors in the pack suitable for high-frequency applications?

    Yes, they are designed for effective performance in high-frequency circuits.

    3. Can these capacitors be used in AC circuits?

    Yes, they can be used in both AC and DC circuits.

    4. What is the typical application environment for these capacitors?

    They are suitable for laboratories, DIY projects, and professional electronics.

    5. How do I know if a specific capacitor from the pack is suitable for my circuit?

    Ensure its voltage rating, capacitance value, and tolerance match your circuit requirements.

    6. What tools do I need to install the capacitors in a circuit?

    A soldering iron, wire cutters, and a mustimeter are typically needed.

    7. Can I use calibration capacitors for non-electronic projects?

    They are specifically designed for electronic applications and may not suit non-electronic uses.

    8. How does the 100V rating benefit their usage in electronics?

    The 100V rating ensures they are safe for use in moderate voltage circuits, offering reliable protection.

    9. How do the lead spacing and compact design affect their application?

    The 5mm lead spacing allows easy integration into space-constrained PCBs.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
