5mm Diffused LED Pak 100 Pcs 5 Colors

SKU: EP32

Brand: Generic

Type: Through Hole

Lens Type: Diffused

LED Type: 5mm

Colors: Red, Green, Blue, Yellow, White

Size: 5mm diameter

Operating Voltage: Typically, 1.8V – 3.2V (varies by color)

Current Rating: 10mA – 20mA

Viewing Angle: 30° to 60°

Luminous Intensity: Varies based on color Varies based on color (e.g., Red: ~800 -150mcd, Green: ~2000-3000 mcd, Blue: ~1500-2500 mcd)

Power Consumption: Low power, typically 0.06W per LED

Lifespan: Typically, 50,000 hours

₹150.00

Add to wishlist

Description

The 5mm LED light package includes a variety of 5 colors: Red, Green, Blue, Yellow, and White. These LEDs are ideal for a range of applications, including indicators, displays, automotive lighting, and decorative purposes. The 5mm diameter offers a larger light-emitting surface compared to 3mm LEDs, making them suitable for projects that require a slightly brighter light or a wider viewing angle. With a long lifespan and low power consumption, they are perfect for both DIY electronics and more commercial uses.

This LED assortment pack includes 100 pieces of high-quality 5mm diffused LEDs in five vibrant colors: Red, Green, Blue, Yellow, and White (20 pcs each). These LEDs are ideal for DIY electronics, prototyping, hobby projects, and professional circuit designs.

Symbol:

LED Structure:

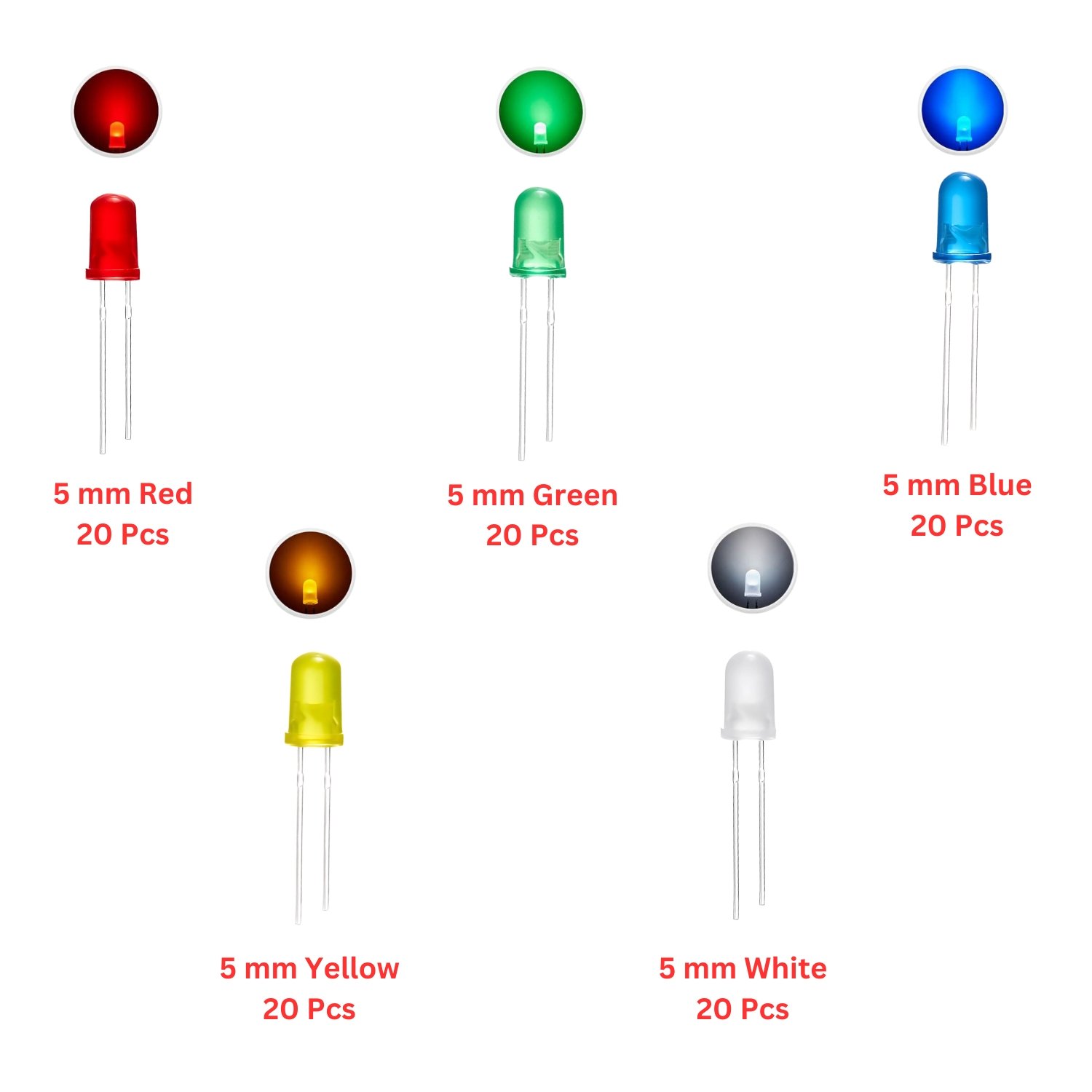

Package Includes

100 Pcs Diffused 5mm LED 5 Colors

  • 5mm Red - 20 Pcs
  • 5mm Green - 20 Pcs
  • 5mm Blue - 20 Pcs
  • 5mm Yellow - 20 Pcs
  • 5mm White - 20 Pcs

Features:

  • Energy-efficient, low power consumption
    • Long lifespan of 50,000+ hours
    •   Diffused lens for uniform light distribution
    •   Wide viewing angle (30° - 60°)
    •   Suitable for Arduino, Raspberry Pi, and circuit projects
    •   High brightness with stable illumination
    •   Compact 5mm size, easy to fit in breadboards and PCBs
    •   Operates at low voltage (1.8V - 3.2V) with minimal heat
    •   Easy to use with a standard through-hole design

Applications:

  • Electronic Prototyping - Used in breadboards and circuit testing
  • Arduino & Raspberry Pi Projects - Ideal for indicator lights and displays
  • DIY Electronics & Hobby Projects - Great for custom lighting and creative builds
  • Indicator Lights - Used in home appliances, power status indicators, and control panels
  • Automotive Applications - Dashboard indicators, signal lights, and interior lighting
  • Decorative Lighting - Used in signage, models, and ambient lighting setups
  • Toys & Gadgets - Adds visual effects and interactive lighting to toys
  • Educational Kits - Helps students learn electronics and circuit design
  • Wearable Electronics - Integrated into costumes, accessories, and smart clothing
  • Remote Controls & IR Applications - Some variants used for infrared signaling
1. What is the difference between diffused and clear LEDs?

Diffused LEDs have a frosted lens that spreads light evenly, while clear LEDs produce a focused, bright spot.

2. Are these LEDs pre-wired?

No, these are through-hole LEDs and need to be soldered onto a circuit board.

3. Do these LEDs require resistors?

Yes, resistors are recommended to limit current and avoid damaging the LEDs, depending on your power supply.

4. What is the size of the LED's lead?

The lead size is standard for 5mm LEDs, usually around 0.5mm in diameter.

5. Are these LEDs polarized?

Yes, LEDs are polarized components. The long lead is the anode (+) and the short lead is the cathode (-).



6. Can these LEDs be dimmed?

Yes, these LEDs can be dimmed by adjusting the voltage or using a PWM controller.

7. Can I solder these LEDs to a PCB?

Yes, these through-hole LEDs can easily be soldered onto a printed circuit board (PCB) for permanent installations.

8. Can these LEDs be used in a series circuit?

Yes, these LEDs can be connected in series with appropriate resistors.

9. Are the LEDs pre-assembled into any form?

No, the LEDs are not pre-assembled and need to be soldered individually.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon request.
