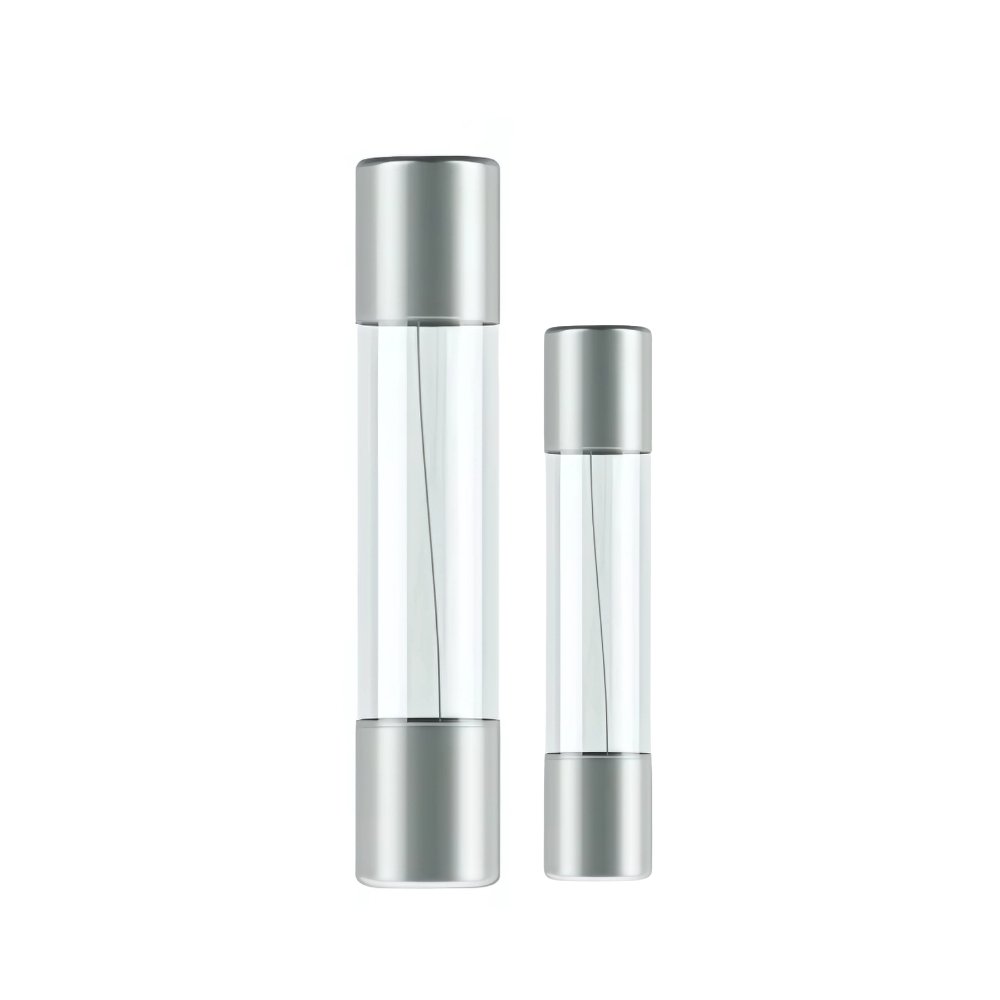

    5×20 & 6x32mm Glass Fuse Fast Blow Pak 0.25A to 15A 90 Pcs 12 Values

    SKU: EP24

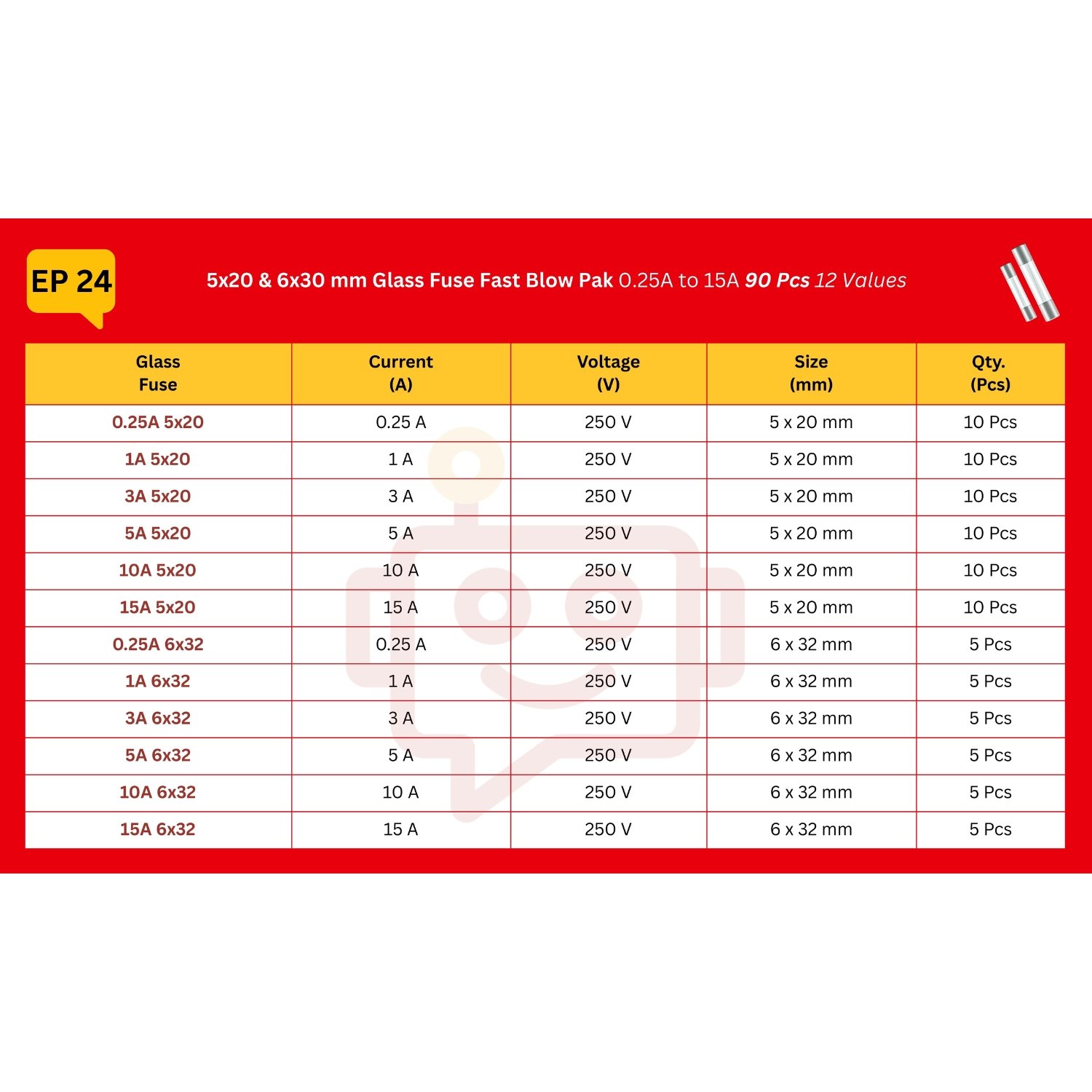

    Technical Specification:

    • Type: Through Hole
    • Model: Glass Fuse

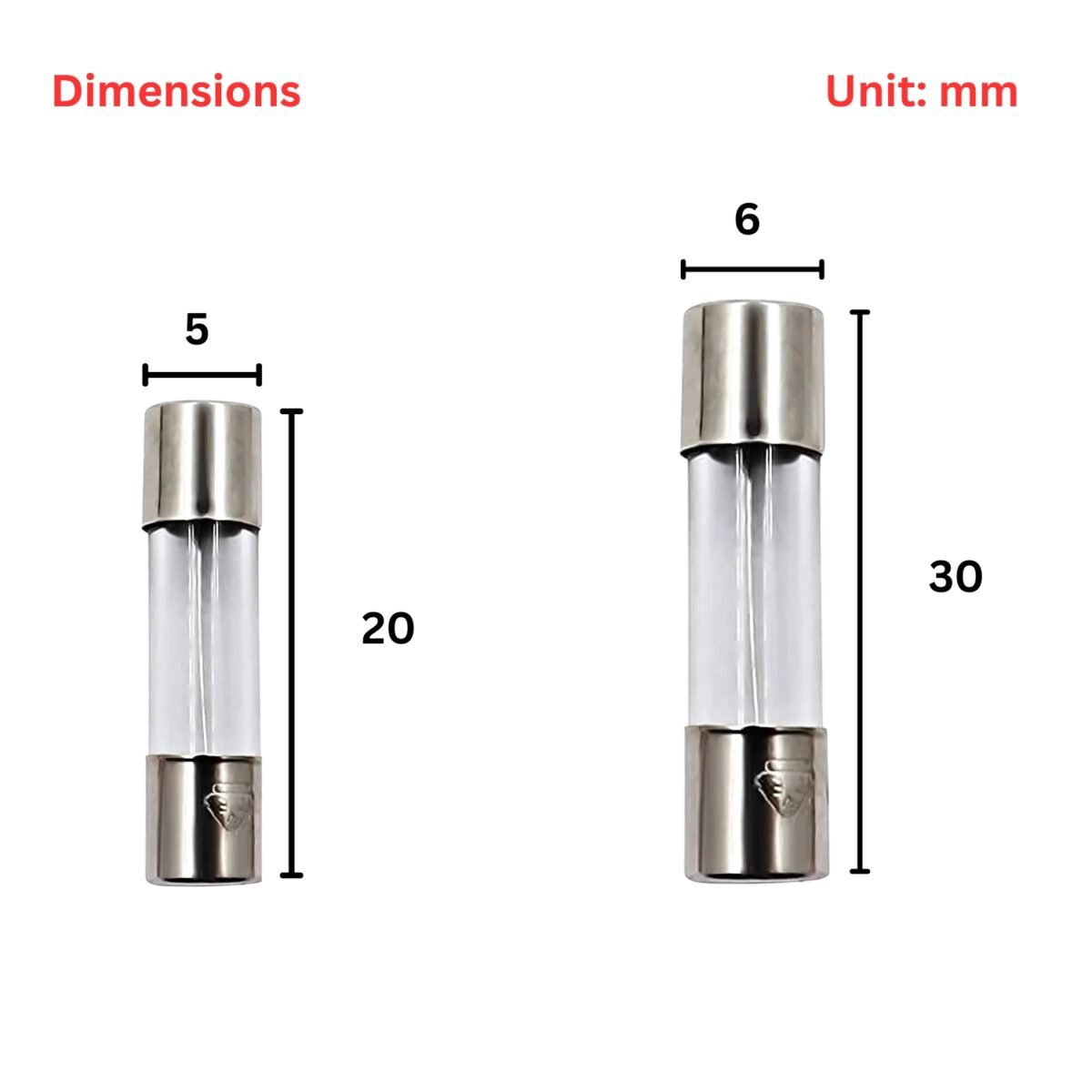

    • Sizes: 5 x 20 mm, 6 x 30 mm
    • Current Ratings: 0.25 A – 15 A
    • Voltage Rating: 250 VAC
    • Material:
      • Tube: Transparent glass
      • End Caps: Tin-plated brass or similar conductive material
    • Pak Weight: 150 gm
    • Pak Dimensions: 150 x 100 x 35 mm

    ₹295.00

    Add to wishlist

    Description

    A glass fuse is a safety device used to protect electrical circuits from overcurrent. It consists of a metal filament inside a transparent glass tube. When the current exceeds the fuse’s rated limit, the filament melts, interrupting the circuit and preventing damage to components.

    This set provides a variety of glass fuses in both 5mm x 20mm and 6mm x 30mm sizes, with different current ratings (5A to 30A). This selection covers a wide range of applications from lower power circuits (3A, 5A) to higher power circuits (20A, 30A), offering flexibility in circuit protection.

    Fuse Symbol:

    Glass Fuse Part Code:

    Glass Fuse Structure:

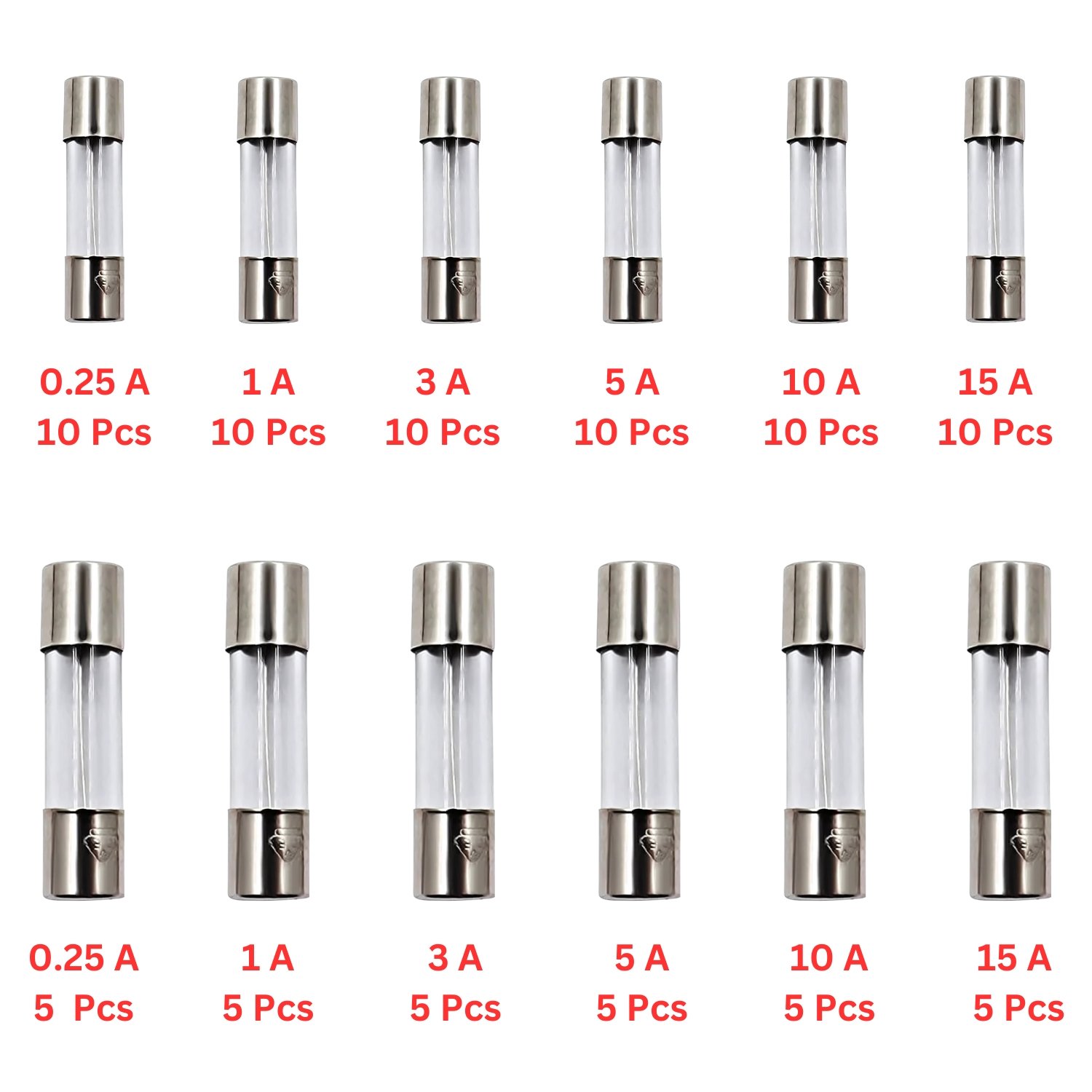

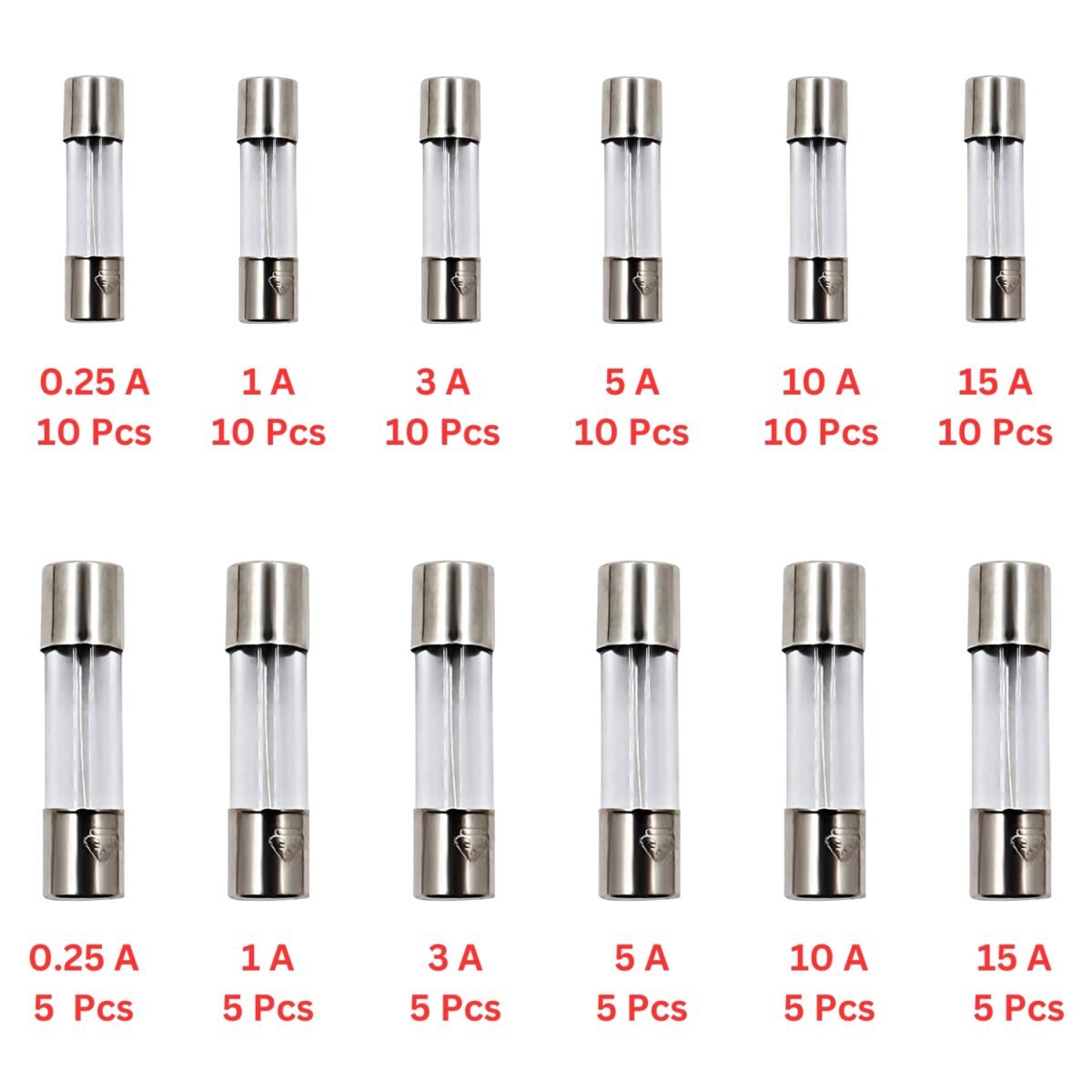

    Package Includes

    90 Glass Fuse 5 x 20 mm & 6 x 30 mm 12 Types

    5 x 20 mm

    • 0.25 A - 10 Pcs
    • 1 A - 10 Pcs
    • 3 A - 10 Pcs
    • 5 A - 10 Pcs
    • 10 A - 10 Pcs
    • 15 A - 10 Pcs

    6 x 30 mm

    • 0.25 A - 5 Pcs
    • 1 A - 5 Pcs
    • 3 A - 5 Pcs
    • 5 A - 5 Pcs
    • 10 A - 5 Pcs
    • 15 A - 5 Pcs

    Features:

    • Overcurrent protection
    • Compact & lightweight
    • Transparent body for visual inspection
    • Fast & reliable operation
    • Wide range of ratings
    • High voltage resistance
    • Cost-effective
    • Easy to replace
    • Safe operation

    Applications:

    • Electrical and Electronic Circuits - Protects sensitive components from overcurrent damage
    • Power Supplies and Adapters - Ensures safe operation by breaking the circuit during overload
    • Home Appliances - Used in TVs, microwaves, and washing machines to prevent electrical faults
    • Automotive Electronics - Safeguards car circuits in fuse boxes and control modules
    • Industrial Equipment - Prevents damage to heavy machinery and automation systems
    • Medical Devices - Ensures safety in critical equipment like diagnostic machines
    • Battery Chargers - Protects circuits from short circuits and overcurrent issues
    • Audio and Video Equipment - Prevents damage in amplifiers, speakers, and home theatres
    • HVAC Systems - Protects air conditioners, heaters, and ventilation units
    • Test and Measuring Instruments - Ensures longevity of multimeter, oscilloscope, and other tools
    1. Can I mix and match the fuse sizes in the same circuit?

    No, always use the correct size and rating fuse specified for your circuit to ensure proper protection.

    2. Are these fuses suitable for both AC and DC circuits?

    Yes, these fuses can be used for both AC and DC circuits, but make sure to choose the appropriate fuse rating based on the circuit type.

    3. What are the advantages of using glass fuses?

    Glass fuses offer clear visibility for inspection, are cost-effective, and provide reliable protection against overcurrent.

    4. What happens if I use a fuse with the wrong rating?

    Using an incorrect rating can cause either frequent fuse blowouts or inadequate protection, leading to potential damage.

    5. Are these fuses reusable?

    No, ceramic fuses are single-use and need to be replaced once blown.

    6. How long do glass fuses last?

    Glass fuses typically last as long as the device they protect, but they will blow if the current exceeds their rating.

    7. Are the fuses individually labelled?

    Yes, each fuse type is neatly organized and labelled.

    8. Is this pack suitable for commercial electronic repairs?

    Yes, it is ideal for repair professionals and technicians.

    9. What is the difference between a fuse and a circuit breaker?

    A fuse is a one-time protection device that needs to be replaced when blown, while a circuit breaker can be reset after it trips to protect the circuit from overcurrent.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
