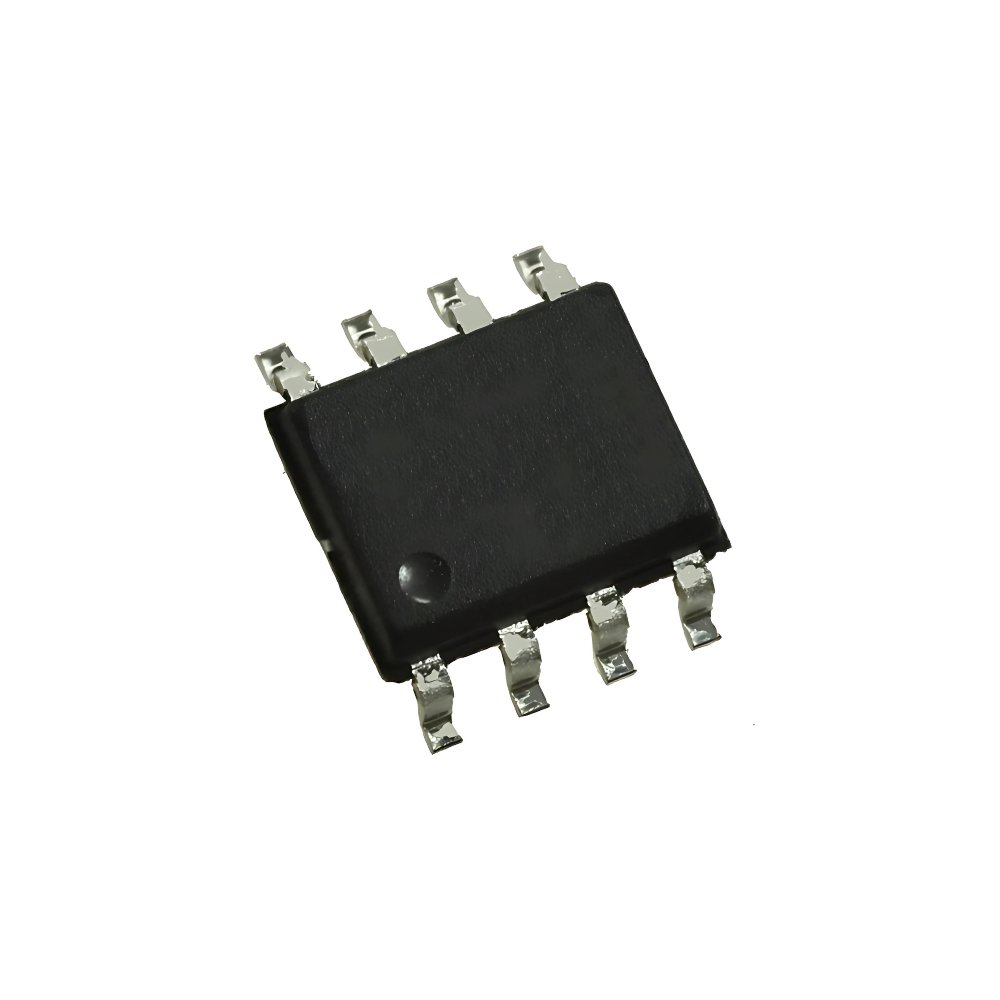

    SMD SOIC Memory IC Pak 30 Pcs 6 Types

    SKU: EP511

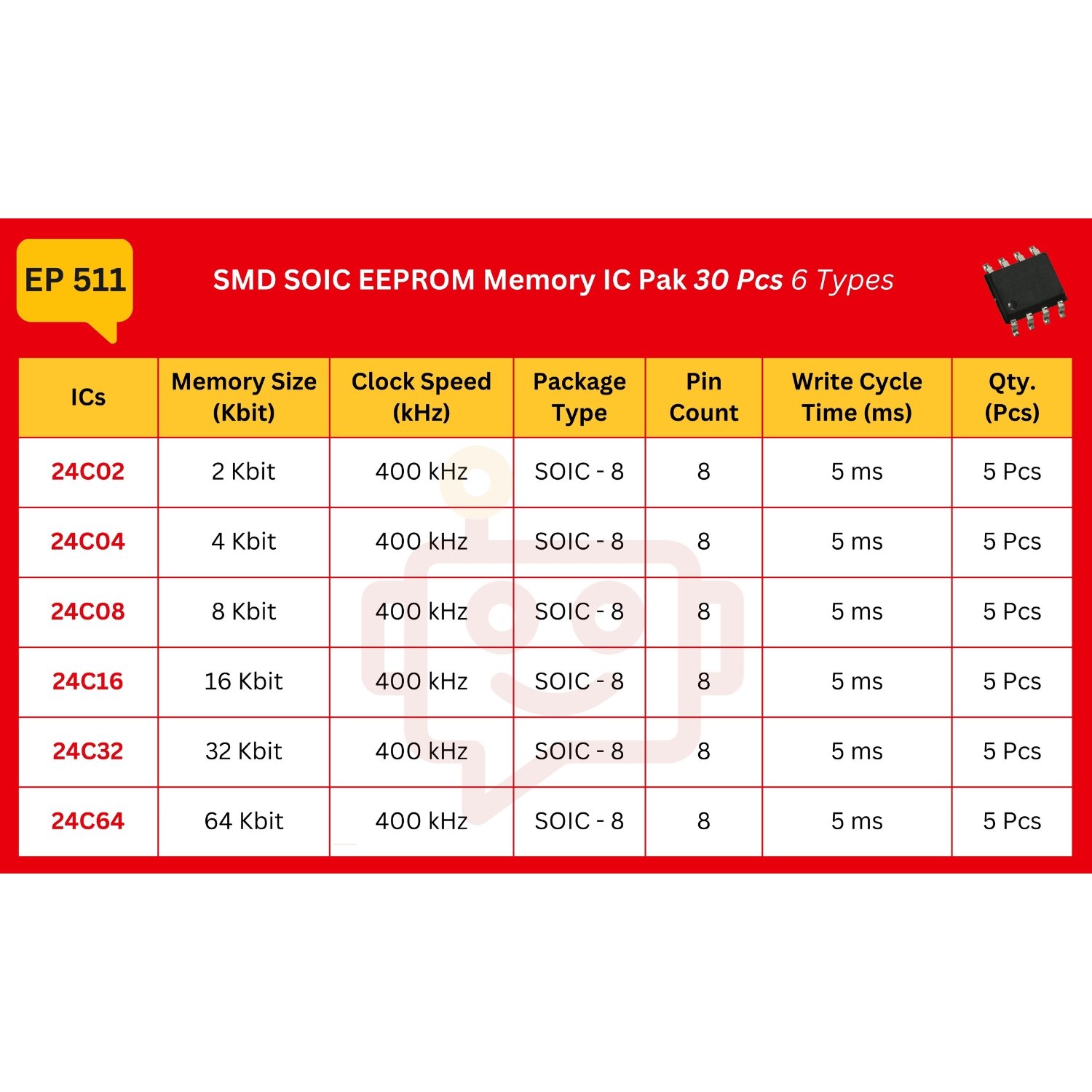

    Technical Specification:

    • Type: SMD
    • Model: EEPROM Memory IC
    • Package Type: SOIC – 8
    • Memory Size: 2 Kbit – 64 Kbit
    • Clock Speed: 400 KHz
    • Write Cycle Time: 5 ms
    • Pin Count: 8
    • Pak Weight: 60 gm

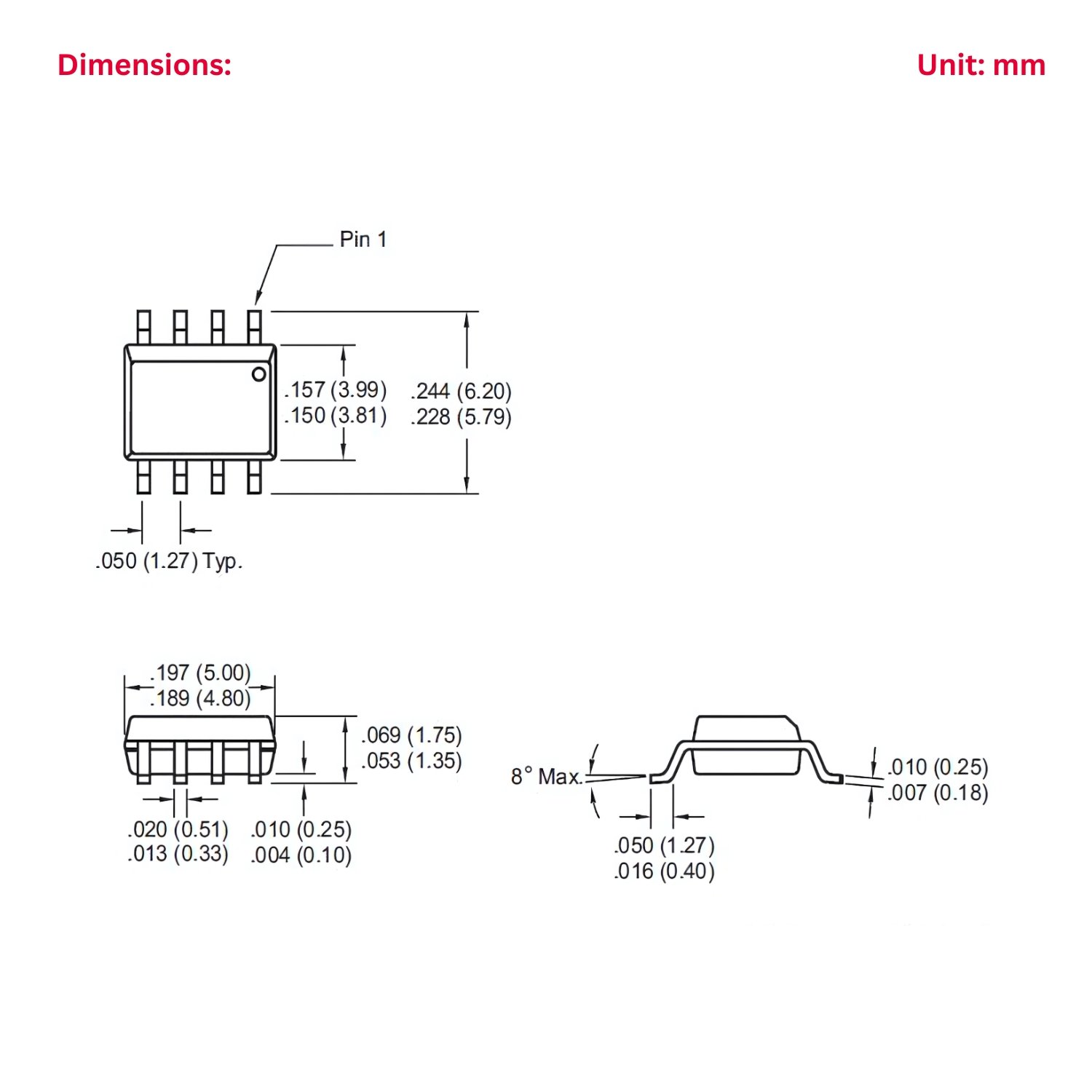

    • Pak Dimensions: 90 x 60 x 24 mm

    ₹545.00

    Add to wishlist

    Description

    These SMD EEPROM ICs in SOIC-8 packages are non-volatile memory chips that retain data even when power is removed. They communicate via the I²C interface, making them easy to integrate with a wide range of microcontrollers and embedded systems. Available in various memory capacities, they are ideal for storing configuration data, calibration values, serial numbers, and other critical information.

    This assortment pack includes 30 pieces of high-quality SMD EEPROM ICs from the popular 24C series, featuring six different memory capacities ranging from 2Kb to 64Kb.

    EEPROM IC Symbol:

    EEPROM IC Pin Description:

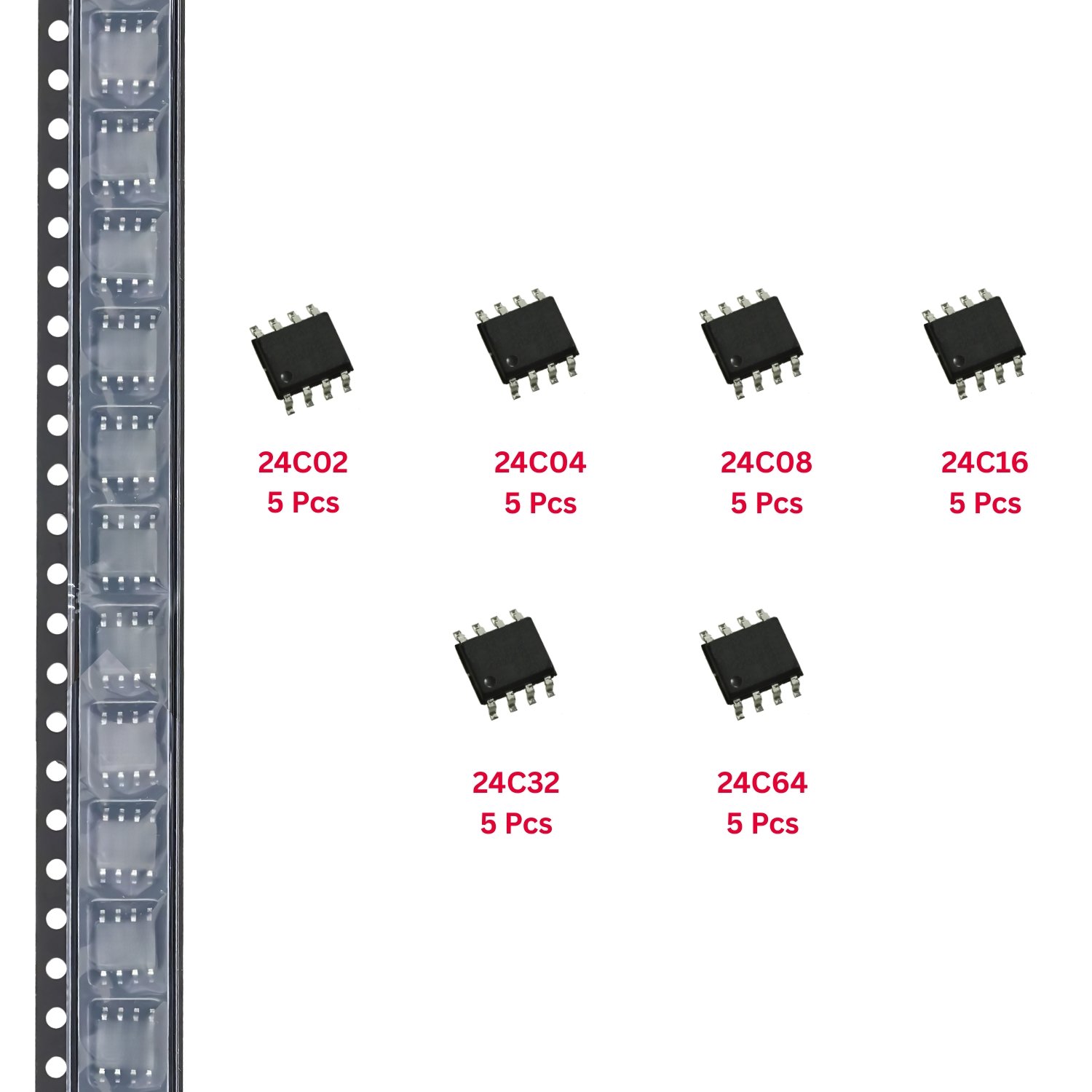

    Package Includes

    30 SMD SOIC EEPROM Memory IC 6 Types

    • 24C02 – 5 Pcs
    • 24C04 – 5 Pcs
    • 24C08 – 5 Pcs
    • 24C16 – 5 Pcs
    • 24C32 – 5 Pcs
    • 24C64 – 5 Pcs

    Features:

    • Wide range of memory sizes
    • Standard SOIC-8 package
    • I²C communication interface
    • High write/erase endurance (1 million cycles)
    • Long data retention (>100 years)
    • Industrial temperature range (-40°C to +85°C)
    • Compatible with most microcontrollers

    Applications:

    • Embedded Systems - Store critical configuration and runtime data in microcontroller-based projects
    • IoT Devices - Retain sensor readings, device settings, and status logs in low-power smart gadgets
    • Data Logging - Capture and store environmental or event-based data for later analysis
    • Consumer Electronics - Used in TVs, remotes, and home appliances for storing user settings
    • Automotive Electronics - Save calibration data, error logs, and operational parameters
    1. How do I interface an EEPROM IC with a microcontroller?

    ⋙ You can interface the EEPROM IC with a microcontroller using the I²C protocol for communication.

    2. How do I erase data from an EEPROM IC?

    ⋙ Data in an EEPROM IC is erased and rewritten byte-by-byte through the I²C interface.

    3. What is the benefit of purchasing the 30 pcs pack?

    ⋙ The pack provides a cost-effective way to stock up on multiple types of EEPROM ICs for different projects or repairs.

    4. Are these EEPROM ICs compatible with Arduino or Raspberry Pi?

    ⋙ Yes, these EEPROM ICs can easily be interfaced with Arduino, Raspberry Pi, and other microcontroller platforms.

    5. Is this pack suitable for beginners in electronics?

    ⋙ Yes, this pack is great for beginners, offering a variety of memory sizes for learning and prototyping.

    6. Are these ICs easily soldered onto PCBs?

    ⋙ Yes, these ICs come in SOIC-8 packages, which are relatively easy to solder onto most PCBs.

    7. Are the EEPROM ICs pre-programmed?

    ⋙ No, the EEPROM ICs are blank and ready to be programmed with your data.

    8. How do I read data from these EEPROM ICs?

    ⋙ Data can be read by sending I²C read commands to the EEPROM IC, which then transmits the stored data back.

    9. Are these EEPROM ICs compatible with all microcontrollers?

    ⋙ Yes, they are compatible with any microcontroller that supports I²C communication, such as Arduino, Raspberry Pi, and STM32.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
