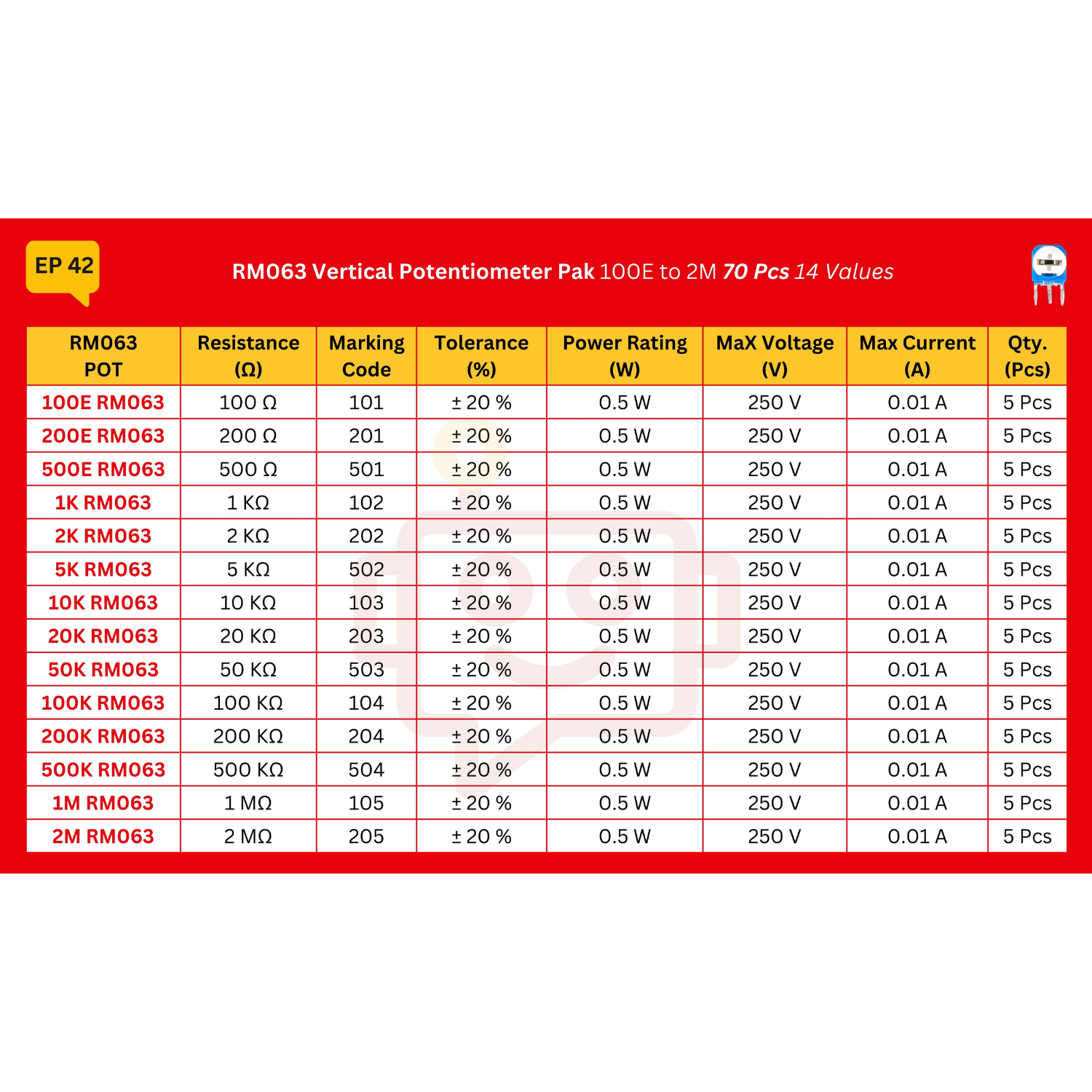

    RM063_Vertical_Potentiometer_Spec_Table

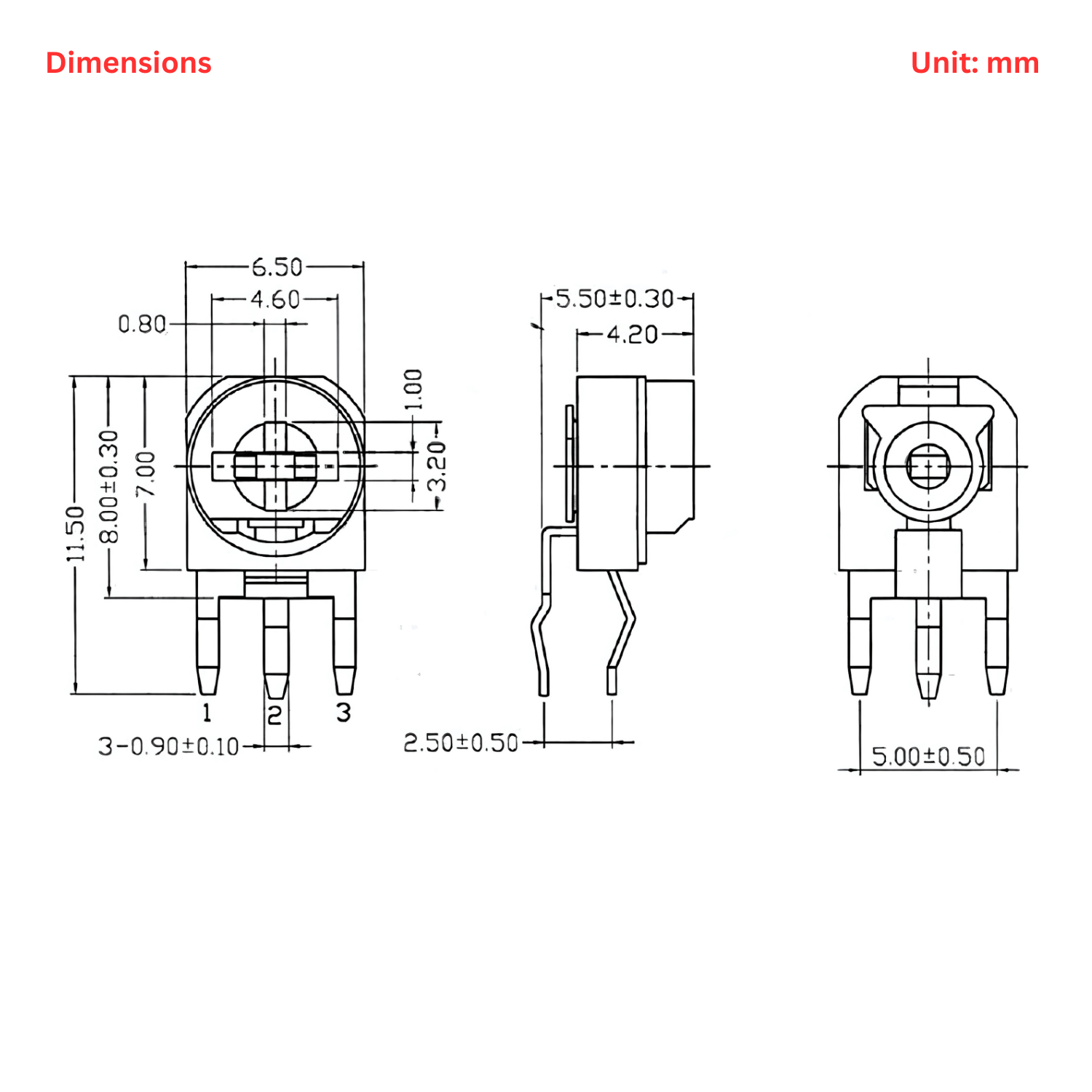

    RM063_Vertical_Potentiometer_Dimensions

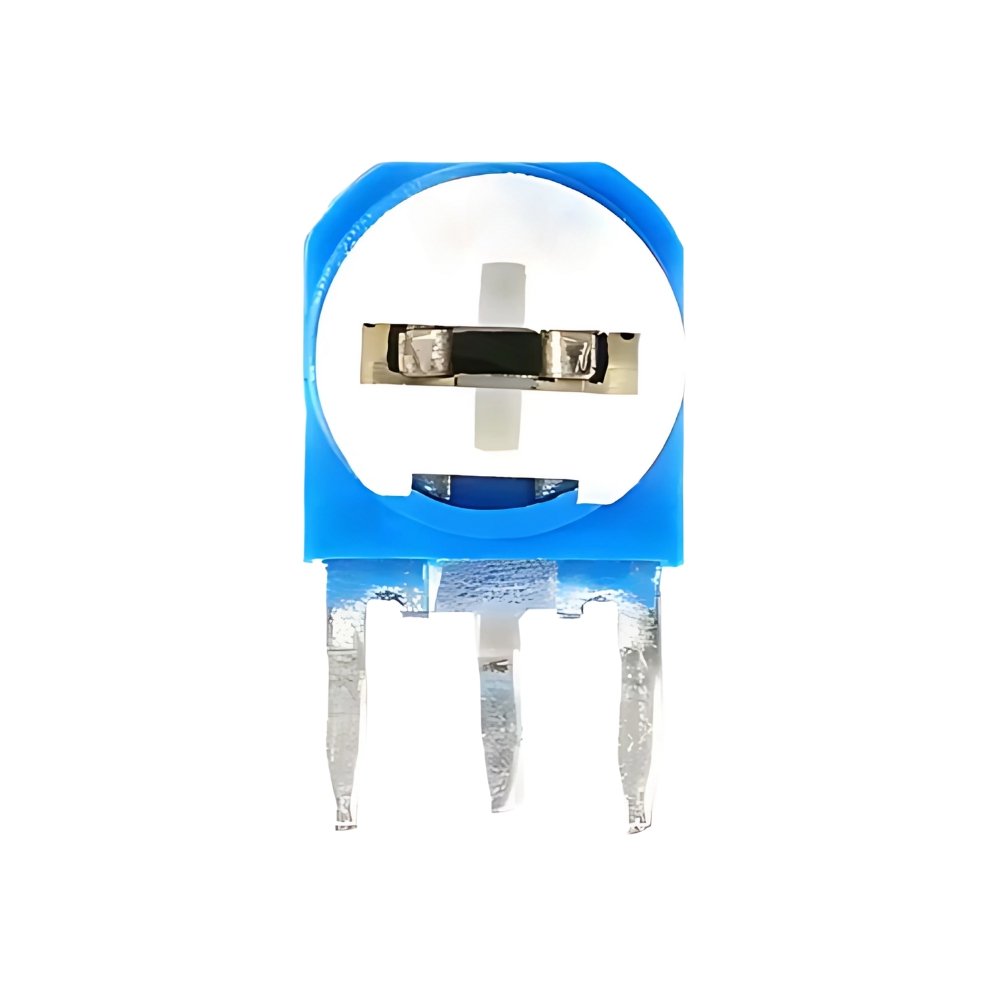

    RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values

    SKU: EP42

    Technical Specification:

    • Type: Through Hole
    • Model: RM063 Vertical Potentiometer
    • Resistance Values: 100 Ω – 2M Ω
    • Tolerance: ± 20 %
    • Power Rating: 0.5 W
    • Max Voltage: 250 V
    • Max Current: 0.01 A
    • Pak Weight: 80 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹545.00

    Add to wishlist

    Description

    The RM063 Blue and White Adjustable Resistor is a versatile and durable component designed for use in various electronic circuits. It is typically housed in a compact, robust casing, offering ease of integration into different circuit boards. With its adjustable resistance feature, it provides flexibility in tuning and fine-tuning circuits during development or testing phases. The resistor’s distinct blue and white color coding ensures easy identification of its resistance value, making it an efficient choice for both beginners and experienced engineers working on precise adjustments in their projects.

    The 70 RM063 Vertical Potentiometer Series consists of 14 different types of potentiometers, each with varying resistance values, designed to provide precise control over electrical circuits. Potentiometers are commonly used to adjust voltage, current, or resistance within a circuit and are widely utilized in various applications like audio, lighting, and electronics.

    Potentiometer Symbol:

    RM063 POT Pin Configuration:



    • PIN 1: Input (A) – Connects to the input voltage or signal
    • PIN 2: Wiper (W) – Adjustable output, the variable connection point controlled by the potentiometer
    • PIN 3: Output (B) – Connects to the output voltage or signal, depending on the adjustment of the wiper

    Package Includes

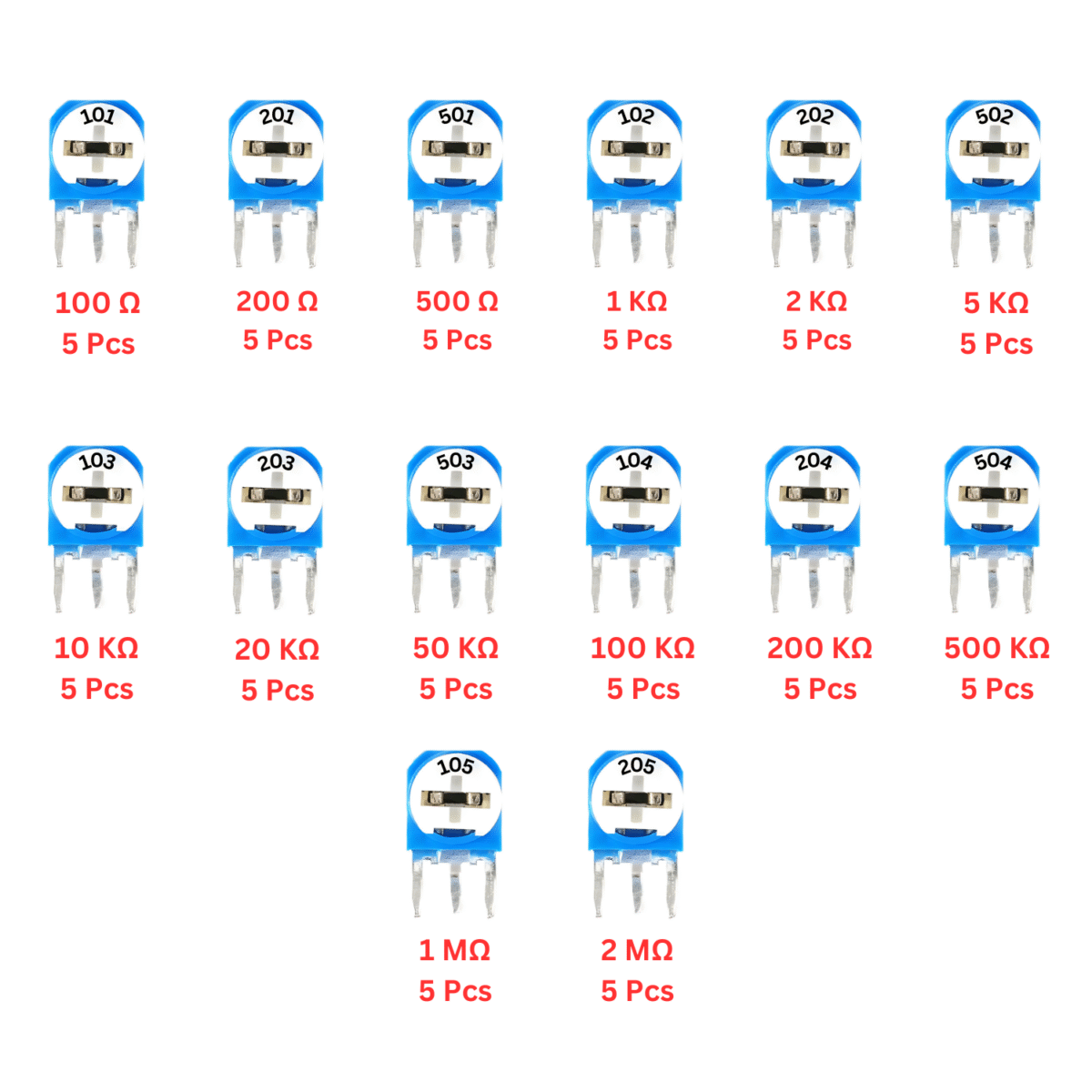

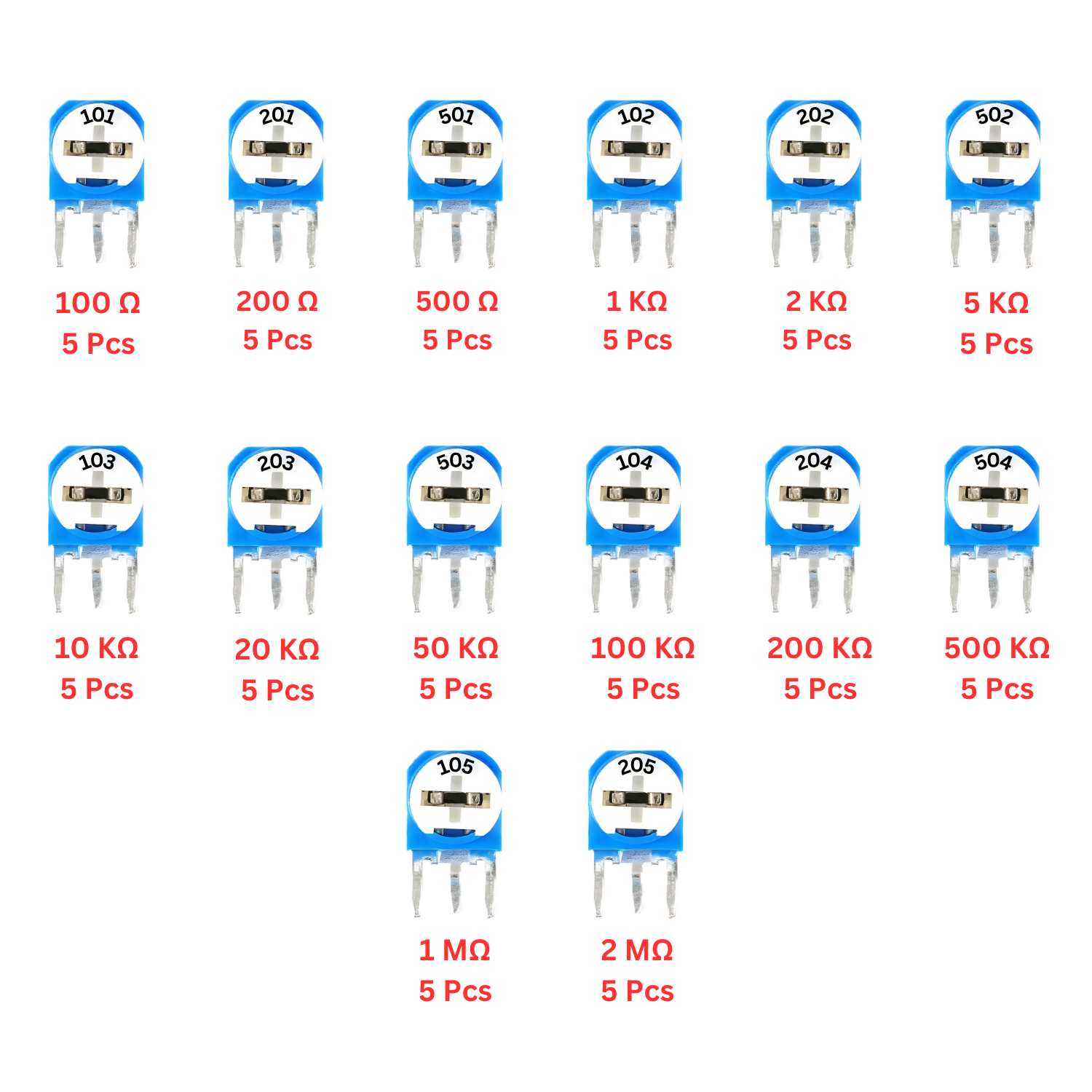

    70 RM063 Vertical Potentiometer 14 Values

    • 100 Ω - 5 Pcs
    • 200 Ω - 5 Pcs
    • 500 Ω - 5 Pcs
    • 1 KΩ - 5 Pcs
    • 2 KΩ - 5 Pcs
    • 5 KΩ - 5 Pcs
    • 10 KΩ - 5 Pcs
    • 20 KΩ - 5 Pcs
    • 50 KΩ - 5 Pcs
    • 100 KΩ - 5 Pcs
    • 200 KΩ - 5 Pcs
    • 500 KΩ - 5 Pcs
    • 1 MΩ - 5 Pcs
    • 2 MΩ - 5 Pcs

    Features:

    • Precise vertical adjustment
    • Durable with 0.5W power rating
    • Compact design for tight spaces
    • Suitable for low-power applications
    • Versatile for audio, lighting, and circuit tuning
    • Cost-effective

    Applications:

    • Audio Control: Adjusts volume, tone, or balance in audio systems
    • Lighting Control: Used for dimming or adjusting brightness in lighting circuits
    • Circuit Calibration: Fine-tunes resistance for precise testing and tuning in electronic circuits
    • Prototyping: Enables flexibility in resistance settings for developing new electronic designs
    • Signal Adjustment: Allows precise control of voltage or signal levels in various devices
    1. Can I replace a potentiometer with a fixed resistor?

    No, a potentiometer provides adjustable resistance, unlike a fixed resistor.

    2. How does the wiper of a potentiometer work?

    The wiper moves along the resistive track, adjusting the resistance and thereby controlling the output.

    3. Can I use multiple potentiometers in a single circuit?

    Yes, multiple potentiometers can be used to control different parameters or adjust separate parts of a circuit.

    4. Can potentiometers be used in combination with other electronic components?

    Yes, potentiometers can be used with resistors, capacitors, transistors, and other components for various control and calibration tasks.

    5. Are RM063 potentiometers available in both single and dual types?

    The RM063 series typically offers single potentiometers, not dual-type configurations.

    6. Can potentiometers be used for motor control in robotics?

    Yes, potentiometers can be used to adjust motor speed or position in robotic systems.

    7. Can RM063 potentiometers be used in circuit board prototypes?

    Yes, RM063 potentiometers are ideal for prototyping and testing circuit adjustments.

    8. Can I use RM063 potentiometers in both analog and digital circuits?

    Yes, they are compatible with both analog and digital circuits, though they are more commonly used in analog circuits.

    9. Can RM063 potentiometers be stacked or used in a multi-turn configuration?

    RM063 potentiometers are typically single-turn, not multi-turn, and are not meant to be stacked.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
