RM065 Potentiometer Pak 100E to 2M 70 Pcs 14 Values

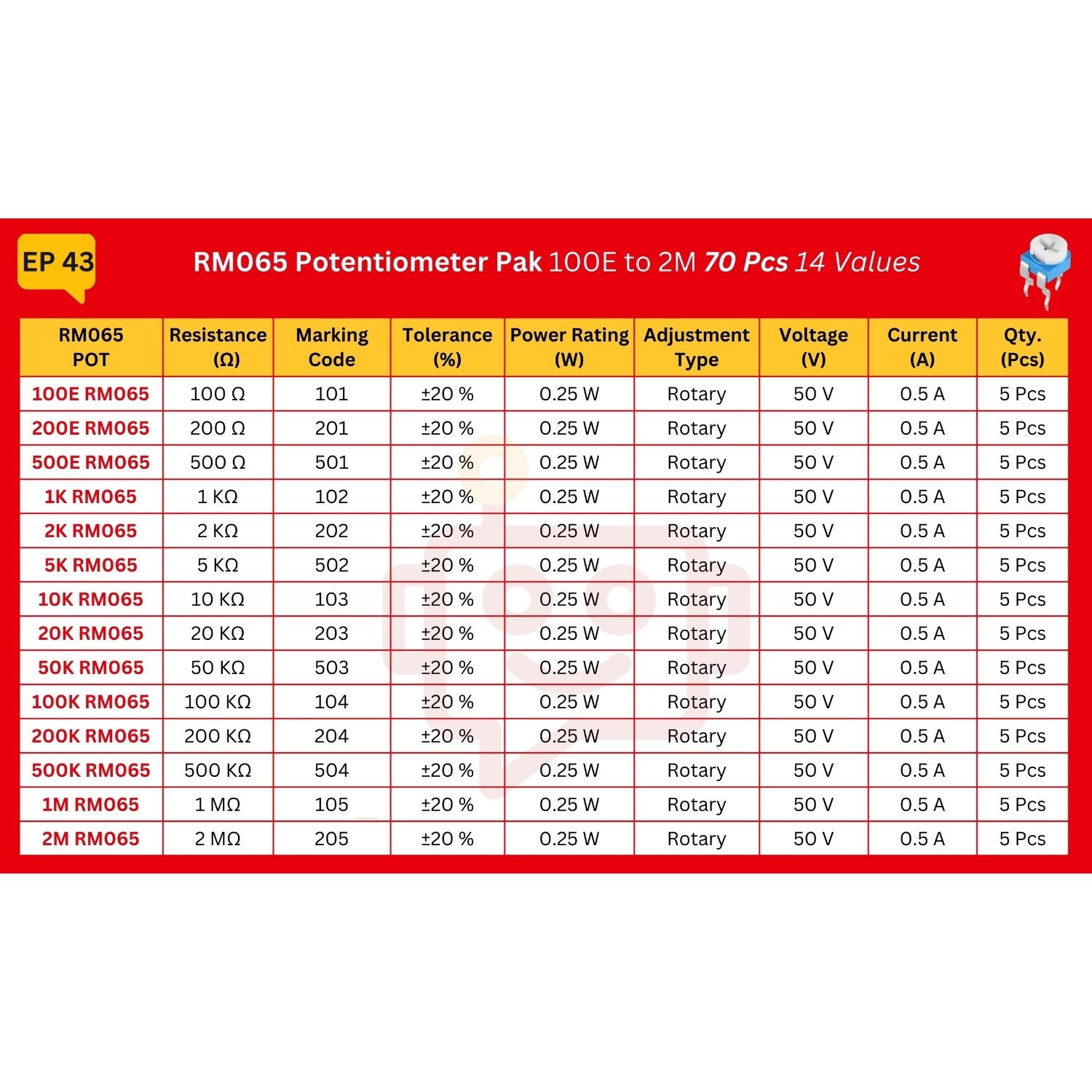

SKU: EP43

Brand: Generic

Type: Through Hole

Series: RM065 Potentiometer

Resistance Range: 100 Ω to 2M Ω

Tolerance: ±20%

Power Rating: 0.25 W

Adjustment Type: Rotary

Voltage Rating: 50 V

Current Rating: 0.5 A

₹475.00

Add to wishlist

Description

The RM065 Adjustable Resistor is a high-quality variable resistor designed for precise resistance adjustment in electronic circuits. Featuring a durable blue and white housing, this potentiometer is widely used in applications where fine-tuning of electrical resistance is necessary. It is available in a range of resistance values, making it versatile for various electronic projects. The top-adjustment design allows for easy access to the adjustment screw, providing smooth and reliable control over resistance settings. Suitable for both professional and hobbyist use, the RM065 offers flexibility and precision for circuit optimization.

This pack contains a variety of high-quality RM065 potentiometers with different resistance values ranging from 100Ω to 2MΩ. These potentiometers are ideal for use in electronic projects, allowing for precise adjustment of voltage and current levels.

Symbol:

RM065 POT Pin Configuration:



  • Pin 1 (Fixed Terminal 1) – Connects to one end of the resistive track (typically GND or VCC)
  • Pin 2 (Wiper/Output) – Provides adjustable resistance; moves along the resistive track
  • Pin 3 (Fixed Terminal 2) – Connects to the other end of the resistive track (opposite of Pin 1)

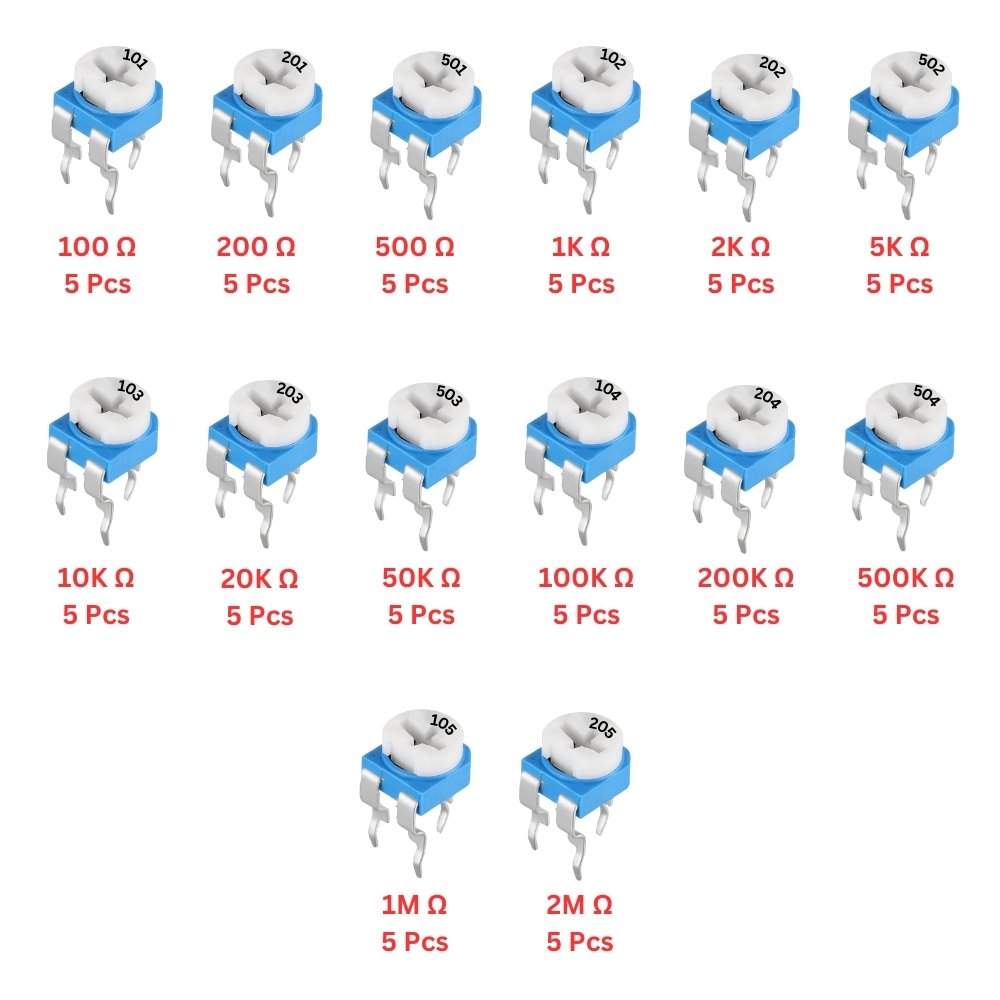

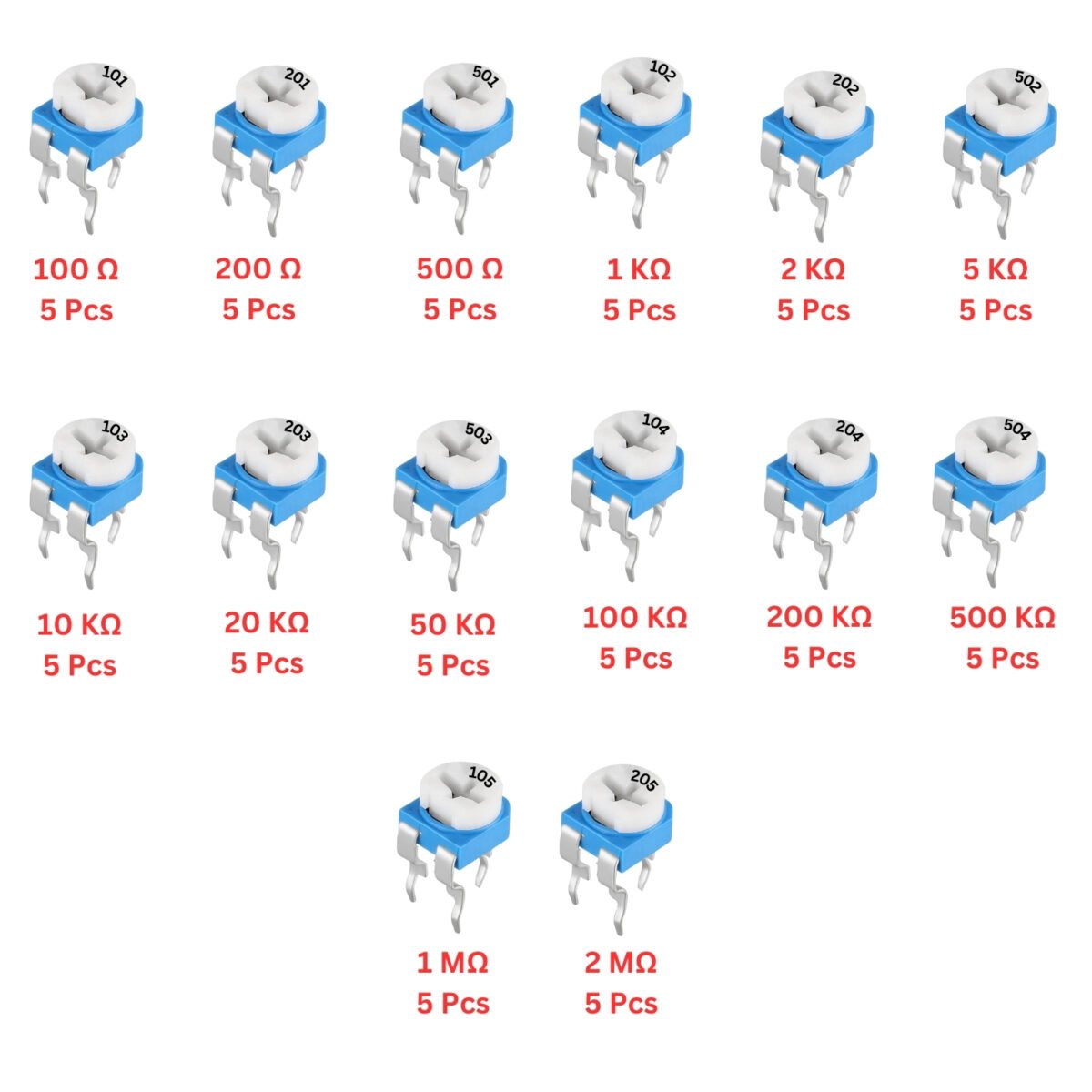

Package Includes

70 RM065 Potentiometer 14 Types

  • 100 Ω - 5 Pcs
  • 200 Ω - 5 Pcs
  • 500 Ω - 5 Pcs
  • 1K Ω - 5 Pcs
  • 2K Ω - 5 Pcs
  • 5K Ω - 5 Pcs
  • 10K Ω - 5 Pcs
  • 20K Ω - 5 Pcs
  • 50K Ω - 5 Pcs
  • 100K Ω - 5 Pcs
  • 200K Ω - 5 Pcs
  • 500K Ω - 5 Pcs
  • 1M Ω - 5 Pcs
  • 2M Ω - 5 Pcs

Features:

  • Precise adjustments
  • Wide resistance range (100 Ω to 2 MΩ)
  • Durable and long-lasting
  • Compact design
  • Versatile applications
  • Easy to use

Applications:

  • Volume Control: Adjusts audio levels in amplifiers and sound systems
  • Brightness Control: Used in lighting circuits to vary brightness
  • Signal Tuning: Fine-tunes signals in communication devices
  • Motor Speed Control: Regulates speed in small motors
  • Voltage Divider: Creates adjustable voltage levels in circuits
  • Calibration: Used in instruments to calibrate or adjust readings
1. Can these potentiometers be used on a breadboard?

Yes, they have a standard pin spacing that fits most breadboards and PCBs.

2. Can I use these for Arduino projects?

Yes, they are compatible with Arduino and other microcontroller projects.

3. What type of resistance taper do these potentiometers have?

RM065 potentiometers typically have a linear taper (B-type), meaning the resistance changes evenly as the wiper is adjusted.

4. Can potentiometers be used in combination with other electronic components?

Yes, potentiometers can be used with resistors, capacitors, transistors, and other components for various control and calibration tasks.



5. Are these potentiometers single-turn or multi-turn?

RM065 trimpots are single-turn, allowing quick adjustments.

6. What should I do if my potentiometer is not working?

Check if: It is properly soldered or inserted into the circuit, the wiper (middle pin) is making contact, it is within its rated power and voltage range

7. How does RM065 compare to 3296W trimpots?

RM065: Single-turn, quick adjustment, compact, low-cost.

       3296W: Multi-turn, higher precision, slightly larger.

8. Can I use these potentiometers for AC circuits?

Yes, but they are primarily designed for DC applications. For AC, use higher-rated trimpots.

9. Can I use multiple trimpots in parallel or series?

Yes, but it changes the overall resistance and circuit behaviour.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon request.
