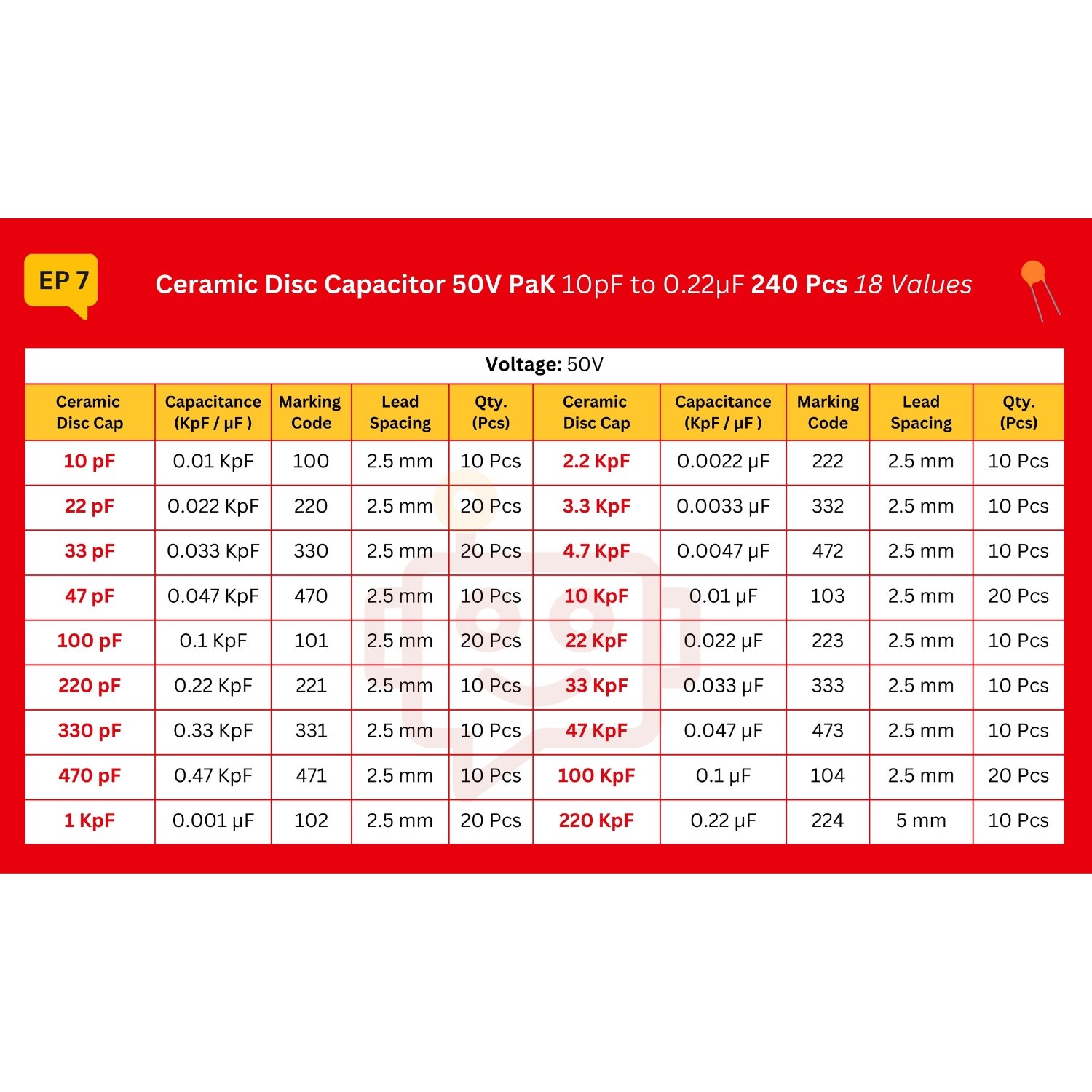

    Ceramic_Disc_Capacitor_Spec_Table

    Ceramic Disc Capacitor 50V Pak 10pF to 0.22µF 240 Pcs 18 Values

    SKU: EP7

    Technical Specification:

    • Type: Through Hole
    • Model: Ceramic Disc Capacitor
    • Capacitance Range: 10 pF – 0.22 µF
    • Lead Spacing: 2.5 mm – 5 mm
    • Voltage Rating: 50 V
    • Lead Type: Radial
    • Tolerance: ±10 %
    • Operating Temperature: -25 °C to +85 °C
    • Pak Weight: 70 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹230.00

    Add to wishlist

    Description

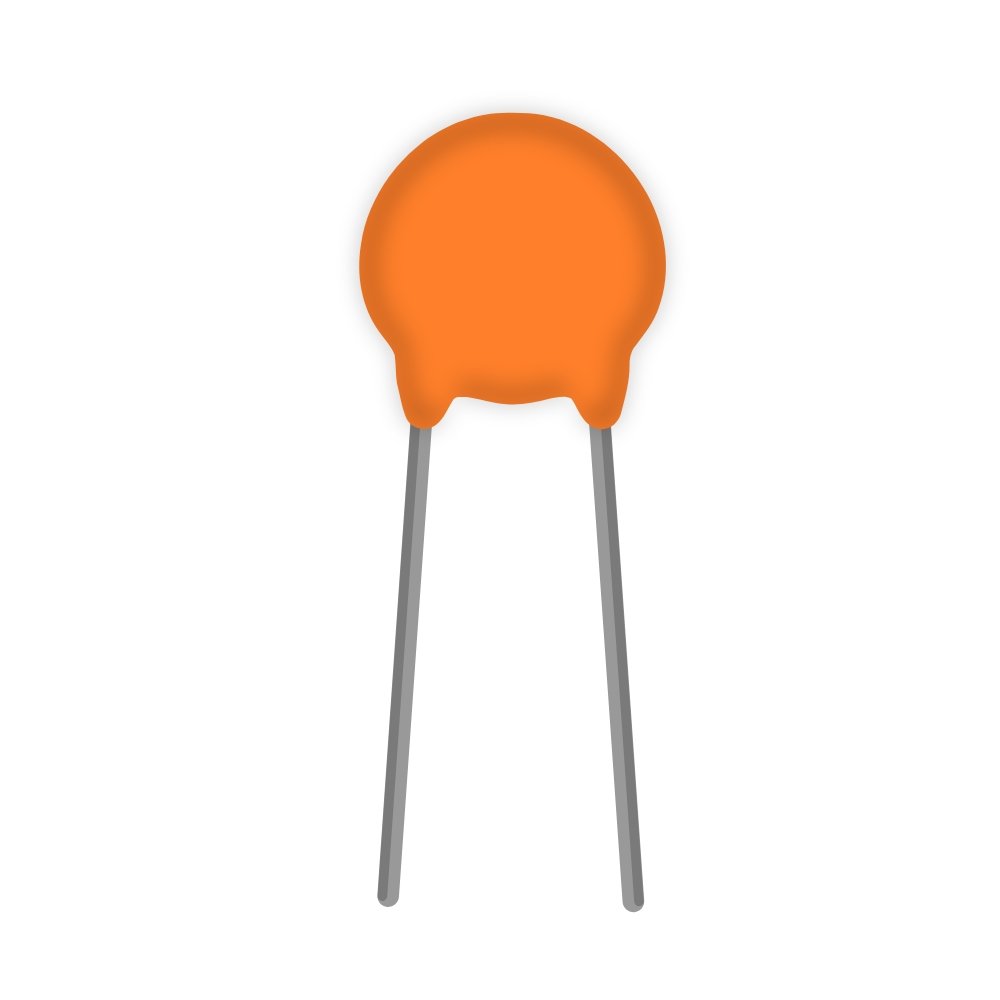

    Ceramic disc capacitors are passive electronic components that store and release electrical energy using a ceramic dielectric. They are non-polarized and typically come in a disc shape with two metal leads for easy mounting. These capacitors are known for their high stability, low leakage, and fast response time. They are available in various capacitance values and voltage ratings, making them suitable for different circuit requirements. Constructed with a ceramic material as the insulating layer, they offer reliability and durability in electronic circuits.

    Capacitor Symbol:

    Disc Cap Part Code:

    Disc Cap Structure:



    Package Includes

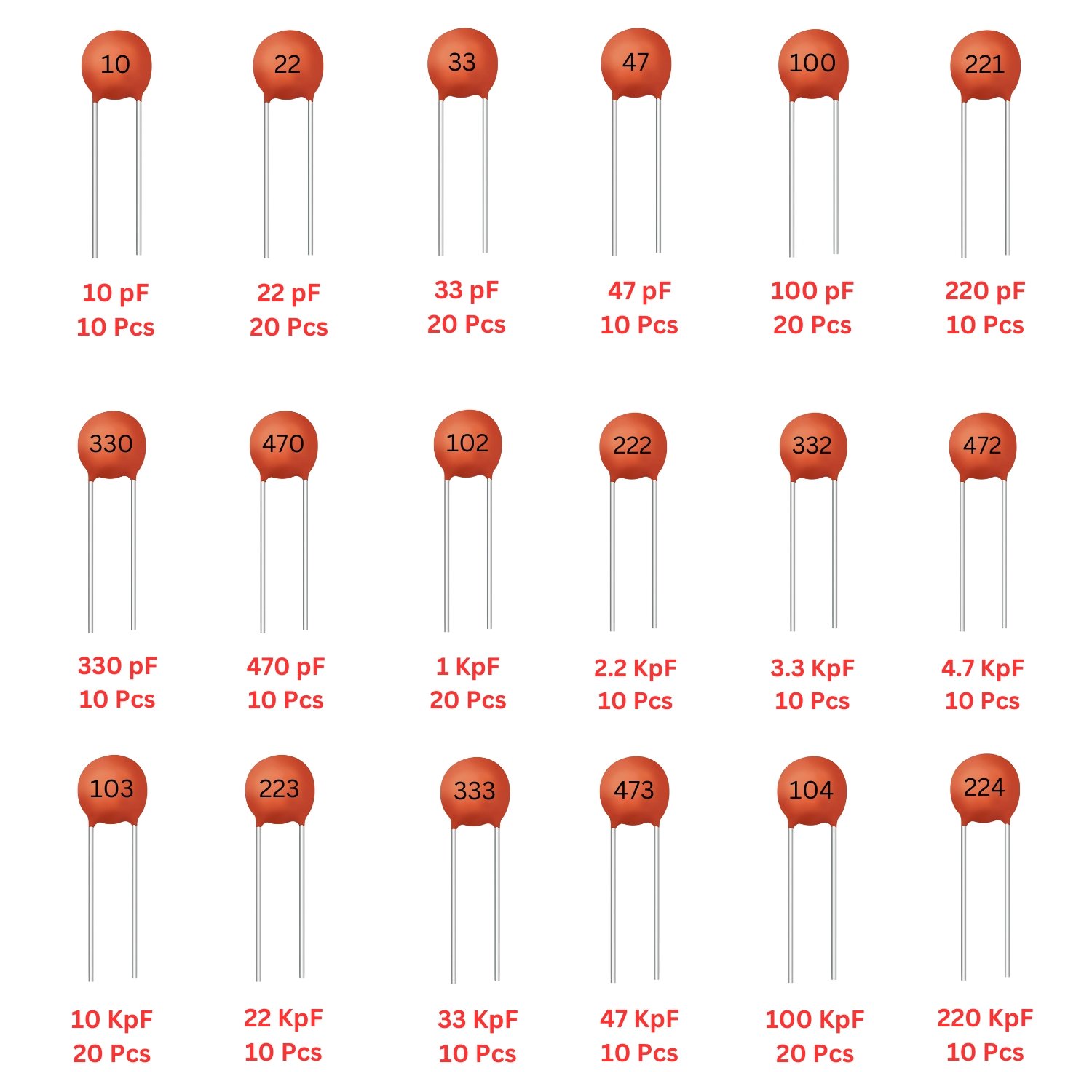

    240 Ceramic Disc Capacitors 50V 18 Types

    • 10 pF – 10 Pcs
    • 22 pF – 20 Pcs
    • 33 pF – 20 Pcs
    • 47 pF – 10 Pcs
    • 100 pF – 20 Pcs
    • 220 pF – 10 Pcs
    • 330 pF – 10 Pcs
    • 470 pF – 10 Pcs
    • 1 KpF – 20 Pcs
    • 2.2 KpF – 10 Pcs
    • 3.3 KpF – 10 Pcs
    • 4.7 KpF – 10 Pcs
    • 10 KpF – 20 Pcs
    • 22 KpF – 10 Pcs
    • 33 KpF – 10 Pcs
    • 47 KpF – 10 Pcs
    • 100 KpF – 20 Pcs
    • 220 KpF – 10 Pcs

    Features:

    • Wide Range of Capacitance Values
    • Stable & Reliable
    • High Insulation Resistance
    • Compact Size
    • Long Lifespan
    • Easy to Solder

    Applications:

    • Electronic Prototyping – Ideal for DIY projects and circuit designs
    • Signal Filtering – Removes unwanted noise from electronic signals
    • Decoupling & Bypassing – Used in power supply circuits
    • Oscillator Circuits – Helps stabilize frequency in oscillators
    • Timing Circuits – Works in RC timing and delay circuits
    • Consumer Electronics – Used in radios, TVs, and amplifiers
    • Microcontroller & Embedded Systems – Essential for stabilizing signals in Arduino and Raspberry Pi projects
    1. Can they replace electrolytic capacitors?

    No, electrolytic capacitors have higher capacitance values and are polarized.

    2. Do they have self-healing properties?

    No, unlike film capacitors, they do not self-heal after breakdown.

    3. Do ceramic disc capacitors have polarity?

    No, they can be connected in any direction.

    4. What happens if I exceed the voltage rating of a ceramic capacitor?

    It may break down, short-circuit, or even crack.

    5. Are they suitable for high-frequency applications?

    Yes, especially low-capacitance values.

    6. Can I parallel ceramic capacitors to increase capacitance?

    Yes, connecting capacitors in parallel adds their capacitance values.

    7. How do I test if a capacitor from the pack is working?

    Use a multimeter with capacitance measurement or an LCR meter to check the value.

    8. Are these ceramic disc capacitors suitable for beginner electronics projects?

    Yes, they are easy to use and great for learning circuit design and prototyping.

    9. How do I identify the capacitance of a capacitor from the pack?

    Look for the three-digit code on the capacitor or specification table of the product if needed.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
