Female Header Single Row 2.54mm Pak 4 to 20 Pin 55 Pcs 7 Types

SKU: EP15

Brand: Generic

Type: Through Hole, Single Row,

Model: Flow Solder

Header Pin Type: Female

Connector: Header Strip

Pin Count: 4 – 20 Pin

Lead Spacing: 2.5 mm

Current Rating: Upto 3A

Voltage Rating: 250V AC/DC

Contact Resistance: 20mΩ

Insulation Resistance: ≥ 1000MΩ

Dielectric Withstanding Voltage: 1000V AC/min

Pin Material: Phosphor Bronze

Insulator Material: PBT UL 94V-0

Pin Diameter: Typically 0.64mm ± 0.05mm

Operating Temperature Range: -40°C to +105°C

₹420.00

Add to wishlist

Description

Flow Solder Single Row connectors with a 2.54mm pitch are commonly used in PCB (Printed Circuit Board) assemblies for reliable electrical connections. These connectors are designed for wave soldering (also known as flow soldering), a process where the PCB is passed over a wave of molten solder to create secure joints.

Symbol:

Flow Solder Structure:



Flow Solder Pin Insertion:

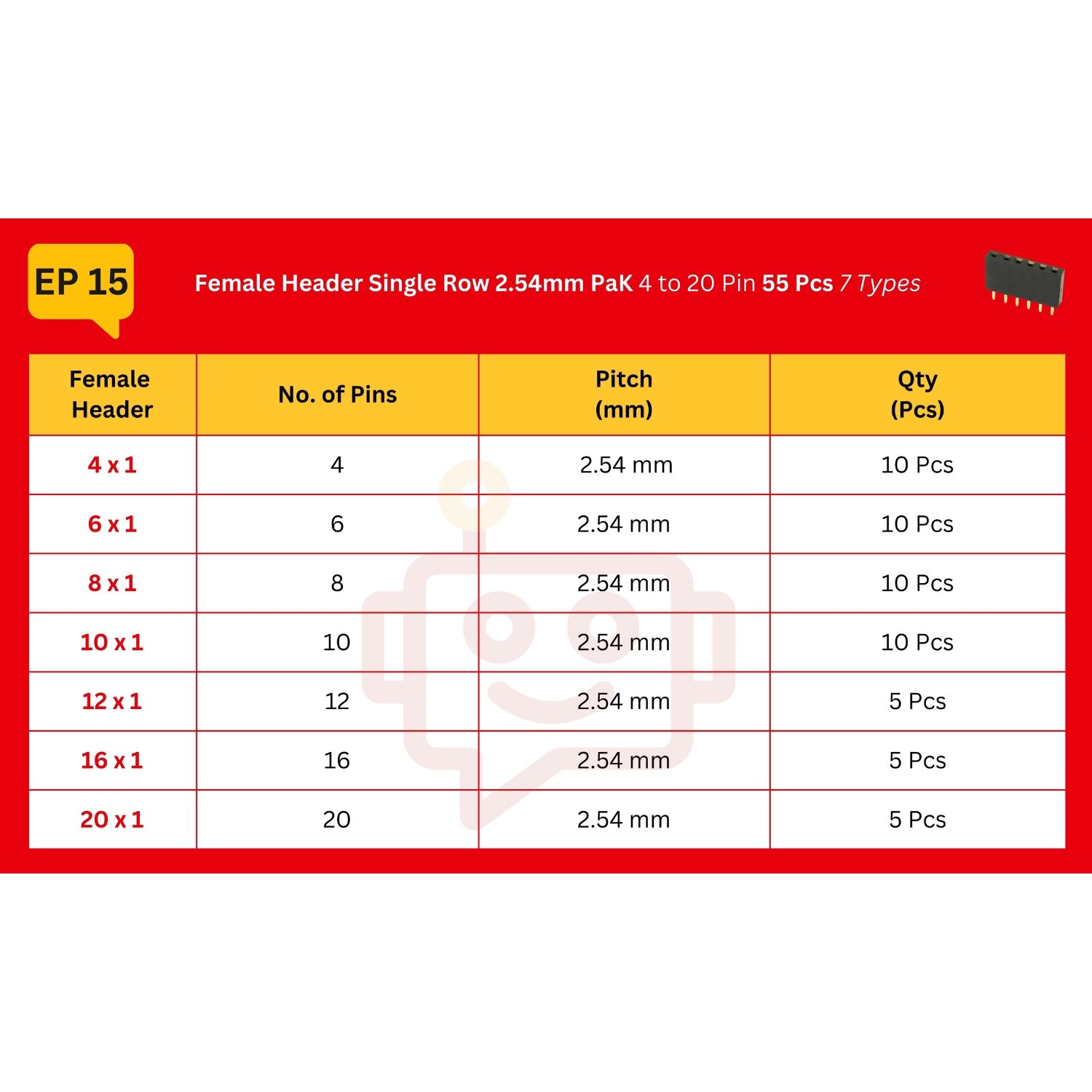

Package Includes

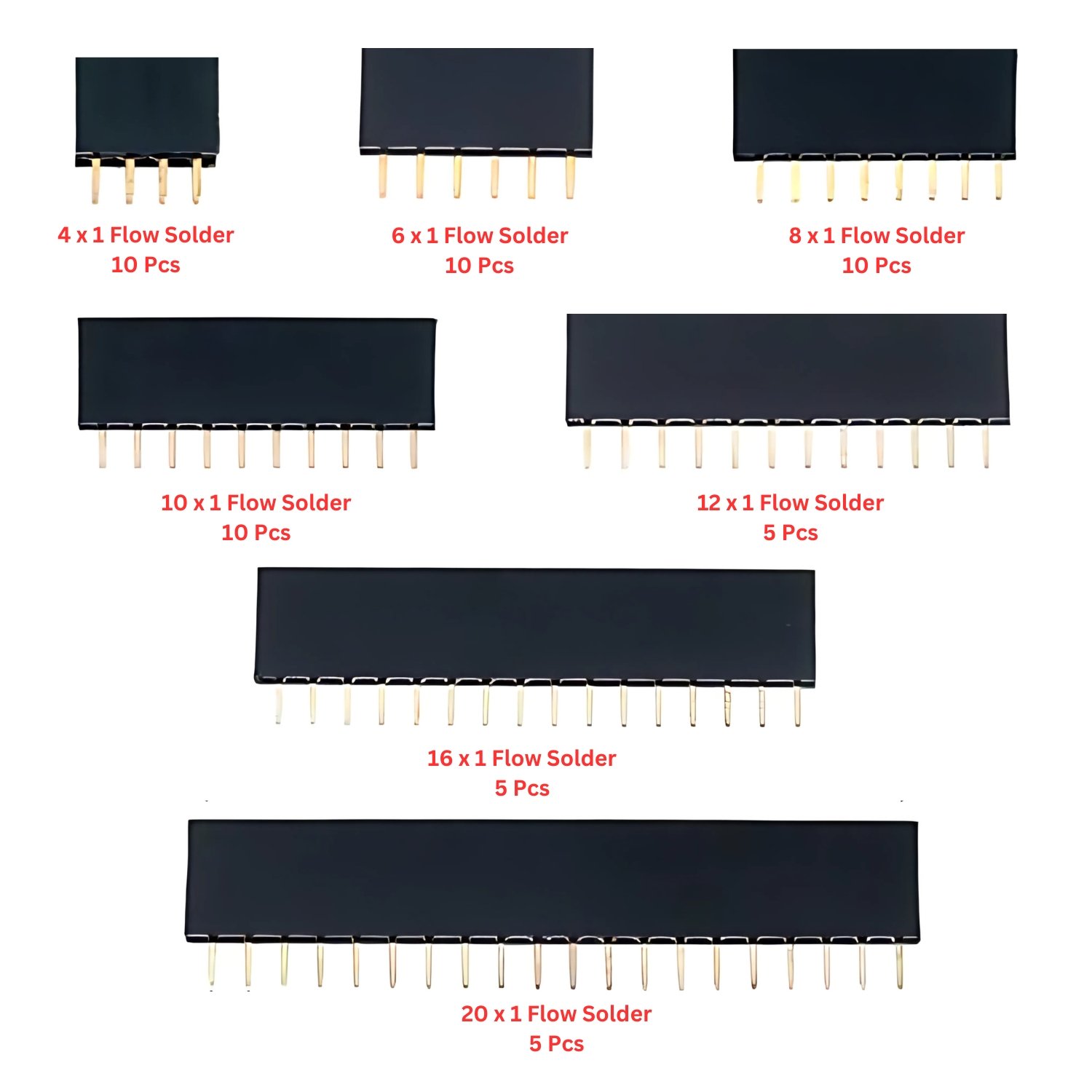

55 Flow Solder Single Row 2.54mm

  • 4x1 Flow Solder – 10 Pcs
  • 6x1 Flow Solder – 10 Pcs
  • 8x1 Flow Solder – 10 Pcs
  • 10x1 Flow Solder – 10 Pcs
  • 12x1 Flow Solder – 5 Pcs
  • 16x1 Flow Solder – 5 Pcs
  • 20x1 Flow Solder – 5 Pcs

Features:

  • Strong & Reliable Solder Joints
  • Efficient for Mass Production
  • Consistent & Uniform Connections
  • Reduces Manual Soldering Effort
  • Cost-Effective for Large-Scale Manufacturing

Applications:

  • PCB Assembly - Efficiently solders components in mass production
  • Prototyping and Development - Quick assembly for testing and design validation
  • Consumer Electronics - Reliable, cost-effective soldering for devices like smartphones and TVs
  • Automotive Electronics - Durable connections for critical automotive systems
  • Medical Devices - Precise soldering for high-safety, performance-required devices
1. What does 2.54mm pitch mean?

It refers to the distance between the centers of adjacent pins or connectors, standard in many PCBs.

2. What types of components can be soldered with the 2.54mm flow solder pack?

It is used for through-hole components in various electronic applications.

3. Can the 2.54mm flow solder pack be used with both leaded and lead-free solder?

Yes, it works with both leaded and lead-free solders.

4. How do I install the connectors from the 2.54mm flow solder pack?

Insert the connectors into the PCB holes, apply flux, and use automated or manual soldering to secure them.

5. Can I use this pack for surface-mount components?

This pack is designed for through-hole components, not surface-mount.

6. Are the connectors flexible?

The connectors are rigid and designed for strong, durable connections.

7. Are these connectors compatible with all PCB types?

Yes, they are compatible with most PCB designs, as long as the PCB supports a 2.54mm pitch.

8. Are the connectors reusable after being soldered?

No, once soldered, the connectors are intended for single-use and cannot be reused.

9. Are the connectors polarized?

No, the connectors are typically not polarized, allowing flexible orientation during installation.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon request.
