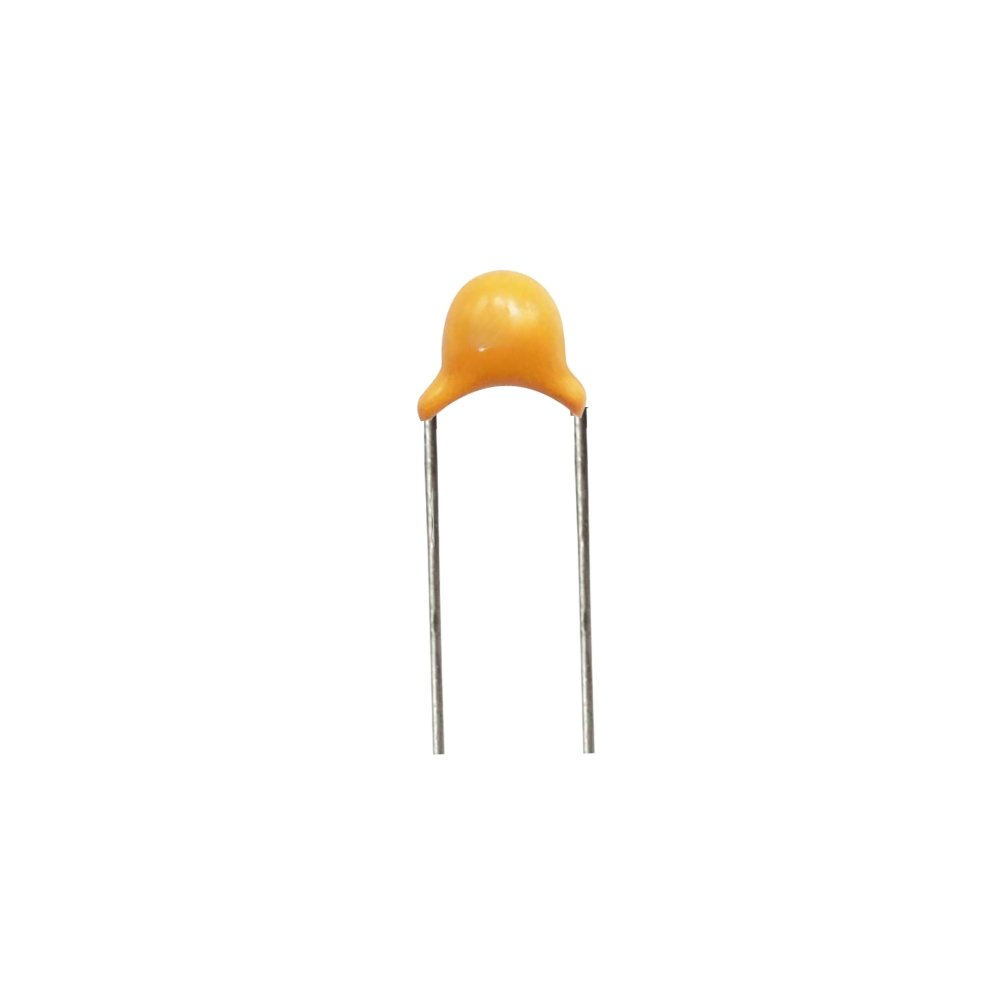

Mylar Disc Capacitor Pak 22pF to 1µF 200 Pcs 16 Values

SKU: EP12

Technical Specification:

  • Type: Through Hole
  • Model: Mylar Disc Capacitor
  • Capacitance Range: 22 pF – 1 µF
  • Voltage: 50 V
  • Tolerance: ±10 %
  • Pak Weight: 60 gm
  • Pak Dimensions: 127 x 80 x 24 mm

₹590.00

Add to wishlist

Description

Mylar Disc Capacitors are a type of film capacitor constructed using polyester film (Mylar) as the dielectric material. These capacitors are widely used in electronic circuits due to their reliable performance, compact size, and ability to provide stable capacitance over a wide range of temperatures and frequencies. They are typically non-polarized, making them suitable for both AC and DC applications.

This assortment is perfect for engineers, hobbyists, and technicians working on audio circuits, oscillators, radio frequency (RF) circuits, and timing circuits. With 200 capacitors in total, the pack provides a good mix of values suitable for various designs and troubleshooting tasks.

Capacitor Symbol:

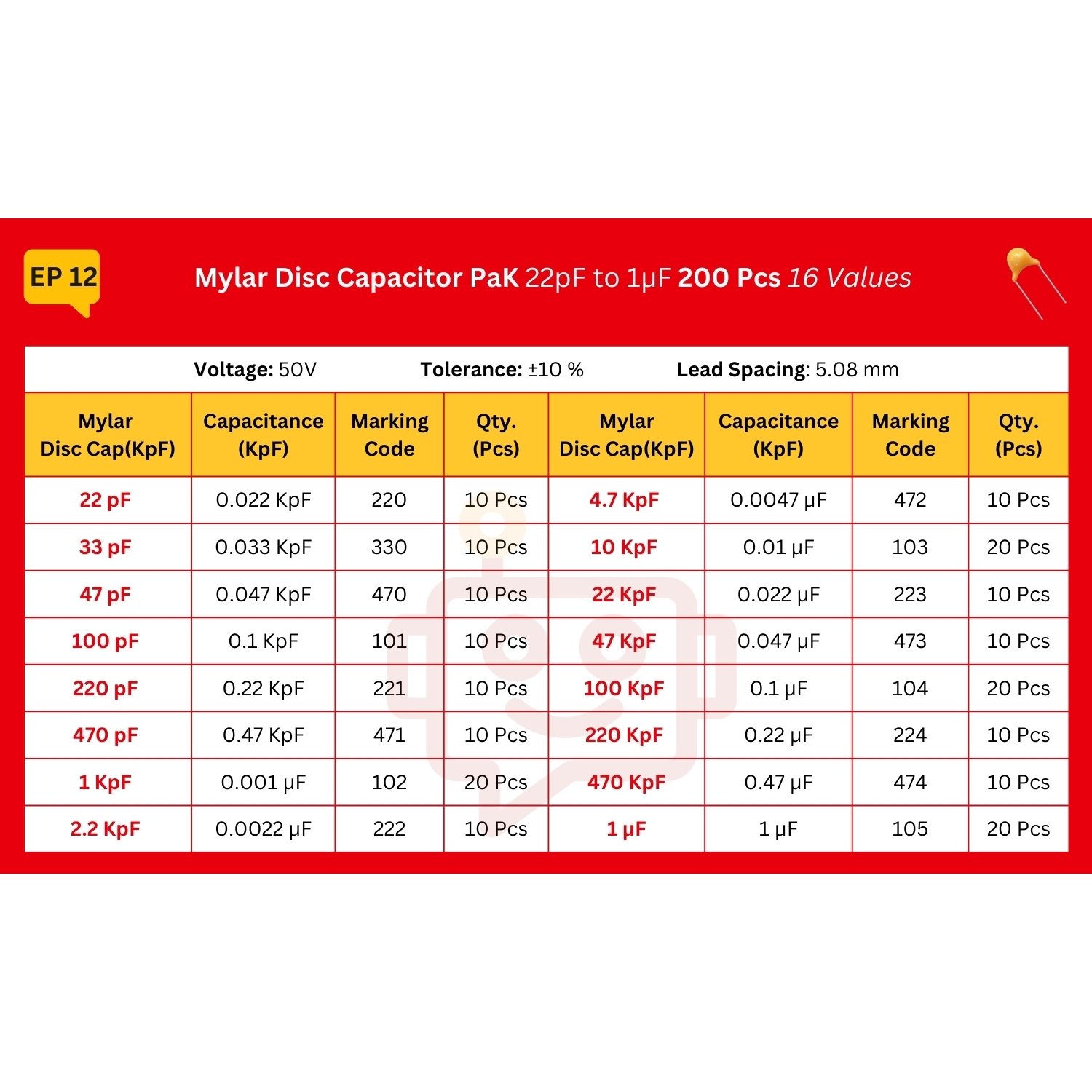

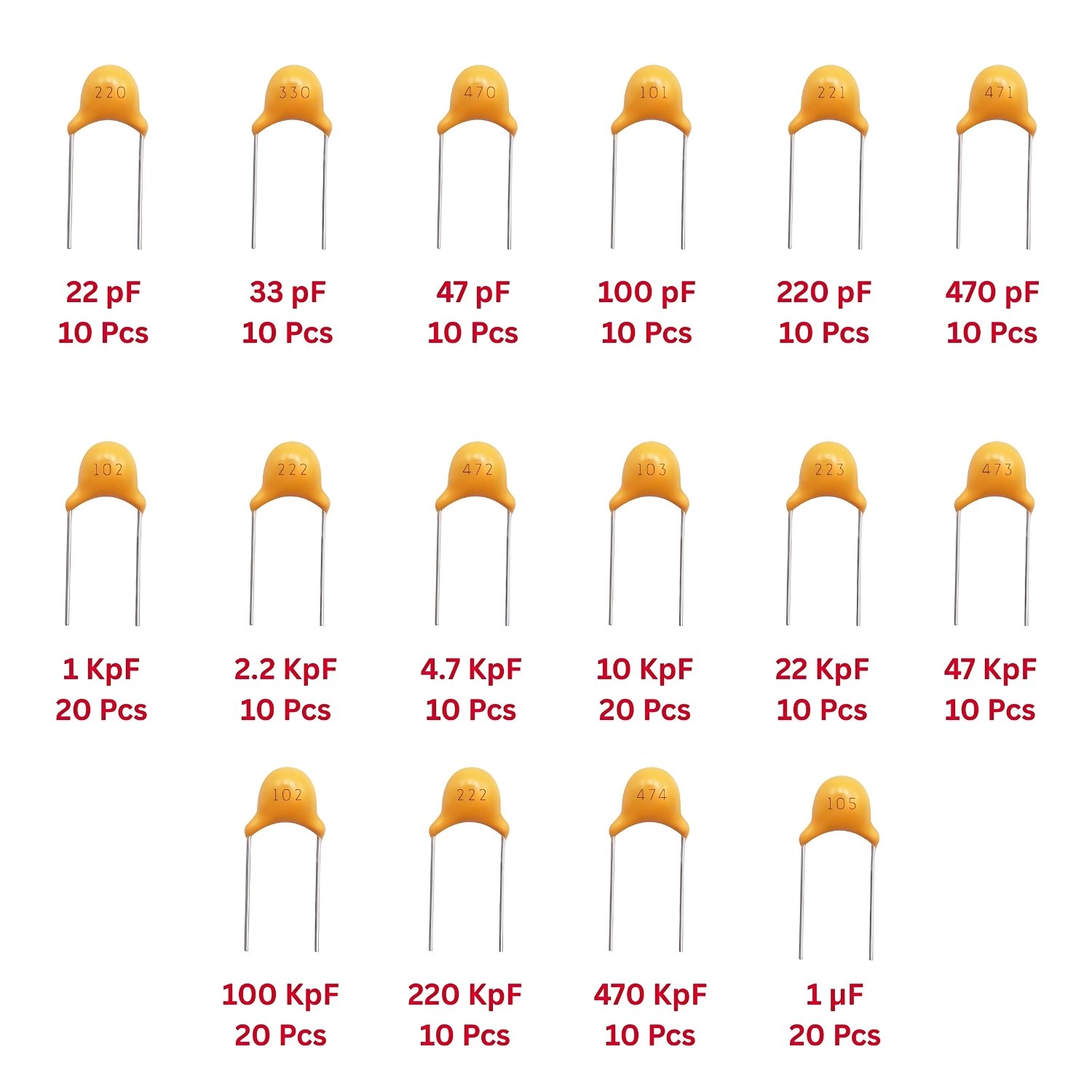

Package Includes

200 Mylar Disc Capacitor Capacitor 16 Types

  • 22 pF – 10 Pcs
  • 33 pF – 10 Pcs
  • 47 pF – 10 Pcs
  • 100 pF – 10 Pcs
  • 220 pF – 10 Pcs
  • 470 pF – 10 Pcs
  • 1 KpF – 20 Pcs
  • 2.2 KpF – 10 Pcs
  • 4.7 KpF – 10 Pcs
  • 10 KpF – 20 Pcs
  • 22 KpF – 10 Pcs
  • 47 KpF – 10 Pcs
  • 100 KpF – 20 Pcs
  • 220 KpF – 10 Pcs
  • 470 KpF – 10 Pcs
  • 1 µF – 20 Pcs

Features:

  • Maintains consistent capacitance across a wide temperature range and frequencies
  • Suitable for both AC and DC circuits, simplifying installation and usage
  • Small size with robust construction for long-lasting reliability
  • Available in values from 22pF to 1µF, offering versatility for different applications
  • Cost-effective option with excellent performance, commonly used in various electronic circuits

Applications:

  • Signal Filtering: Used in power supply filters and signal conditioning circuits to smooth out voltage fluctuations
  • Coupling and Decoupling: Commonly used in audio and RF circuits to couple signals between stages or decouple noise from power supplies
  • Oscillators and Timing Circuits: Ideal for use in oscillators and timing applications, where precise capacitance values are needed
  • Audio Circuits: Widely used in audio equipment for signal filtering, noise reduction, and frequency response shaping

Low to Medium-Frequency RF Circuits: Used in RF circuits for tuning and filtering, especially in the lower frequency ranges

1. Are Mylar disc capacitors polarized?

⋙ No, Mylar disc capacitors are non-polarized, making them suitable for both AC and DC circuits.

2. Can I use a Mylar disc capacitor in a circuit with a DC voltage?

⋙ Yes, Mylar disc capacitors are non-polarized and can be used in both AC and DC circuits.

3. How do I install a Mylar disc capacitor?

⋙ Simply connect the leads to the appropriate points in your circuit, ensuring that the capacitor is not subjected to voltages exceeding its rated capacity.

4. How do I install a Mylar Disc capacitor in a circuit?

⋙ Simply connect the leads of the Mylar disc capacitor to the appropriate points in your circuit, ensuring the voltage rating is not exceeded.

5. Do Mylar Disc AC capacitors have a high self-healing capability?

⋙ No, Mylar capacitors typically do not have self-healing properties like some other types.

6. Do Mylar disc AC capacitors have a high ESR (Equivalent Series Resistance)?

⋙ No, Mylar disc capacitors generally have a low ESR, making them suitable for filtering applications.

7. Can I use the Mylar Disc Capacitor pack for prototyping?

⋙ Yes, this pack is ideal for prototyping and testing in various circuits.

8. Can I mix different values of Mylar Disc Capacitors from the pack in one circuit?

⋙ Yes, you can mix different capacitance values as needed for the specific application.

9. Are the capacitors in the Mylar Disc Capacitor pack easy to solder?

⋙ Yes, the leads of Mylar capacitors are easy to solder in most standard circuits.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
