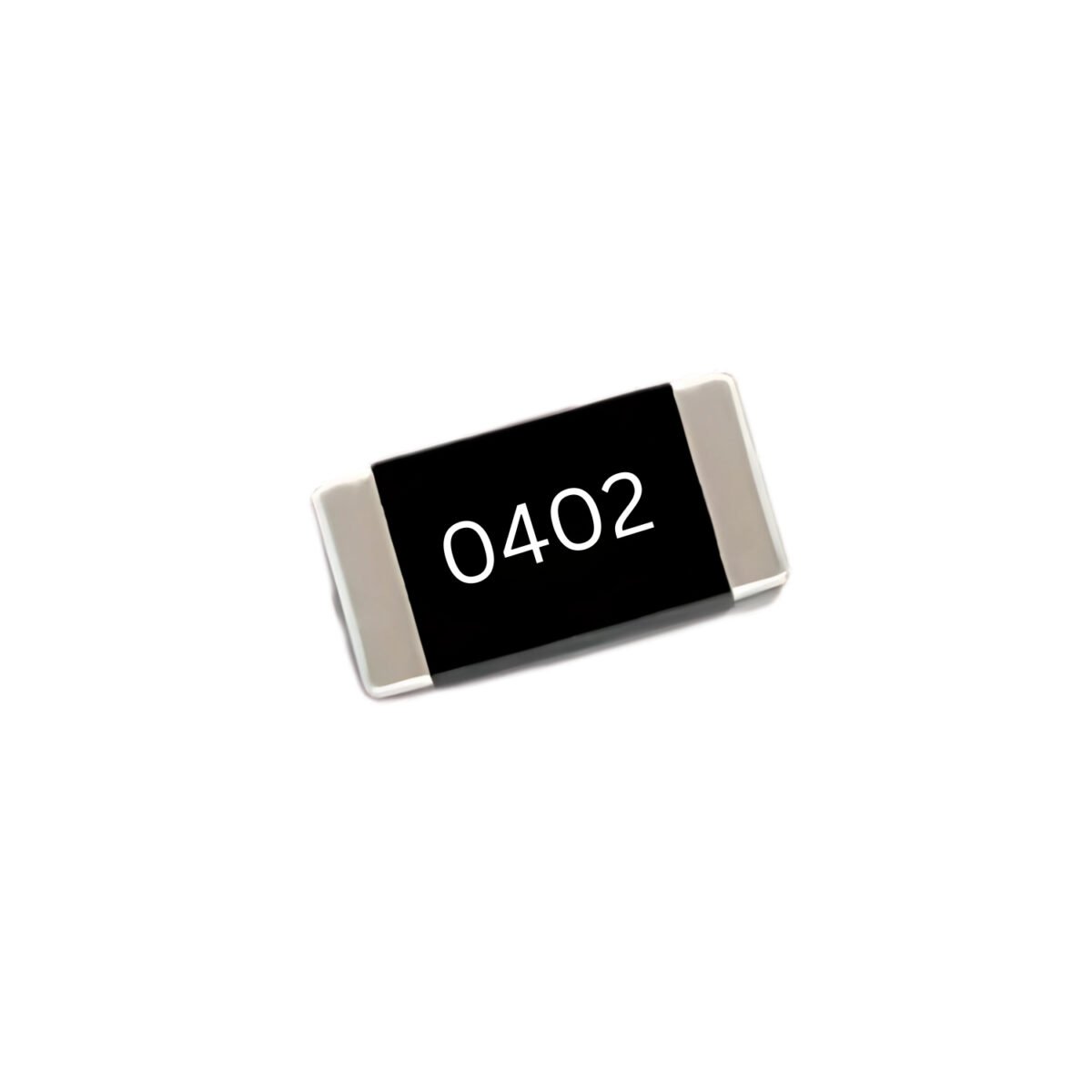

SMD Resistor 0402 1/16W ±1% Pak 0E to 10M 8500 Pcs 170 Values

SKU: EP526

Technical Specification:

  • Type: SMD
  • Model: 0402 Resistor
  • Package Type: 0402
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±1 %
  • Rated Power: 1/16 Watt (0.0625W)
  • Pak Weight: 500 gm
  • Pak Dimensions: 280 x 140 x 60 mm

₹1,770.00

Add to wishlist

Description

The SMD (Surface Mount Device) Resistor 0402 1/16W ±1% series is a set of precision chip resistors designed for compact electronic circuits. With a wide resistance range from 0 ohms to 10M ohms and tight tolerance, these resistors are ideal for signal processing, voltage division, and current control in space-constrained applications.

Resistor Symbol:

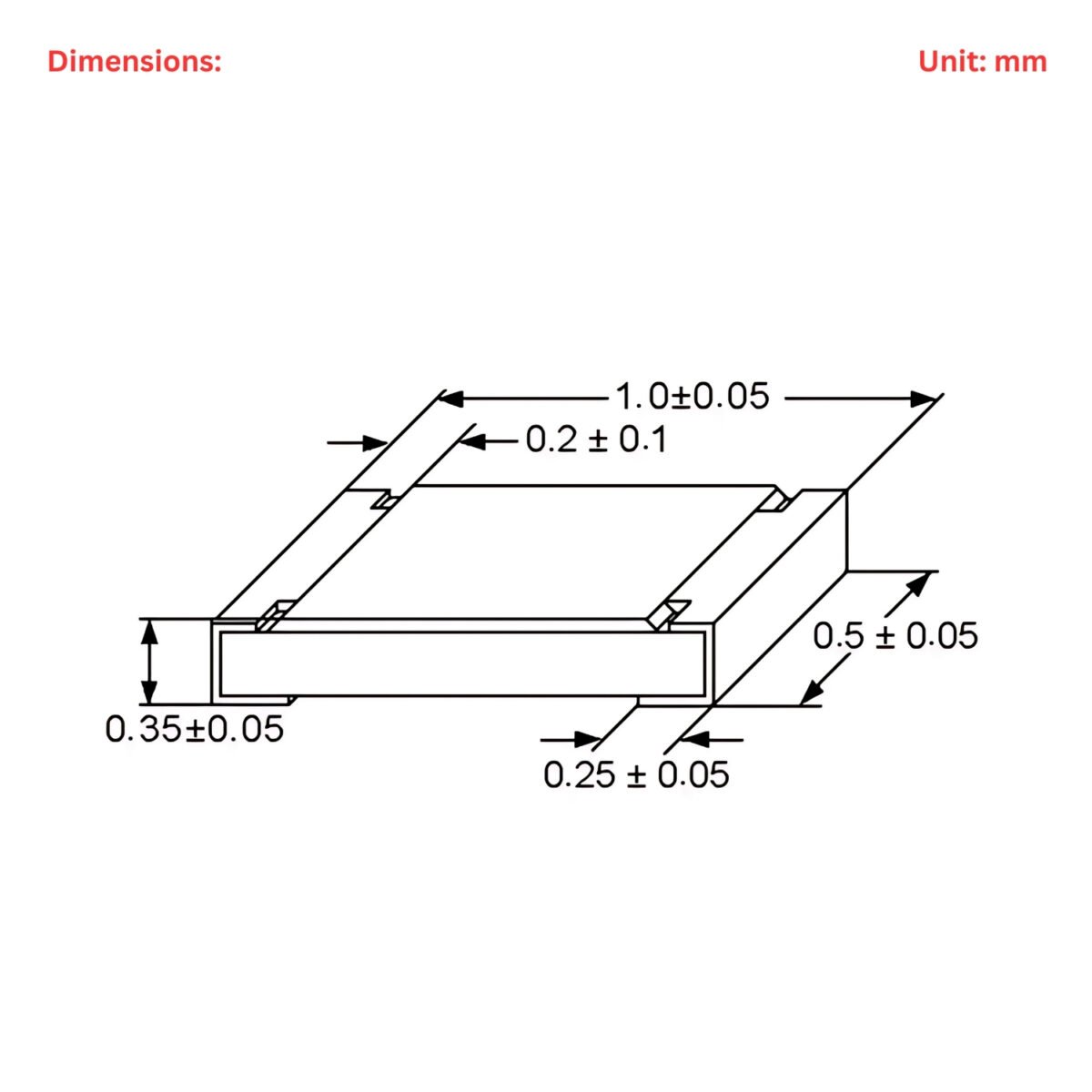

0402 Resistor Structure:

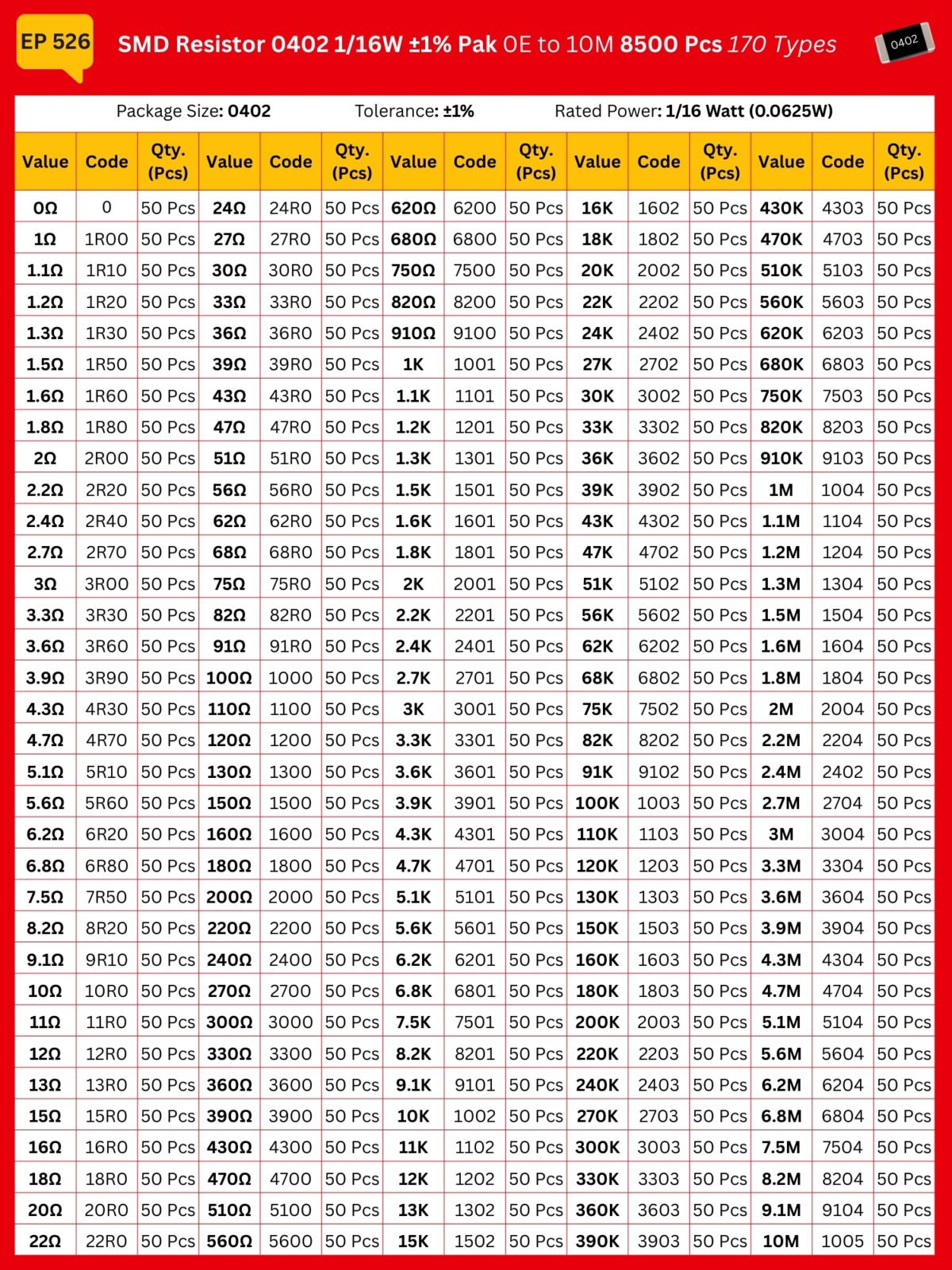

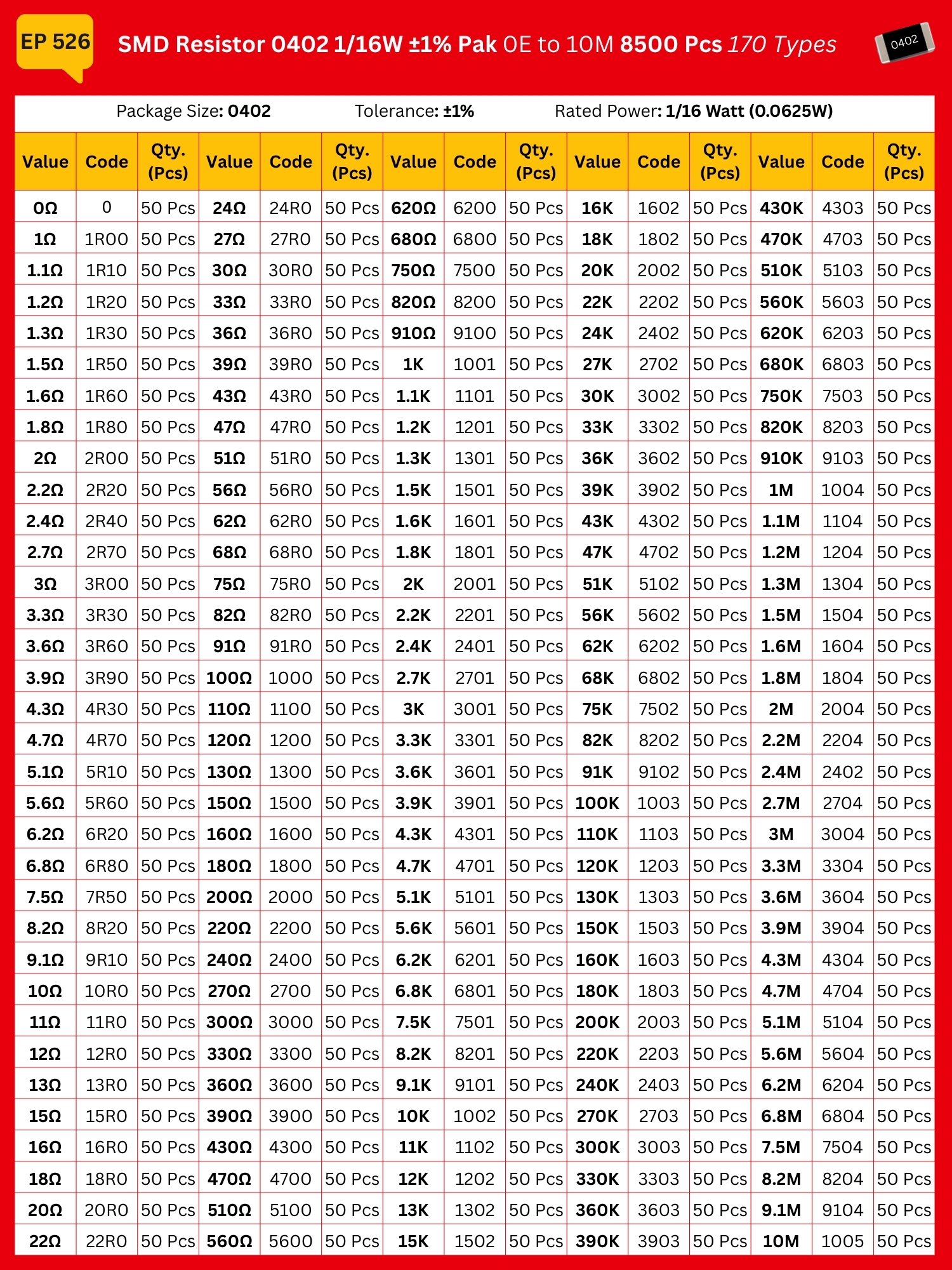

Package Includes

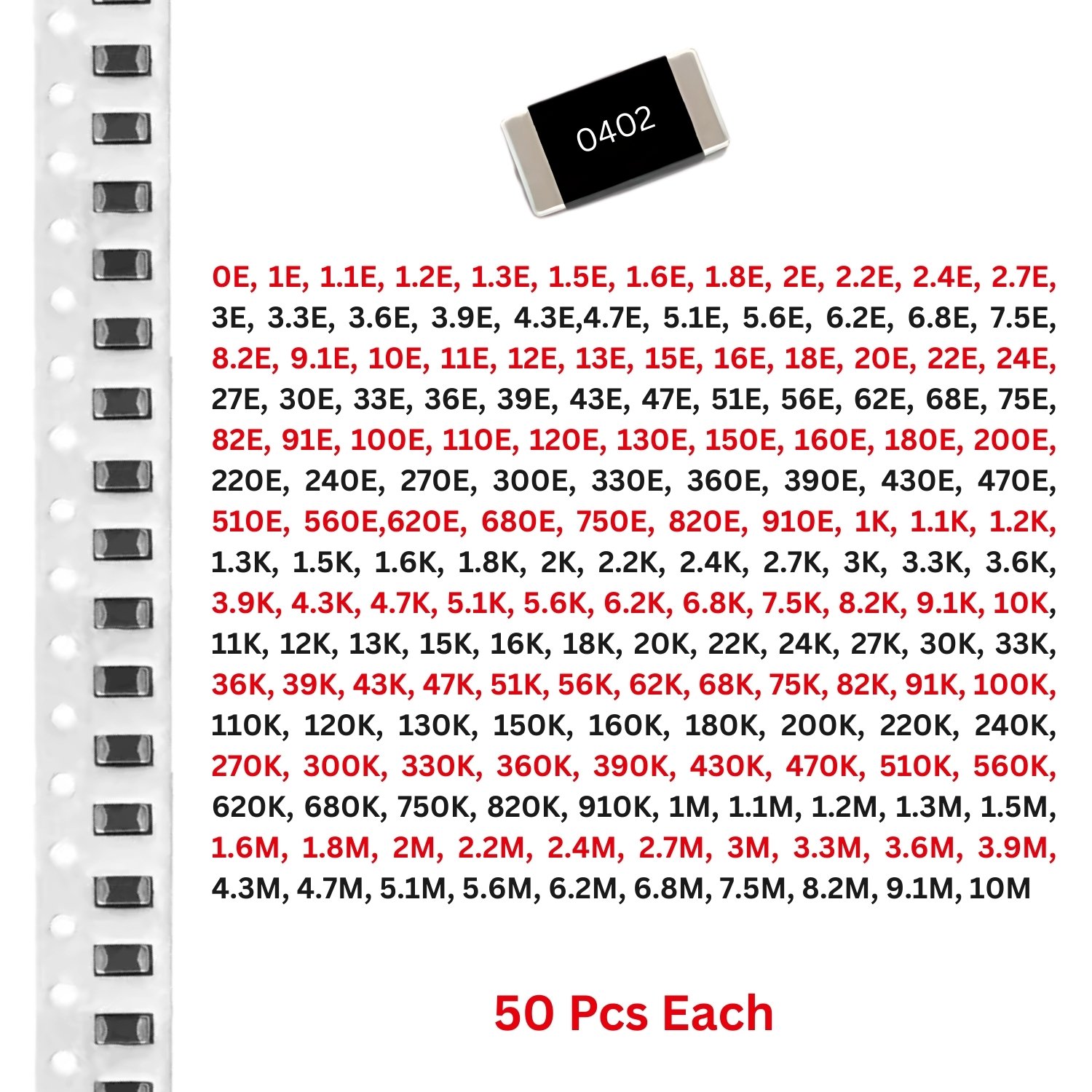

8500 SMD Resistor 0402 1/16W ±1% 170 Values

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Features:

  • Ultra-compact 0402 size for high-density PCBs
  • Broad resistance range (0Ω to 10MΩ)
  • High precision with ±1% tolerance
  • Excellent stability and reliability

Applications:

  • Smartphones & Tablets - Provide compact and precise resistance for signal control in dense PCBs
  • Wearable Devices - Ensure miniaturized, reliable performance in space-limited designs
  • Medical Electronics - Deliver high accuracy and stability in sensitive diagnostic circuits
  • Automotive Electronics - Used in control units for dependable operation under harsh conditions
  • IoT & Embedded Systems - Support low-power, high-efficiency designs in connected devices
1. Who can use this resistor kit?

⋙ Ideal for engineers, students, hobbyists, and repair professionals.

2. Are the resistors labelled and organized?

⋙ Yes, each value is clearly labelled and separately packed.

3. Can I solder these by hand?

⋙ Yes, but precision tools like fine-tip soldering irons or hot air stations are recommended.

4. How are the resistors delivered – loose or taped?

⋙ The resistors are provided in labeled cut-tape strips or compartments.

5. Is this kit available in other sizes like 0603 or 0805?

⋙ Yes, similar kits are often available in multiple SMD sizes.

6. Can this pack be used for Arduino or DIY projects?

⋙ Yes, it’s perfect for DIY electronics and microcontroller-based projects.

7. Do these resistors have color codes?

⋙ No, SMD resistors use numerical codes, not color bands.

8. Is the kit suitable for both analog and digital circuits?

⋙ Yes, it can be used in both types of circuits.

9. How do I know if 0402 is the right size for my project?

⋙ Check your PCB footprint; 0402 is very small and suited for space-critical designs.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
