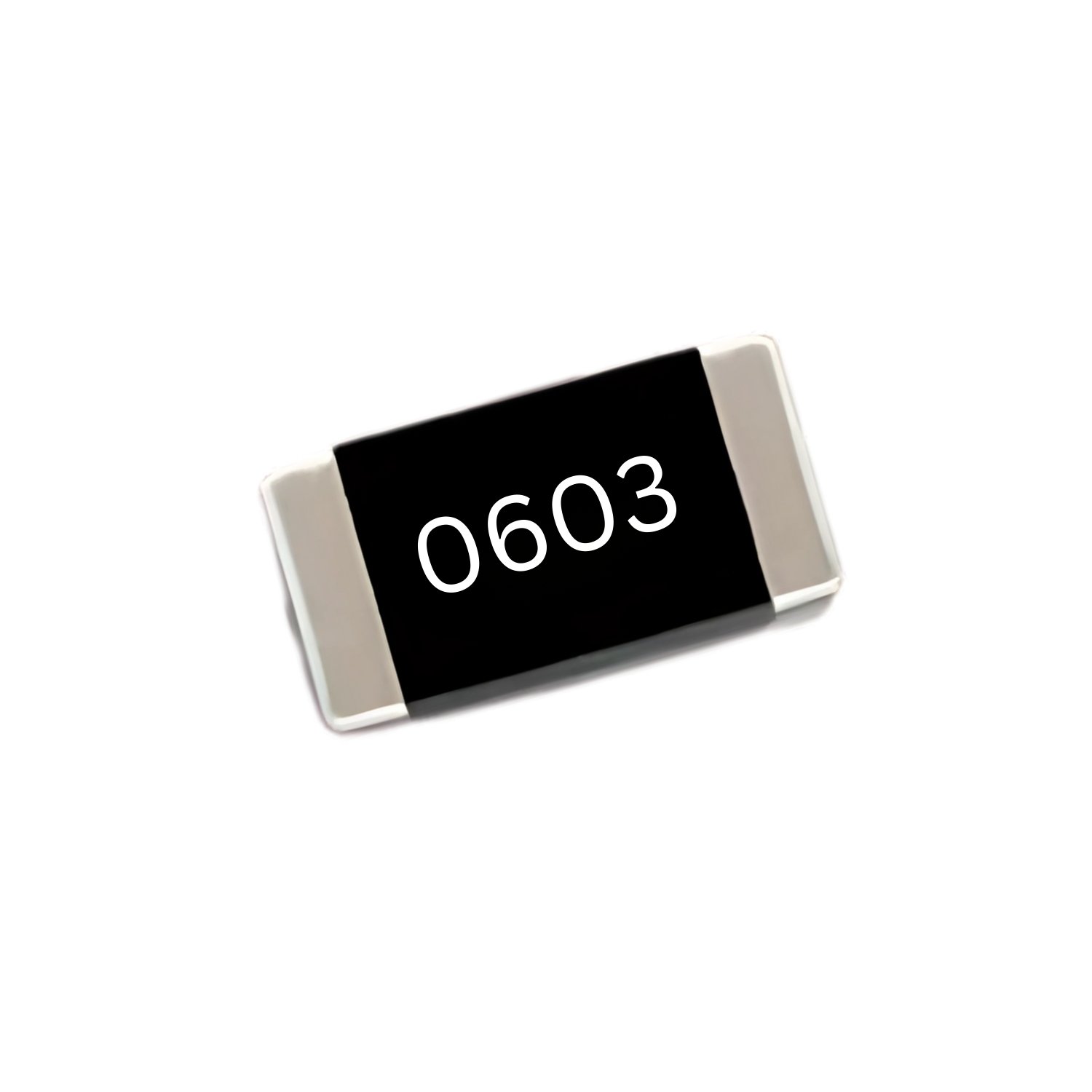

SMD Resistor 0603 1/10W ±1% Pak 0E to 10M 8500 Pcs 170 Values

SKU: EP527

Technical Specification:

  • Type: SMD
  • Model: 0603 Resistor
  • Package Type: 0603
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±1 %
  • Rated Power: 1/10 Watt (0.10W)
  • Pak Weight: 600 gm
  • Pak Dimensions: 280 x 140 x 60 mm

₹1,895.00

Add to wishlist

Description

The SMD Resistor 0603 1/10W ±1% series is a high-precision set of chip resistors designed for compact and efficient electronic applications. Covering a wide resistance range from 0 ohms to 10 megaohms with tight ±1% tolerance, this resistor kit is perfect for voltage division, signal conditioning, and current control in modern high-density PCBs.

Resistor Symbol:

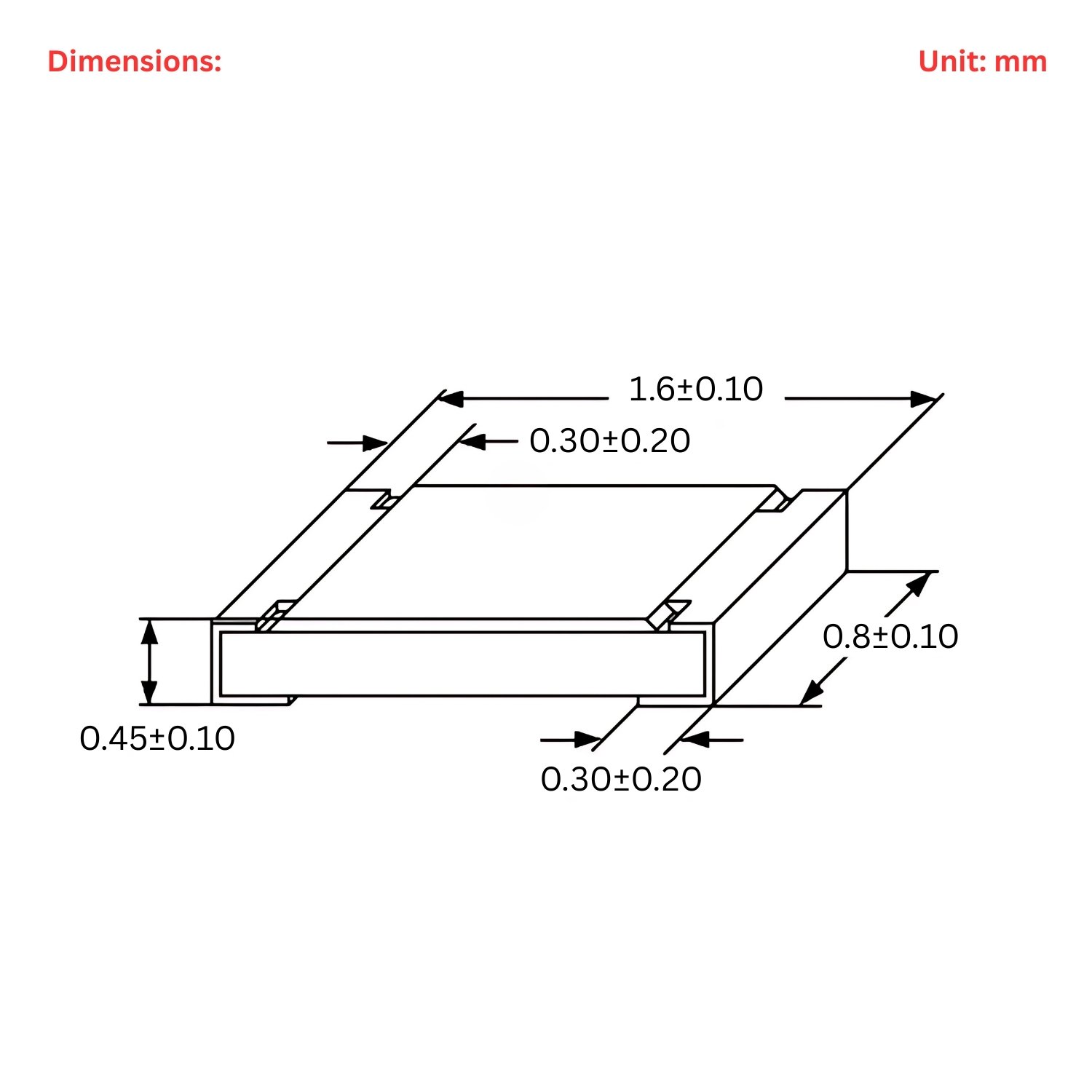

0603 Resistor Structure:

Package Includes

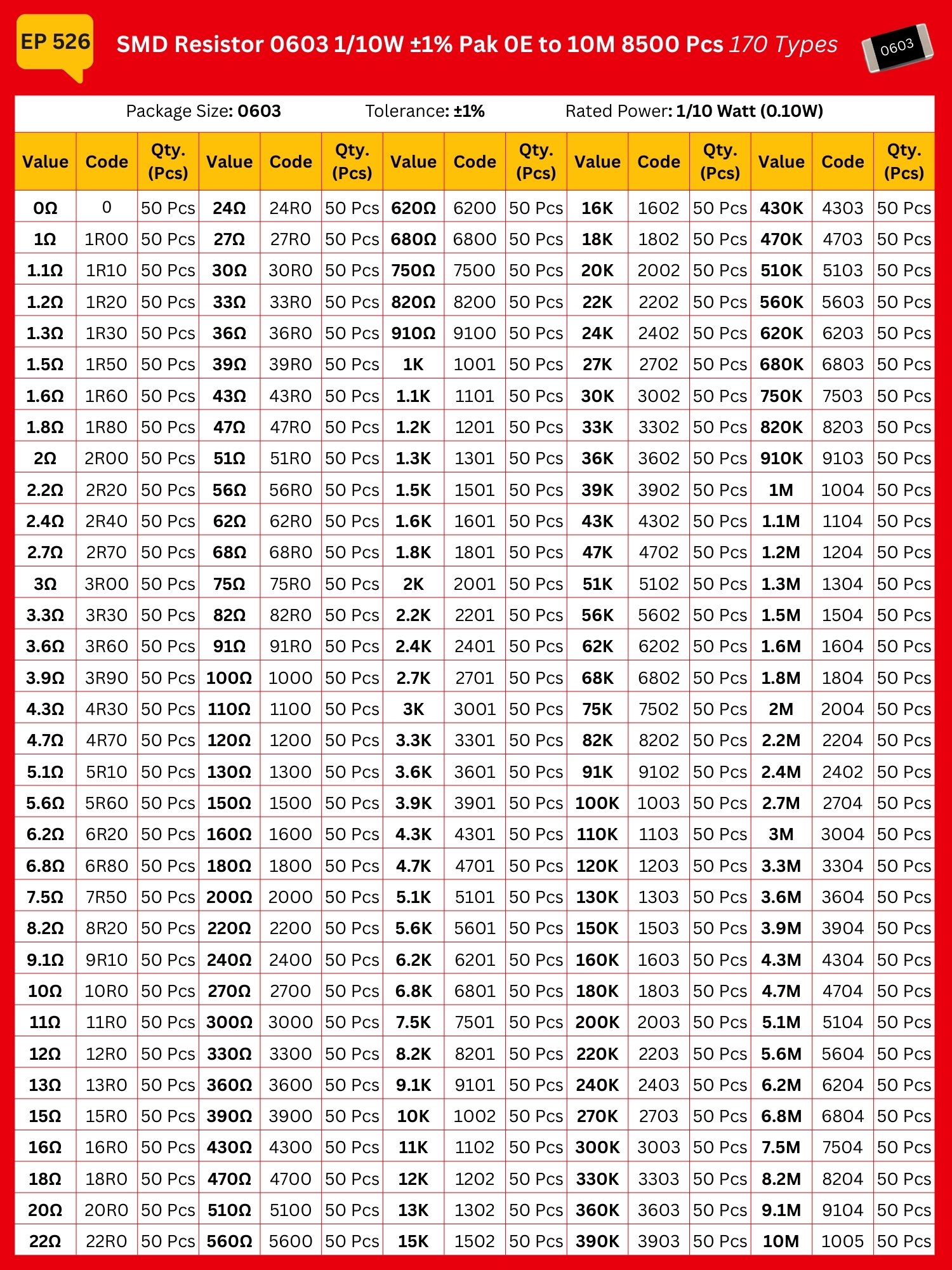

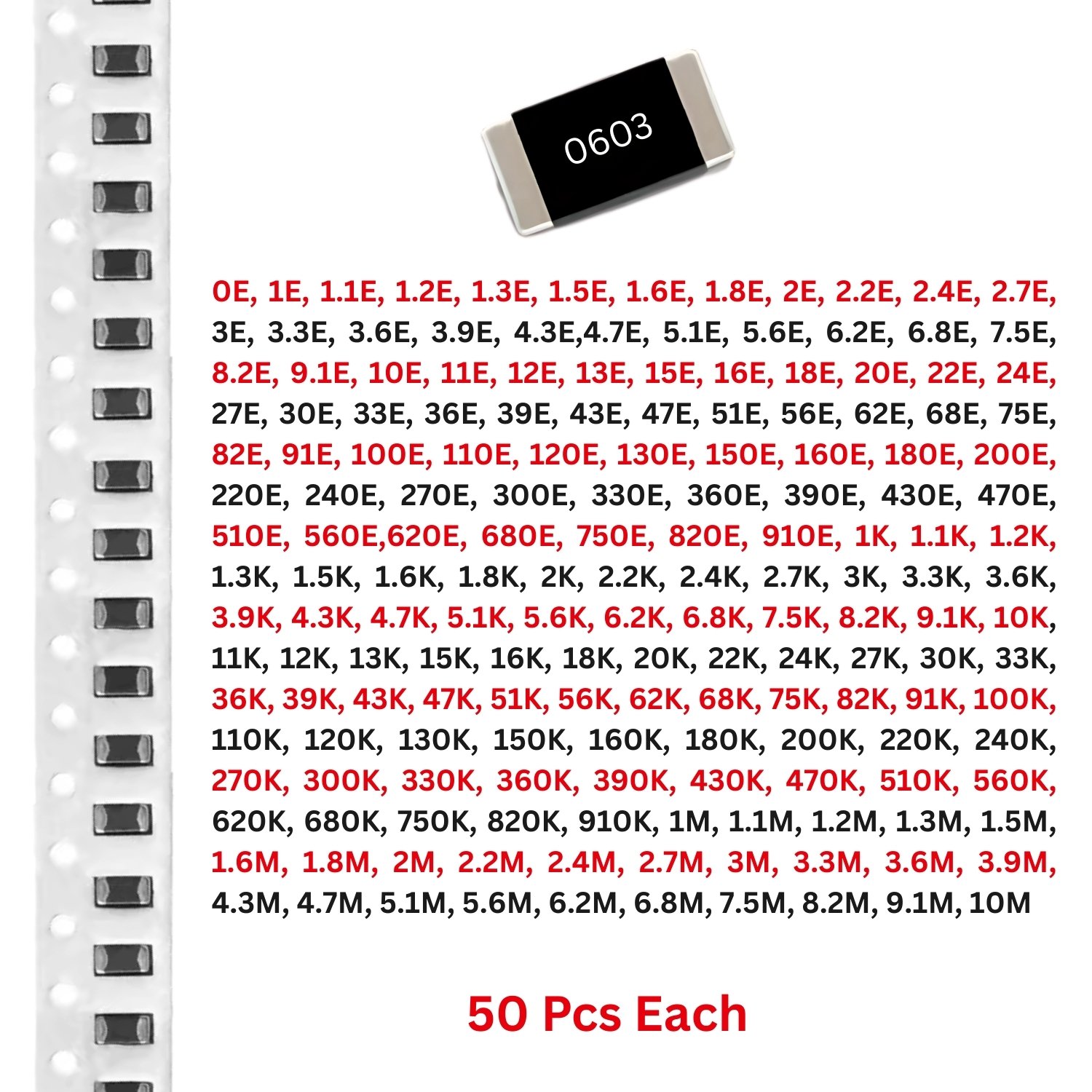

8500 SMD Resistor 0603 1/10W ±1% 170 Values

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Features:

  • Compact 0603 size suitable for high-density circuit designs
  • Broad resistance range from 0Ω to 10MΩ
  • High-precision ±1% tolerance for accurate performance
  • Excellent stability and reliability

Applications:

  • Smartphones & Tablets – Provide space-efficient resistance for signal control
  • Wearable Devices – Deliver high reliability in ultra-compact circuits
  • Medical Electronics – Enable stable, precise performance in diagnostic systems
  • Automotive Electronics – Withstand tough environments in control units and sensors
  • IoT & Embedded Systems – Optimize energy use in connected, low-power devices
1. What tolerance does ±1% indicate?

⋙ ±1% tolerance means the actual resistance value can vary by 1% above or below the stated value, offering better accuracy than ±5% resistors.

2. Are these resistors suitable for prototyping?

⋙ Yes, they are ideal for SMD prototyping, production runs, and repair work.

3. Can I solder these by hand?

⋙ Yes, but precision tools like fine-tip soldering irons or hot air stations are recommended.

4. How are the resistors delivered – loose or taped?

⋙ The resistors are provided in labeled cut-tape strips or compartments.

5. Is this kit available in other sizes like 0402 or 0805?

⋙ Yes, similar kits are often available in multiple SMD sizes.

6. Can this pack be used for Arduino or DIY projects?

⋙ Yes, it’s perfect for DIY electronics and microcontroller-based projects.

7. Do these resistors have color codes?

⋙ No, SMD resistors use numerical codes, not color bands.

8. Is the kit suitable for both analog and digital circuits?

⋙ Yes, it can be used in both types of circuits.

9. How do I know if 0603 is the right size for my project?

⋙ Check your PCB design – 0603 is slightly larger and easier to handle than 0402.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
