SMD Resistor 1206 1/4W ±1% Pak 0E to 10M 8500 Pcs 170 Values

SKU: EP530

Technical Specification:

  • Type: SMD
  • Model: 1206 Resistor
  • Package Type: 1206
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±1 %
  • Rated Power: 1/4 Watt (0.25W)
  • Pak Weight: 650 gm
  • Pak Dimensions: 280 x 140 x 60 mm

₹3,625.00

Add to wishlist

Description

The SMD Resistor 1206 1/4W ±1% series is a premium collection of surface-mount resistors ideal for a wide range of electronic applications. With a comprehensive resistance range from 0 ohms to 10 megaohms across 170 types, this 8500-piece kit offers high accuracy, excellent reliability, and is perfect for use in power electronics, industrial automation, and prototyping.

Resistor Symbol:

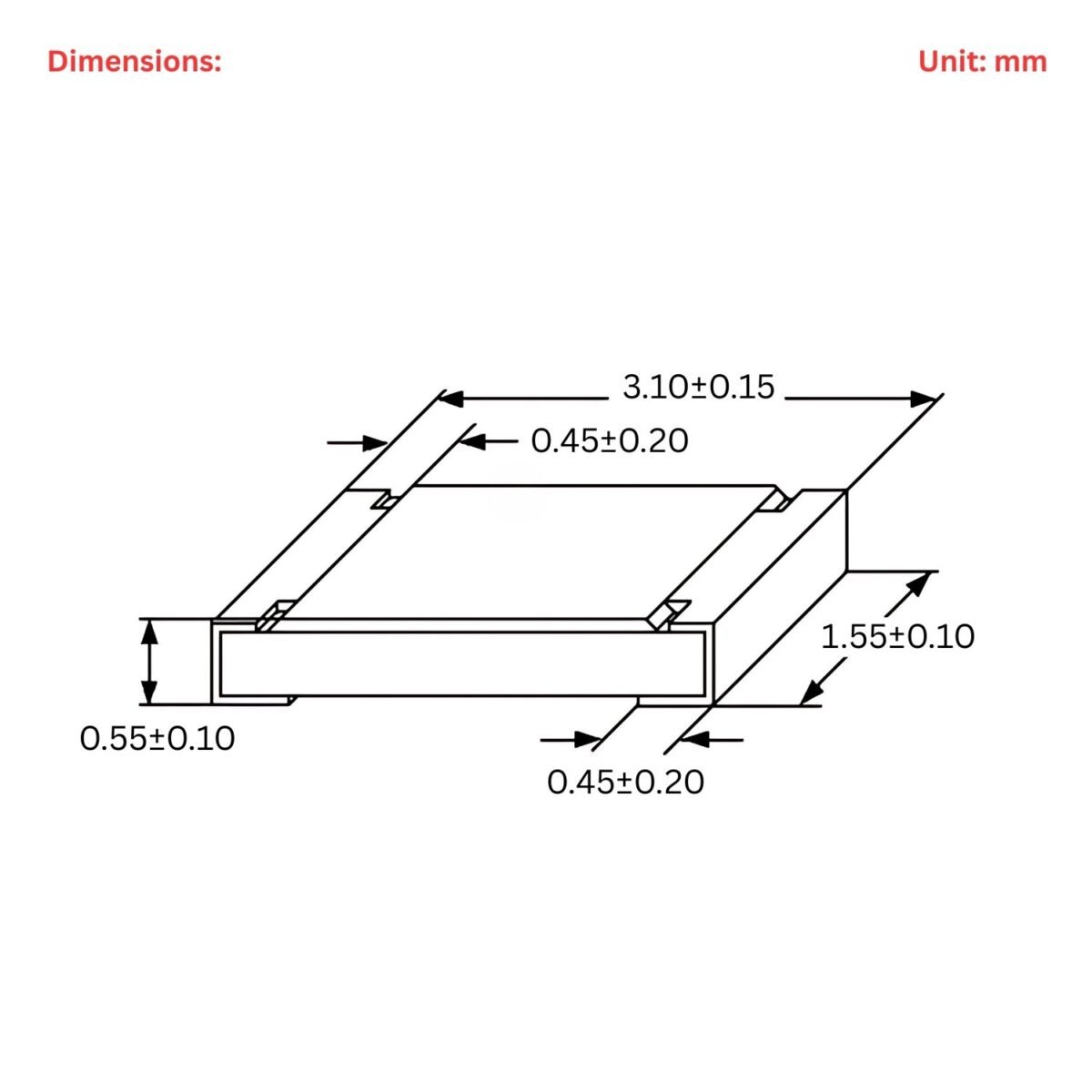

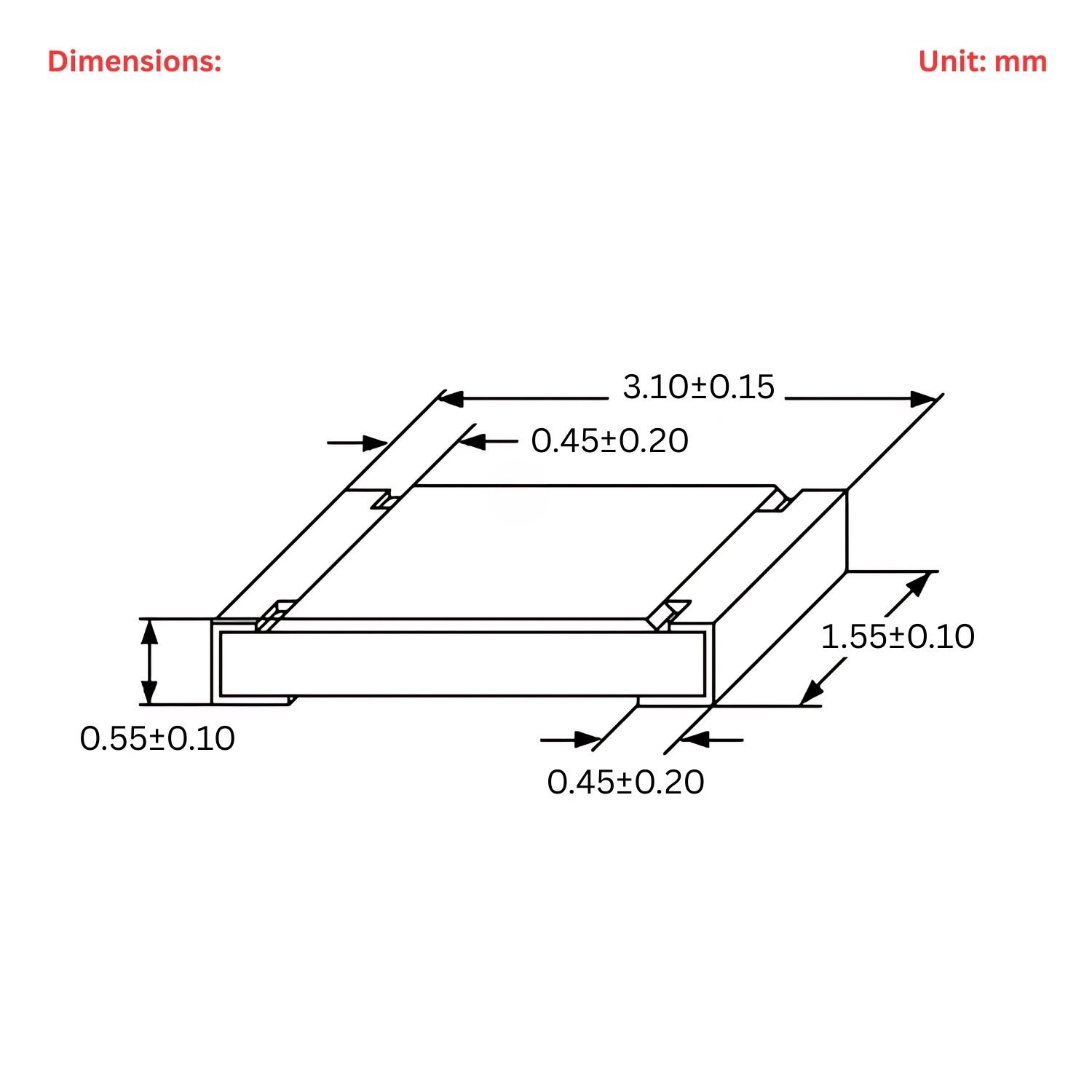

1206 Resistor Structure:

Package Includes

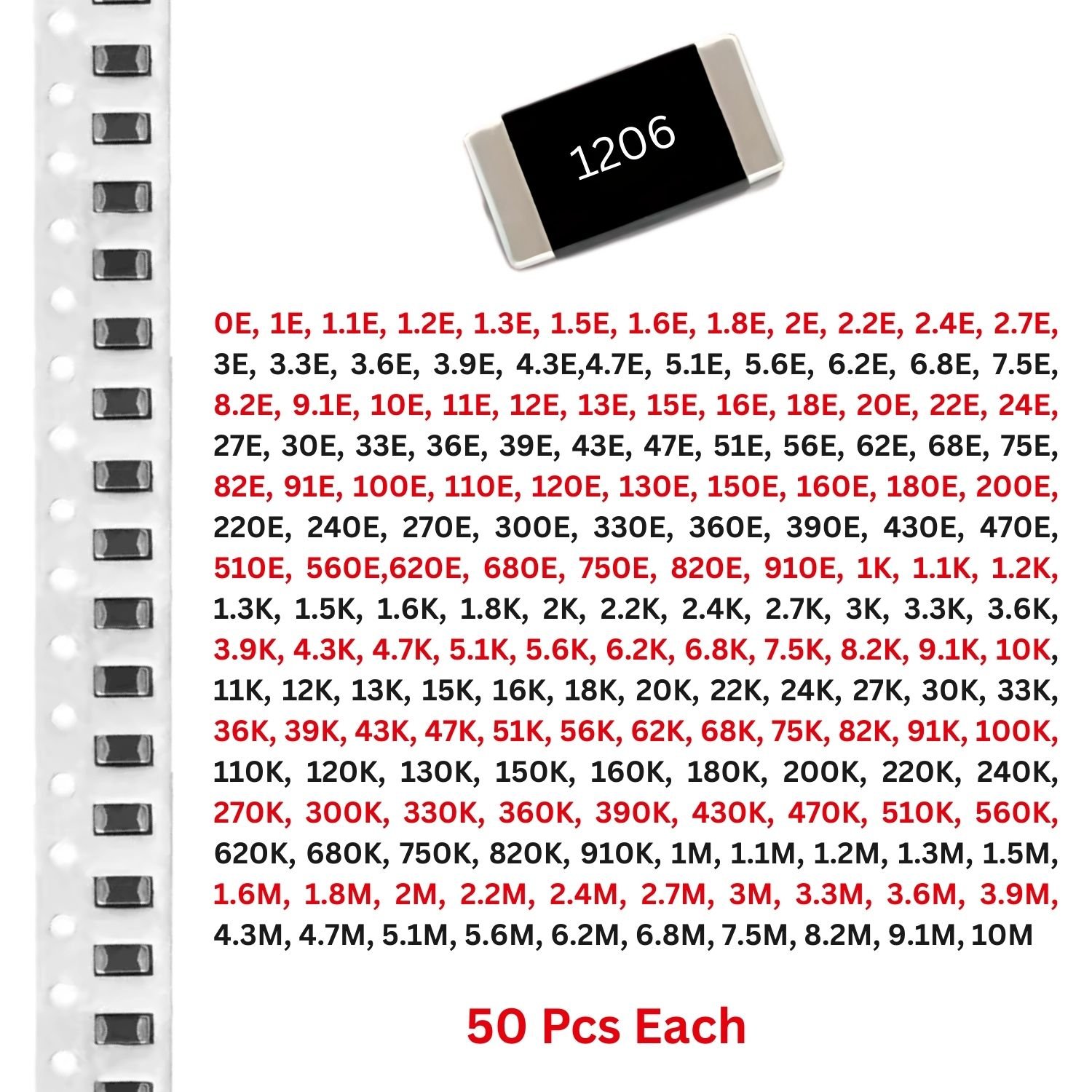

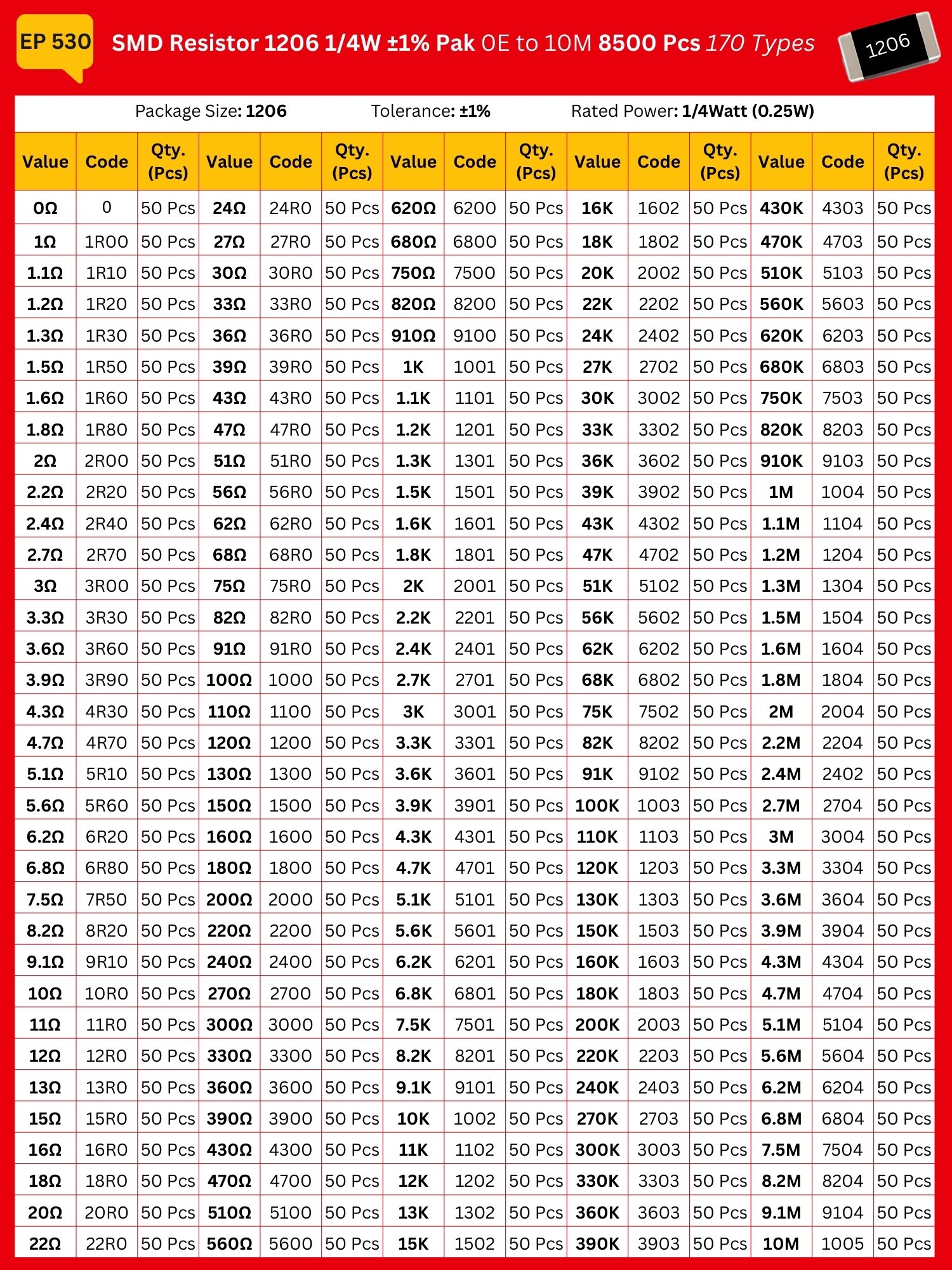

SMD Resistor 1206 1/4W ±1% Pak 0E to 10M 8500 Pcs

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Features:

  • Larger 1206 size for higher power handling and easier manual soldering
  • Covers a broad resistance range from 0Ω to 10MΩ
  • ±1% tolerance for precise circuit behavior
  • Excellent stability and reliability

Applications:

  • Power Electronics - Suitable for power supplies, converters, and regulators
  • Industrial Control Systems - Durable for rugged applications and variable loads
  • Automotive Electronics - Perfect for ECUs, battery management, and dashboards
  • Medical Equipment - High precision for signal integrity in diagnostics
  • R&D Labs & Education - Excellent for learning, experiments, and prototyping
1. Why choose 1206 over other SMD sizes like 0805 or 0603?

⋙ The 1206 size is easier to handle for manual soldering, offers higher power handling (1/4W), and is a good balance between size and ease of use.

2. Can I use a 1/4W SMD resistor in place of a 1/8W resistor?

⋙ Yes, a 1/4W resistor can replace a 1/8W one if there's enough space on the PCB, as it can handle more power.

3. Can 0-ohm resistors be used as jumpers?

⋙ Yes, 0-ohm resistors are often used as PCB jumpers to connect traces or for configuration purposes.

4. How do I read the value of an SMD resistor without a color code?

⋙ SMD resistors use a numerical code (e.g., “1R00” = 1Ω) instead of color bands. You can use an SMD code chart or multimeter to identify values.

5. Are these resistors compatible with Arduino and Raspberry Pi projects?

⋙ Absolutely. These resistors are commonly used in Arduino, Raspberry Pi, and other microcontroller-based circuits.

6. Why is the 1206 resistor kit a must-have for makers and engineers?

⋙ It provides a wide value range for testing, troubleshooting, and building — all in a compact, organized form factor.

7. What are typical tolerance levels available for SMD resistors besides ±1%?

⋙ Common options include ±5% (general use), ±0.5%, ±0.1% (precision), and ±0.01% (high-precision, thin-film).

8. Can I use this kit for both analog and digital circuits?

⋙ Absolutely. The wide value range and ±1% tolerance make it suitable for signal processing, pull-up/down, filtering, and biasing.

9. What is the difference between 1206, 0805, 0603, and 0402 resistors?

⋙ These codes refer to resistor sizes. 1206 is the largest among them (3.2×1.6mm), easier to handle, and supports higher power.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
