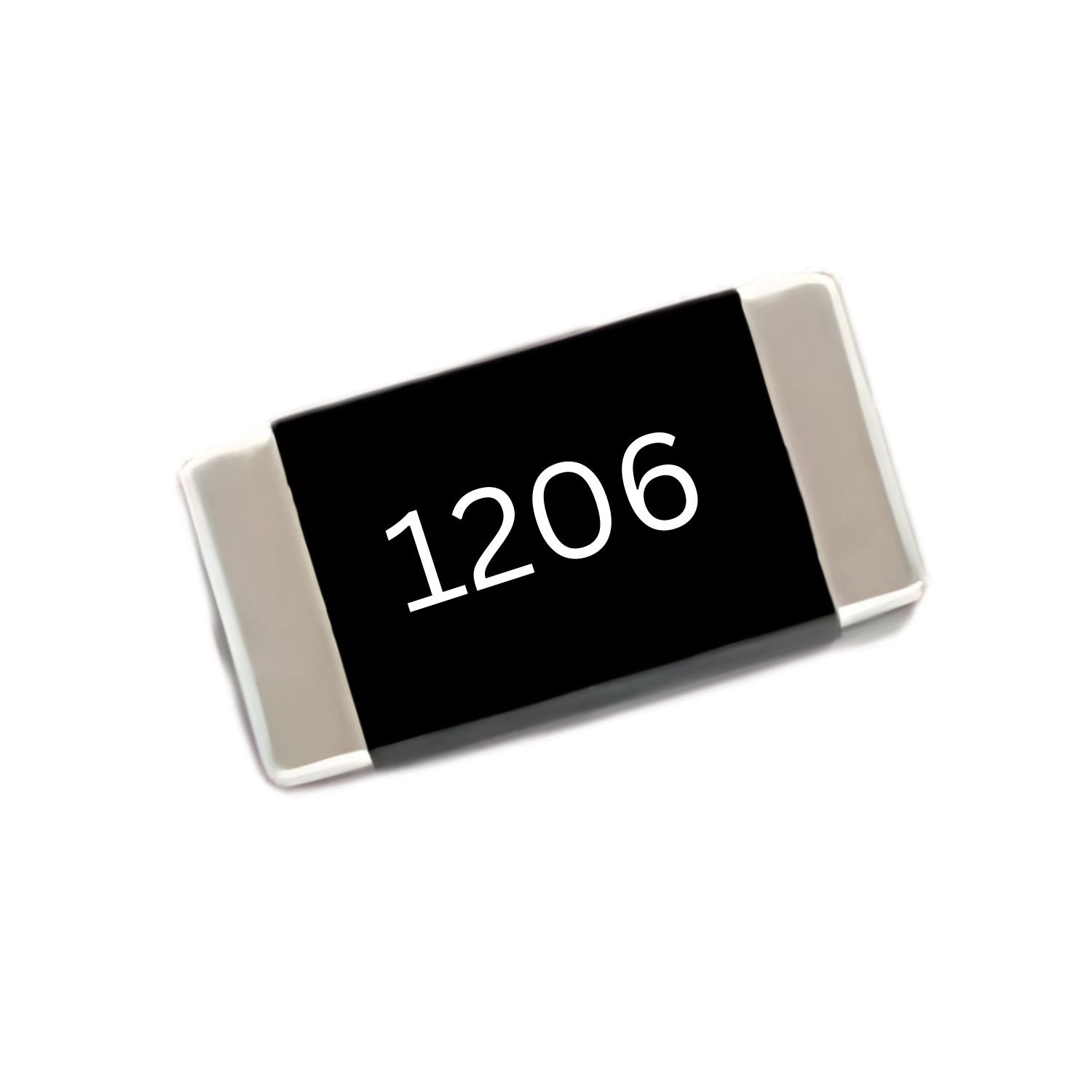

SMD Resistor 1206 1/4W ±5% Pak 0E to 10M 8500 Pcs 170 Values

SKU: EP531

Technical Specification:

  • Type: SMD
  • Model: 1206 Resistor
  • Package Type: 1206
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±5%
  • Rated Power: 1/4 Watt (0.25W)
  • Pak Weight: 650 gm
  • Pak Dimensions: 280 x 140 x 60 mm

₹2,715.00

Add to wishlist

Description

The SMD Resistor 1206 1/4W ±5% pack offers a cost-effective solution for general-purpose electronics. With 8500 pieces across 170 values from 0Ω to 10MΩ, this assortment is ideal for prototyping, repairs, and educational use where tight tolerance is not required. The larger 1206 size makes it beginner-friendly and suitable for higher power applications.

Resistor Symbol:

1206 Resistor Structure:

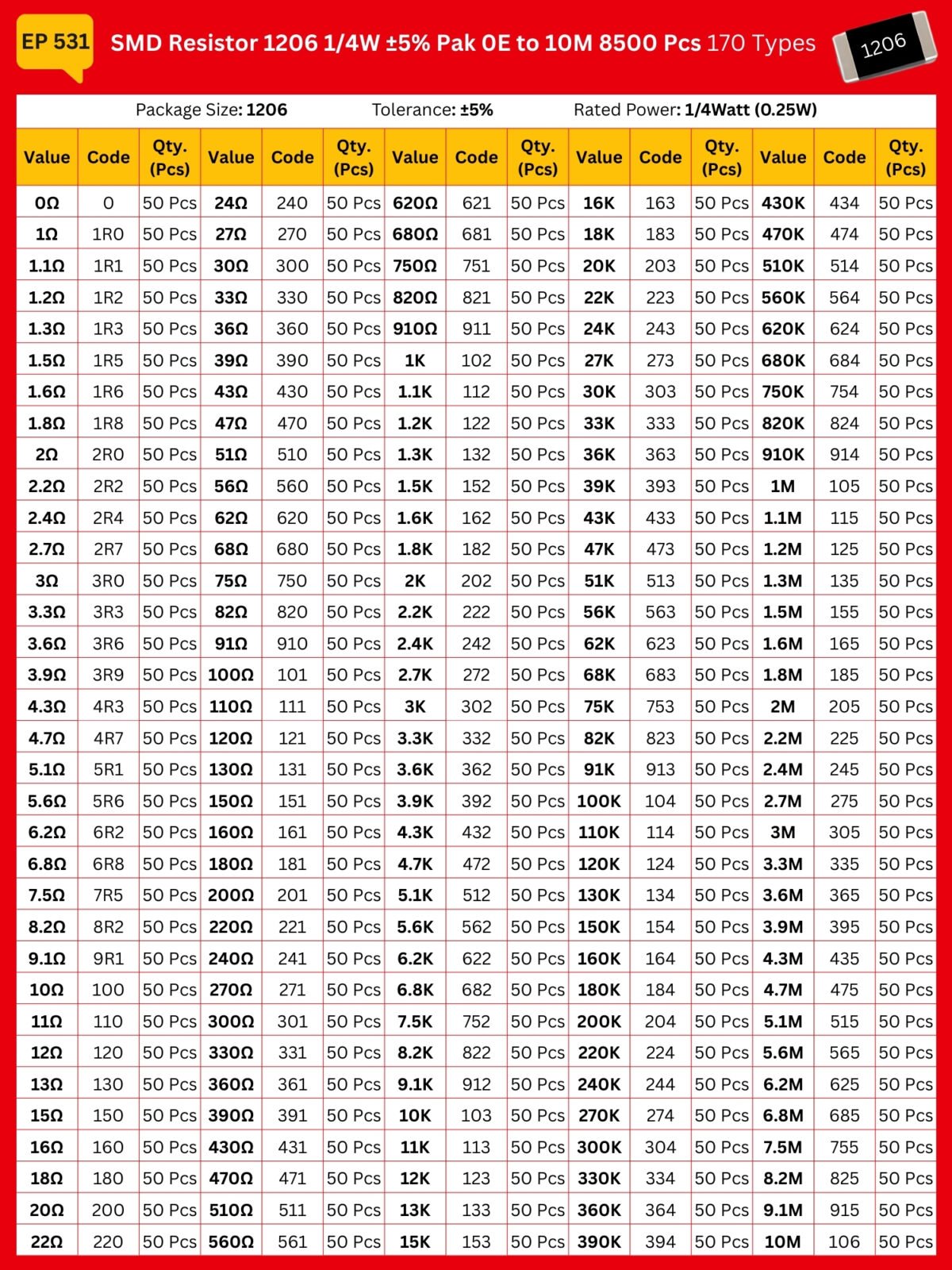

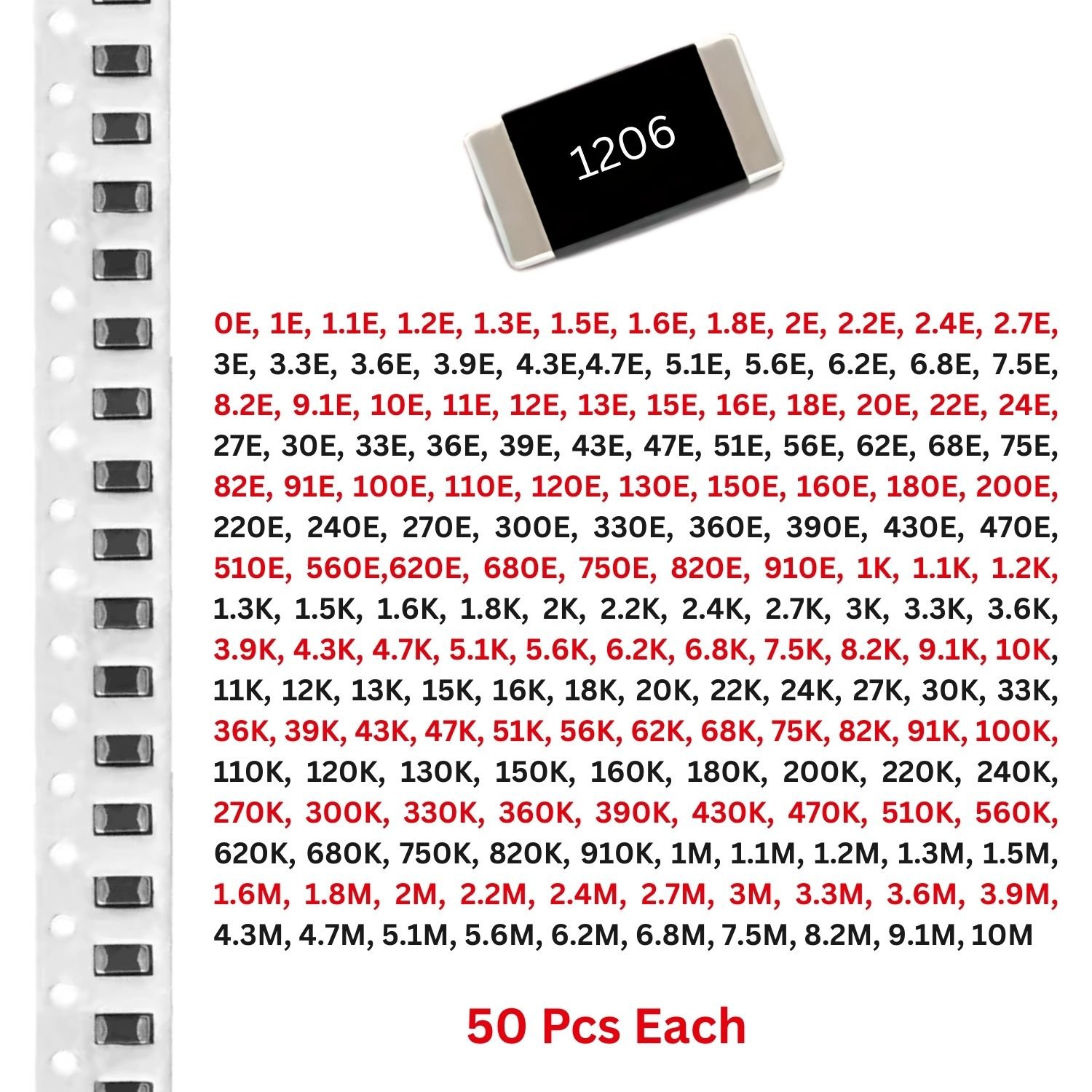

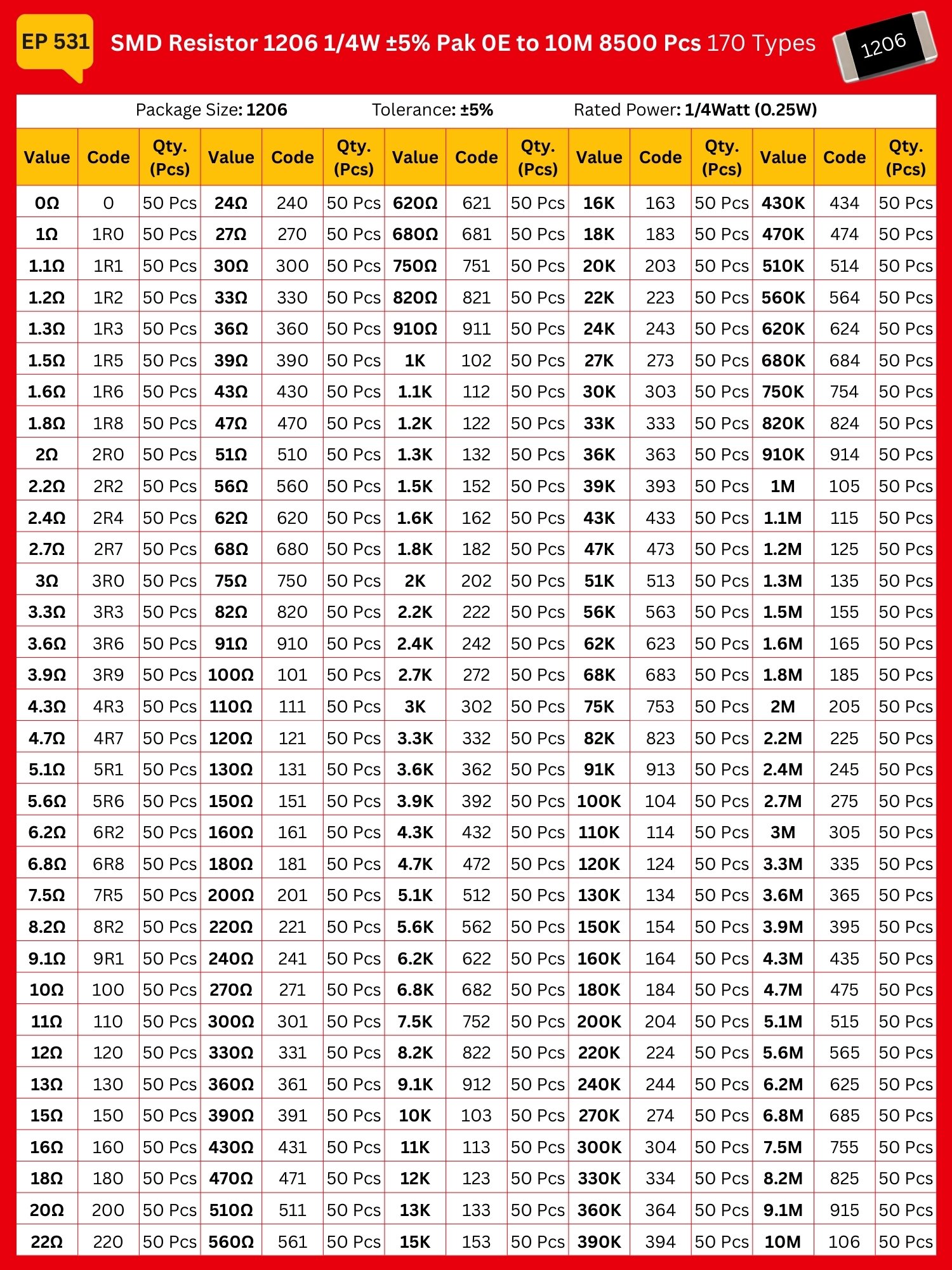

Package Includes

8500 SMD Resistor 1206 1/4W ±5% 170 Values

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Features:

  • Easy-to-handle 1206 package size
  • Broad resistance range from 0Ω to 10MΩ
  • ±5% tolerance ideal for non-critical applications

Applications:

  • Consumer & Office Electronics - Power adapters, LED circuits, and more
  • Learning & Training Kits - Great for electronics education and labs
  • Repair Work - Service centers and technicians benefit from variety and volume
  • DIY & Hobby Projects - Useful for makers, students, and electronics tinkerers
  • Prototyping & Testing - Perfect for circuit testing before final designs
1. Are ±5% SMD resistors suitable for most electronics projects?

⋙Yes. ±5% tolerance is sufficient for most general-purpose applications like pull-up/down resistors, LED current limiting, and voltage dividers.

2. What type of projects are ideal for using this kit?

⋙ Great for hobby projects, Arduino/Raspberry Pi, repair work, circuit testing, DIY electronics, and lab prototyping.

3. Is there a difference between ±1% and ±5% resistor kits?

⋙ Yes. ±1% resistors offer better precision and are ideal for analog circuits and measurement systems, while ±5% is more affordable and sufficient for digital or general use.

4. How do I read the value of an SMD resistor without a color code?

⋙ SMD resistors use a numerical code (e.g., “1R00” = 1Ω) instead of color bands. You can use an SMD code chart or multimeter to identify values.

5. Can I mix these with through-hole resistors in a single project?

⋙ Yes. For prototyping or hybrid boards, combining SMD and through-hole components is common practice.

6. Is 1/4 watt enough for power supply or LED driver circuits?

⋙ For low-power sections — yes. But for resistors dropping higher voltage or current, you may need higher-wattage (0.5W–2W) resistors.

7. Can SMD resistors in this kit handle pulse or surge loads?

⋙ No, general-purpose resistors like these aren’t rated for high surge currents. Use pulse-rated resistors for that purpose.

8. How do I know if a resistor is open or shorted?

⋙ Use a multimeter in resistance mode:

  • Open → shows infinite or very high value.

  • Shorted → shows near 0Ω regardless of actual printed value.

9. If I run out of a value, can I combine two resistors in series or parallel to get the desired resistance?

⋙ Yes! Combine series resistors to increase resistance, or parallel to decrease it. This flexibility helps if a specific value is missing.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
