    SMD Tactile Switch Pak 150 Pcs 10 Types

    SKU: EP521

    Technical Specification:

    • Type: SMD
    • Model: Switch
    • No of. Pins: 2 Pin, 4 Pin
    • Width: 3 mm – 6 mm
    • Height: 0.8 mm – 6 mm
    • Length: Varies according to each model
    • Contact Rating:
      • Voltage: Typically 12 V DC
      • Current: 50 mA
      • Contact Resistance: ≤ 100 Ω
      • Insulation Resistance: ≥ 100 mΩ
      • Dielectric Strength: ≥ 250 V AC for 1 minute
    • Pak Weight: 80 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹465.00

    Add to wishlist

    Description

    The SMD Tactile Switch Pak (150 Pcs, 10 Types) is a versatile assortment of tactile switches, designed for a wide range of electronic applications. The pack contains 150 pieces, divided into 10 different types, providing a broad selection for various projects. The switches come in different sizes, ranging from 3mm to 6mm in width and 0.8mm to 6mm in height.

    These tactile switches are available in both 2-pin and 4-pin configurations, offering flexibility for different mounting and connectivity requirements. The variety of sizes and pin types ensures that the pack can meet the needs of various electronic designs, from prototypes to production.

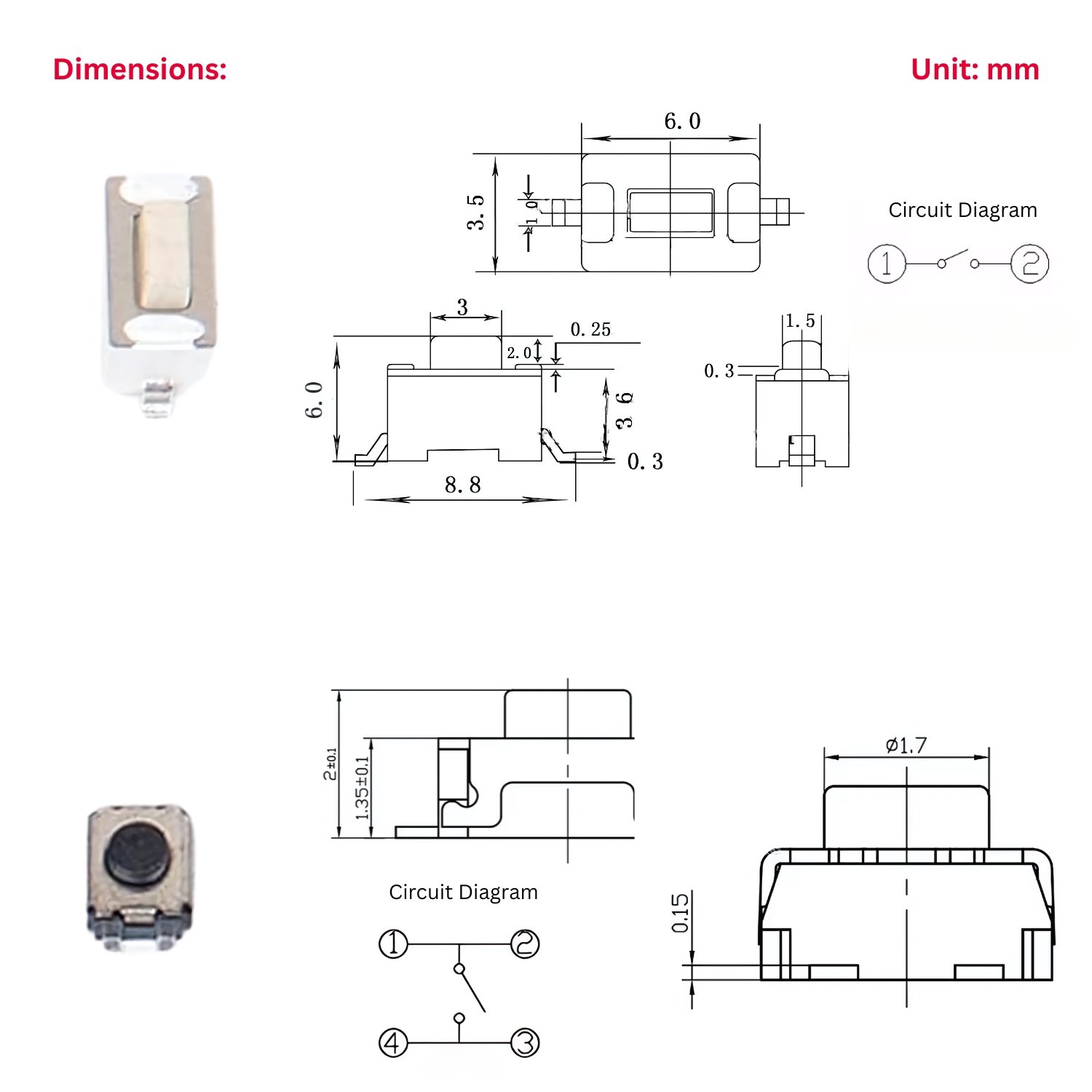

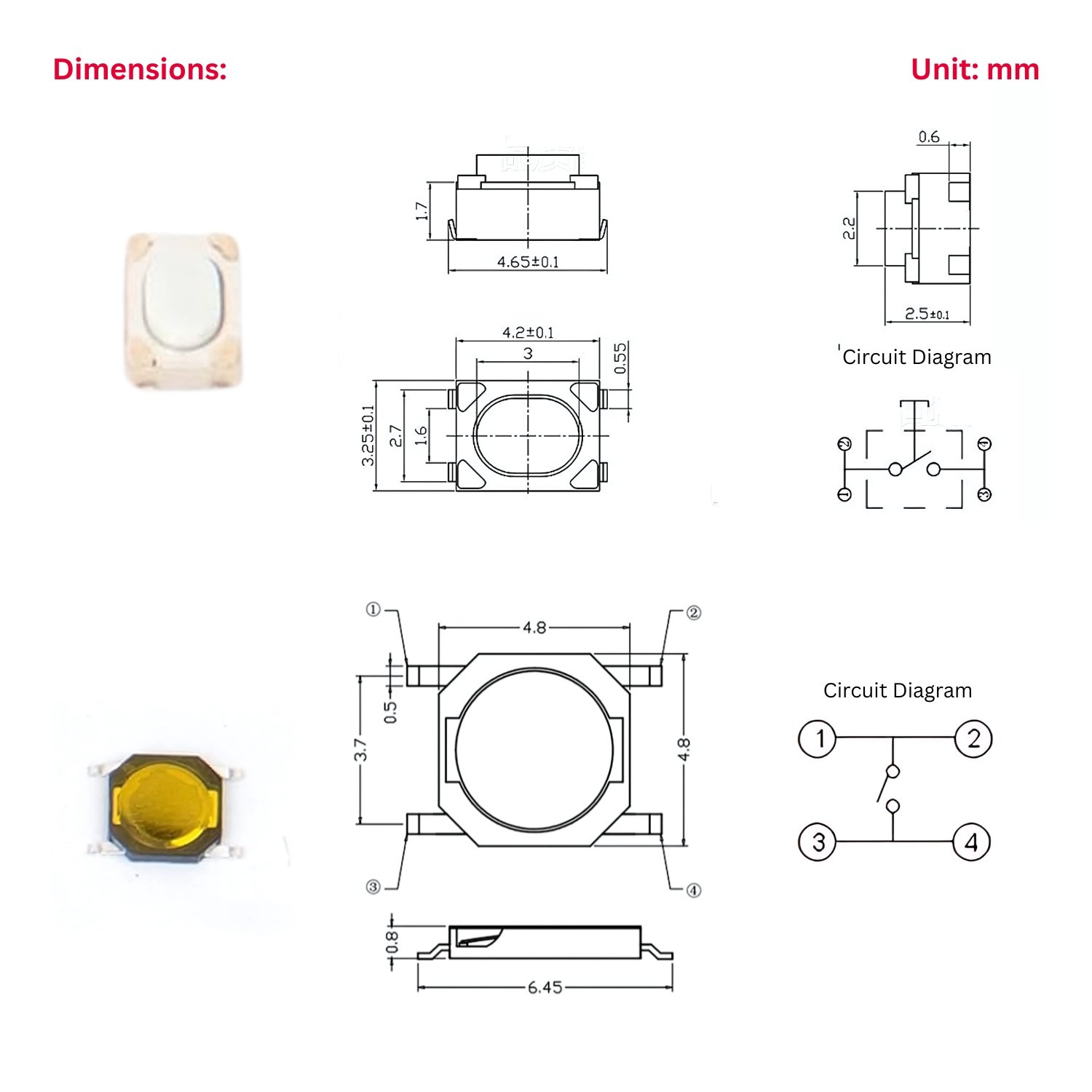

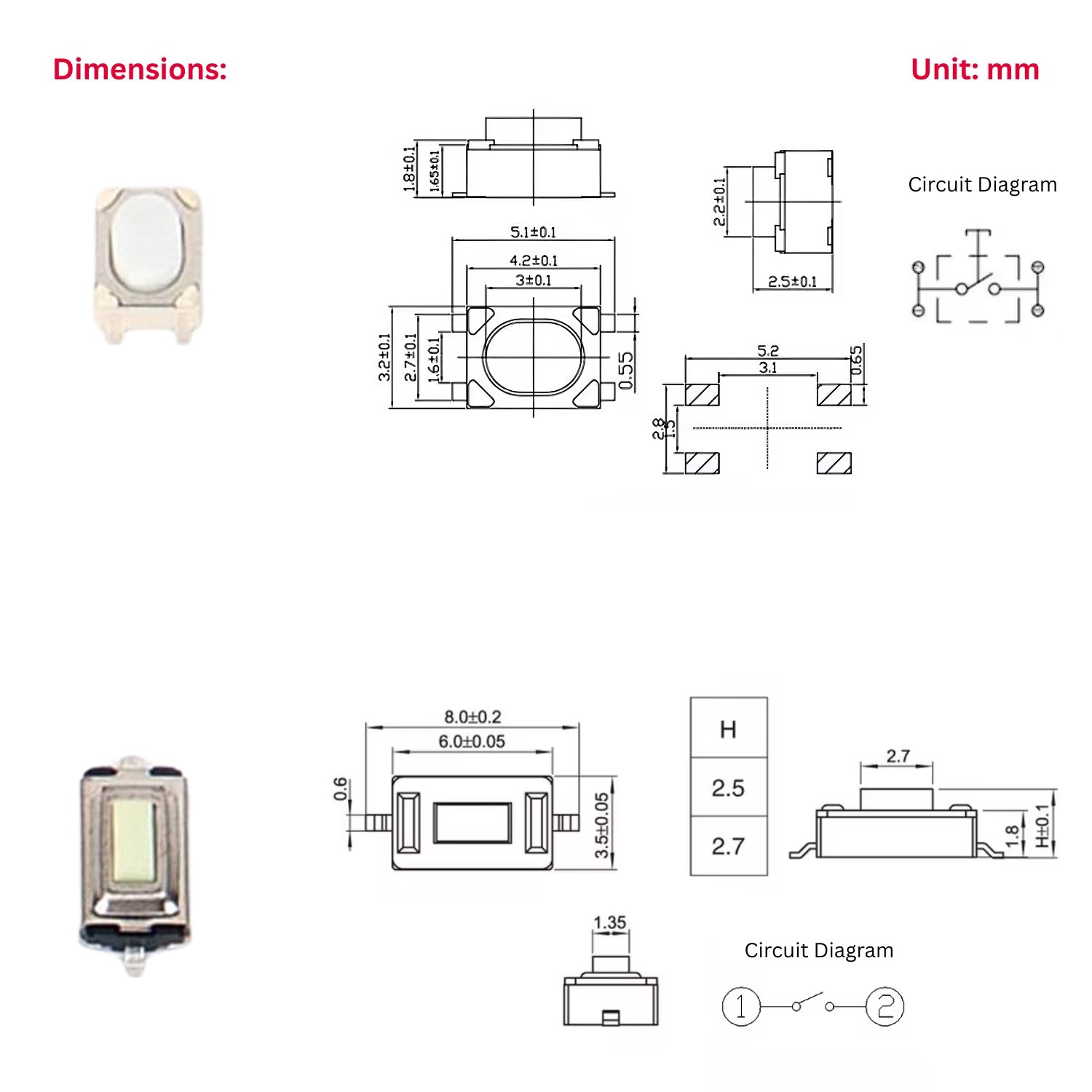

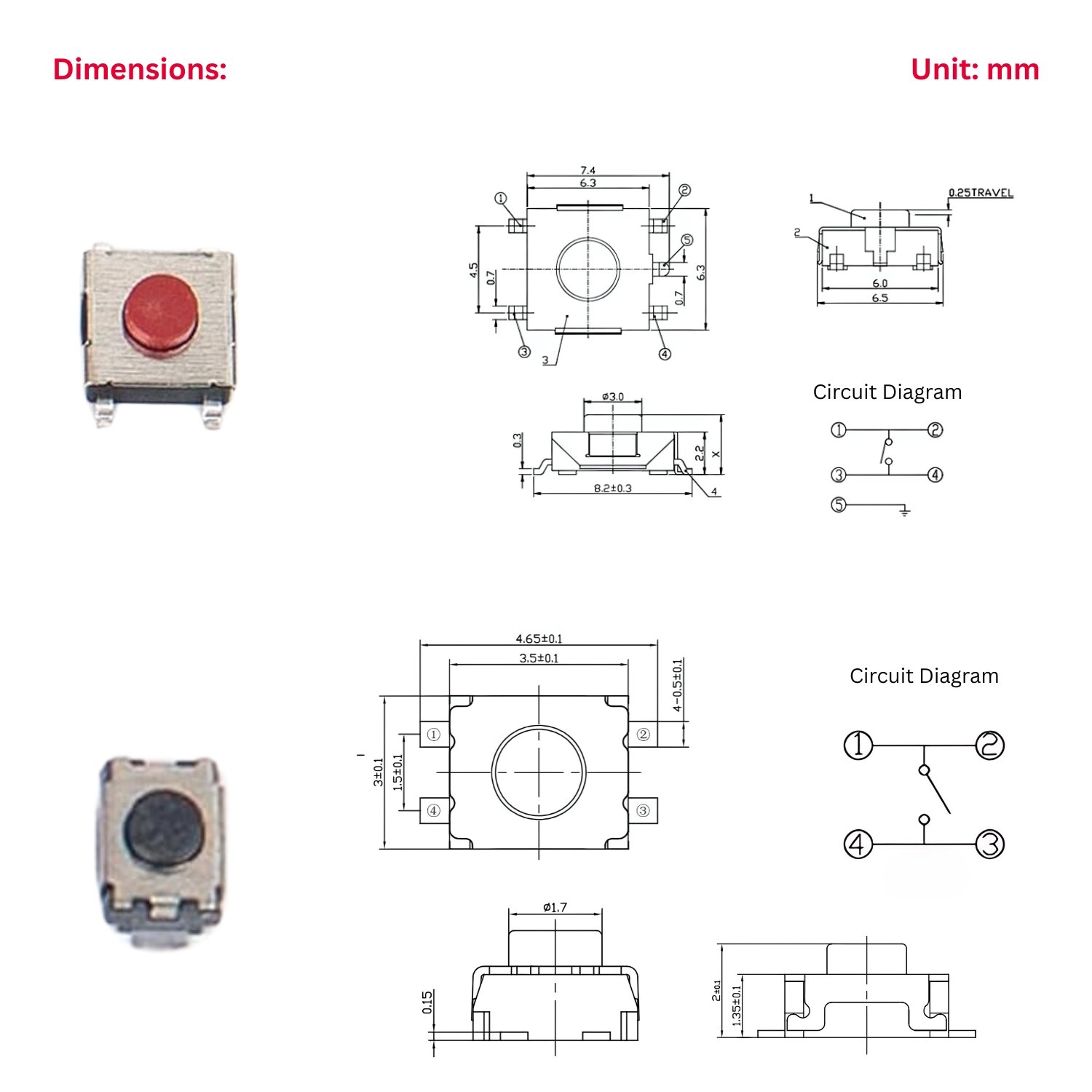

    Switch Symbol:



    Package Includes

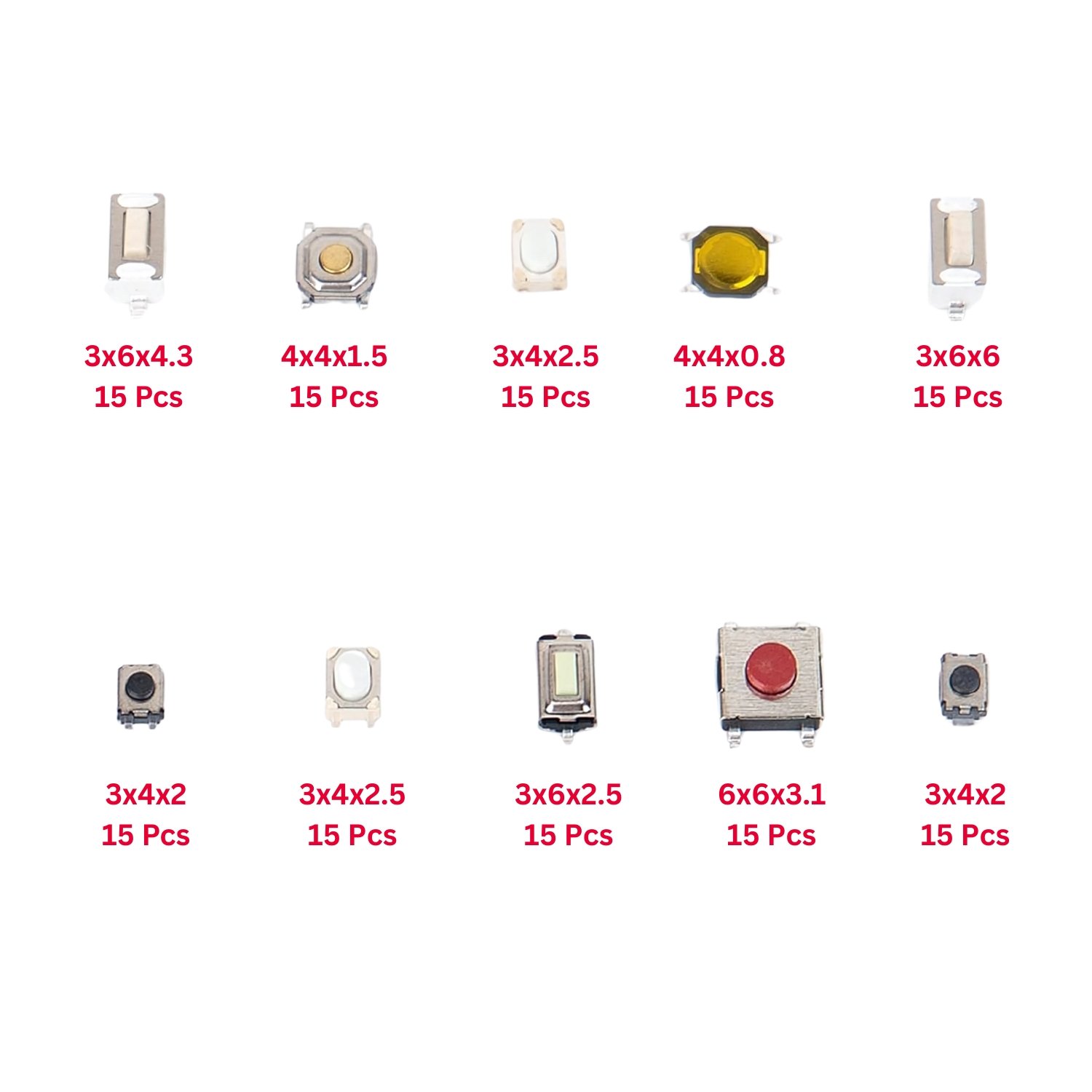

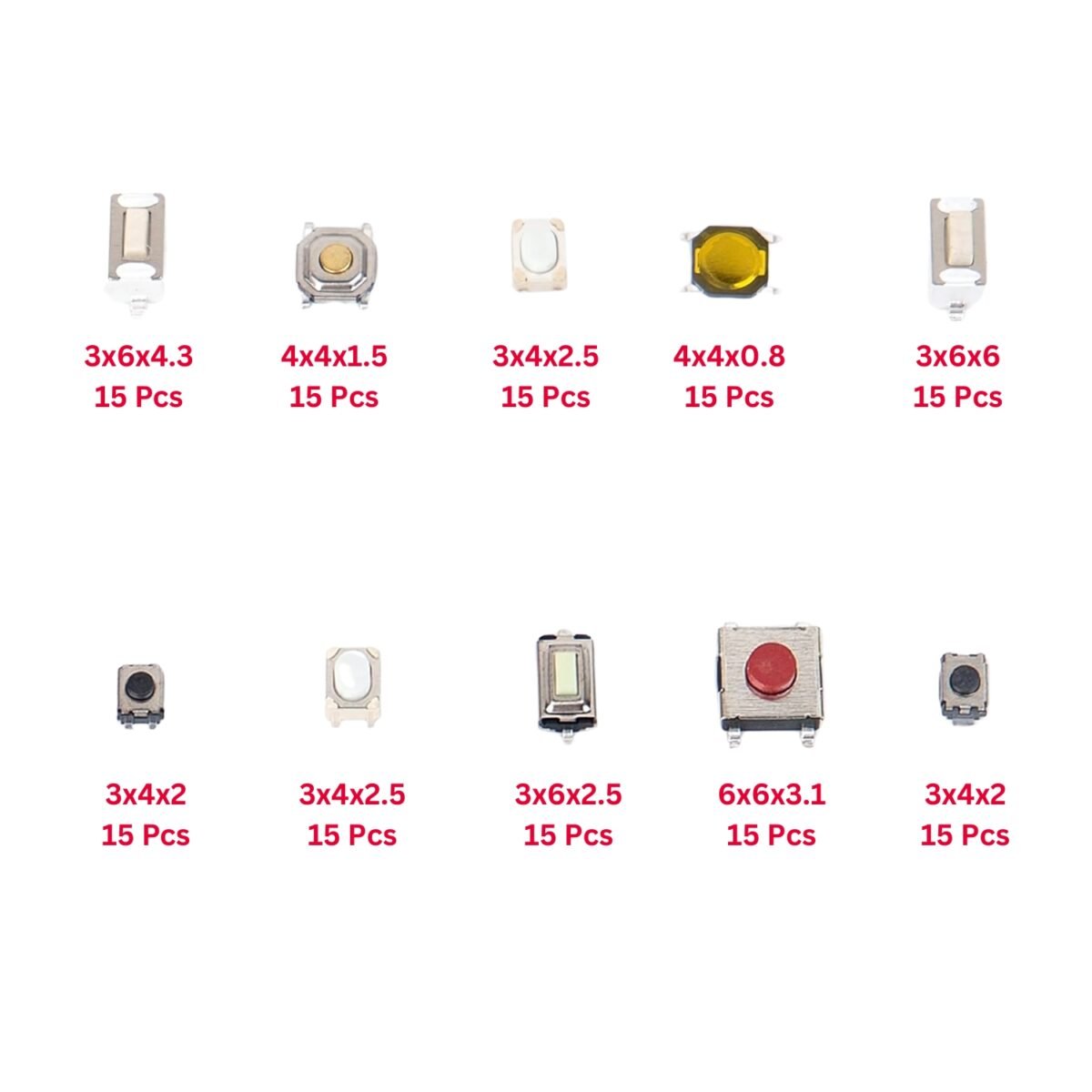

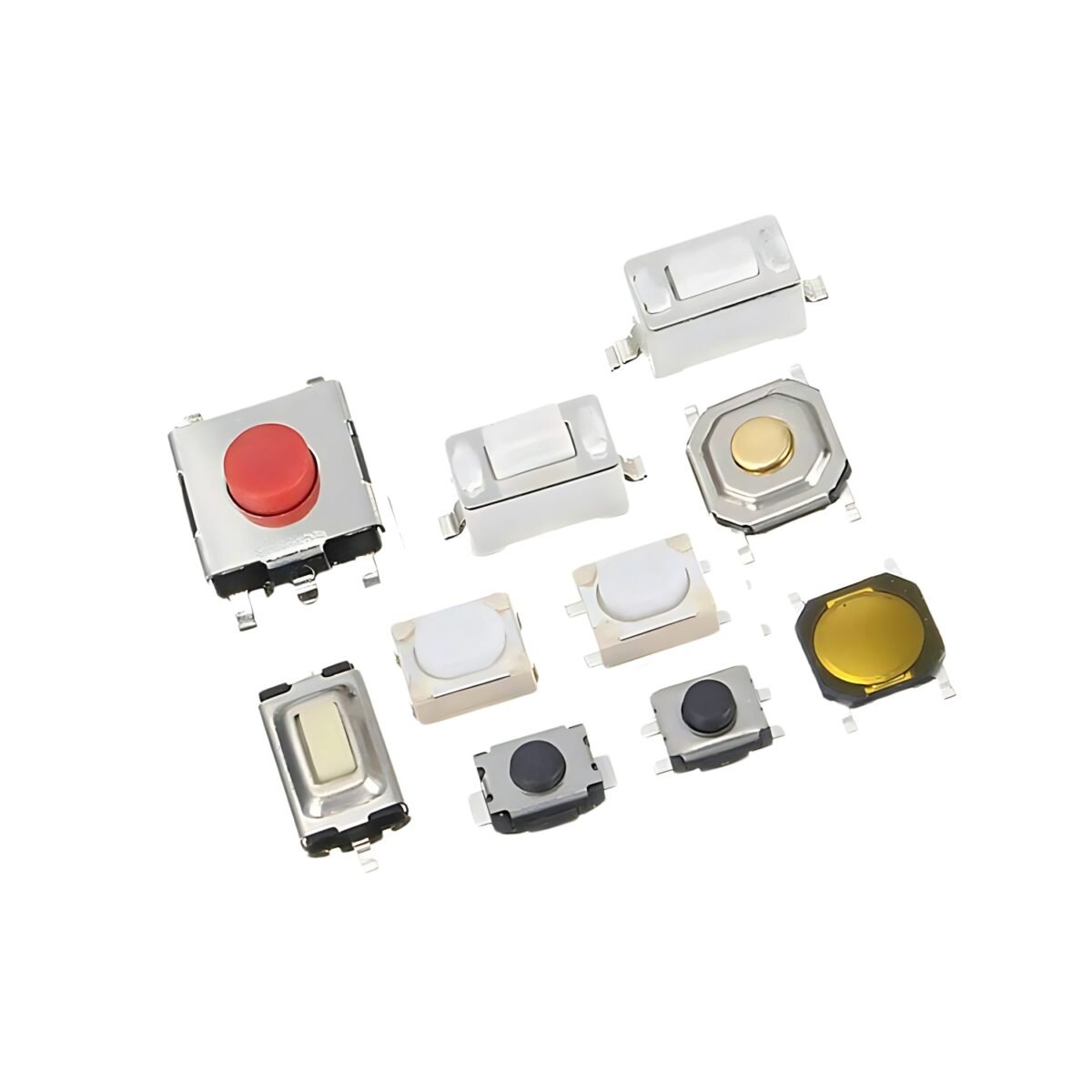

    150 SMD Tactile Switch 10 Types

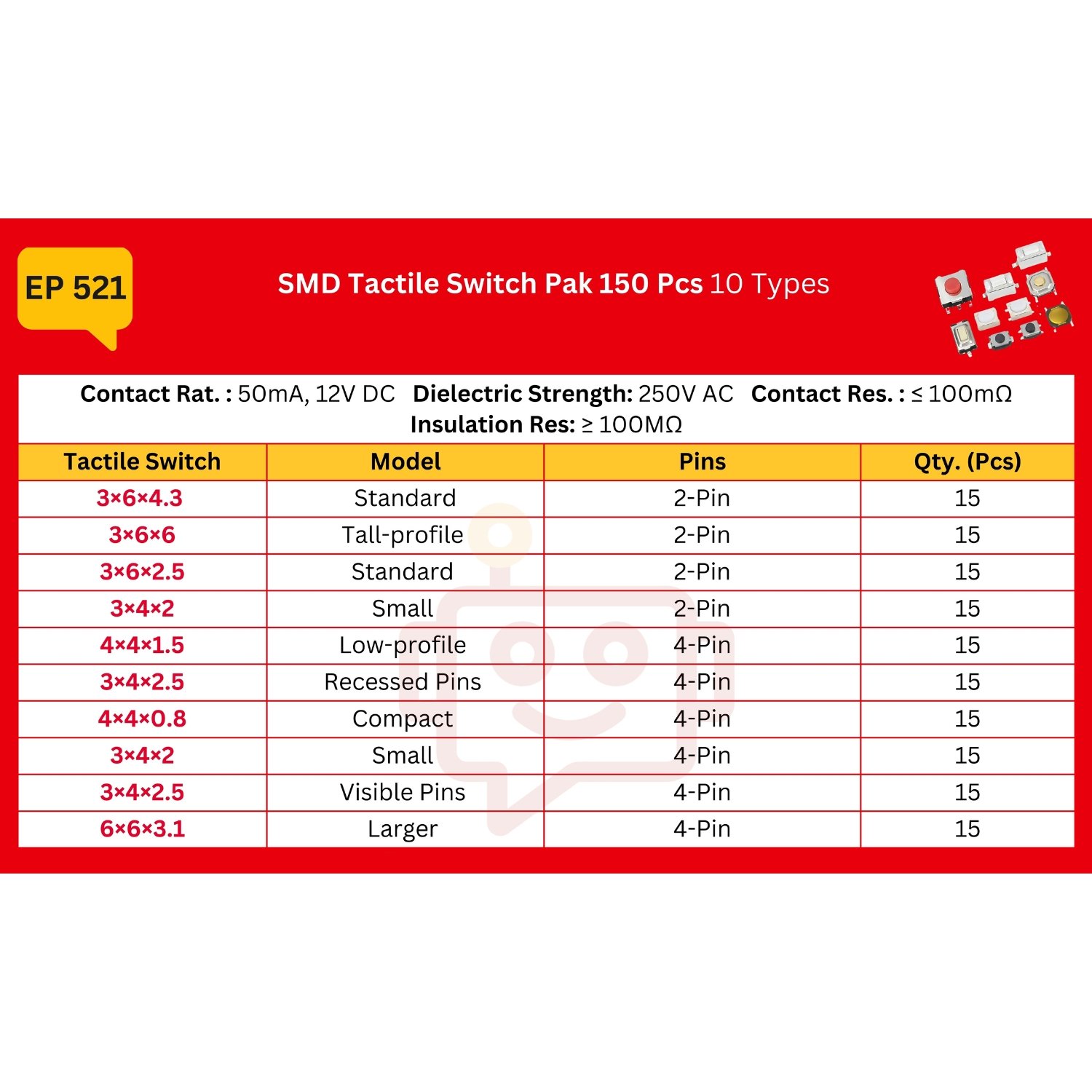

    • 3×6×4.3 mm, 2 Pin – 15 Pcs
    • 4×4×1.5 mm, 4 Pin – 15 Pcs
    • 4×4×0.8 mm, 4 Pin – 15 Pcs
    • 3×6×6 mm, 2 Pin – 15 Pcs
    • 3×4×2 mm, 4 Pin – 15 Pcs
    • 3×6×2.5 mm, 2 Pin – 15 Pcs
    • 6×6×3.1 mm, 4 Pin – 15 Pcs
    • 3×4×2 mm, 2 Pin – 15 Pcs
    • 3×4×2.5 mm, Visible Pins, 4 Pin  – 15 Pcs
    • 3×4×2.5 mm, Recessed Pins, 4 Pin – 15 Pcs

    Features:

    • Includes 10 different tactile switch types for versatility.
    • Ideal for prototyping and design experimentation.
    • SMD format allows compact PCB designs and automated assembly.
    • All switches offer tactile feedback for better user experience.
    • Useful for repairs, mods, and replacements in various devices.
    • Convenient, all-in-one pack saves time and cost.

    Applications:

    • Consumer Electronics – Used in phones, remotes, and wearables for compact, responsive buttons.
    • Embedded Systems & DIY Projects – Ideal for reset, input, and menu navigation on dev boards.
    • Computer Peripherals – Found in keyboards, touchpads, and laptop function buttons.
    • Test & Measuring Instruments – Used for mode selection and UI navigation in devices like multimeters.

    Home Appliances – Buttons for control panels in microwaves, purifiers, and smart home devices.

    1. What is the purpose of tactile switches?

    ⋙ Tactile switches provide physical feedback, making them ideal for user interfaces and electronic controls.

    2. Are these switches easy to solder?

    ⋙ Yes, these are SMD switches that are easy to solder using a soldering iron or automated assembly.

    3. How do I mount these switches on a PCB?

    ⋙ These SMD switches can be easily mounted on a PCB using a soldering iron or through automated soldering processes.

    4. Can I use these switches for keypads?

    ⋙ Yes, these tactile switches are ideal for creating custom keypads or control panels.

    5. Are these tactile switches easy to replace if they stop working?

    ⋙ Yes, they are easy to replace by desoldering and soldering in a new switch.

    6. Are these switches compatible with both AC and DC circuits?

    ⋙ Yes, these switches are suitable for DC circuits, but for AC circuits, additional considerations like voltage rating are needed.

    7. Are these switches compatible with all PCB designs?

    ⋙ These switches are compatible with most PCB designs that support SMD components; always verify the footprint size.

    8. Is this pack suitable for beginners in electronics?

    ⋙ Yes, this pack is great for beginners, as it includes a variety of switches for basic electronics projects and experiments.

    9. Can these tactile switches be used in circuit boards with small pads?

    ⋙ Yes, these SMD switches are perfect for circuit boards with small pads, making them great for compact designs.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
