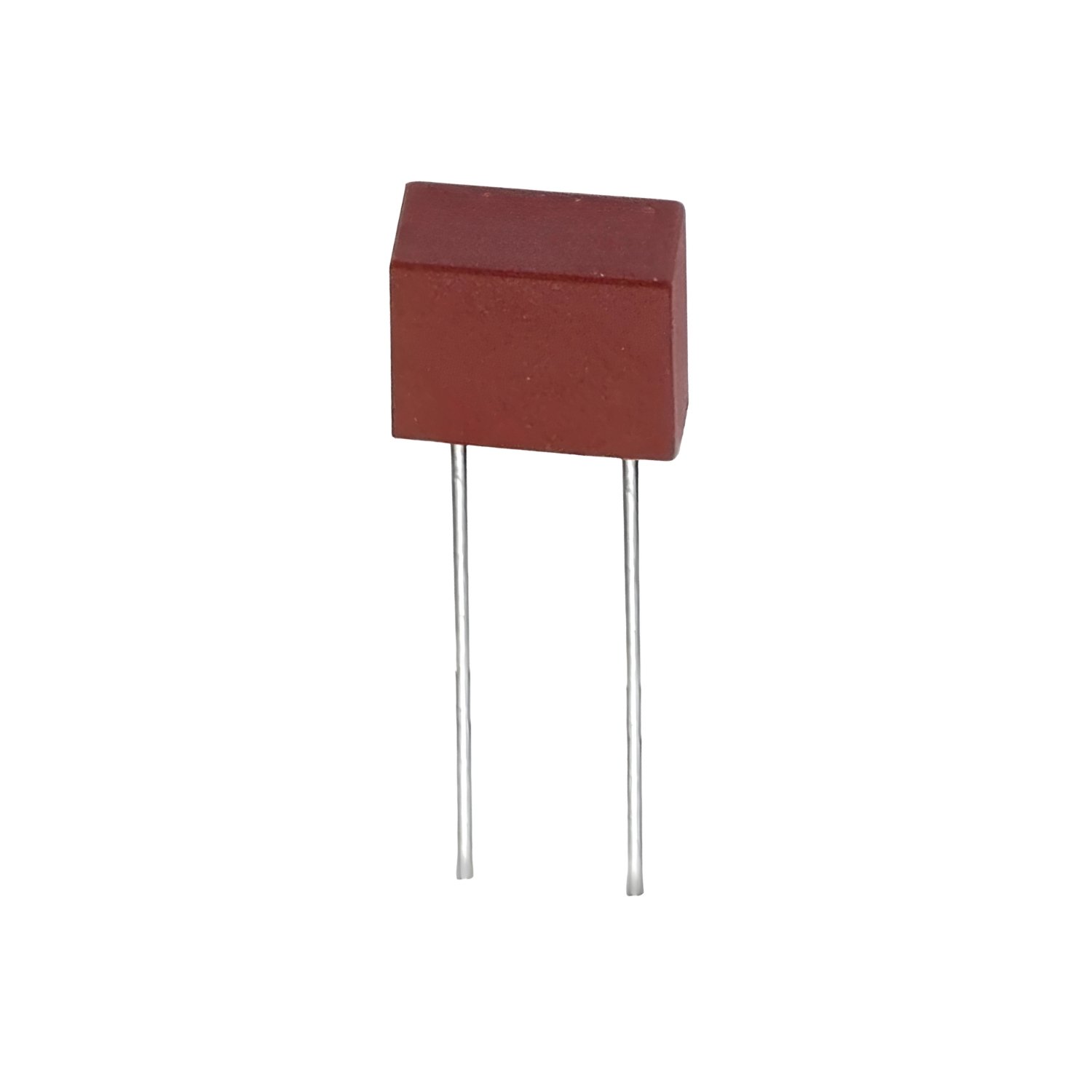

    TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values

    SKU: EP25

    Technical Specification:

    • Type: Through Hole
    • Model: Square Glass Fuse
    • Current Ratings: 0.5 A – 15 A
    • Voltage Rating: 250 VAC
    • Material:
      • Base/Cap: Brown Thermoplastic Polyamide
      • Round Pins: Copper, Sn plated
    • Pak Weight: 100 gm

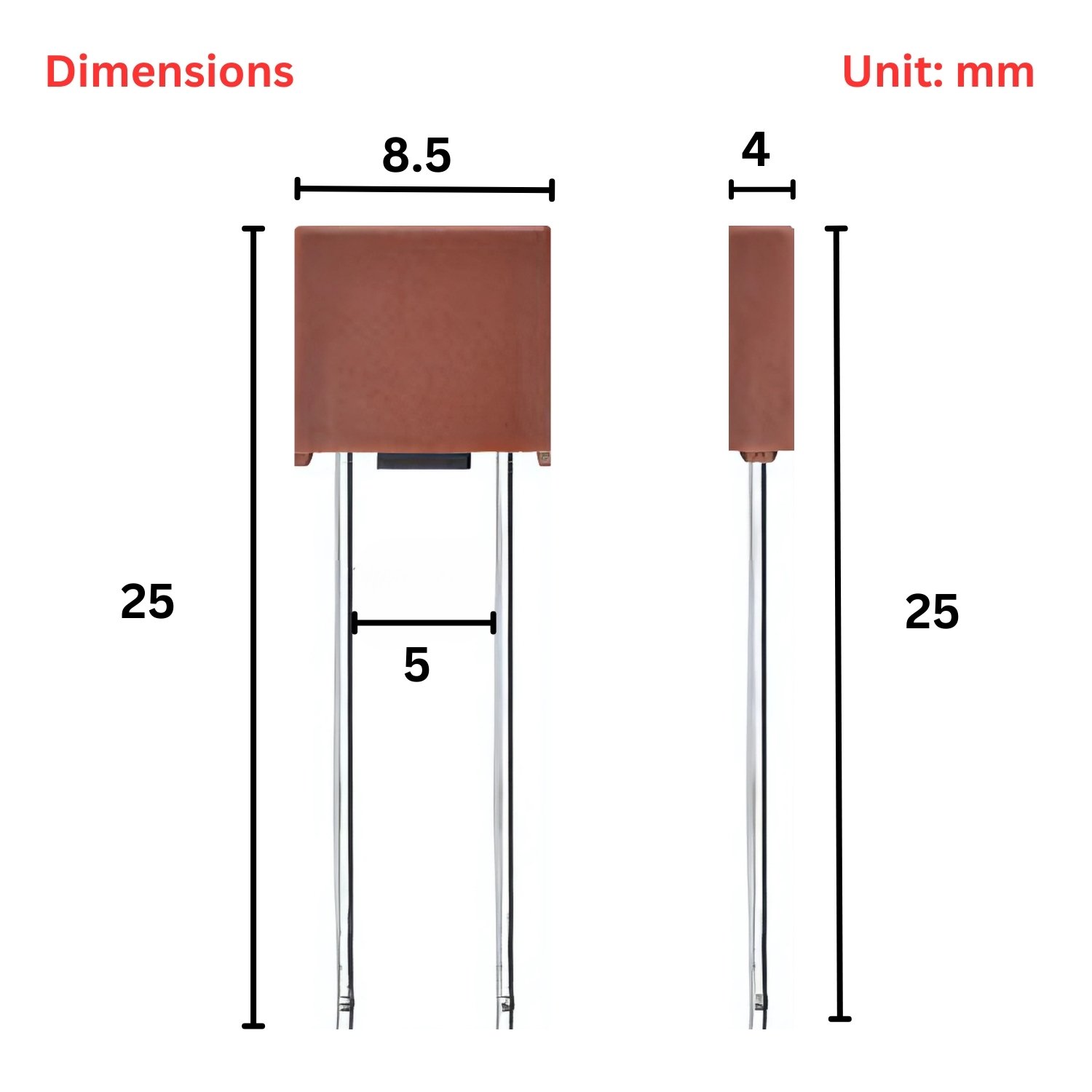

    • Pak Dimensions: 127 x 80 x 24 mm

    ₹385.00

    Add to wishlist

    Description

    Square fuses are a type of electrical fuse designed to protect circuits from overcurrent situations, with a distinctive square-shaped body. These fuses function by interrupting the flow of electricity when the current exceeds the rated value, thereby preventing potential damage to electrical components or wiring.

    The kit contains 60 pieces of 392 Series Fuse with 12 different current ratings ranging from 0.5A to 15A, making it a versatile solution for various applications.

    Fuse Symbol:

    Square Fuse Part Code:

    Square Fuse Structure:

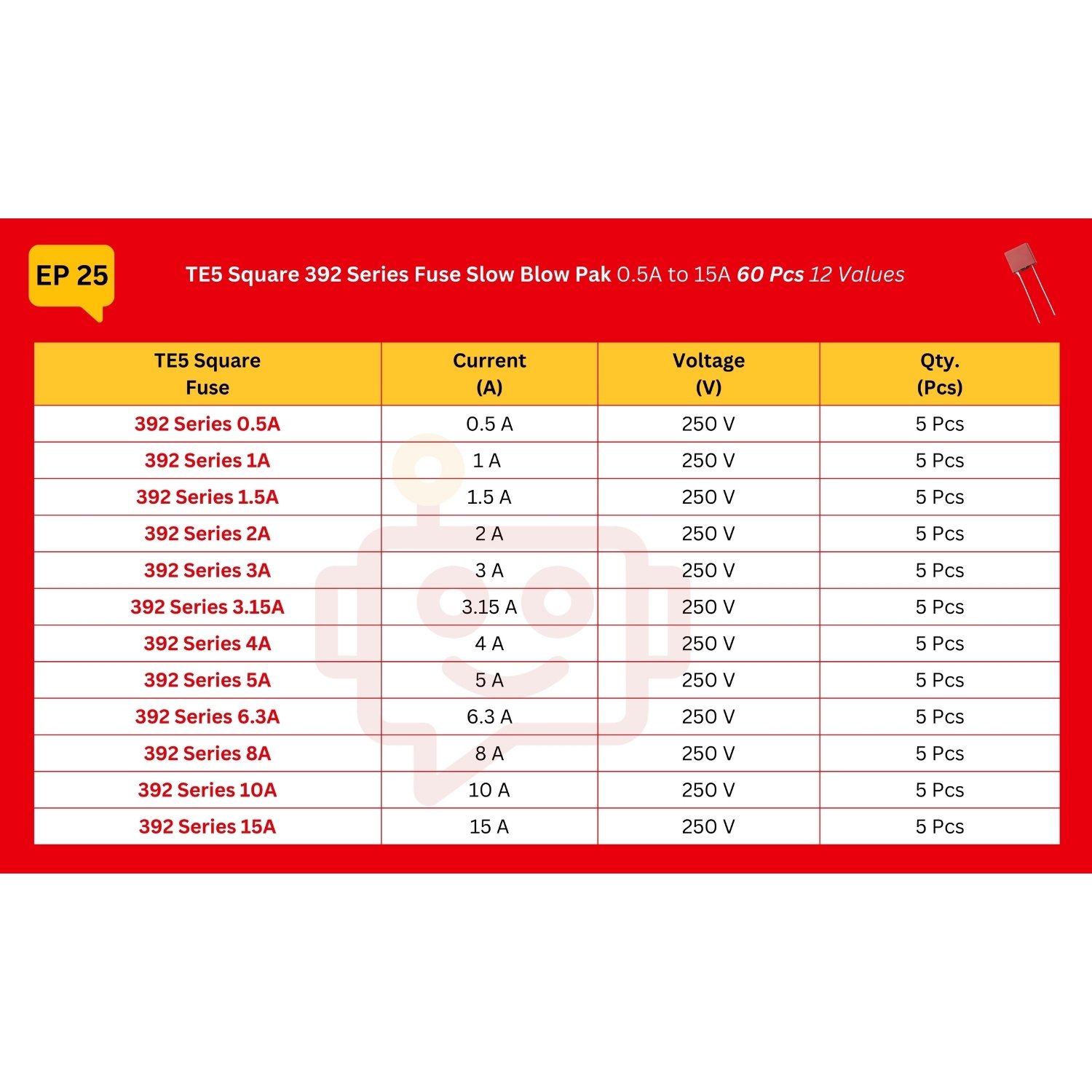

    Package Includes

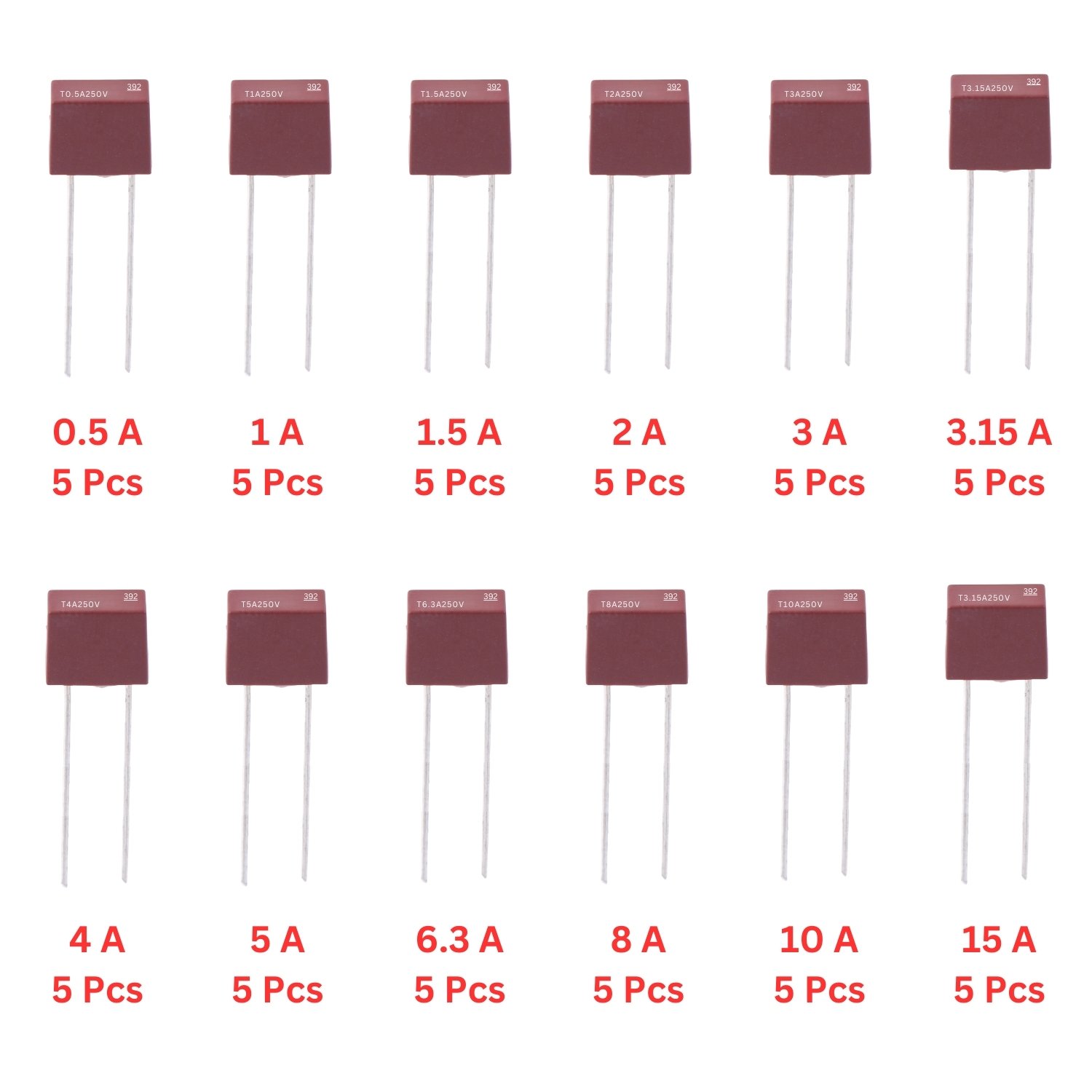

    60 Square 392 Series TE5 Time Lag Fuse 12 Types

    • 0.5 A - 5 Pcs
    • 1 A - 5 Pcs
    • 1.5 A - 5 Pcs
    • 2 A - 5 Pcs
    • 3 A - 5 Pcs
    • 3.15 A - 5 Pcs
    • 4 A - 5 Pcs
    • 5 A - 5 Pcs
    • 6.3 A - 5 Pcs
    • 8 A - 5 Pcs
    • 10 A - 5 Pcs
    • 15 A - 5 Pcs

     Features:

    • Reduced PCB space requirements
    • Direct solderable or plug-in versions
    • Internationally approved
    • Low internal resistance
    • Shock safe casing
    • Vibration resistant

    Applications:

    • Home appliances: Prevents damage from overcurrent in devices like refrigerators and microwaves
    • Automotive circuits: Protects electrical systems in vehicles from surges and faults
    • Power supply systems: Safeguards circuits from overloads and short circuits
    • Industrial machinery: Ensures machinery and motors are safe from electrical faults
    • Audio equipment: Protects audio systems from overcurrent damage
    • Consumer electronics: Shields devices like TVs and computers from power surges
    • Lighting systems: Prevents overload damage in lighting circuits and fixtures
    • Small electronic devices: Protects chargers and adapters from power issues
    • DIY electronics projects: Safeguards custom circuits from electrical faults
    1. What is the purpose of fuses in this assortment?

    Fuses protect electrical circuits by breaking the circuit when current exceeds safe levels.

    2. How do I choose the right fuse for my application?

    Choose a fuse with an amperage rating equal to or slightly higher than the device’s operating current.

    3. Are these fuses reusable?

    No, fuses are single-use and need replacing once they blow.

    4. What happens if I use a fuse with the wrong rating?

    Using an incorrect rating can cause either frequent fuse blowouts or inadequate protection, leading to potential damage.

    5. Are these fuses compatible with all devices?

    These fuses work with most low-voltage electrical devices but verify device compatibility first.

    6. What type of fuse is the Square 392 Series?

    The Square 392 Series is a radial-lead fuse designed for general overcurrent protection.

    7. What is the difference between a 392 Series Square Fuse and a Glass Fuse?

    A 392 Series Square Fuse has a ceramic body and is designed for durability, thermal resistance, and compactness, while a Glass Fuse has a transparent glass tube, is typically used in low-power circuits, and allows for visual inspection of the fuse element.

    8. Are these fuses rated for AC or DC applications?

    These fuses are suitable for both AC and DC applications, depending on the specific device.

    9. How do I replace a blown 392 Series fuse?

    Simply remove the blown fuse and replace it with one of the same amperage rating to restore circuit protection.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
