    X2 Box Capacitor 275V Pak 1KpF to 1µF 50 Pcs 10 Values

    SKU: EP 6

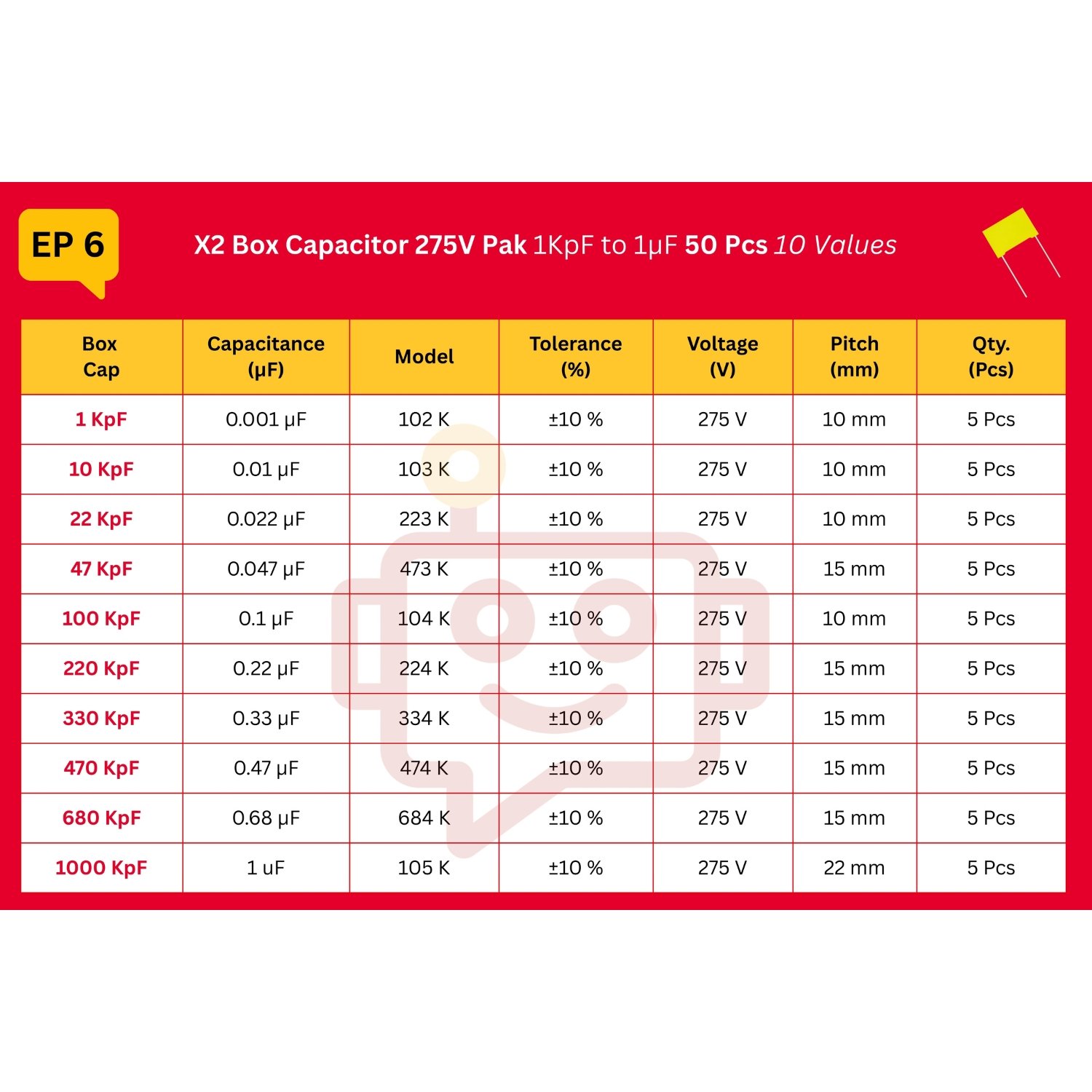

    Technical Specification:

    • Type: Through Hole
    • Model: X2 Box Capacitors
    • Capacitance Range: 1 KpF – 1 µF
    • Rated Voltage: 275 VAC
    • Tolerance: ±10%
    • Pitch: 10mm – 22 mm
    • Box Weight: 200 gm
    • Box Dimensions: 150 x 100 x 35 mm

    ₹455.00

    Add to wishlist

    Description

    X2 safety capacitors are designed for use in AC line applications, particularly for electromagnetic interference (EMI) suppression. These capacitors are non-polarized and are constructed to withstand high voltage spikes, making them essential components for enhancing the safety and reliability of electrical devices. With robust dielectric materials, X2 capacitors provide excellent capacitance stability, low dissipation factors, and a long operational lifespan. They are particularly effective in filtering applications, helping to reduce noise and improve the overall performance of electrical systems.

    X2 Cap Symbol:

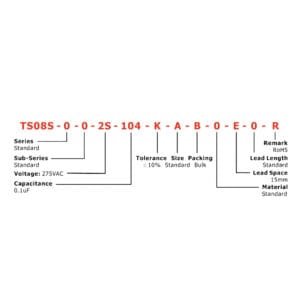

    X2 Cap Part Number Code:

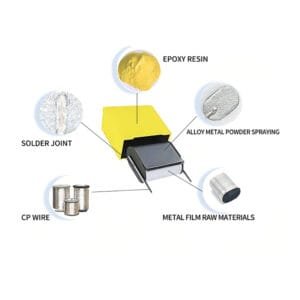

    X2 Box Capacitor Structure:

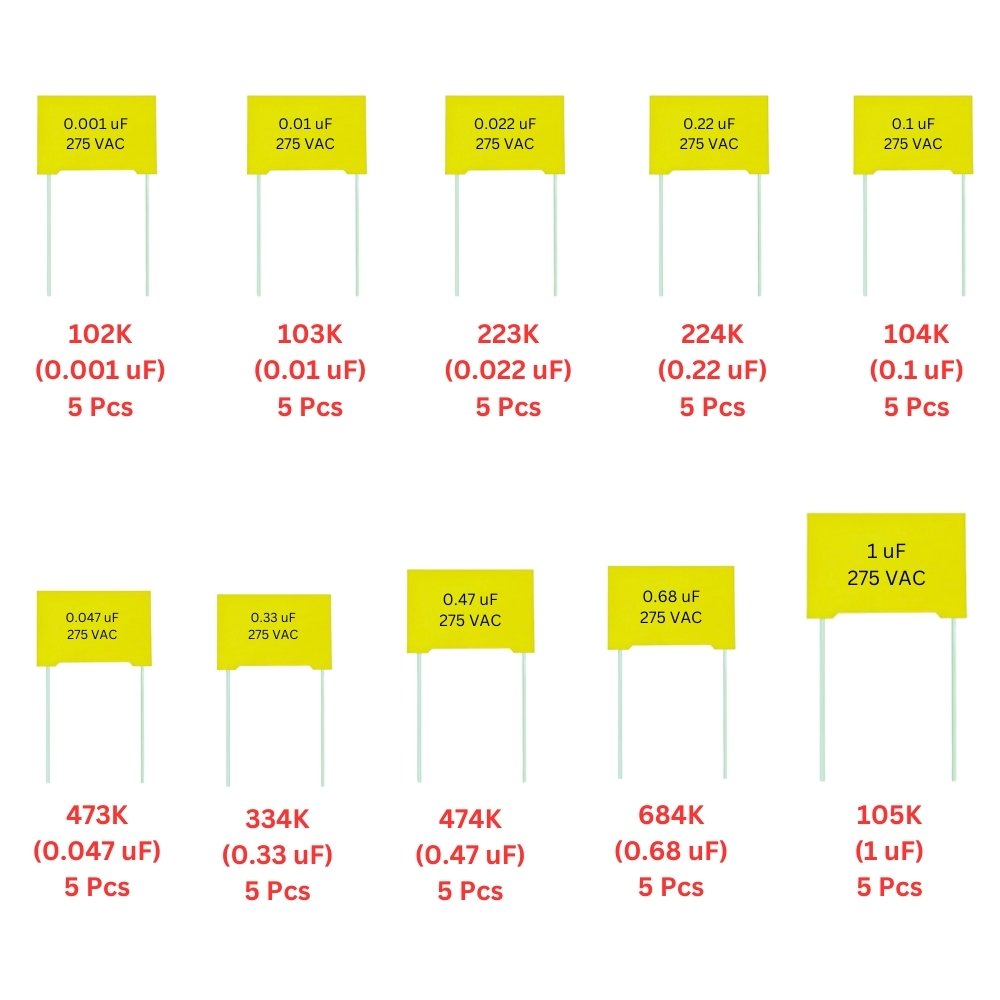

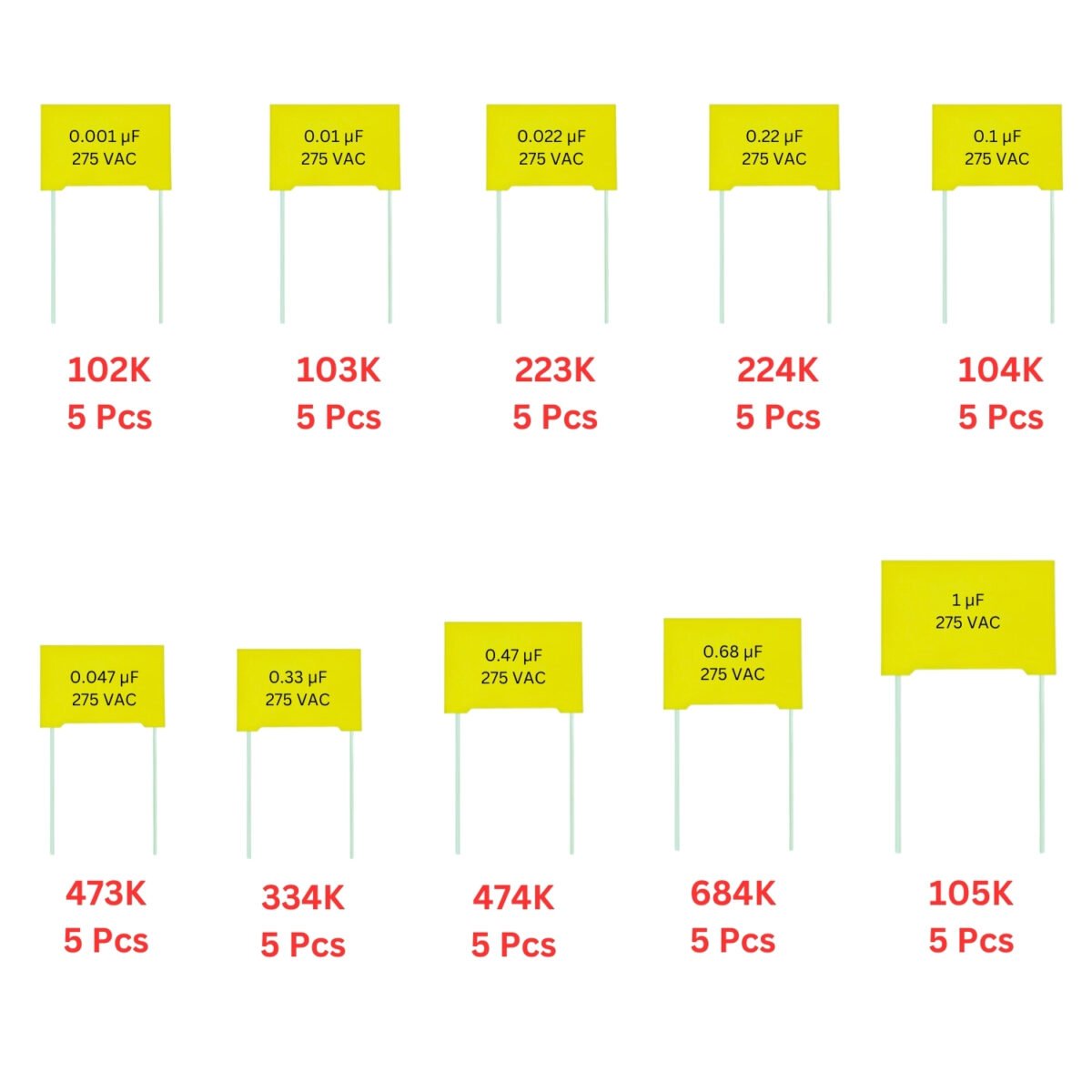

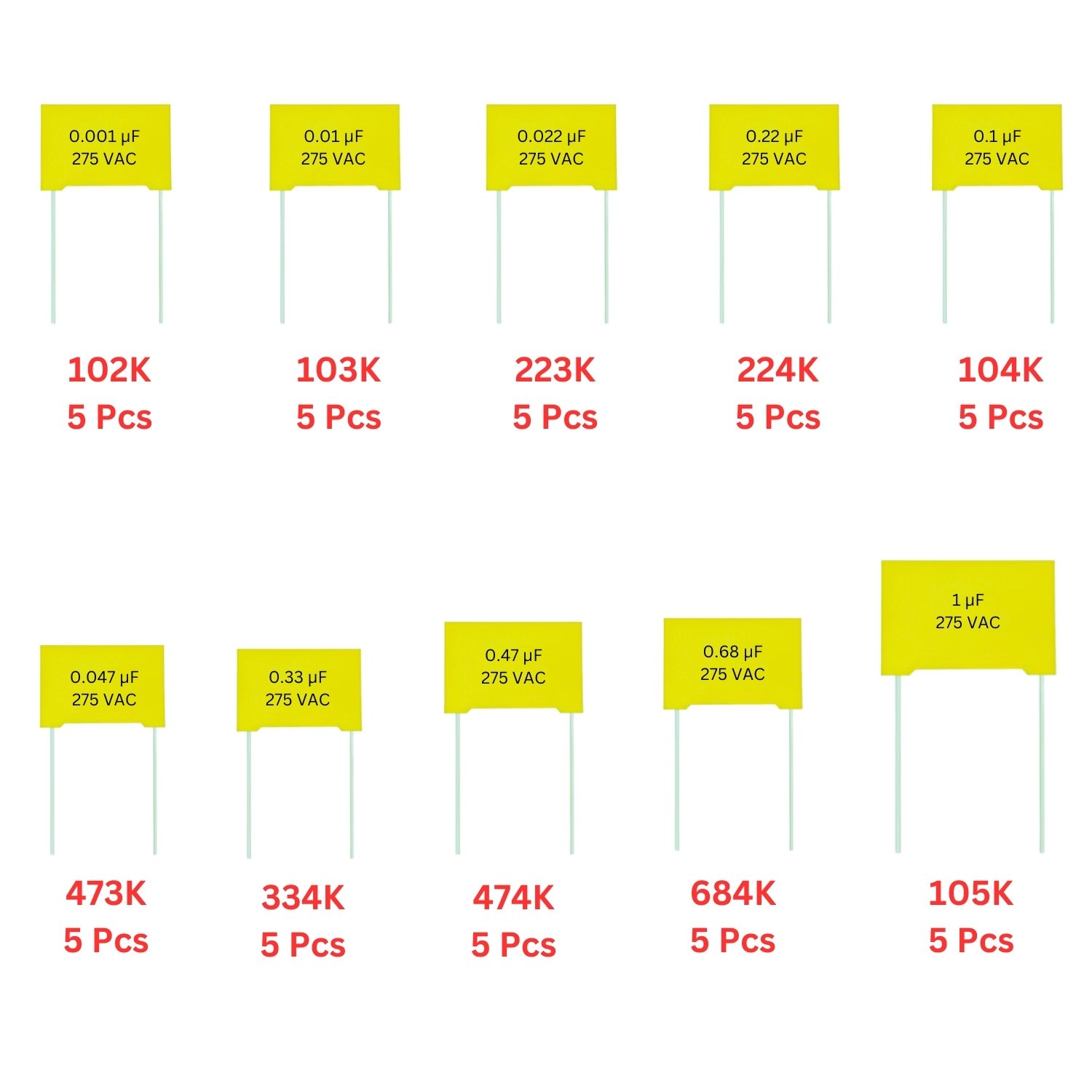

    Package Includes

    50 X2 Box Capacitor 275V 10 Types

    • 102K - 1nF - 0.001µF - 5 Pcs
    • 103K - 10nF - 0.01µF - 5 Pcs
    • 223K - 22nF - 0.022µF - 5 Pcs
    • 473K - 47nF - 0.047µF - 5 Pcs
    • 104K - 100nF - 0.1µF - 5 Pcs
    • 224K - 220nF - 0.22µF - 5 Pcs
    • 334K - 330nF - 0.33µF - 5 Pcs
    • 474K - 470nF - 0.47µF - 5 Pcs
    • 684K - 680nF - 0.68µF - 5 Pcs
    • 105K - 1000nF - 1µF - 5 Pcs

    Features:

    • Safe for AC mains
    • Self-healing property
    • Fire-resistant material
    • Long operational life
    • Protects against voltage spikes
    • Compact and efficient
    • Stable under varying conditions
    • Works in extreme temperatures
    • Low energy leakage
    • Common in EMI filters

    Applications:

    • Power Supplies - Reduces noise in SMPS
    • EMI Filtering - Suppresses electromagnetic interference
    • Surge Protection - Shields devices from voltage spikes
    • Motor Circuits - Enhances stability in motor drives
    • Household Appliances - Used in washing machines, refrigerators, etc
    • LED Drivers - Improves efficiency and reduces flickering
    • Industrial Systems - Ensures stable automation performance
    • Voltage Stabilization - Maintains consistent AC voltage
    • Smart Meters - Helps in accurate energy measurements
    1. What is the purpose of this X2 capacitor pack?

    It's used for EMI suppression and safety in AC line-to-line applications.

    2. Can this pack be used for both new projects and repairs?

    Yes, it's suitable for both new builds and repairs requiring EMI filtering.

    3. Are the leads easy to solder?

     Yes, they have tinned copper leads for easy and durable soldering.

    4. What devices commonly use X2 safety capacitors?

    They are used in consumer electronics, home appliances, and power supply units for noise suppression.

    5. How do I choose the right capacitance value for my application?

    Higher capacitance values generally offer more EMI filtering; select based on your circuit's noise suppression needs.

    6. How do I identify an X2 capacitor?

    Look for markings like X2, capacitance value, and 275V AC rating on the capacitor body.

    7. Are X2 capacitors polarized?

    No, X2 capacitors are non-polarized and can be connected in any direction.

    8. Can I replace a normal capacitor with an X2 box capacitor?

    No, normal capacitors are not designed for AC mains safety. X2 box capacitors are certified for AC use, have self-healing properties, and can handle voltage spikes safely. Using a normal capacitor in place of an X2 can be dangerous.

    9. Can I use an X2 capacitor for DC applications?

    X2 capacitors are designed for AC, but they may work in DC circuits with proper derating.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
