6x30mm Glass Fuse Fast Blow Pak 0.1A to 20A 60 Pcs 12 Values

SKU: EP20

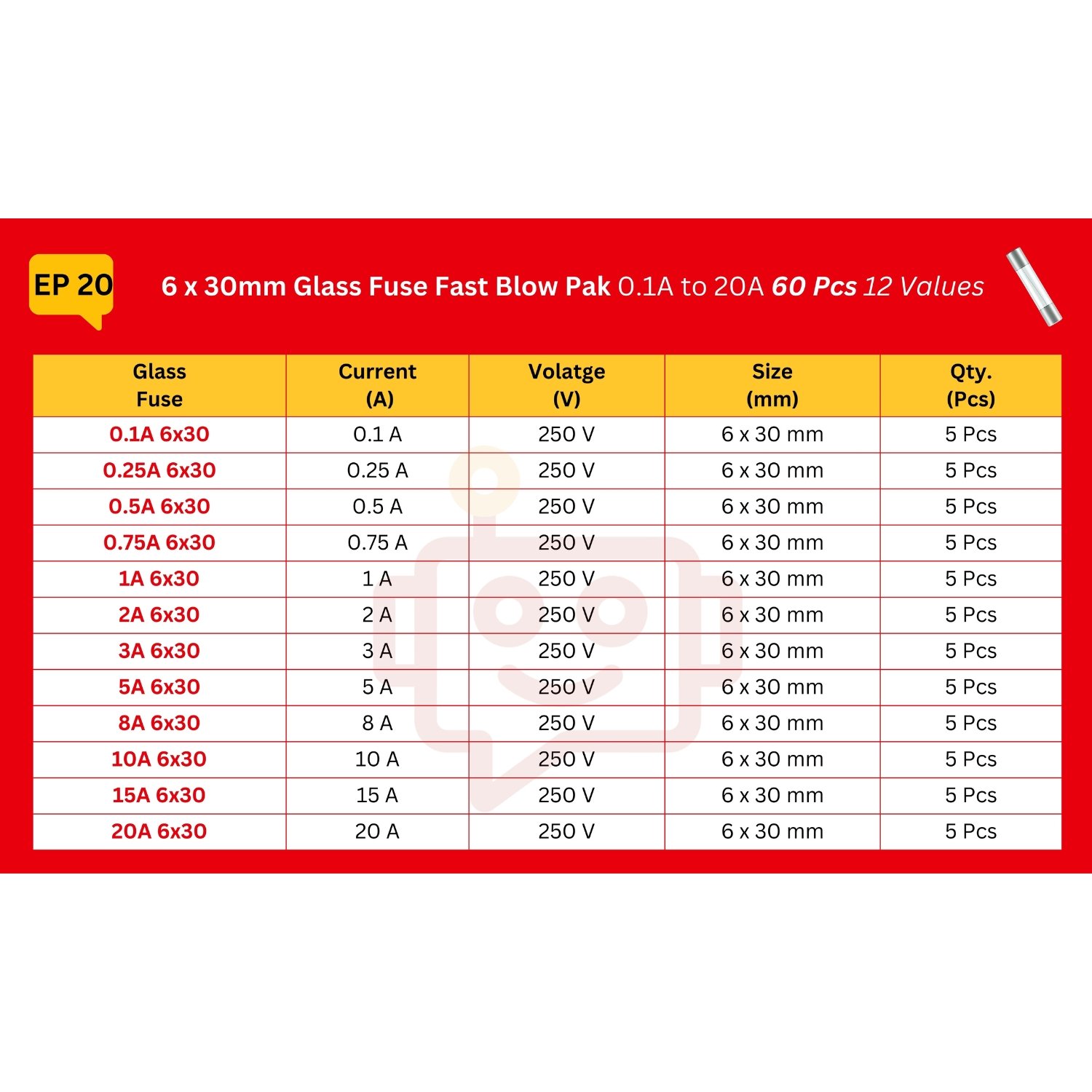

Technical Specification:

  • Type: Through Hole
  • Model: Glass Fuse

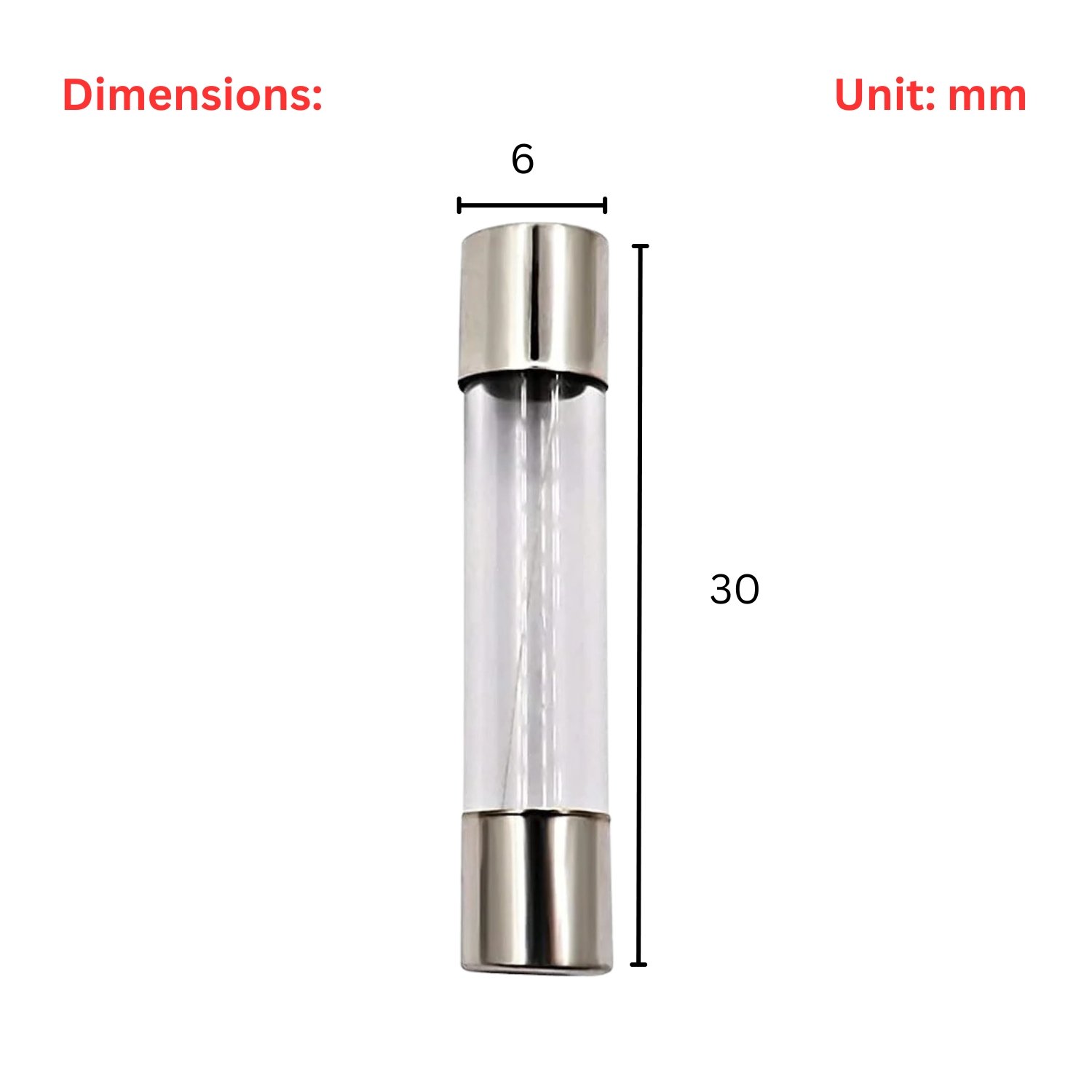

  • Size: 6 mm x 30 mm
  • Action: Fast Blow
  • Current Ratings: 0.1 A – 20 A
  • Voltage Rating: Typically, 250V AC
  • Material:
    • Tube: Transparent glass
    • End Caps: Tin-plated brass or similar conductive material
  • Pak Weight: 150 gm
  • Pak Dimensions: 127 x 80 x 24 mm

₹210.00

Add to wishlist

Description

A glass fuse is a safety device used to protect electrical circuits from overcurrent. It consists of a metal filament inside a transparent glass tube. When the current exceeds the fuse’s rated limit, the filament melts, breaking the circuit and preventing damage to components.

This pack includes 60 fuses in the 6mm x 30mm size, with 12 different current ratings (0.1A to 20A). This selection covers a wide range of applications, from low-power circuits (0.1A, 0.25A) to higher-power circuits (15A, 20A), providing versatility and reliable circuit protection for various electrical needs.

Fuse Symbol:

Glass Fuse Part Code:

Glass Fuse Structure:



Package Includes

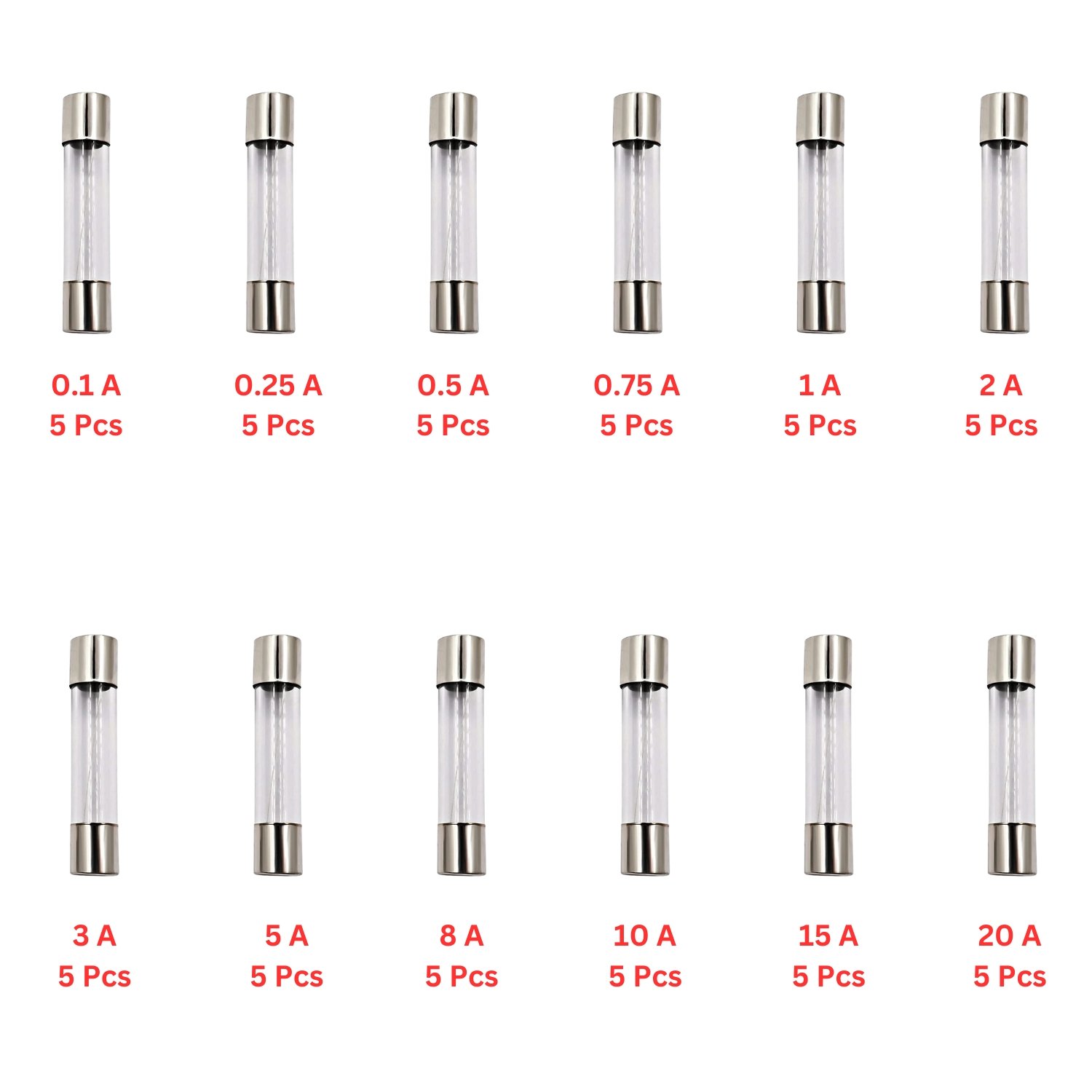

60 Glass Fuses 6x30mm 12 Types

  • 0.1 A - 5 Pcs
  • 0.25 A - 5 Pcs
  • 0.5 A - 5 Pcs
  • 0.75 A - 5 Pcs
  • 1 A - 5 Pcs
  • 2 A - 5 Pcs
  • 3 A - 5 Pcs
  • 5 A - 5 Pcs
  • 8 A - 5 Pcs
  • 10 A - 5 Pcs
  • 15 A - 5 Pcs
  • 20 A - 5 Pcs

Features:

  • Overcurrent protection
  • Cost-effective and easy to replace
  • Fast response to faults
  • Simple and reliable design
  • Wide application in various industries
  • Compact size for easy integration
  • Enhances safety by preventing electrical fires
  • Ensures complete circuit break (no reset needed)

Applications:

  • Household Appliances – TVs, refrigerators, washing machines, microwaves
  • Automotive Systems – Car fuse boxes, battery protection, lighting circuits
  • Industrial Equipment – Motors, transformers, control panels
  • Power Supplies – Adapters, inverters, UPS systems
  • Electronics & Circuit Boards – PCB protection, amplifiers, audio systems
  • Medical Equipment – Diagnostic machines, laboratory instruments
  • Renewable Energy Systems – Solar inverters, battery storage protection
  • Telecommunication Devices – Networking equipment, routers, modems
1. Are these fuses fast-acting or slow-blow?

These are fast-acting fuses for quick circuit protection.

2. What material are these fuses made of?

They have a glass tube with metal end caps.

3. How fast do these fuses blow?

They are fast-acting and blow quickly when overcurrent occurs.

4. Can I check a fuse without removing it?

A visual inspection or multimeter test can confirm if it’s blown.

5. Can I use these fuses for AC and DC circuits?

Yes, if the voltage and current ratings match the circuit requirements.

6. Do these fuses protect against short circuits?

Yes, they interrupt the circuit when excessive current flows.

7. Are the fuses individually labelled?

Yes, each fuse type is neatly organized and labelled.

8. Is this pack suitable for commercial electronic repairs?

Yes, it is ideal for repair professionals and technicians.

9. Can I replace a blown fuse with a lower-rated one?

No, using a lower-rated fuse may cause it to blow too quickly.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
