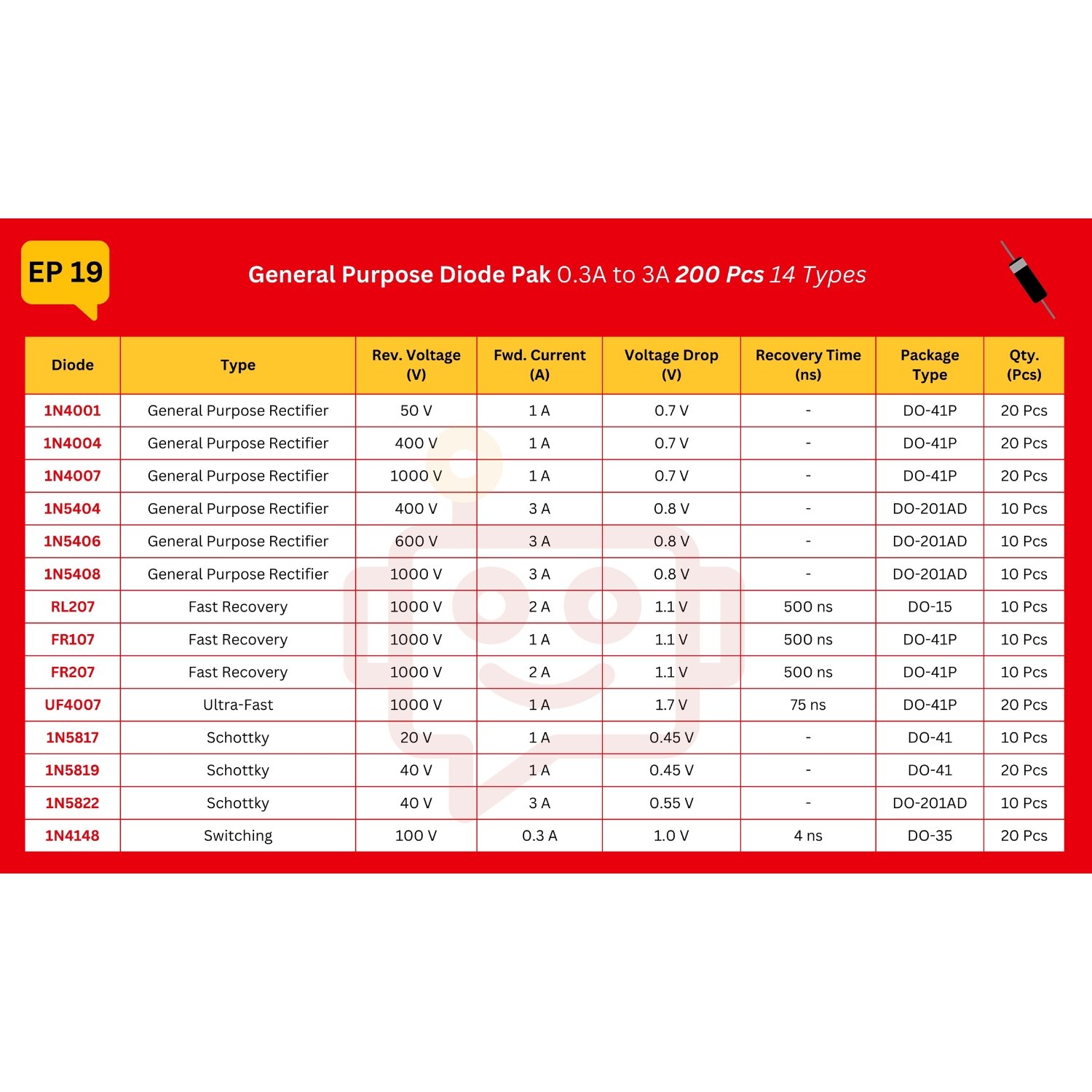

General_Purpose_Diodes_Spec_Table

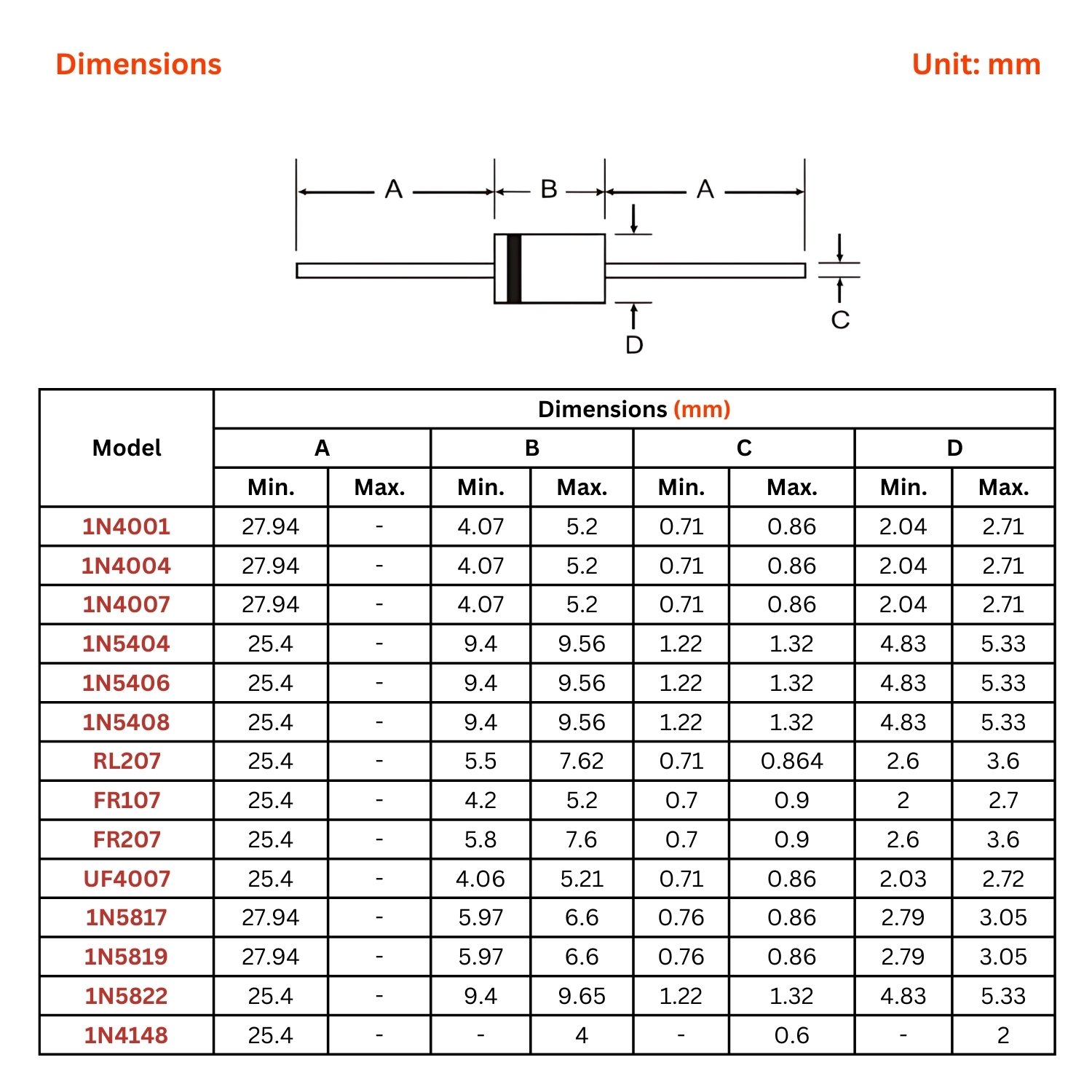

General_Purpose_Diode_Dimensions
360 product view
    Click to enlarge
    General Purpose Diode Pak 0.3A to 3A 200 Pcs 14 Types 1
    General Purpose Diode Pak 0.3A to 3A 200 Pcs 14 Types - Image 2
    General_Purpose_Diode_Qty
    General Purpose Diode Pak 0.3A to 3A 200 Pcs 14 Types - Image 4
    General_Purpose_Diodes_Spec_Table
    General_Purpose_Diode_Dimensions

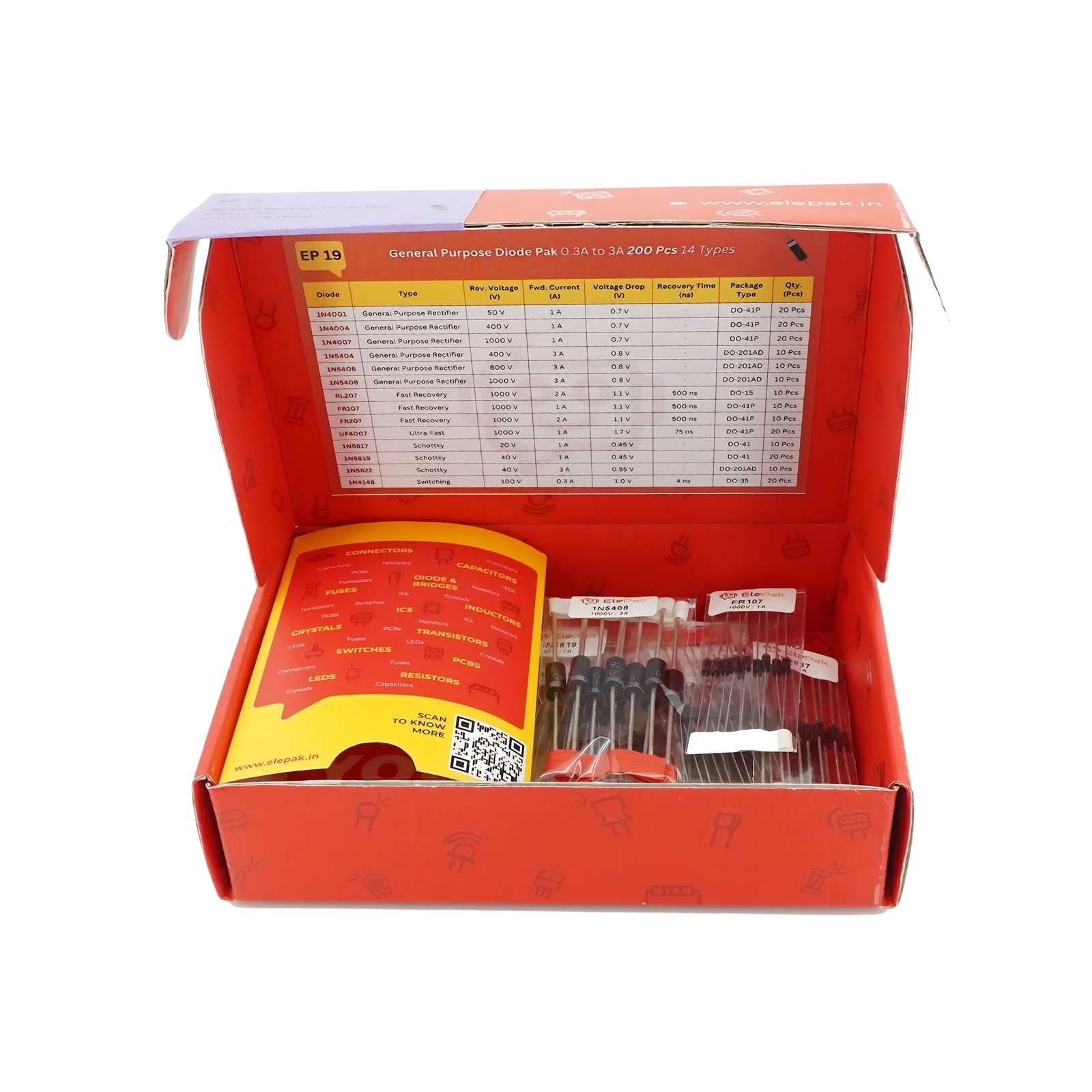

    General Purpose Diode Pak 0.3A to 3A 200 Pcs 14 Types

    SKU: EP19

    Technical Specification:

    • Type: Through Hole
    • Model: General Purpose Diode Pak 0.3A to 3A
    • Forward Voltage: 0.7 V – 1.1 V
    • Reverse Voltage: 40 V – 1000 V
    • Forward Current: 0.3 A – 3 A
    • Recovery Time: 4 ns – 500 ns
    • Package Type: DO – 15, 35, 41, 41P, 201AD
    • Pak Weight: 200 gm
    • Pak Dimensions: 150 x 100 x 35 mm

    ₹645.00

    Add to wishlist

    Description

    General Purpose Diode Pak 0.3A to 3A 200 Pcs 14 Types

    The General Purpose Diode Pak 0.3A to 3A is a useful assortment for electronic repairs, circuit building, prototyping and DIY projects. These diodes are suitable for rectification, switching, reverse-polarity protection and controlling current flow in various electronic circuits.

    The General Purpose Diode Pak 0.3A to 3A is ideal for students, technicians, hobbyists and engineers working with power supplies, adapters, battery circuits, PCBs and breadboards. Check the diode type, polarity, current rating and reverse-voltage rating before installation to ensure safe and reliable performance.

    Diode Symbol:

    Diode Structure:

     Diode Graph:



    • Forward Bias Behavior: When the diode is forward-biased (positive voltage on the anode), it conducts current after reaching a threshold voltage (typically 0.7V for silicon diodes), and current increases rapidly beyond this point.
    • Reverse Bias Behavior: In reverse bias (negative voltage on the anode), the diode blocks current, with only a small leakage current until the reverse breakdown voltage is reached, beyond which it may conduct in the reverse direction.
    • Voltage-Current Relationship: The graph shows a sharp increase in current after the threshold voltage in forward bias, while in reverse bias, the current remains near zero until the breakdown voltage is exceeded.

    Enhance circuit reliability with diodes designed for rectification, switching, current control and protection applications.

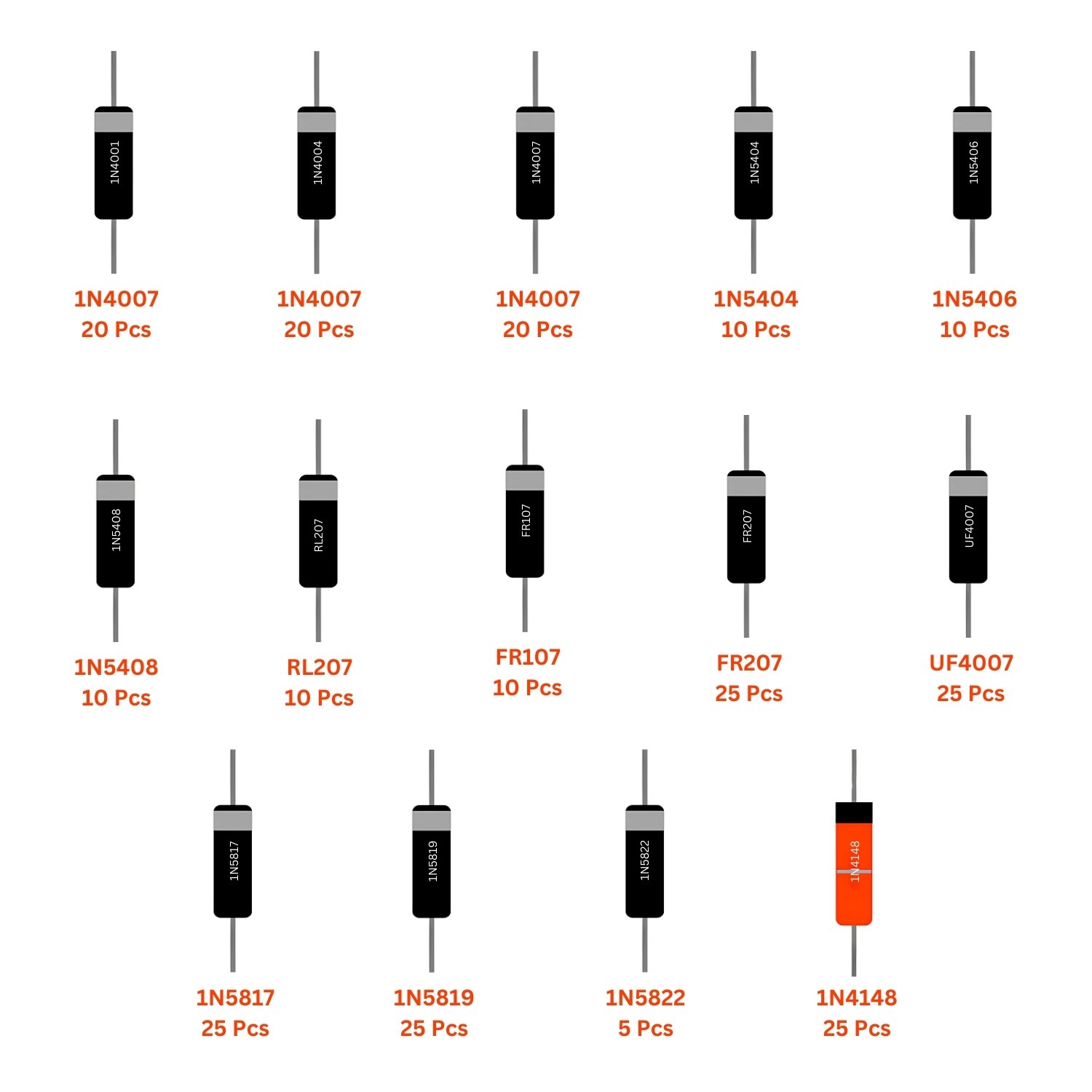

    Package Includes

    200 General Purpose Diodes 14 Types

    • 1N4001 - 20 Pcs
    • 1N4004 - 20 Pcs
    • 1N4007 - 20 Pcs
    • 1N5404 - 10 Pcs
    • 1N5406 - 10 Pcs
    • 1N5408 - 10 Pcs
    • RL207 - 10 Pcs
    • FR107 - 10 Pcs
    • FR207 - 10 Pcs
    • UF4007 - 20 Pcs
    • 1N5817 - 10 Pcs
    • 1N5819 - 20 Pcs
    • 1N5822 - 10 Pcs
    • 1N4148 - 20 Pcs

    Features:

    • Versatile for various applications like rectification, voltage regulation, and signal processing
    • Wide voltage range (50V to 1000V) suitable for both low and high voltage circuits
    • Varied current handling (0.3A to 3A) for low to medium-power applications
    • Low reverse leakage current, ensuring efficient performance
    • Reliable with a temperature range of -55°C to +150°C
    • Multiple package types (DO-41, DO-27A, DO-15, DO-35, DO204AL) for easy integration
    • Cost-effective, ideal for both hobbyists and professionals
    • Low forward voltage drop, minimizing power loss in rectification

    Applications:

    • Voltage Regulation: Maintains stable voltage in circuits to prevent voltage spikes.
    • Signal Processing: Used in high-speed switching circuits for efficient signal handling.
    • Polarity Protection: Protects electronic devices from damage caused by reverse polarity.
    • Power Conversion: Facilitates power conversion in transformers and adapters for efficient operation.
    • Clamping: Protects signal waveforms by clamping voltage to prevent excessive levels.
    • Reverse Polarity Protection: Safeguards batteries and power systems from reverse polarity damage.
    • Flyback Diodes: Prevents back EMF in inductive load circuits, ensuring safe operation.
    1. Are these diodes compatible with both AC and DC circuits?

    Yes, the diodes in the pack are suitable for both AC to DC rectification and DC circuits.

    2. Are these diodes polarized?

    Yes, diodes are polarized and will only allow current to flow in one direction.

    3. Is the pack suitable for professional use?

    Yes, this pack is ideal for both professionals and hobbyists, covering a wide range of common applications.

    4. Are these diodes easy to solder?

    Yes, these diodes have standard lead packages, making them easy to solder onto circuit boards.

    5. What is the purpose of the stripe on the diodes?

    The stripe on the diode indicates the cathode (negative end) and helps identify the correct polarity during installation.

    6. How do I check the diode orientation when installing?

    The stripe on the diode indicates the cathode (negative end), and it should face the negative side of the circuit when installed.

    7. How do I know if the diode is faulty?

    A faulty diode can be identified by using a multimeter to check for continuity in both directions. A properly functioning diode will show continuity in only one direction.

    8. How do I know which diode to choose for my circuit?

    Consider the reverse voltage, forward current, power dissipation, and package type.

    9. Why do diodes have different reverse voltage ratings?

    Diodes are designed for specific voltage levels to ensure proper circuit protection.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
