    SMD 5730 LED Pak 100 Pcs 5 Colors
    SMD 5730 LED Pak 100 Pcs 5 Colors - Image 2
    SMD_5730_LED_Qty
    SMD 5730 LED Pak 100 Pcs 5 Colors - Image 4
    SMD 5730 LED Pak 100 Pcs 5 Colors - Image 5
    SMD_5730_LED_Main

    SMD 5730 LED Pak 100 Pcs 5 Colors

    (1 customer review)
    SKU: EP520

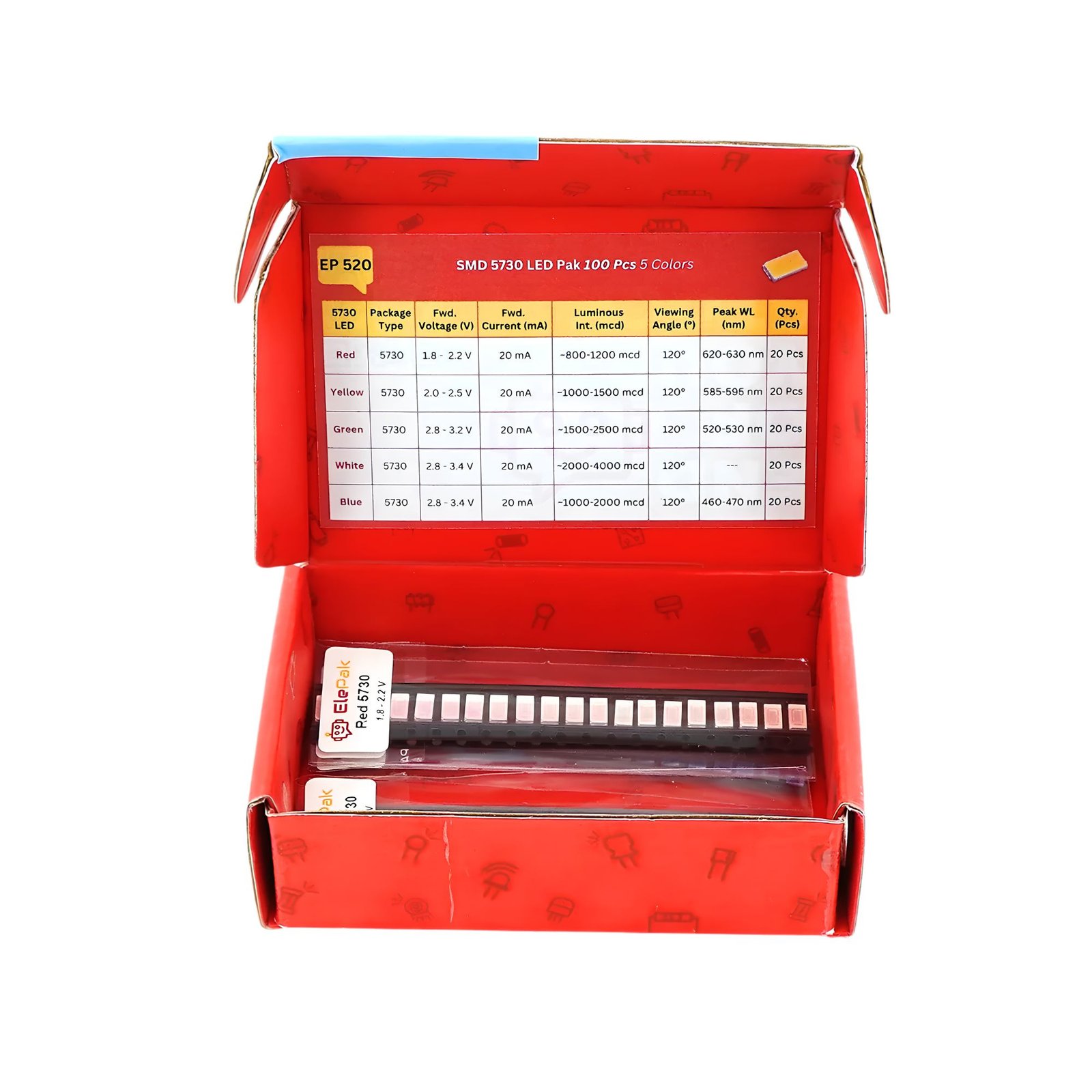

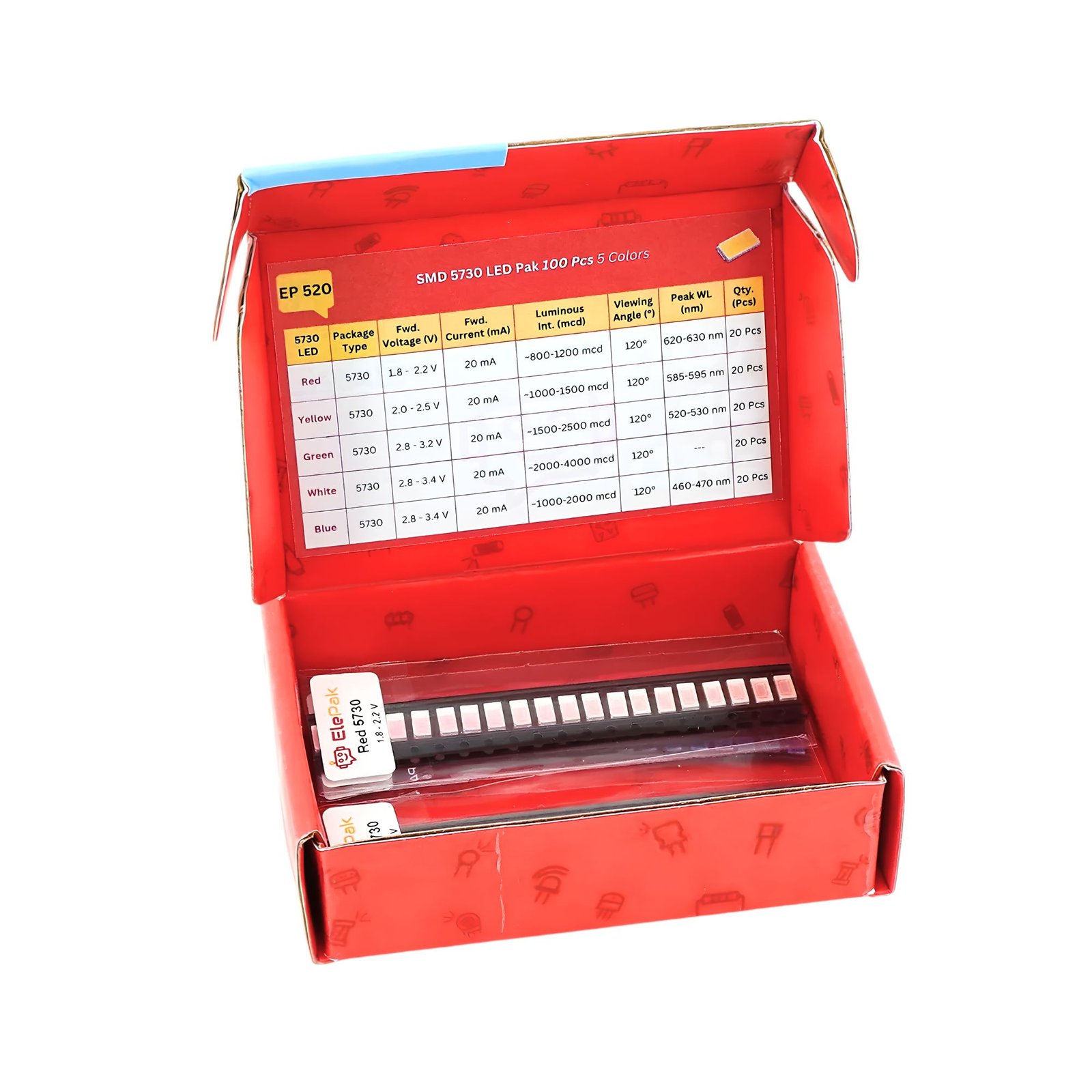

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 5730
    • Color: Red, Yellow, Green, White, Blue
    • Fwd. Current: 20 mA
    • Viewing Angle: 120°
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~800 – 1200 mcd, Yellow: ~1000 – 1500 mcd, Green: ~1500 – 2500 mcd,
      • White: ~2000 – 4000 mcd, Blue: ~1000 – 2000 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 50 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹240.00

    Add to wishlist

    Description

    SMD 5730 LED Pak 100 Pcs 5 Colors

    The SMD 5730 LED Pak is a practical assortment of high-brightness surface-mount LEDs designed for lighting, indication and electronic display applications. This pack contains 100 LEDs in five different colors, providing useful options for PCB assembly, circuit development, repairs and custom lighting projects.

    The 5730 package offers strong light output with efficient power usage, making it suitable for applications that require bright and clearly visible illumination. The SMD 5730 LED Pak can be used in LED panels, display boards, control systems, signage, decorative lighting, prototypes and DIY electronics projects.

    5730 LED Symbol:



    Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

    Package Includes

    100 SMD 5730 LED 5 Colors

    • Red – 20 Pcs
    • Yellow – 20 Pcs
    • Green – 20 Pcs
    • White – 20 Pcs
    • Blue – 20 Pcs

    Features:

    • High Brightness
    • Energy Efficiency
    • Compact Size
    • Long Lifespan
    • Versatility

    Applications:

    • LED Strip Lighting – Delivers bright and efficient illumination for residential and commercial spaces.
    • Backlighting for Displays – Ideal for uniform lighting in TVs, monitors, and digital signage.
    • Automotive Lighting – Used in interior lights, dashboards, and ambient car lighting.
    • Decorative & Architectural Lighting – Enhances aesthetics in ceilings, walls, and furniture.
    • DIY Electronics & Hobby Projects – Perfect for custom lighting in student and maker projects.
    1. How bright is a 5730 LED?

    ⋙ It is brighter than standard SMD LEDs like 3528 or 5050, making it suitable for high-lumen applications.

    2. Can 5730 LEDs be used in strip lights?

    ⋙ Absolutely, they are commonly used in LED strip lights for strong and uniform illumination.

    3. Do 5730 LEDs need resistors?

    ⋙ Yes, current-limiting resistors are required to prevent damage and ensure proper operation.

    4. Can 5730 LEDs be dimmed?

    ⋙ Yes, they can be dimmed if the appropriate dimming circuit is used.

    5. How do I connect 5730 SMD LEDs in a circuit?

    ⋙ 5730 LEDs are typically connected in series or parallel, depending on the power supply and desired configuration.

    6. How do I test the LEDs in a pack of 5730 SMD LEDs?

    ⋙ Use a multimeter with a diode test function or a compatible power source to check each LED.

    7. How do I install 5730 SMD LEDs from a pack?

    ⋙ Install by soldering the LEDs onto a PCB or LED strip, ensuring proper voltage and current control.

    8. Can I use 5730 SMD LEDs in a low-voltage DC circuit?

    ⋙ Yes, 5730 SMD LEDs are commonly used in low-voltage DC circuits, such as 12V or 24V systems.

    9. Can I use a 5730 SMD LED pack with a solar power system?

    ⋙ Yes, you can use 5730 SMD LEDs in solar-powered setups, as long as the voltage and current are matched to the system's specifications.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.

    Customer Reviews

    5
    1 review
    1
    0
    0
    0
    0

    1 review for SMD 5730 LED Pak 100 Pcs 5 Colors

    Clear filters

    1. Verified owner ahmedmusaddique621 (verified owner) –

      Value for money
      Durability
      Delivery speed

      Good Quality product and packaging 👍

      0
      0
    Add a review

    Your email address will not be published. Required fields are marked *

    1 2 3 4 5
    1 2 3 4 5
    1 2 3 4 5

    Related Products

    SMD_1206_Resistor_Main
    Quick view
    Add to wishlist

    SMD Resistor 1206 1/4W ±1% Pak 0E to 10M 8500 Pcs 170 Values

    In stock

    ₹3,625.00
    Add to cart
    SKU: EP530

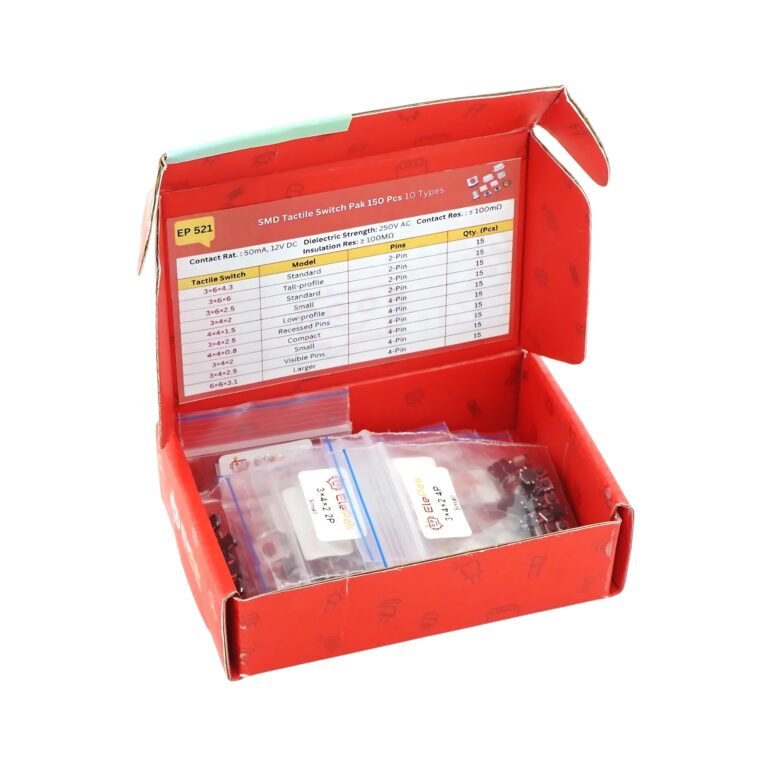

    SMD Tactile Switch Pak 150 Pcs 10 Types
