49S-DIP Crystal Oscillator Pak 32.768 KHz to 20 MHz 40 Pcs 8 Values

SKU: EP16

Technical Specification:

Type: Through Hole
Model: 49S-DIP Crystal Oscillator
Frequency Range: 32.768 KHz, 6 MHz – 20 MHz
Frequency Tolerance: ±10 ppm – ±20 ppm
Load Capacitance: 12.5 pF – 18 pF
Pak Weight: 50 gm
Pak Dimensions: 90 x 60 x 24 mm

₹430.00

Add to wishlist

Description

49S-DIP Crystal Oscillator Pak 32.768 KHz to 20 MHz 40 Pcs 8 Values

The 49S-DIP Crystal are quartz crystals housed in a Dual In-line Package (DIP) configuration, specifically designed for precision frequency control in electronic circuits. These crystals are well-suited for applications requiring accurate timing and oscillation, such as microcontrollers, clocks, and frequency generation circuits.

Crystal Symbol:

Crystal Structure:

Choose crystal oscillators for precise clock generation, frequency control and dependable performance in electronic circuits.

Package Includes

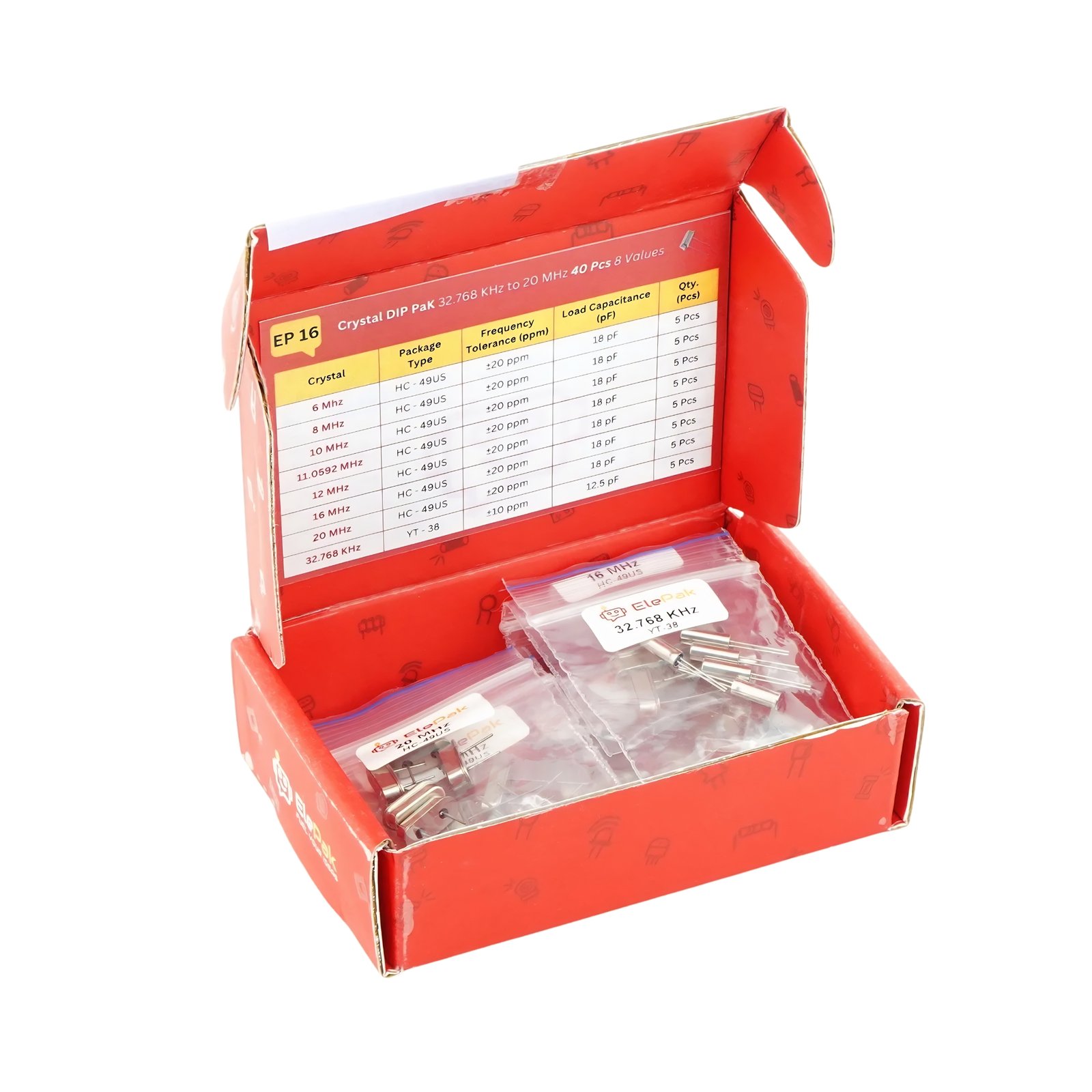

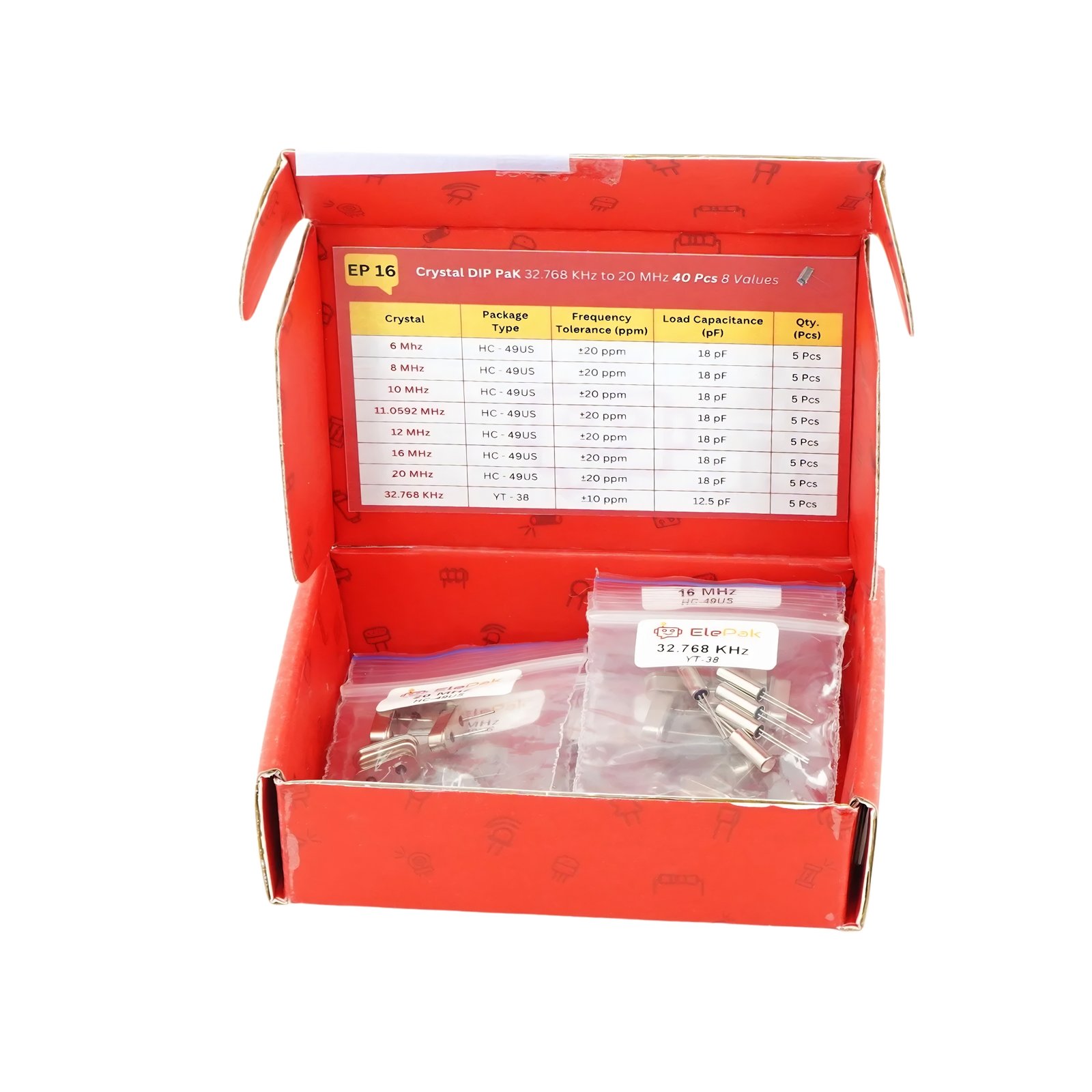

40 Pcs Crystal 49S-DIP 8 Types

6 MHz - 5 Pcs
8 MHz - 5 Pcs
10 MHz - 5 Pcs
11.0592 MHz - 5 Pcs
12 MHz - 5 Pcs
16 MHz - 5 Pcs
20 MHz - 5 Pcs
32.768 KHz - 5 Pcs

Additional Information
FAQs

Features:

Precision and Stability
Wide Temperature Range
Low Aging Rate
Compact and Convenient
Cost-Effective
Easy Integration
Low Power Consumption

Applications:

Microcontroller Clock Sources: Provide accurate timing signals for microcontrollers and processors
Real-Time Clocks (RTC): Used in devices like watches and alarms for timekeeping
Frequency Generators: Generate precise frequencies for testing and signal generation
Signal Processors: Help with signal timing and synchronization in communication systems
Communication Systems: Ensure accurate frequency control in RF and data transmission equipment
Embedded Systems: Used for timing in microprocessor-based designs and systems
Consumer Electronics: Found in digital clocks, audio equipment, and other time-dependent devices
Timing Devices: Used in timers, counters, and event-driven systems for stable and accurate timing

1. Are these crystals suitable for all microcontrollers?

Yes, they are commonly used with microcontrollers like Arduino, PIC, AVR, STM32, and ESP32.

2. How does a quartz crystal oscillator work?

It vibrates at a specific frequency when voltage is applied, generating a stable clock signal.

3. How do I connect a crystal to a microcontroller?

Connect the two crystal pins to the oscillator input pins of the microcontroller, along with external load capacitors as specified in the datasheet.

4. What does 49S-DIP mean in crystals?

"49S" refers to the industry-standard quartz crystal package, and "DIP" (Dual In-line Package) means it has through-hole mounting.

5. Are crystals polarity sensitive?

No, quartz crystals are not polarized and can be connected in either direction.

6. What is the best way to mount a crystal on a PCB?

Keep traces short, use proper grounding, and place load capacitors close to the crystal.

7. What does MHz mean in a crystal oscillator?

MHz (Megahertz) refers to the frequency at which the crystal vibrates, determining the clock speed of a system.

8. Do I need to buy capacitors separately for these crystals?

Yes, typically you need capacitors in the range of 18pF to 33pF, depending on the crystal's load capacitance.

9. Can I use a crystal oscillator with a breadboard?

Yes, but it may not oscillate properly due to high parasitic capacitance; using a PCB is recommended.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
