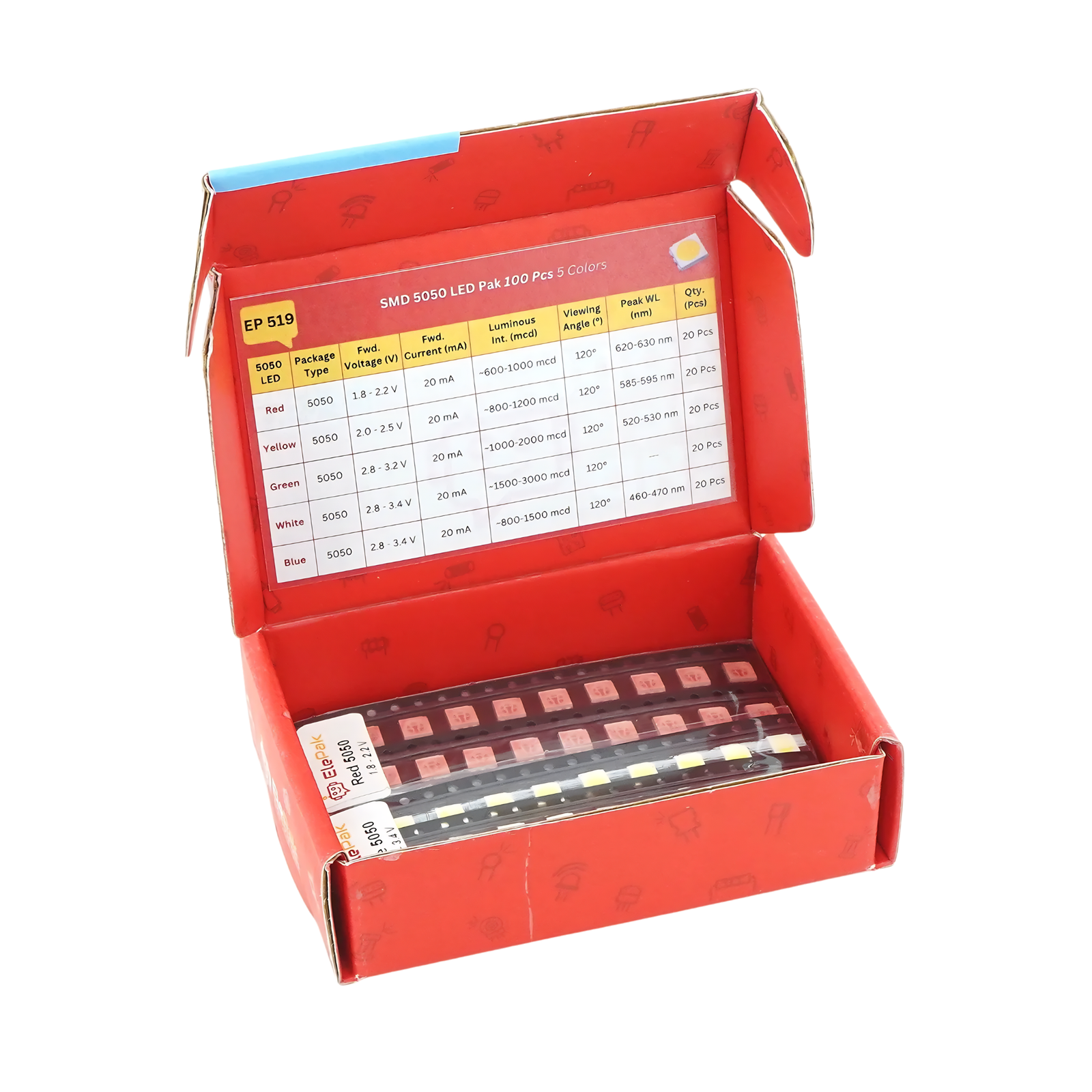

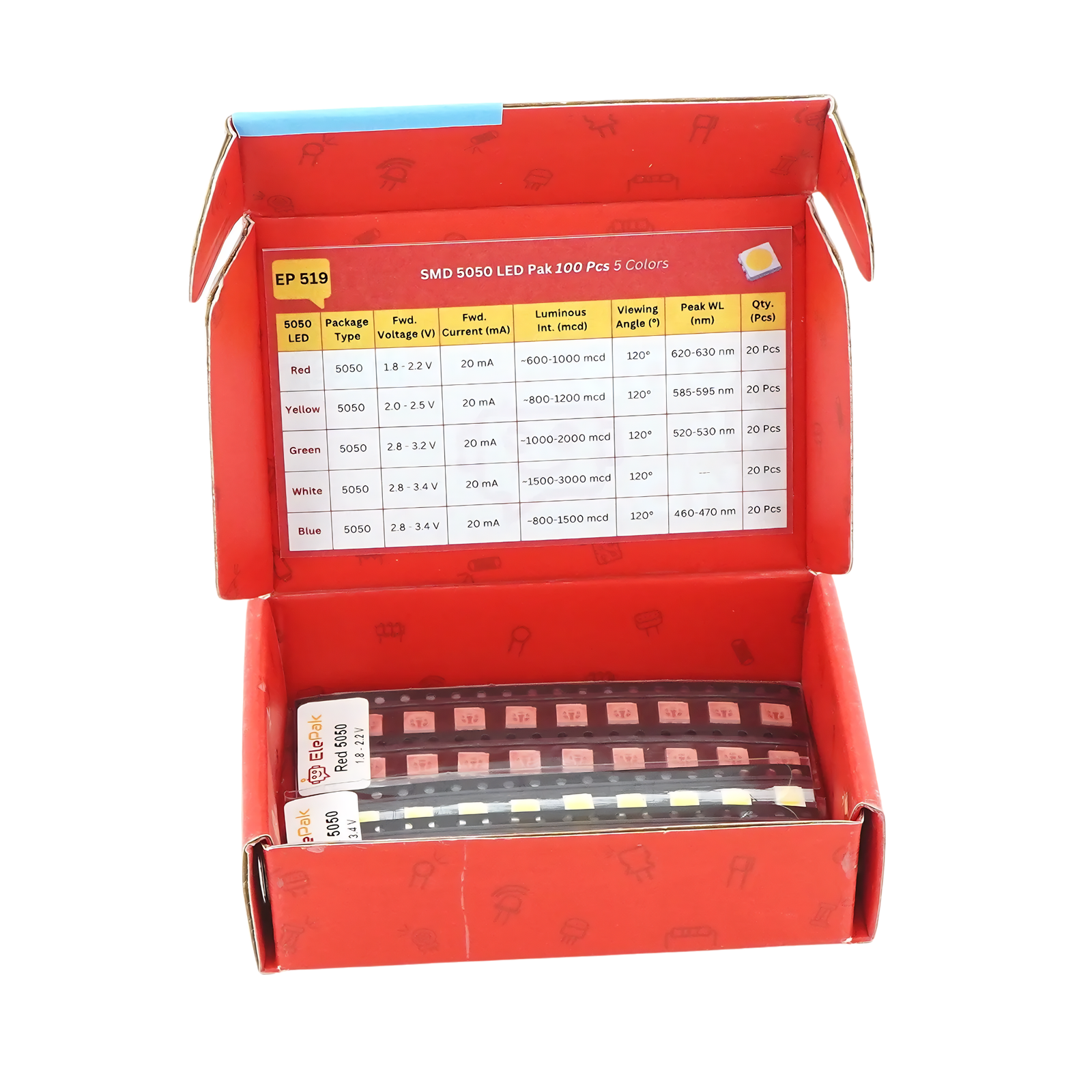

SMD 5050 LED Pak 100 Pcs 5 Colors

SKU: EP519

Technical Specification:

Type: SMD
Model: LED
Package Type: 5050
Color: Red, Yellow, Green, White, Blue
Fwd. Current: 20 mA
Viewing Angle: 120°
Forward Voltage Ratings:
- Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
- White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
Luminous Intensity:
- Red: ~600 – 1000 mcd, Yellow: ~800 – 1200 mcd, Green: ~1000 – 2000 mcd,
- White: ~1500 – 3000 mcd, Blue: ~800 – 1500 mcd
Peak Wavelength:
- Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
- White: —, Blue: 460 – 470 nm
Pak Weight: 60 gm
Pak Dimensions: 90 x 60 x 24 mm

₹240.00

Add to wishlist

Description

SMD 5050 LED Pak 100 Pcs 5 Colors

The SMD 5050 LED Pak contains high-brightness surface-mount LEDs housed in a compact 5.0 × 5.0mm package. These LEDs provide strong illumination, good energy efficiency and a wide viewing angle, making them suitable for electronic lighting, indication and display applications.

This assortment includes 100 SMD 5050 LEDs in five vibrant colors: red, yellow, green, white and blue, with 20 pieces of each color. The SMD 5050 LED Pak is suitable for PCB mounting, display boards, control panels, signage, decorative lighting, repairs, prototyping and DIY electronics projects.

5050 LED Symbol:

Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

Package Includes

100 SMD 5050 LED 5 Colors

Red – 20 Pcs
Yellow – 20 Pcs
Green – 20 Pcs
White – 20 Pcs
Blue – 20 Pcs

Additional Information
FAQs

Features:

High brightness
Compact 5.0mm x 5.0mm size
Wide viewing angle (120°–140°)
Low power consumption
Long operational lifespan

Applications:

LED strip lighting – Used in flexible light strips for homes, signage, and displays.
Decorative and ambient lighting – Creates mood lighting for events, interiors, and showcases.
Backlighting for displays and panels – Provides uniform illumination behind screens and keypads.
Automotive interior/exterior lighting – Enhances dashboard, footwell, and external vehicle lighting.
DIY electronics and hobby projects – Ideal for prototyping and custom lighting setups.

1. How is 5050 LED different from 3528 LED?

⋙ 5050 LEDs are larger, brighter, and can house three diodes for RGB color, unlike the smaller single-diode 3528.

2. Are SMD 5050 LEDs dimmable?

⋙ Yes, if connected to a compatible dimmer or controller, you can adjust the brightness.

3. Can I use SMD 5050 LEDs with Arduino or Raspberry Pi?

⋙ Yes, they are commonly used in DIY projects with microcontrollers like Arduino or Raspberry Pi for creating interactive lighting setups.

4. Can I use these LEDs for DIY projects?

⋙ Yes, they are ideal for DIY lighting, displays, and decor.

5. Can I use these LEDs with an Arduino or Raspberry Pi?

⋙ Yes, with appropriate controllers like PWM drivers.

6. How should I mount these individual SMD 5050 LEDs?

⋙ These LEDs should be soldered onto a PCB (Printed Circuit Board) or placed into a compatible holder.

7. Can I connect these individual LEDs in parallel or series?

⋙ These LEDs can be wired in parallel or series, but in series, you must match the voltage properly. Parallel wiring will require individual current-limiting resistors for each LED.

8. How do I power multiple 5050 LEDs in a large project?

⋙ Use a higher-rated power supply to handle the combined current of all LEDs.

9. How many LEDs can I connect to a 12V power supply?

⋙ The number of LEDs depends on their current draw, but typically you can connect around 50-60 5050 LEDs to a 12V power supply.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.

Customer Reviews

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

In stock

₹345.00

Add to cart

SKU: EP3

24hr Support

PAN India

SMD 5050 LED Pak 100 Pcs 5 Colors

Technical Specification:

Description

SMD 5050 LED Pak 100 Pcs 5 Colors

Package Includes

Customer Reviews

Reviews

Related Products

SMD Resistor 1206 1/4W ±1% Pak 0E to 10M 8500 Pcs 170 Values

SMD Tactile Switch Pak 150 Pcs 10 Types

SMD 5730 LED Pak 100 Pcs 5 Colors

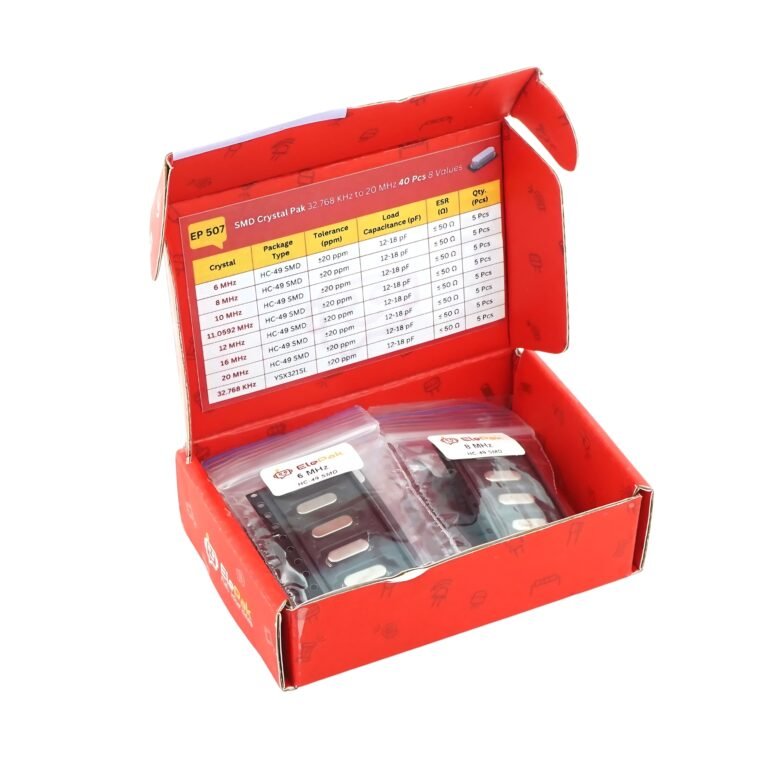

SMD Crystal Pak 32.768 KHz to 20 MHz 40 Pcs 8 Values
