SMD 1210 LED Pak 100 Pcs 5 Colors

SKU: EP518

Technical Specification:

Type: SMD
Model: LED
Package Type: 1210
Color: Red, Yellow, Green, White, Blue
Fwd. Current: 20mA
Viewing Angle: 120°
Forward Voltage Ratings:
- Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
- White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
Luminous Intensity:
- Red: ~200 – 400 mcd, Yellow: ~250 – 500 mcd, Green: ~400 – 800 mcd,
- White: ~500 – 1000 mcd, Blue: ~300 – 600 mcd
Peak Wavelength:
- Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
- White: —, Blue: 460 – 470 nm

Pak Weight: 60 gm
Pak Dimensions: 90 x 60 x 24 mm

₹195.00

Add to wishlist

Description

SMD 1210 LED Pak 100 Pcs 5 Colors

The SMD 1210 LED Pak contains compact and energy-efficient surface-mount LEDs designed for electronic circuits and lighting applications. Also known as 3528 LEDs, they measure approximately 3.2 × 2.8mm and are suitable for compact PCB layouts where space is limited.

This assortment includes 100 SMD LEDs in five different colors, offering useful options for indication, signalling and decorative lighting. The SMD 1210 LED Pak is suitable for PCB mounting, control panels, display circuits, electronic repairs, prototyping, model making and DIY electronics projects.

1210 LED Symbol:

Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

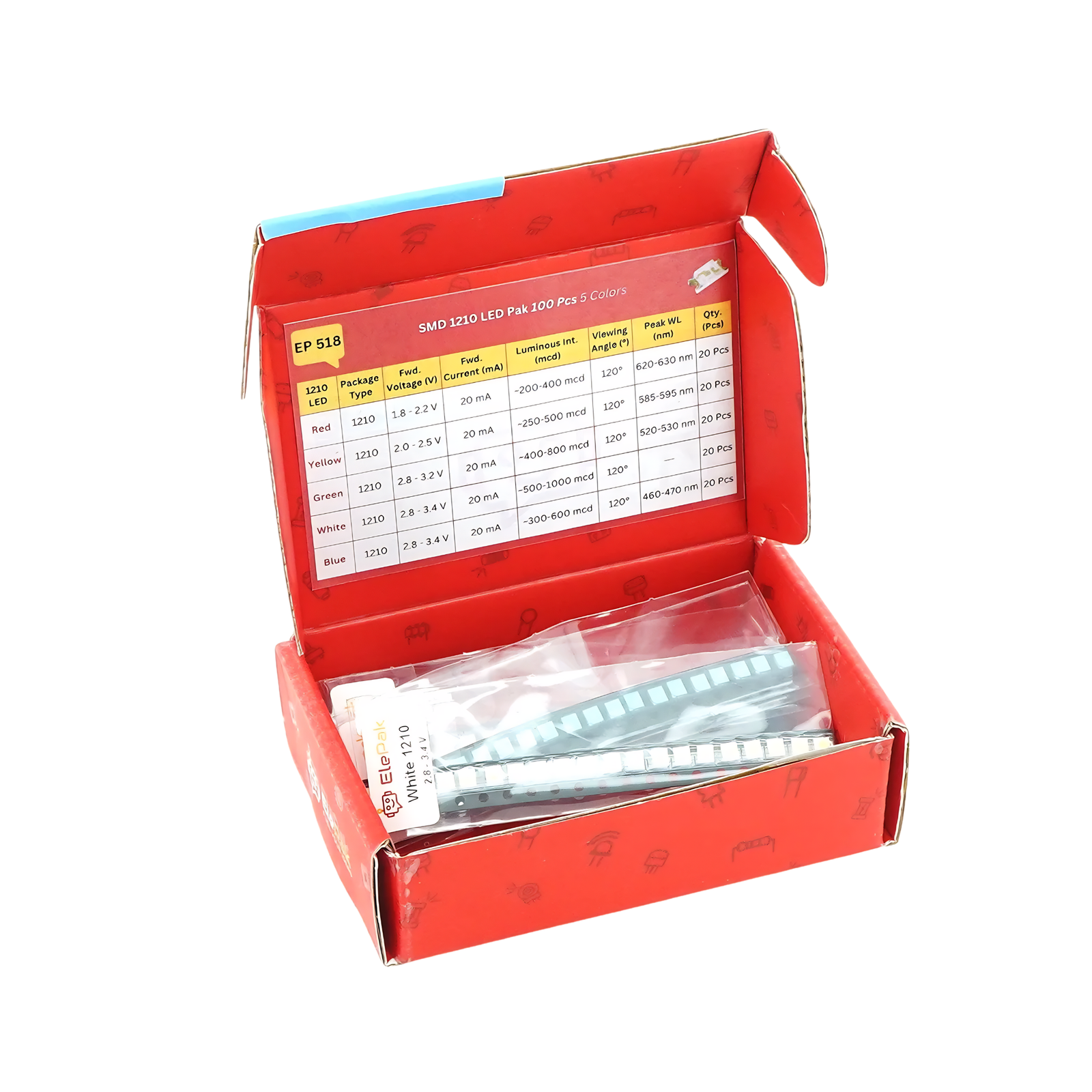

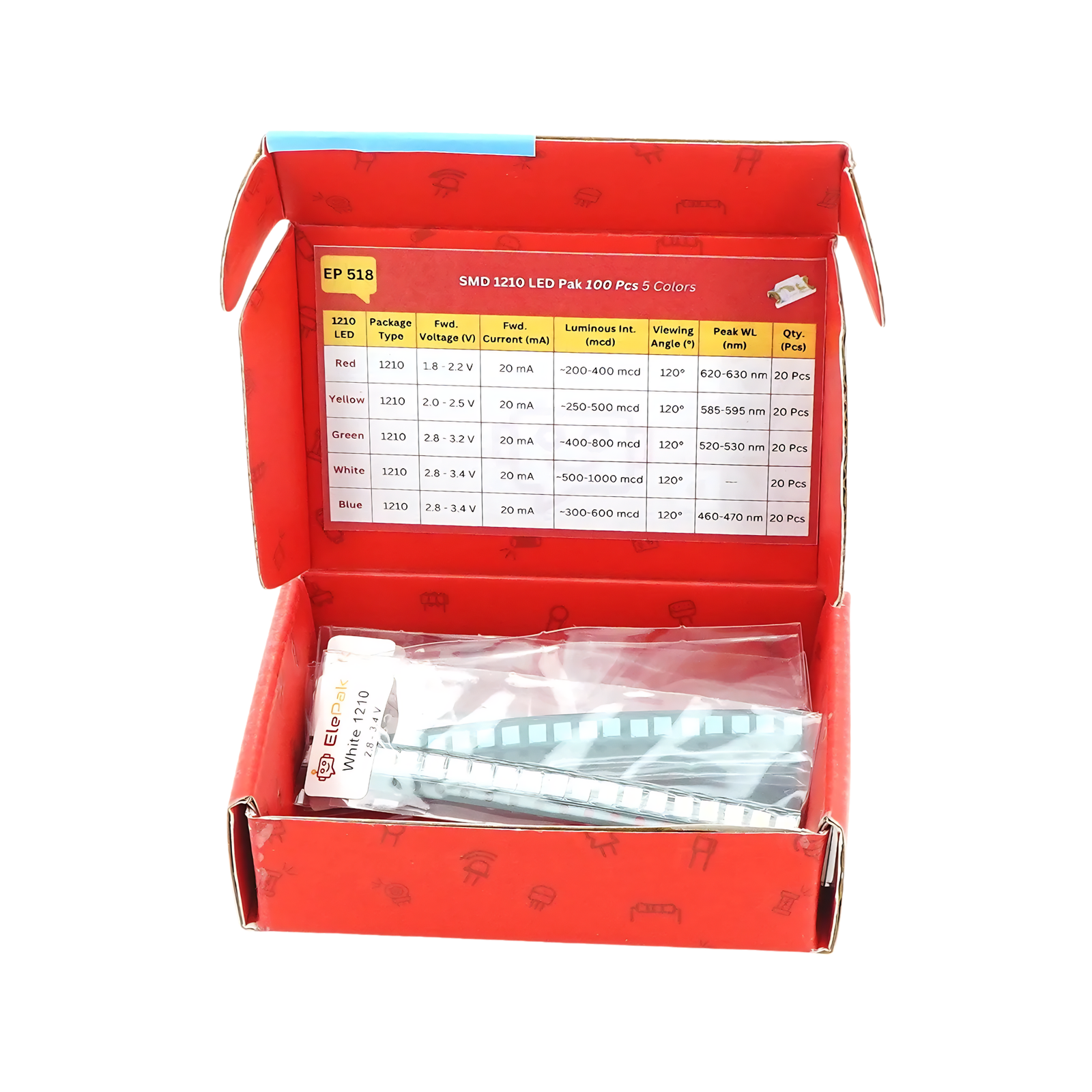

Package Includes

100 SMD 1210 LED 5 Colors

Red – 20 Pcs
Yellow – 20 Pcs
Green – 20 Pcs
White – 20 Pcs
Blue – 20 Pcs

Additional Information
FAQs

Features:

Compact size for space-saving PCB designs
Low power consumption
Bright and consistent light output
Long operational lifespan
Fast switching response

Applications:

Indicator Lights – Used in control panels, electronics, and circuits for visual status signals.
Backlighting – Ideal for illuminating LCDs, keypads, and small displays.
Decorative & Ambient Lighting – Common in LED strips for aesthetic and mood lighting.
DIY & Hobby Electronics – Perfect for compact, creative electronic projects and prototyping.
Automotive & Industrial Use – Suitable for dashboards, indicators, and other low-voltage lighting setups.

1. What is the difference between 1210 and 3528 LED?

⋙ They are the same — 1210 is the imperial measurement (in inches) and 3528 is the metric (in mm).

2. What is the polarity of a 1210 SMD LED?

⋙ They are polarized components; the cathode is usually marked with a notch or dot on the package.

3. Can I use 1210 SMD LEDs for both low and high-power applications?

⋙ While 1210 SMD LEDs are suitable for low-power applications, high-power LEDs usually require larger packages for better heat dissipation.

4. Are 1210 SMD LEDs dimmable ?

⋙ Yes, 1210 SMD LEDs can be dimmed with proper control circuitry, such as PWM (Pulse Width Modulation).

5. Can I connect multiple 1210 SMD LEDs in series or parallel?

⋙ Yes, you can connect them in series or parallel, but make sure to use appropriate resistors and ensure proper voltage and current ratings.

6. What is the difference between a 1210 SMD LED and a 5050 SMD LED?

⋙ The 5050 SMD LED is larger and typically designed for higher brightness and power applications, whereas the 1210 is smaller and often used for low-power, compact applications.

7. Are 1210 SMD LEDs compatible with Arduino or Raspberry Pi?

⋙ Yes, 1210 SMD LEDs can be controlled with microcontrollers like Arduino or Raspberry Pi using appropriate resistors or drivers.

8. Are packs of 1210 SMD LEDs suitable for hobby and DIY projects?

⋙ Yes, these packs are ideal for hobbyists and DIYers due to their variety, affordability, and ease of use.

9. How do I connect 1210 SMD LEDs from the pack to a circuit?

⋙ Connect them to the circuit using appropriate resistors to limit the current.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
