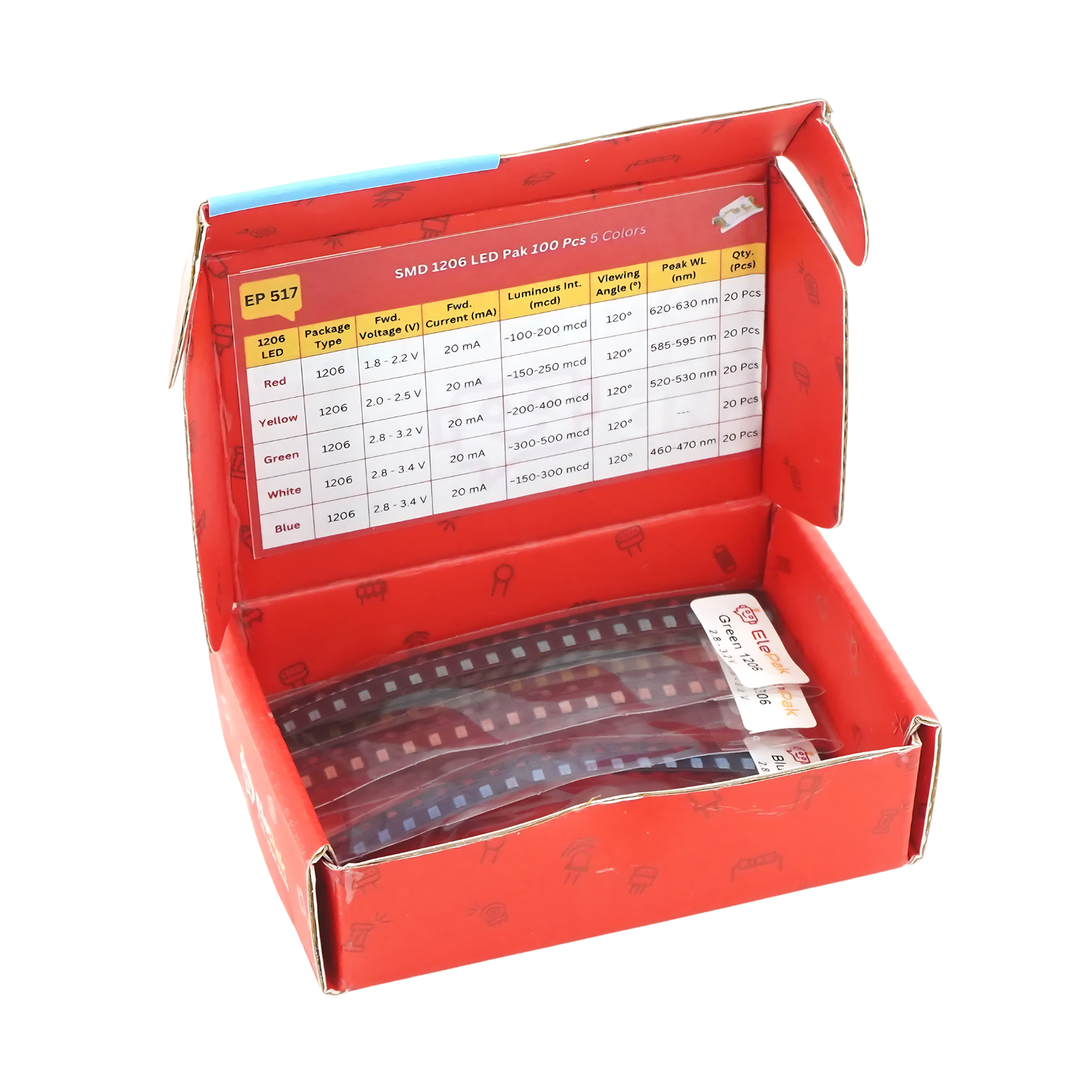

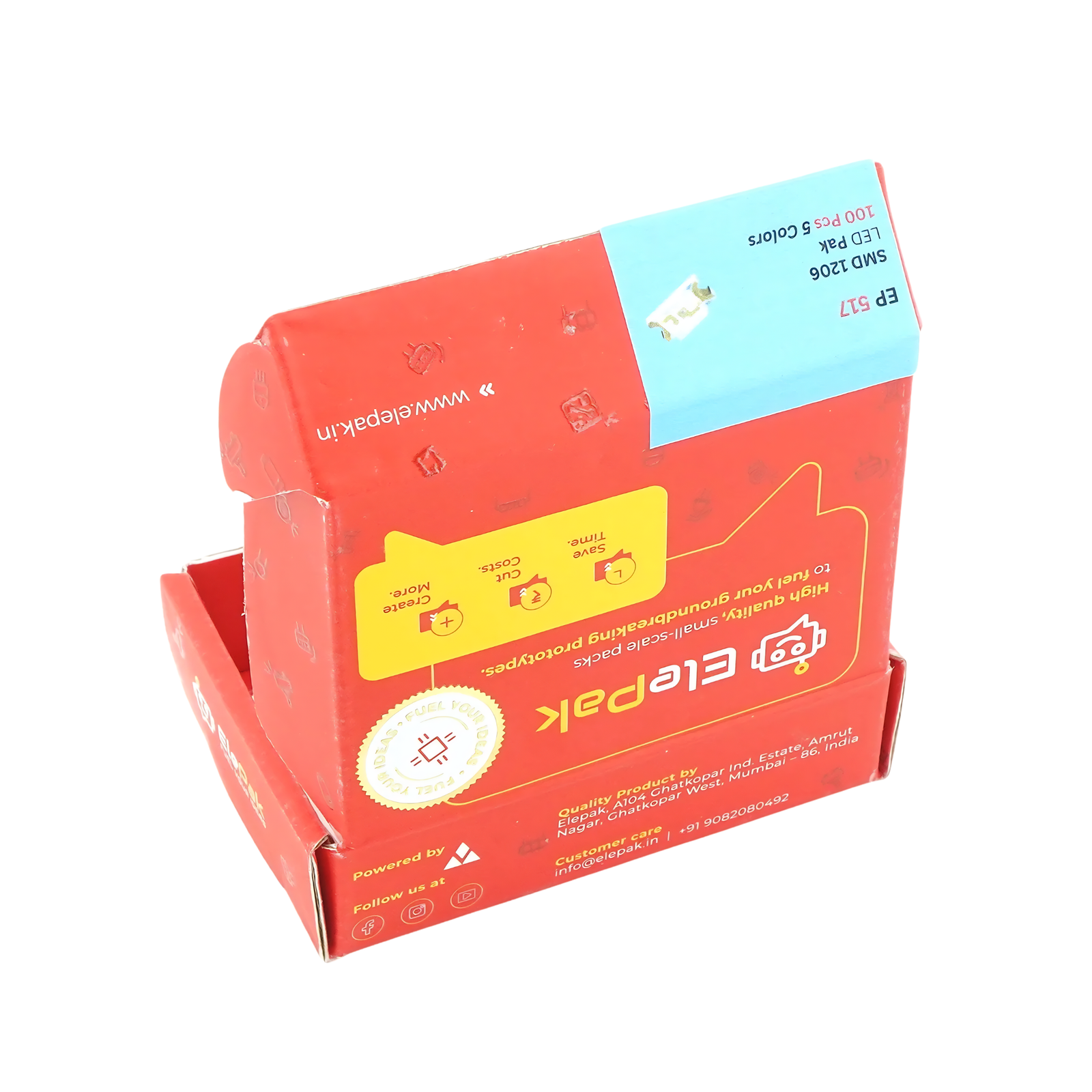

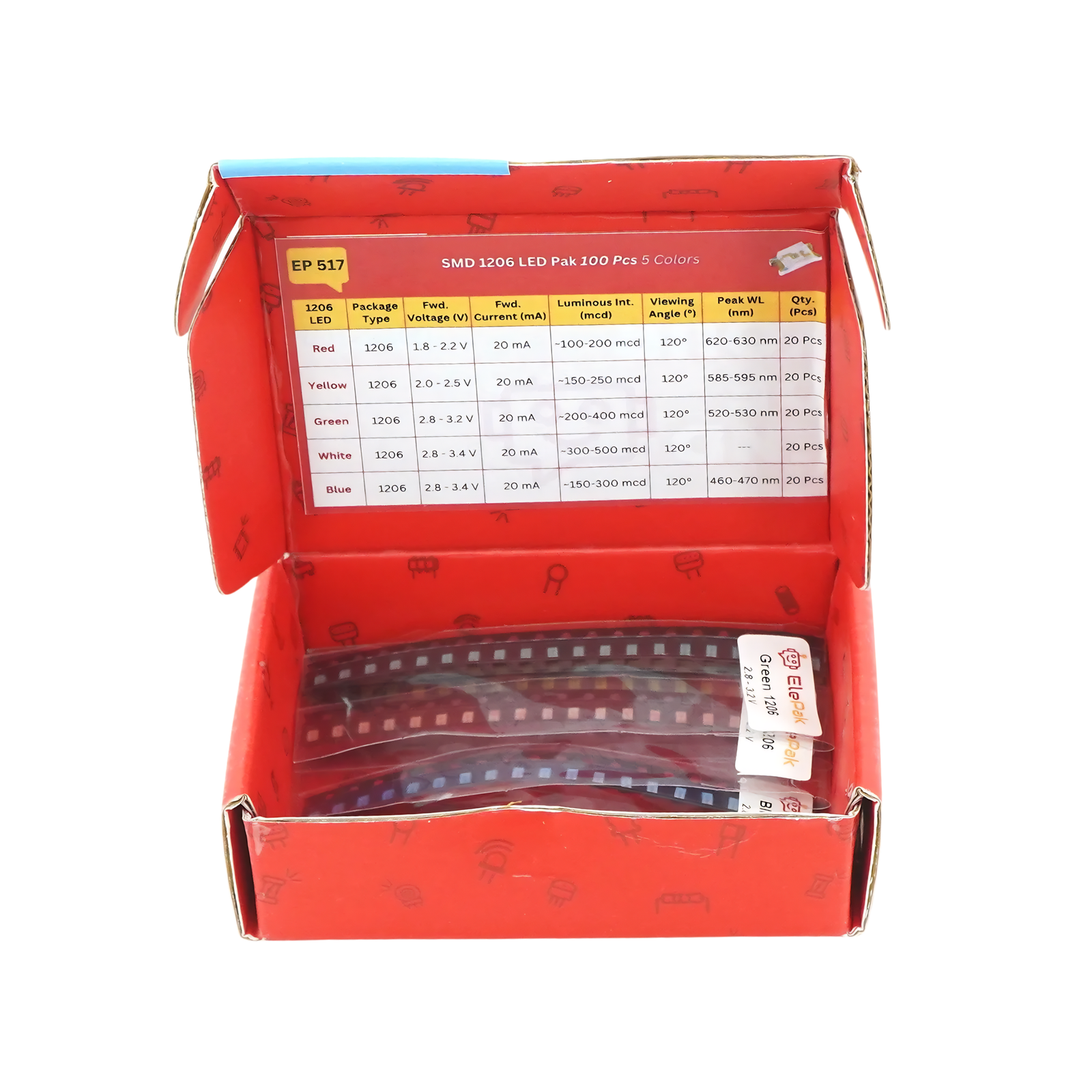

    SMD 1206 LED Pak 100 Pcs 5 Colors

    SKU: EP517

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 1206
    • Color: Red, Yellow, Green, White, Blue
    • Fwd. Current: 20 mA
    • Viewing Angle: 120°
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~100 – 200 mcd, Yellow: ~150 – 250 mcd, Green: ~200 – 400 mcd,
      • White: ~300 – 500 mcd, Blue: ~150 – 300 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹160.00

    Add to wishlist

    Description

    SMD 1206 LED Pak 100 Pcs 5 Colors

    The SMD 1206 LED Pak is a practical assortment of surface-mount LEDs for electronic circuits, PCB assembly and lighting applications. This pack contains 100 LEDs in five different colors, providing useful options for indication, signalling, display and circuit-development projects.

    Designed in the standard 1206 package size of approximately 3.2 × 1.6mm, these LEDs are compact yet convenient to handle during soldering and PCB installation. The SMD 1206 LED Pak is suitable for control panels, indicator circuits, sensor modules, consumer electronics, repair work, prototyping and DIY electronic projects.

    1206 LED Symbol:

    1206 LED Structure:



    Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

    Package Includes

    100 SMD 1206 LED 5 Colors

    • Red - 20 Pcs
    • Yellow - 20 Pcs
    • Green - 20 Pcs
    • White - 20 Pcs
    • Blue - 20 Pcs

    Features:

    • Larger package size
    • Low power consumption
    • High brightness output
    • Multiple colour options
    • Wide viewing angle
    • Fast response time

    Applications:

    • PCB Indicators - Used as status indicators in electronic circuits
    • Backlighting - Provides illumination for displays, keypads, and screens
    • Consumer Electronics - Found in remote controls, smartphones, and wearables
    • Automotive Applications - Used in dashboards, interior lighting, and signal indicators
    • IoT & Smart Devices - Integrated into connected devices for status indication
    1. How do I identify the polarity of an SMD 1206 LED?

    â‹™ The cathode (-) has a green/black mark or chamfered edge.

    2. Are SMD 1206 LEDs dimmable?

    â‹™ Yes, by using PWM (Pulse Width Modulation) control.

    3. What is the difference between SMD LEDs and DIP LEDs?

    â‹™ SMD LEDs are surface-mounted, compact, and more efficient, while DIP LEDs have through-hole leads for easy manual soldering.

    4. How do I test an SMD 1206 LED?

    â‹™ Use a multimeter in diode mode or apply a low voltage with a resistor.

    5. Can I use multiple SMD 1206 LEDs in series?

    â‹™ Yes, but ensure the total voltage does not exceed the power source.

    6. Can I use multiple SMD 1206 LEDs in parallel?

    â‹™ Yes, but each LED should have its own resistor for even current distribution.

    7. Can I use these LEDs with an Arduino or Raspberry Pi?

    â‹™ Yes, but a current-limiting resistor is required to prevent damage.

    8. What happens if I connect an LED without a resistor?

    â‹™ It may burn out due to excessive current.

    9. Can I use these LEDs on a breadboard?

    â‹™ Yes, but you may need adapter boards or wires due to small size.

    10. Can I purchase specific types individually rather than in a pack?

    â‹™ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
