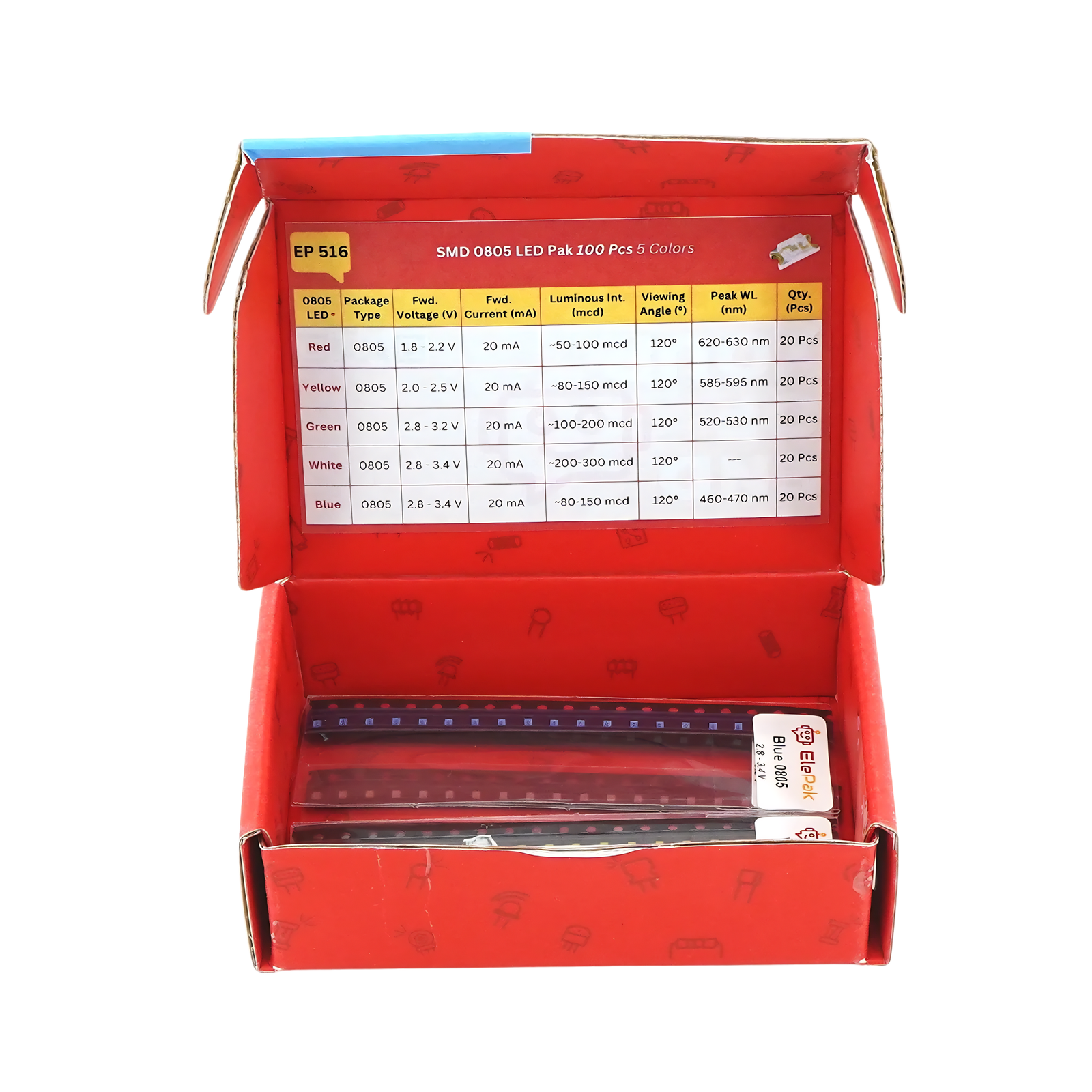

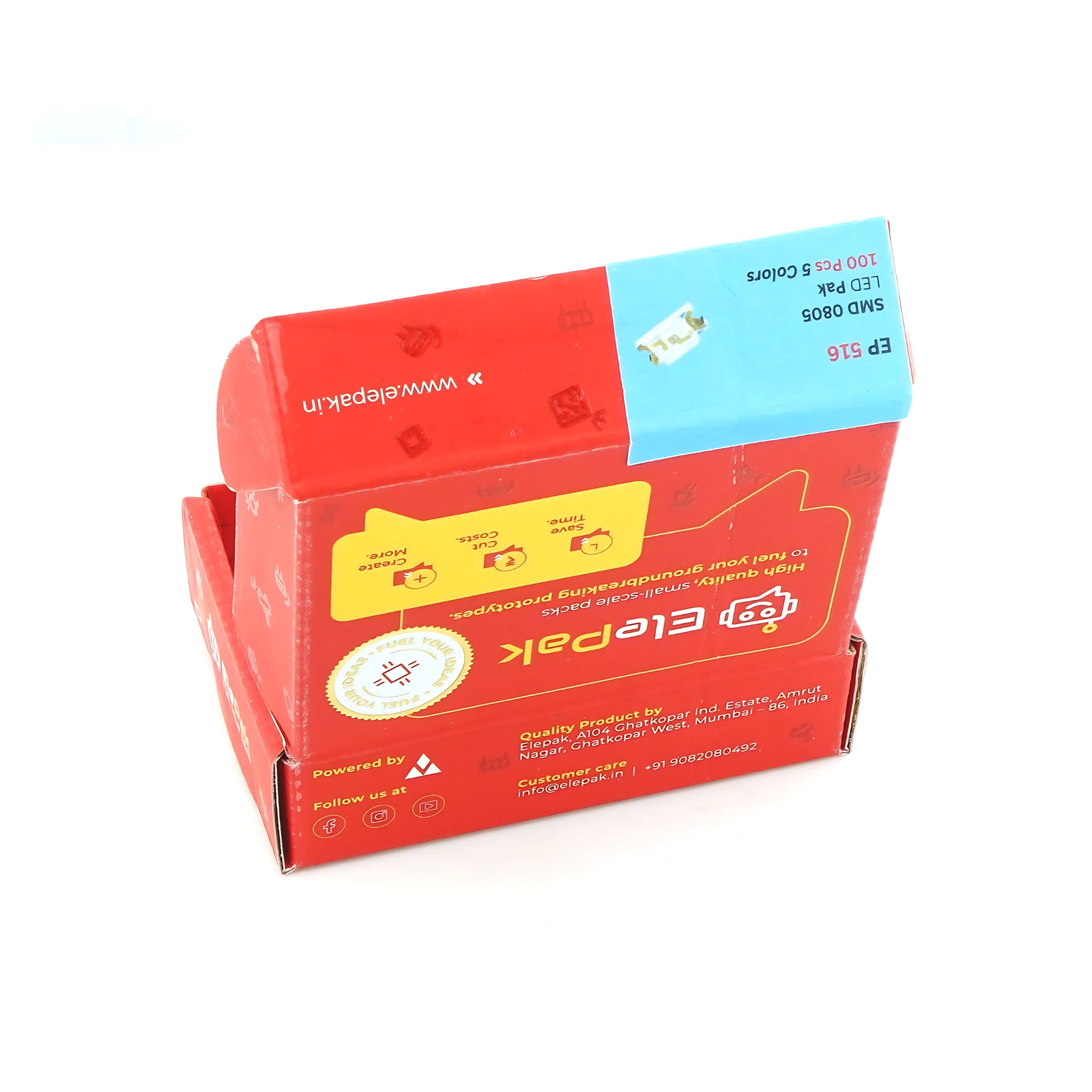

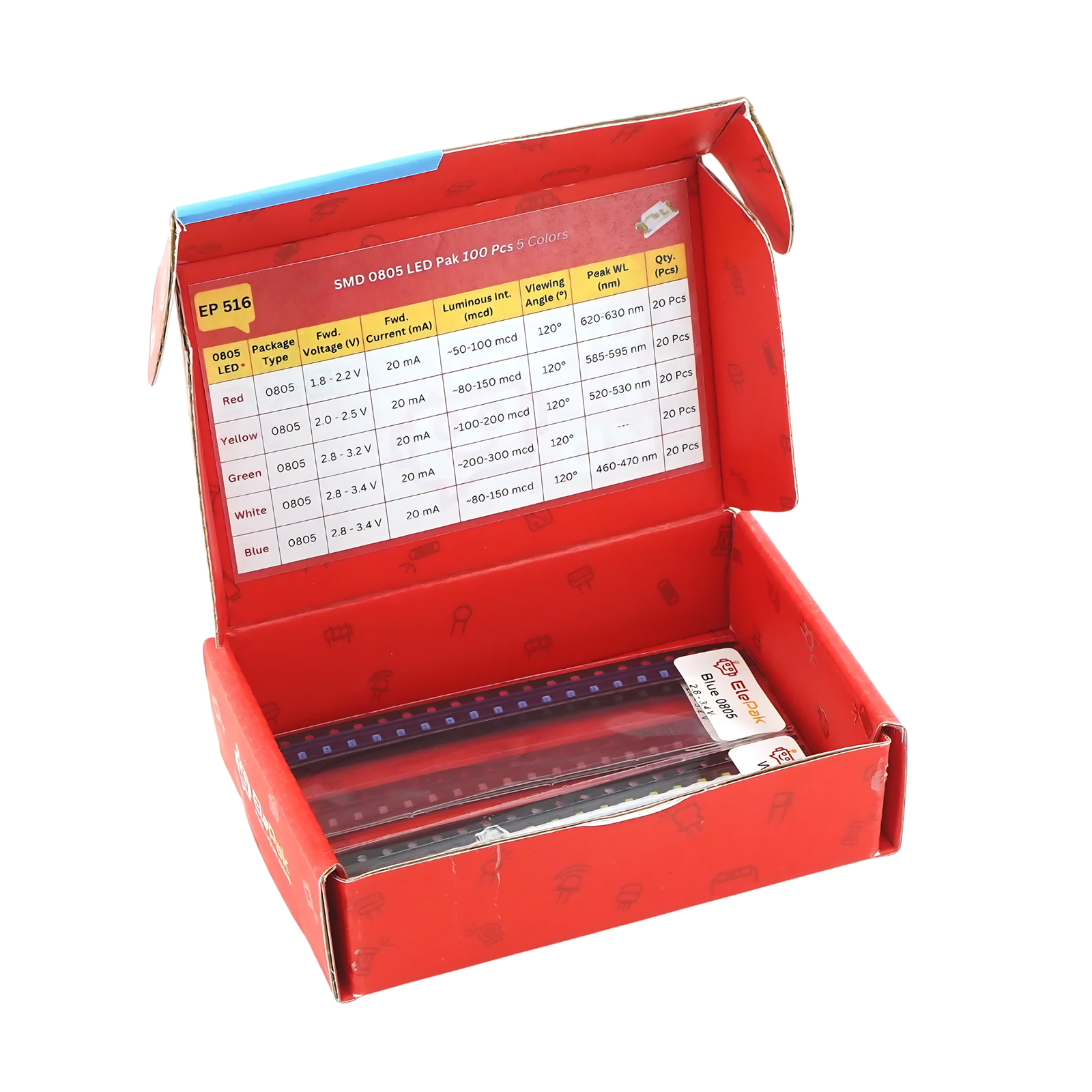

    SMD 0805 LED Pak 100 Pcs 5 Colors

    SKU: EP516

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 0805
    • Color: Red, Yellow, Green, White, Blue
    • Viewing Angle: 120°
    • Current: 20 mA
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~50 – 100 mcd, Yellow: ~80 – 150 mcd, Green: ~100 – 200 mcd,
      • White: ~200 – 300 mcd, Blue: ~80 – 150 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 50 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹150.00

    Add to wishlist

    Description

    SMD 0805 LED Pak 100 Pcs 5 Colors

    The SMD 0805 LED Pak is a versatile assortment of surface-mount LEDs designed for electronic circuits, PCB assemblies and lighting applications. This pack contains 100 LEDs in five different colors, providing a convenient selection for indicators, displays, signalling and circuit prototyping.

    Featuring the standard 0805 package size of approximately 2.0 × 1.25mm, these LEDs are compact while remaining easier to handle than smaller SMD components. The SMD 0805 LED Pak is suitable for control panels, sensor modules, consumer electronics, repair work, decorative circuits, DIY projects and compact PCB designs.

    0805 LED Symbol:

    0805 LED Structure:

    Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

    Package Includes

    100 SMD 0805 LED 5 Colors

    • Red - 20 Pcs
    • Yellow - 20 Pcs
    • Green - 20 Pcs
    • White - 20 Pcs
    • Blue - 20 Pcs

    Features:

    • Compact size
    • Low power consumption
    • High brightness output
    • Multiple colour options
    • Wide viewing angle
    • Fast response time

    Applications:

    • PCB Indicators - Used as status indicators in electronic circuits
    • Backlighting - Provides illumination for displays, keypads, and screens
    • Consumer Electronics - Found in remote controls, smartphones, and wearables
    • Automotive Applications - Used in dashboards, interior lighting, and signal indicators
    • IoT & Smart Devices - Integrated into connected devices for status indication
    1. How do I identify the polarity of an SMD 0805 LED?

    â‹™ The cathode (-) has a green/black mark or chamfered edge.

    2. Are SMD 0603 LEDs dimmable?

    â‹™ Yes, by using PWM (Pulse Width Modulation) control.

    3. What is the difference between SMD LEDs and DIP LEDs?

    â‹™ SMD LEDs are surface-mounted, compact, and more efficient, while DIP LEDs have through-hole leads for easy manual soldering.

    4. How do I test an SMD 0803 LED?

    â‹™ Use a multimeter in diode mode or apply a low voltage with a resistor.

    5. Can I use multiple SMD 0803 LEDs in series?

    â‹™ Yes, but ensure the total voltage does not exceed the power source.

    6. Can I use multiple SMD 0803 LEDs in parallel?

    â‹™ Yes, but each LED should have its own resistor for even current distribution.

    7. Can I use these LEDs with an Arduino or Raspberry Pi?

    â‹™ Yes, but a current-limiting resistor is required to prevent damage.

    8. What happens if I connect an LED without a resistor?

    â‹™ It may burn out due to excessive current.

    9. Can I use these LEDs on a breadboard?

    â‹™ Yes, but you may need adapter boards or wires due to small size.

    10. Can I purchase specific types individually rather than in a pack?

    â‹™ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
