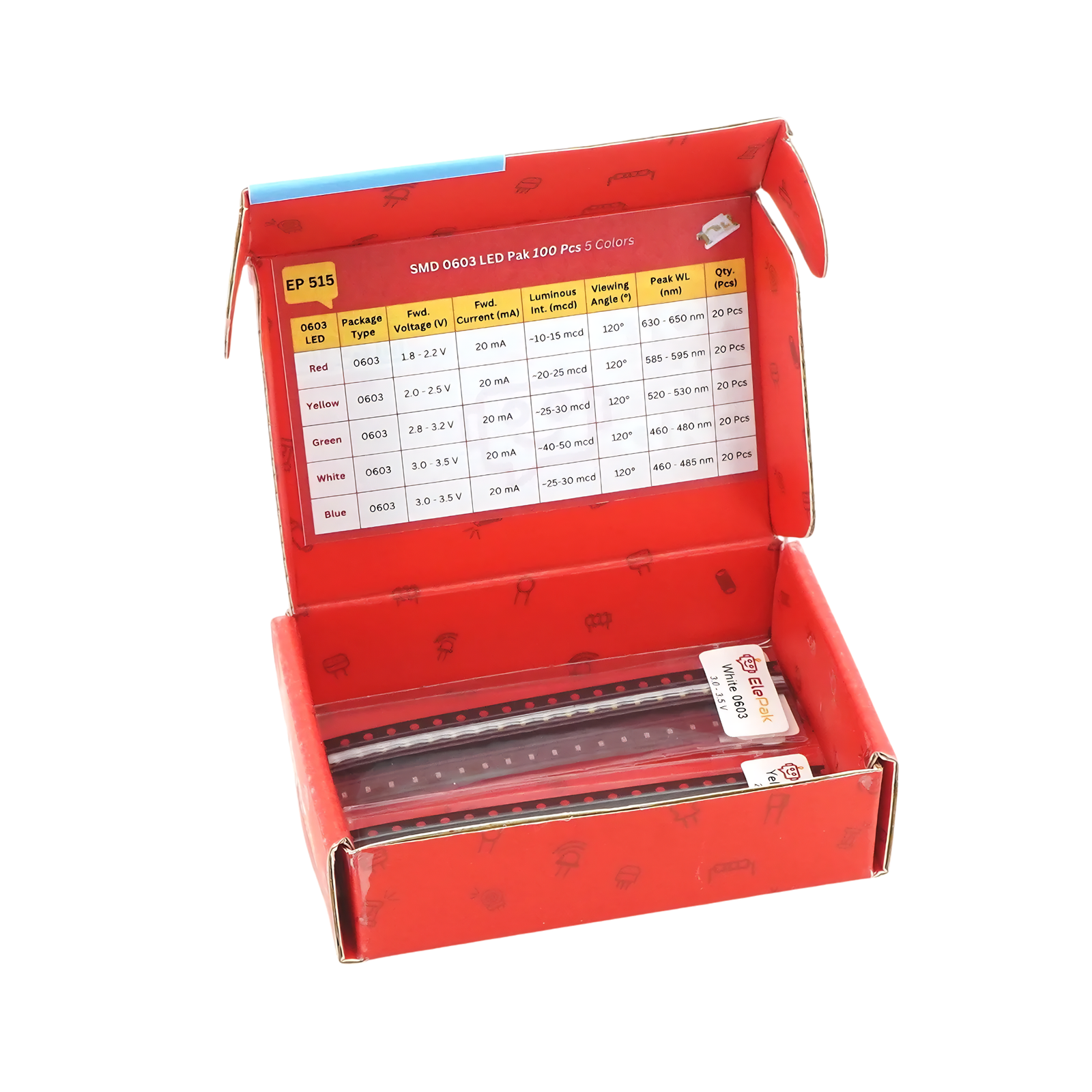

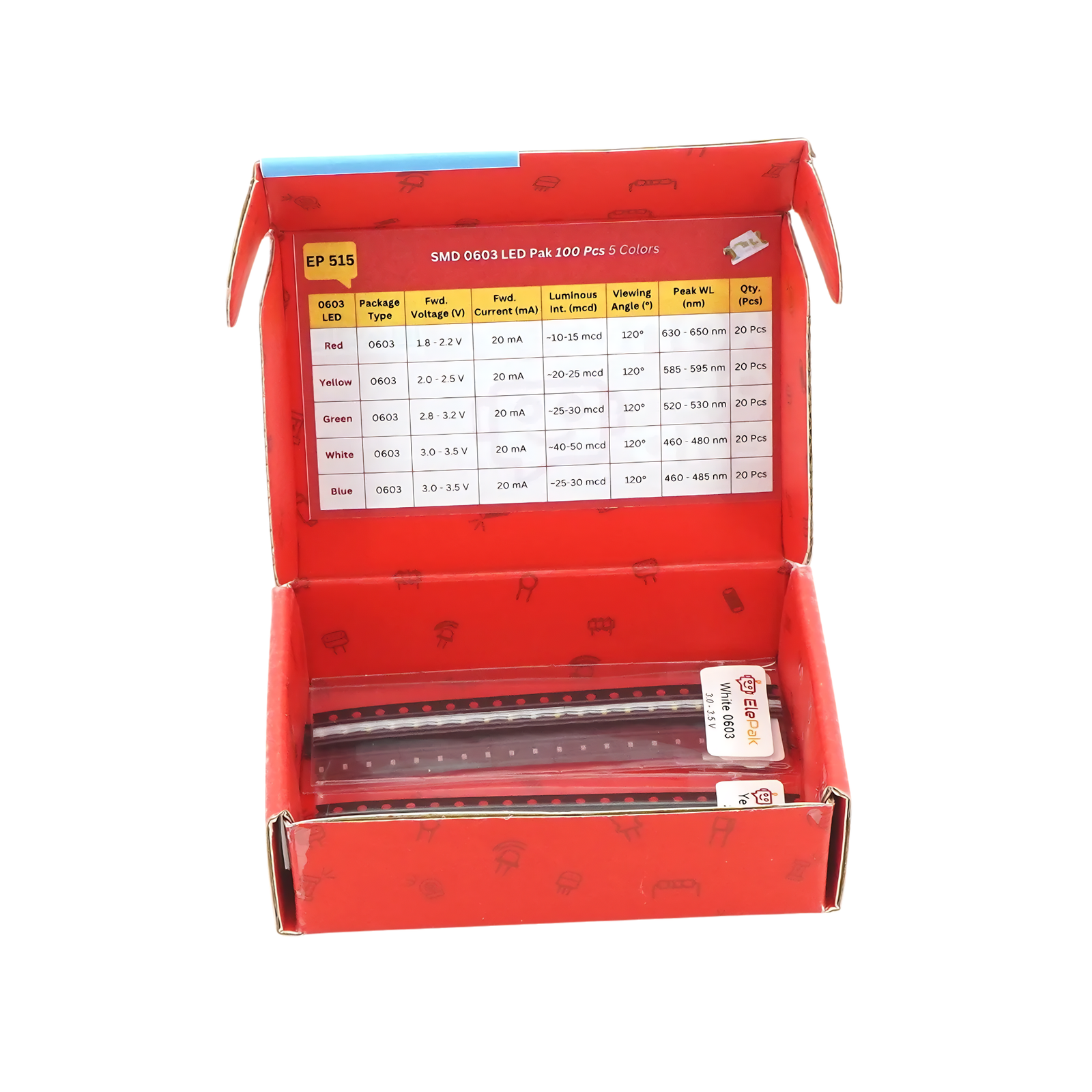

    SMD 0603 LED Pak 100 Pcs 5 Colors

    SKU: EP515

    Technical Specification:

    • Type: SMD
    • Model: LED
    • Package Type: 0603
    • Color: Red, Yellow, Green, White, Blue
    • Viewing Angle: 120°
    • Current: 20 mA
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 3.0 – 3.5 V, Blue: 3.0 – 3.5 V
    • Luminous Intensity:
      • Red: ~10-15 mcd, Yellow: ~20-25 mcd, Green: ~25-30 mcd
      • White: ~40-50 mcd, Blue: ~25-30 mcd
    • Peak Wavelength:
      • Red: 630 – 650 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm
      • White: 460 – 480 nm, Blue: 460 – 485 nm
    • Pak Weight: 50 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹115.00

    Add to wishlist

    Description

    SMD 0603 LED Pak 100 Pcs 5 Colors

    The SMD 0603 LED Pak contains compact, energy-efficient and high-brightness surface-mount LEDs for electronic circuits and PCB assemblies. The 0603 package measures approximately 0.06 × 0.03 inches, or 1.6 × 0.8mm, making these LEDs suitable for space-saving and high-density circuit designs.

    This assortment includes 100 LEDs in five vibrant colors: red, yellow, green, white and blue, with 20 pieces of each color. The SMD 0603 LED Pak is ideal for PCB mounting, indicator lights, control panels, circuit prototyping, repairs, wearable electronics, display applications and DIY electronic projects.

    0603  LED Symbol:

    0603 LED Structure:



    Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

    Package Includes

    100 SMD 0603 LED 5 Colors

    • Red - 20 Pcs
    • Yellow - 20 Pcs
    • Green - 20 Pcs
    • White - 20 Pcs
    • Blue - 20 Pcs

    Features:

    • Compact size
    • Low power consumption
    • High brightness output
    • Multiple colour options
    • Wide viewing angle
    • Fast response time

    Applications:

    • PCB Indicators - Used as status indicators in electronic circuits
    • Backlighting - Provides illumination for displays, keypads, and screens
    • Consumer Electronics - Found in remote controls, smartphones, and wearables
    • Automotive Applications - Used in dashboards, interior lighting, and signal indicators
    • IoT & Smart Devices - Integrated into connected devices for status indication
    1. How do I identify the polarity of an SMD 0603 LED?

    â‹™ The cathode (-) has a green/black mark or chamfered edge.

    2. Are SMD 0603 LEDs dimmable?

    â‹™ Yes, by using PWM (Pulse Width Modulation) control.

    3. What is the difference between SMD LEDs and DIP LEDs?

    â‹™ SMD LEDs are surface-mounted, compact, and more efficient, while DIP LEDs have through-hole leads for easy manual soldering.

    4. How do I test an SMD 0603 LED?

    â‹™ Use a multimeter in diode mode or apply a low voltage with a resistor.

    5. Can I use multiple SMD 0603 LEDs in series?

    â‹™ Yes, but ensure the total voltage does not exceed the power source.

    6. Can I use multiple SMD 0603 LEDs in parallel?

    â‹™ Yes, but each LED should have its own resistor for even current distribution.

    7. Can I use these LEDs with an Arduino or Raspberry Pi?

    â‹™ Yes, but a current-limiting resistor is required to prevent damage.

    8. What happens if I connect an LED without a resistor?

    â‹™ It may burn out due to excessive current.

    9. Can I use these LEDs on a breadboard?

    â‹™ Yes, but you may need adapter boards or wires due to small size.

    10. Can I purchase specific types individually rather than in a pack?

    â‹™ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
