SMD Resistor 2010 3/4W ±5% Pak 10E to 910K 400 Pcs 80 Values

SKU: EP522

Technical Specification:

Type: SMD
Model: 2010 Resistor
Package Type: 2010
Resistance Range: 10 Ω – 910 KΩ
Power Ratings: 3/4 W (0.75 W)
Tolerance: ±5 %
Temperature Coefficient: ±200 ppm/°C
Pak Weight: 100 gm
Pak Dimensions: 150 x 100 x 35 mm

₹835.00

Add to wishlist

Description

SMD Resistor 2010 3/4W ±5% Pak 10E to 910K 400 Pcs 80 Values

The SMD Resistor 2010 3/4W ±5% Pak contains compact, high-power surface-mount resistors designed for modern PCB applications. The standard 2010 package measures approximately 5.0 × 2.5mm and offers a 3/4W, or 0.75W, power rating for reliable use in various electronic circuits.

This assortment includes 400 SMD resistors in 80 resistance values ranging from 10Ω to 910KΩ, with 5 pieces of each value. The SMD Resistor 2010 3/4W ±5% Pak is suitable for current limiting, voltage division, biasing, signal conditioning, circuit prototyping, repairs, testing and electronic component replacement.

Resistor Symbol:

2010 3/4W Resistor Structure:

Explore a wide range of SMD resistors for current limiting, voltage division, circuit repair, testing and PCB applications.

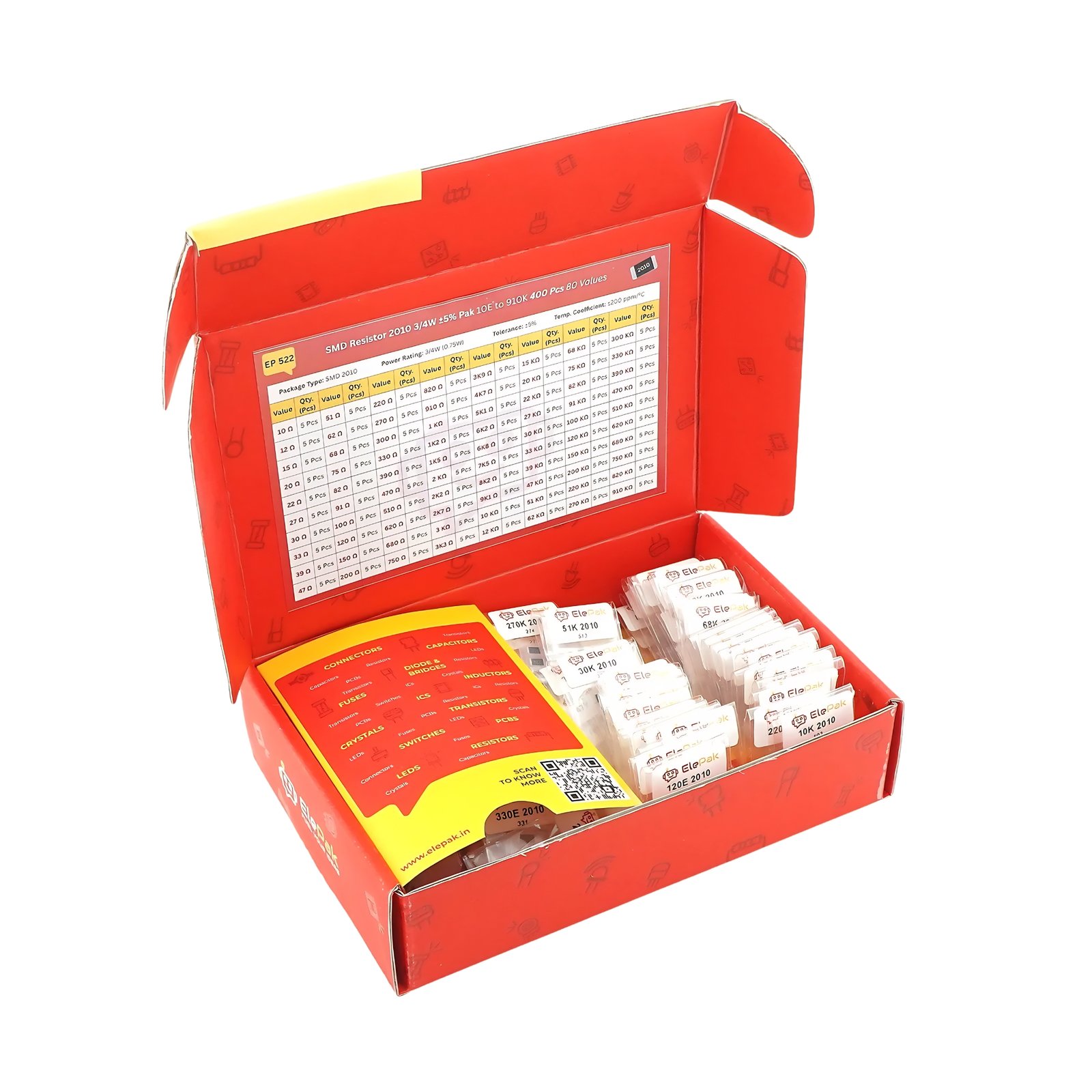

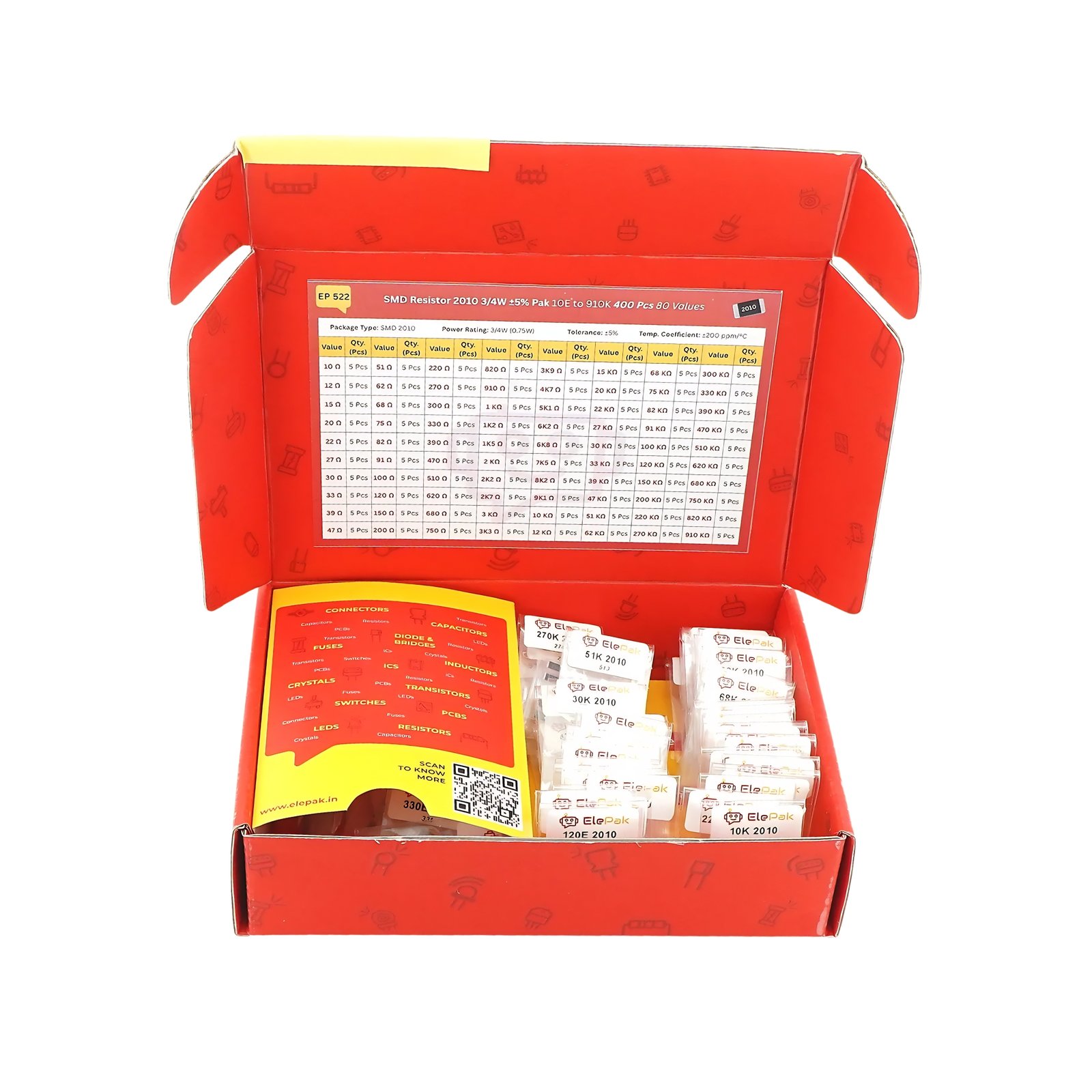

Package Includes

400 SMD Resistor 2010 3/4W ±5% 80 Values

10E - 5 Pcs
12E - 5 Pcs
15E - 5 Pcs
20E - 5 Pcs
22E - 5 Pcs
27E - 5 Pcs
30E - 5 Pcs
33E - 5 Pcs
39E - 5 Pcs
47E - 5 Pcs
51E - 5 Pcs
62E - 5 Pcs
68E - 5 Pcs
75E - 5 Pcs
82E - 5 Pcs
91E - 5 Pcs
100E - 5 Pcs
120E - 5 Pcs
150E - 5 Pcs
200E - 5 Pcs
220E - 5 Pcs
270E - 5 Pcs
300E - 5 Pcs
330E - 5 Pcs
390E - 5 Pcs
470E - 5 Pcs
510E - 5 Pcs
620E - 5 Pcs
680E - 5 Pcs
750E - 5 Pcs
820E - 5 Pcs
910E - 5 Pcs
1K - 5 Pcs
1K2 - 5 Pcs
1K5 - 5 Pcs
2K - 5 Pcs
2K2 - 5 Pcs
2K7 - 5 Pcs
3K - 5 Pcs
3K3 - 5 Pcs
3K9 - 5 Pcs
4K7 - 5 Pcs
5K1 - 5 Pcs
6K2 - 5 Pcs
6K8 - 5 Pcs
7K5 - 5 Pcs
8K2 - 5 Pcs
9K1 - 5 Pcs
10K - 5 Pcs
12K - 5 Pcs
15K - 5 Pcs
20K - 5 Pcs
22K - 5 Pcs
27K - 5 Pcs
30K - 5 Pcs
33K - 5 Pcs
39K - 5 Pcs
47K - 5 Pcs
51K - 5 Pcs
62K - 5 Pcs
68K - 5 Pcs
75K - 5 Pcs
82K - 5 Pcs
91K - 5 Pcs
100K - 5 Pcs
120K - 5 Pcs
150K - 5 Pcs
200K - 5 Pcs
220K - 5 Pcs
270K - 5 Pcs
300K - 5 Pcs
330K - 5 Pcs
390K - 5 Pcs
470K - 5 Pcs
510K - 5 Pcs
620K - 5 Pcs
680K - 5 Pcs
750K - 5 Pcs
820K - 5 Pcs
910K - 5 Pcs

Additional Information
FAQs

Features:

High power handling (0.75W)
Compact 2010 package (5.0mm × 2.5mm)
Reliable performance with low failure rate
Surface-Mount Technology (SMT) for automated assembly
Wide resistance range (10Ω to 910KΩ)
Low inductance for high-frequency applications

Applications:

Power Circuits - Used for voltage regulation and current limiting
Automotive Electronics - Found in engine control units and LED drivers
Industrial Equipment - Used in sensors, controllers, and automation systems
Consumer Electronics - Integrated into smartphones, laptops, and home appliances
Communication Systems - Supports RF circuits and signal processing

1. How do I test an SMD resistor?

⋙ Use a digital multimeter in resistance mode; ensure the resistor is removed from the circuit for accurate measurement.

2. Are SMD resistors polarized?

⋙ No, resistors are non-polarized components, meaning they can be installed in any orientation.

3. How do I read the resistance value on an SMD resistor?

⋙ Most SMD resistors use a three- or four-digit code, where the first two or three digits represent the base value and the last digit is the multiplier (e.g., 103 = 10KΩ).

4. Can I use an SMD resistor in AC circuits?

⋙ Yes, but ensure the resistor’s voltage rating is suitable for the AC voltage levels present in the circuit.

5. What happens if I install an SMD resistor backward?

⋙ Resistors are non-polarized, so orientation does not affect their function.

6. Can an SMD resistor function as a pull-up or pull-down resistor?

⋙ Yes, they are commonly used in digital circuits to set logic levels for microcontrollers and ICs.

7. Can I use these LEDs with an Arduino or Raspberry Pi?

⋙ For general circuits, ±5% is acceptable, but for precision applications, use ±1% or better.

8. Are resistor packs suitable for professional or hobbyist use?

⋙ Both! Professionals use them for prototyping, while hobbyists find them convenient for DIY projects.

9. Are the capacitors labelled clearly in the pack?

⋙ Yes, each capacitor is clearly marked with its value (in pF, nF, or uF) and voltage rating.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
