SMD Resistor 0805 1/8W ±1% Pak 0E to 10M 8500 Pcs 170 Values

SKU: EP528

Technical Specification:

  • Type: SMD
  • Model: 0805 Resistor
  • Package Type: 0805
  • Resistance Range: 0 Ω to 10 MΩ
  • Tolerance: ±1 %
  • Rated Power: 1/8 Watt (0.125W)
  • Pak Weight: 600 gm
  • Pak Dimensions: 280 x 140 x 60 mm

₹2,535.00

Add to wishlist

Description

The SMD Resistor 0805 1/8W ±1% series is a high-quality assortment of chip resistors designed for compact, durable, and reliable performance in electronic circuits. Featuring a wide resistance range from 0 ohms to 10 megaohms with ±1% precision tolerance, this 8500-piece pack with 170 distinct values is perfect for prototyping, repairs, and production in both analog and digital designs.

Resistor Symbol:

0805 Resistor Structure:

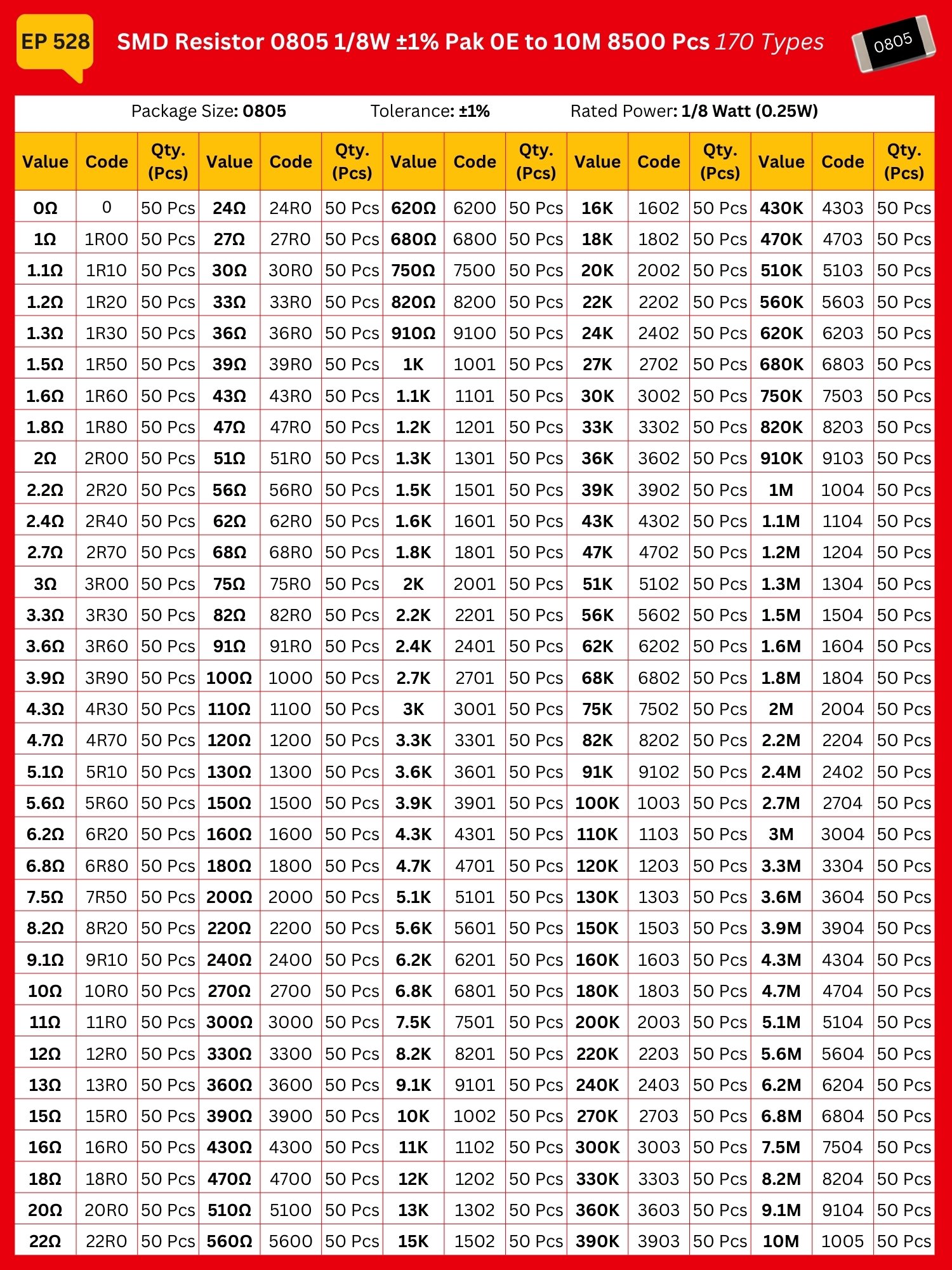

Package Includes

8500 SMD Resistor 0805 1/8W ±1% 170 Values

50 Pcs Each

0E, 1E, 1.1E, 1.2E, 1.3E, 1.5E, 1.6E, 1.8E, 2E, 2.2E, 2.4E, 2.7E, 3E, 3.3E, 3.6E, 3.9E, 4.3E, 4.7E, 5.1E, 5.6E, 6.2E, 6.8E, 7.5E, 8.2E, 9.1E, 10E, 11E, 12E, 13E, 15E, 16E, 18E, 20E, 22E, 24E, 27E, 30E, 33E, 36E, 39E, 43E, 47E, 51E, 56E, 62E, 68E, 75E, 82E, 91E, 100E, 110E, 120E, 130E, 150E, 160E, 180E, 200E, 220E, 240E, 270E, 300E, 330E, 360E, 390E, 430E, 470E, 510E, 560E,620E, 680E, 750E, 820E, 910E, 1K, 1.1K, 1.2K, 1.3K, 1.5K, 1.6K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3K, 3.3K, 3.6K, 3.9K, 4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 130K, 150K, 160K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 360K, 390K, 430K, 470K, 510K, 560K, 620K, 680K, 750K, 820K, 910K, 1M, 1.1M, 1.2M, 1.3M, 1.5M, 1.6M, 1.8M, 2M, 2.2M, 2.4M, 2.7M, 3M, 3.3M, 3.6M, 3.9M, 4.3M, 4.7M, 5.1M, 5.6M, 6.2M, 6.8M, 7.5M, 8.2M, 9.1M, 10M

Features:

  • Larger 0805 size for easier handling and soldering
  • Broad resistance range from 0Ω to 10MΩ
  • ±1% tolerance ensures consistent performance
  • Ideal for manual assembly or rework tasks
  • Excellent stability and reliability

Applications:

  • Consumer Electronics – Suitable for TVs, set-top boxes, remotes, and more
  • Embedded Systems – Used in microcontroller-based circuit designs
  • Industrial Controls – Reliable under harsh conditions and varying loads
  • Automotive Electronics – Suitable for ECUs and sensor circuits
  • Educational & Lab Work – Perfect for learning, testing, and prototyping
1. How do I read the value on an 0805 SMD resistor?

⋙ 0805 resistors use a three- or four-digit code. For example, “103” means 10 × 10³ = 10,000 Ω (10kΩ). For 1% resistors, a 4-digit code like "1002" means 10 × 10² = 1,000 Ω.

2. What’s the difference between 0805 and 0603 resistors?

⋙ 0805 resistors are physically larger and can dissipate more power than 0603 resistors, which are 0.06 x 0.03 inches in size.

3. Can I solder these manually?

⋙ Yes, 0805 size is user-friendly for manual soldering with basic tools.

4. How are the resistors delivered – loose or taped?

⋙ The resistors are provided in labeled cut-tape strips or compartments.

5. Can I use 0805 resistors in audio circuits?

⋙ Yes, especially 1% types for accurate filtering.

6. Can I use two 0805 resistors in parallel/series to create a custom value?

⋙ Absolutely. Parallel or series combinations help achieve uncommon values, share power, or fine-tune tolerance.

7. Do these resistors have color codes?

⋙ No, SMD resistors use numerical codes, not color bands.

8. Is the kit suitable for both analog and digital circuits?

⋙ Yes, it can be used in both types of circuits.

9. Are 0805 resistors polarized?

⋙ No, resistors are non-polar components.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
