3/5mm Diffused LED Pak 220 Pcs 5 Colors

SKU: EP29

Technical Specification:

Type: Through Hole
Model: Diffused LED
Size: 3 mm, 5 mm
Colors: Red, Green, Blue, Yellow, White
Forward Voltage:
- Red, Yellow: 1.8 V – 2.2 V
- Green, Blue, White: 2.8 V – 3.2
- Multi: 1.8 – 3.3 V
Forward Current: 20 mA
Luminous Intensity:
- 3mm: 500 – 2000 mcd
- 5mm: 800 – 4000 mcd
Viewing Angle: 25° – 45°
Polarity:
- Anode: Long lead
- Cathode: Short lead
Wave Length:
- Red, Green, Blue, Yellow, Multi: 460 nm – 630 nm,
- White: 6000 – 7000 K
Pak Weight: 90 gm
Pak Dimensions: 127 x 80 x 24 mm

₹255.00

Add to wishlist

Description

3/5mm Diffused LED Pak 220 Pcs 5 Colors

Add bright and evenly distributed lighting to electronic projects with the 3/5mm Diffused LED Pak. This assortment contains 220 LEDs in five different colors and includes both 3mm and 5mm sizes, offering a useful selection for circuit building, prototyping, repair work and creative lighting applications.

The diffused lens helps spread light more evenly and reduces harsh glare compared to clear LEDs. The 3/5mm Diffused LED Pak is suitable for indicator lights, display panels, breadboard experiments, school projects, decorative lighting, control boards, DIY electronics and model-making applications.

LED Symbol:

LED Structure:

Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

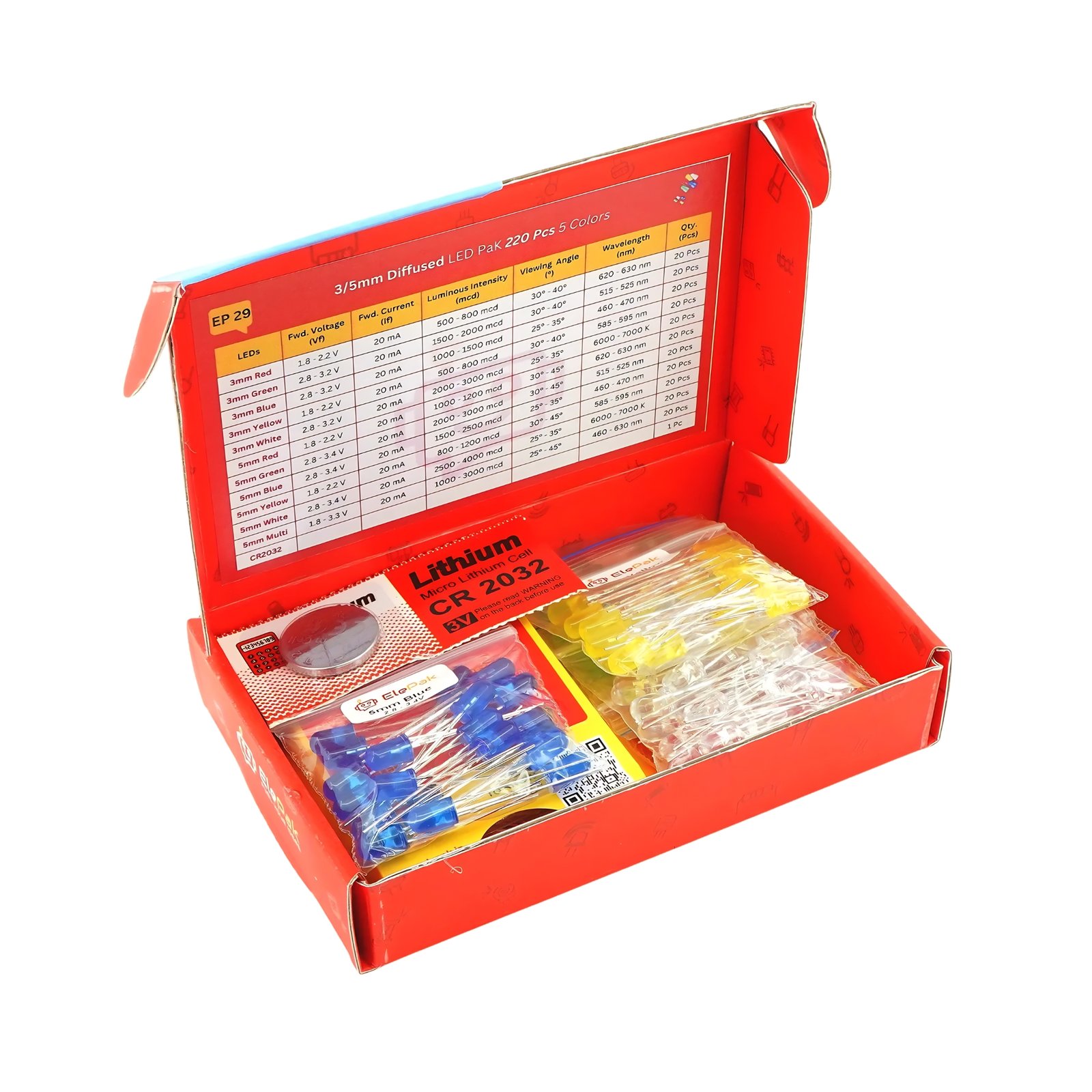

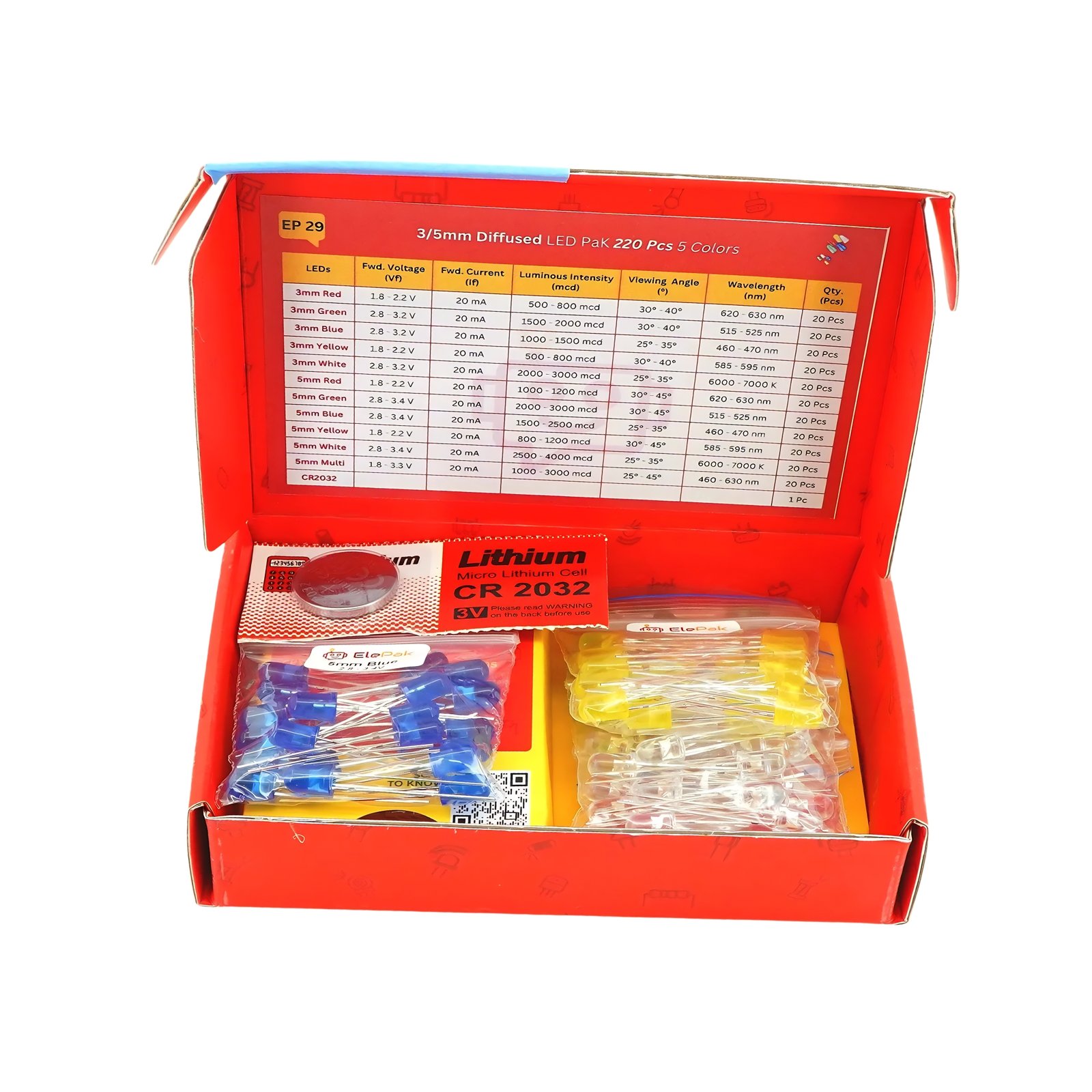

Package Includes

220 Diffused 3/5mm LED 5 Colors

3mm LED

Red - 20 Pcs
Green - 20 Pcs
Blue - 20 Pcs
Yellow - 20 Pcs
White - 20 Pcs

5 mm LED

Red - 20 Pcs
Green - 20 Pcs
Blue - 20 Pcs
Yellow - 20 Pcs
White - 20 Pcs
Multi - 20 Pcs

Additional Information
FAQs

Features:

Soft, even light output with a diffused lens
Wide viewing angle for better visibility
Low power consumption (10mA-20mA)
Versatile applications (DIY, Arduino, robotics, prototyping)
Easy to use with through-hole design and long leads
Reliable and durable with a long lifespan

Applications:

Indicator lights - Used in electronic devices to show power or status
DIY electronics projects - Ideal for hobbyists and makers
Arduino and Raspberry Pi prototyping - Compatible with microcontrollers for interactive projects
Circuit testing and debugging - Helps in identifying voltage and signal flow
Status and signal indicators - Used in control panels and machinery
Robotics and automation - Provides visual feedback in robotic systems
Home appliances and gadgets - Common in TVs, remotes, and kitchen appliances
Model making and decoration - Adds lighting effects to models and crafts
Wearable electronics - Used in smart clothing and accessories
Educational electronics kits - Helps students learn about circuits and components

1. What is the difference between diffused and clear LEDs?

Diffused LEDs have a frosted lens that spreads light evenly, while clear LEDs produce a focused, bright spot.

2. Do I need a resistor to use these LEDs?

Yes, a current-limiting resistor (e.g., 330Ω or 470Ω for 5V) is recommended to prevent damage.

3. What is the difference between 3mm and 5mm LEDs?

3mm LEDs are smaller, great for compact circuits.

5mm LEDs are brighter and more commonly used.

4. How do I identify the anode and cathode?

Anode (+): Long lead

Cathode (-): Short lead or flat side of the LED

5. Are these LEDs polarized?

Yes, LEDs are polarized components. The long lead is the anode (+) and the short lead is the cathode (-).

6. Can I dim these LEDs?

Yes, you can dim them using PWM (Pulse Width Modulation) techniques with microcontrollers like Arduino.

7. Can I solder these LEDs to a PCB?

Yes, these through-hole LEDs can easily be soldered onto a printed circuit board (PCB) for permanent installations.

8. How do I connect multiple LEDs in series?

To connect LEDs in series, connect the anode (+) of one LED to the cathode (-) of the next. Ensure the total forward voltage does not exceed your power supply’s voltage.

9. Can I stack multiple LEDs in parallel?

Yes, you can connect LEDs in parallel if you use the appropriate resistors for each one, ensuring each LED gets the correct current.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
