5mm Diffused LED Pak 100 Pcs 5 Colors - Image 4

5mm Diffused LED Pak 100 Pcs 5 Colors

SKU: EP32

Technical Specification:

Type: Through Hole
Model: Diffused LED
Size: 5 mm
Colors: Red, Green, Blue, Yellow, White
Fwd. Voltage: 1.8 V – 3.4 V
Fwd. Current: 20 mA
Viewing Angle: 25° to 45°
Luminous Intensity: 800 mcd – 4000 mcd
Wavelength:
- Red, Green, Blue, Yellow: 515 nm – 630 nm
- White: 6000 – 7000 K
Pak Weight: 70 gm
Pak Dimensions: 127 x 80 x 24 mm

₹150.00

Add to wishlist

Description

5mm Diffused LED Pak 100 Pcs 5 Colors

The 5mm Diffused LED Pak 100 Pcs 5 Colors is a practical assortment of through-hole LEDs for electronic circuits, indicator panels, prototypes and creative lighting projects. The pack includes 100 LEDs in five different colours, providing a convenient selection for testing, repairs and circuit assembly.

Each LED features a 5mm diffused lens that spreads light evenly and produces a softer glow than a clear-lens LED. The 5mm Diffused LED Pak 100 Pcs 5 Colors is suitable for breadboards, control boards, display panels, school projects, model making, decorative circuits and DIY electronics applications.

LED Symbol:

LED Structure:

Explore a wide range of LEDs for indicators, displays, lighting, circuit prototyping and creative electronic projects.

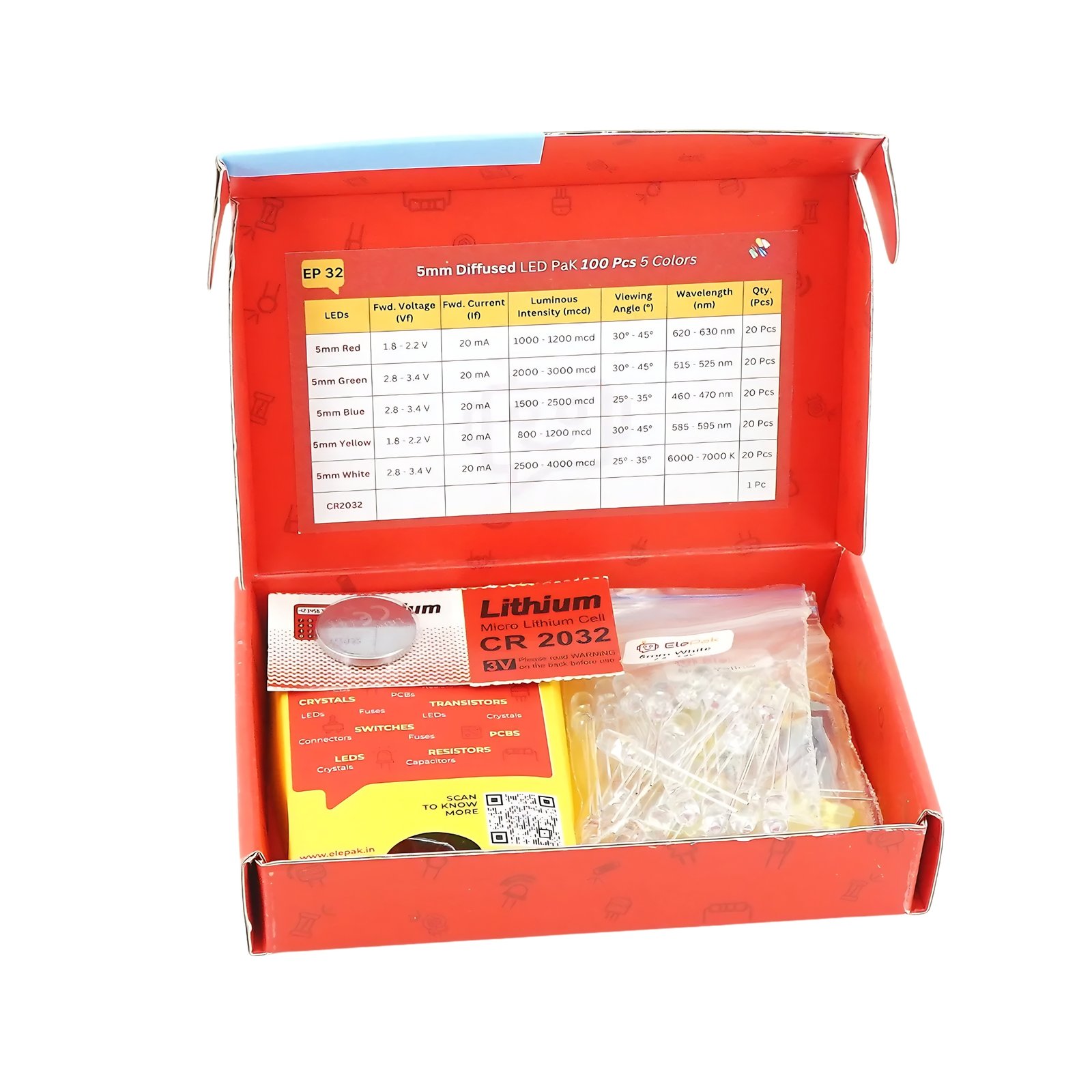

Package Includes

100 Pcs Diffused 5mm LED 5 Colors

5mm Red - 20 Pcs
5mm Green - 20 Pcs
5mm Blue - 20 Pcs
5mm Yellow - 20 Pcs
5mm White - 20 Pcs

Additional Information
FAQs

Features:

Energy-efficient, low power consumption
• Long lifespan of 50,000+ hours
•   Diffused lens for uniform light distribution
•   Wide viewing angle (30° - 60°)
•   Suitable for Arduino, Raspberry Pi, and circuit projects
•   High brightness with stable illumination
•   Compact 5mm size, easy to fit in breadboards and PCBs
•   Operates at low voltage (1.8V - 3.2V) with minimal heat
•   Easy to use with a standard through-hole design

Applications:

Electronic Prototyping - Used in breadboards and circuit testing
Arduino & Raspberry Pi Projects - Ideal for indicator lights and displays
DIY Electronics & Hobby Projects - Great for custom lighting and creative builds
Indicator Lights - Used in home appliances, power status indicators, and control panels
Automotive Applications - Dashboard indicators, signal lights, and interior lighting
Decorative Lighting - Used in signage, models, and ambient lighting setups
Toys & Gadgets - Adds visual effects and interactive lighting to toys
Educational Kits - Helps students learn electronics and circuit design
Wearable Electronics - Integrated into costumes, accessories, and smart clothing
Remote Controls & IR Applications - Some variants used for infrared signaling

1. What is the difference between diffused and clear LEDs?

Diffused LEDs have a frosted lens that spreads light evenly, while clear LEDs produce a focused, bright spot.

2. Are these LEDs pre-wired?

No, these are through-hole LEDs and need to be soldered onto a circuit board.

3. Do these LEDs require resistors?

Yes, resistors are recommended to limit current and avoid damaging the LEDs, depending on your power supply.

4. What is the size of the LED's lead?

The lead size is standard for 5mm LEDs, usually around 0.5mm in diameter.

5. Are these LEDs polarized?

Yes, LEDs are polarized components. The long lead is the anode (+) and the short lead is the cathode (-).

6. Can these LEDs be dimmed?

Yes, these LEDs can be dimmed by adjusting the voltage or using a PWM controller.

7. Can I solder these LEDs to a PCB?

Yes, these through-hole LEDs can easily be soldered onto a printed circuit board (PCB) for permanent installations.

8. Can these LEDs be used in a series circuit?

Yes, these LEDs can be connected in series with appropriate resistors.

9. Are the LEDs pre-assembled into any form?

No, the LEDs are not pre-assembled and need to be soldered individually.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
