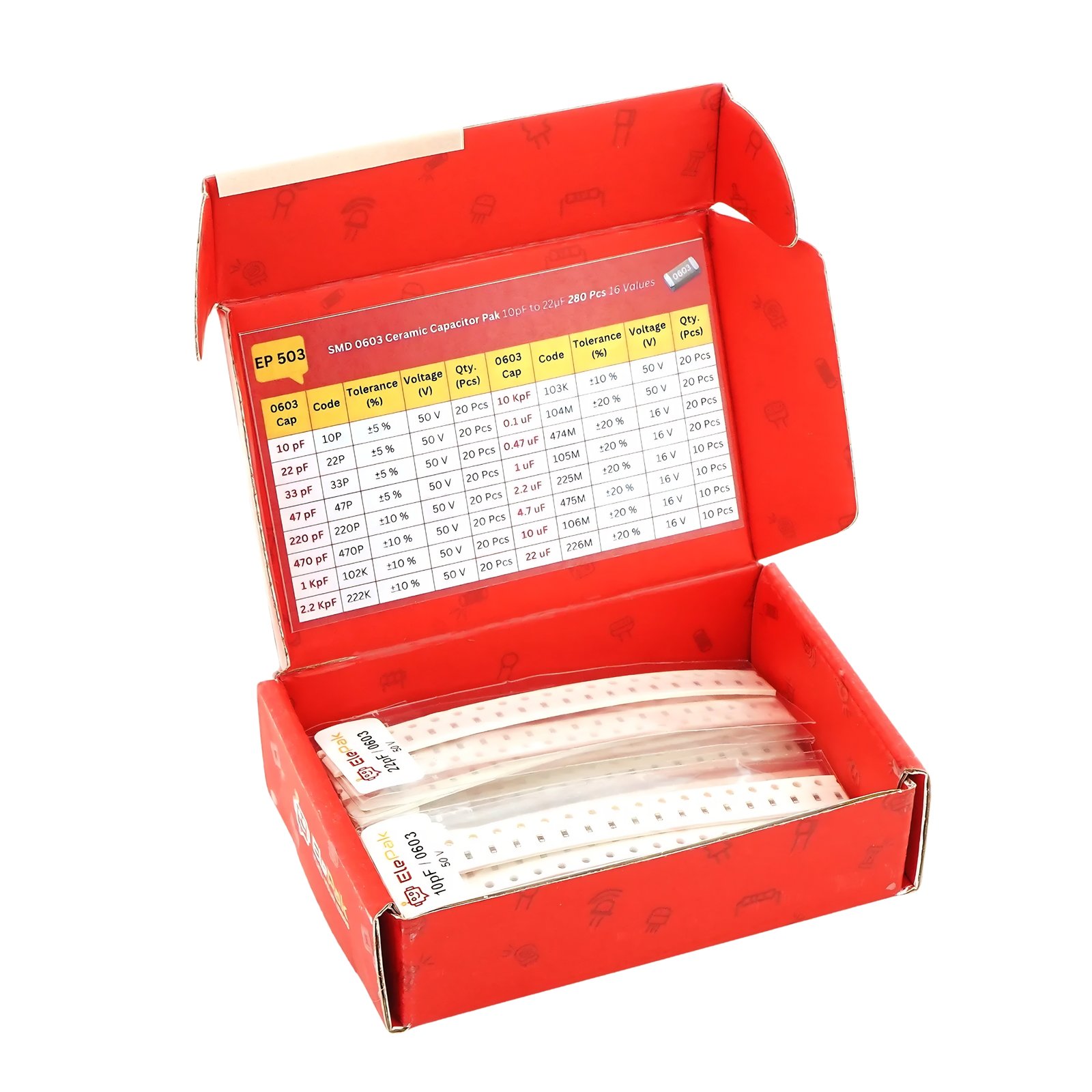

SMD 0603 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

SKU: EP503

Technical Specification:

Type: SMD
Model: 0603 Capacitor
Package Type: 0603
Capacitance Range: 10 pF – 22 µF
Voltage Ratings: 16 V, 50 V
Tolerance:

- ±5% for high precision
- ±10% for standard tolerance
- ±20% for general-purpose use

Pak Weight: 60 gm
Pak Dimensions: 90 x 60 x 24 mm

₹420.00

Add to wishlist

Description

SMD 0603 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

The SMD 0603 Capacitor Pak is a practical assortment of compact surface-mount capacitors designed for modern electronic circuits. The 0603 package measures approximately 0.06 × 0.03 inches and is widely used in high-density PCB layouts where space-saving components are required.

This pack includes 280 SMD capacitors in 16 capacitance values ranging from 10pF to 22µF. The assortment is suitable for filtering, coupling, bypassing, noise reduction and voltage-stabilisation applications. The SMD 0603 Capacitor Pak is ideal for electronic prototyping, circuit repairs, testing, maintenance and small-scale production. Each value is organised and clearly labelled for quick identification and convenient use.

0603 Capacitor Symbol:

0603 Capacitor Structure:

Explore a wide range of capacitors for electronic projects, repairs, prototyping and circuit applications.

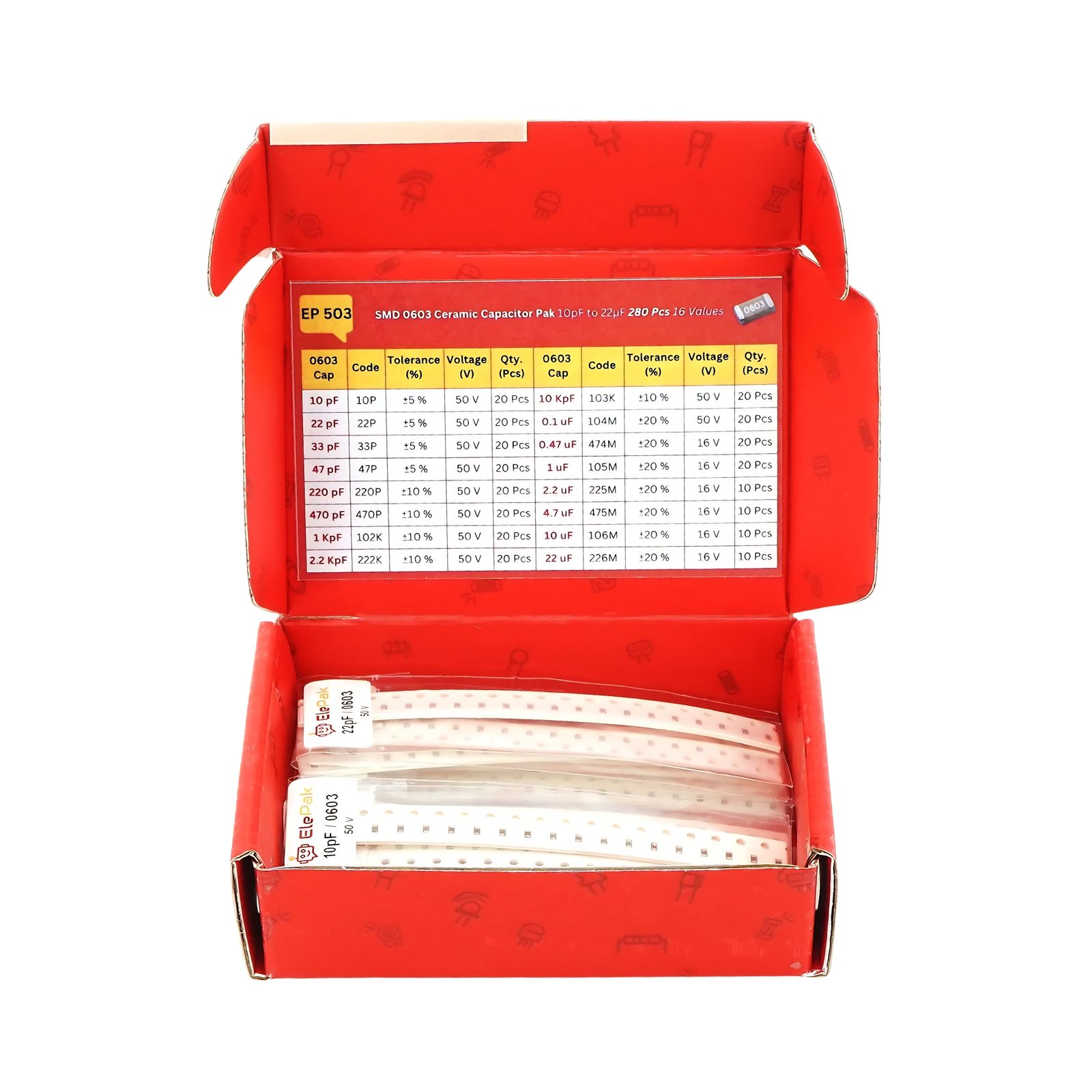

Package Includes

280 SMD 0603 Capacitor 16 Types

10pF - 20 Pcs
22pF - 20 Pcs
33pF - 20 Pcs
47pF - 20 Pcs
220pF - 20 Pcs
470pF - 20 Pcs
1nF (102K) - 20 Pcs
2.2nF (222K) - 20 Pcs
10nF (103K) - 20 Pcs
0.1µF (104M) - 20 Pcs
0.47µF (474M) - 20 Pcs
1µF (105M) - 20 Pcs
2.2µF (225M) - 10 Pcs
4.7µF (475M) - 10 Pcs
10µF (106M) - 10 Pcs
22µF (226M) - 10 Pcs

Additional Information
FAQs

Features:

Wide range of capacitance values
Multiple voltage ratings
Compact 0603 package size
High reliability
Convenient for prototyping and repairs
Cost-effective for small-scale projects
Easy identification with clear markings
Suitable for high-frequency applications
Space-saving design for compact circuits
High compatibility with automated assembly systems

Applications:

Bypass and Decoupling: Prevents voltage fluctuations and noise in power supply circuits
Signal Filtering: Removes unwanted noise or smooths signals in high-frequency circuits
Energy Storage: Stores and releases electrical energy in power supply and timing circuits
Oscillators and Timing Circuits: Used in frequency control and timing applications
Coupling and Decoupling: Transfers AC signals while blocking DC in communication circuits
Power Supply Smoothing: Smooths voltage fluctuations in power supplies and regulators
Signal Coupling in Audio Circuits: Passes AC signals while blocking DC in audio equipment
RF Circuits: Filters signals in radio frequency circuits for better performance

1. Can I use these capacitors in both AC and DC circuits?

⋙ Yes, these capacitors can be used in both AC and DC circuits, but their performance is optimized for specific applications.

2. Are these capacitors suitable for DIY projects?

⋙ Yes, they are perfect for DIY projects, prototyping, and repairing electronic circuits.

3. How do I know which capacitor to use for my circuit?

⋙ Choose based on capacitance, voltage rating, and tolerance for your specific application needs.

4. Are these capacitors polarized?

⋙ No, these are ceramic capacitors, which are non-polarized and can be placed in any orientation.

5. Can I stack multiple capacitors to increase capacitance?

⋙ Yes, you can connect capacitors in parallel to increase capacitance and in series to increase voltage rating.

6. How can I test the capacitance of a capacitor?

⋙ You can use a multimeter with capacitance measurement or an LCR meter to test the capacitance.

7. Are these capacitors temperature stable?

⋙ Yes, ceramic capacitors typically have a stable performance over a wide range of temperatures.

8. Are these capacitors compatible with all PCB designs?

⋙ Yes, as SMD capacitors, they are compatible with most PCB designs, especially those designed for surface-mount components.

9. Are the capacitors labelled clearly in the pack?

⋙ Yes, each capacitor is clearly marked with its value (in pF, nF, or uF) and voltage rating.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
