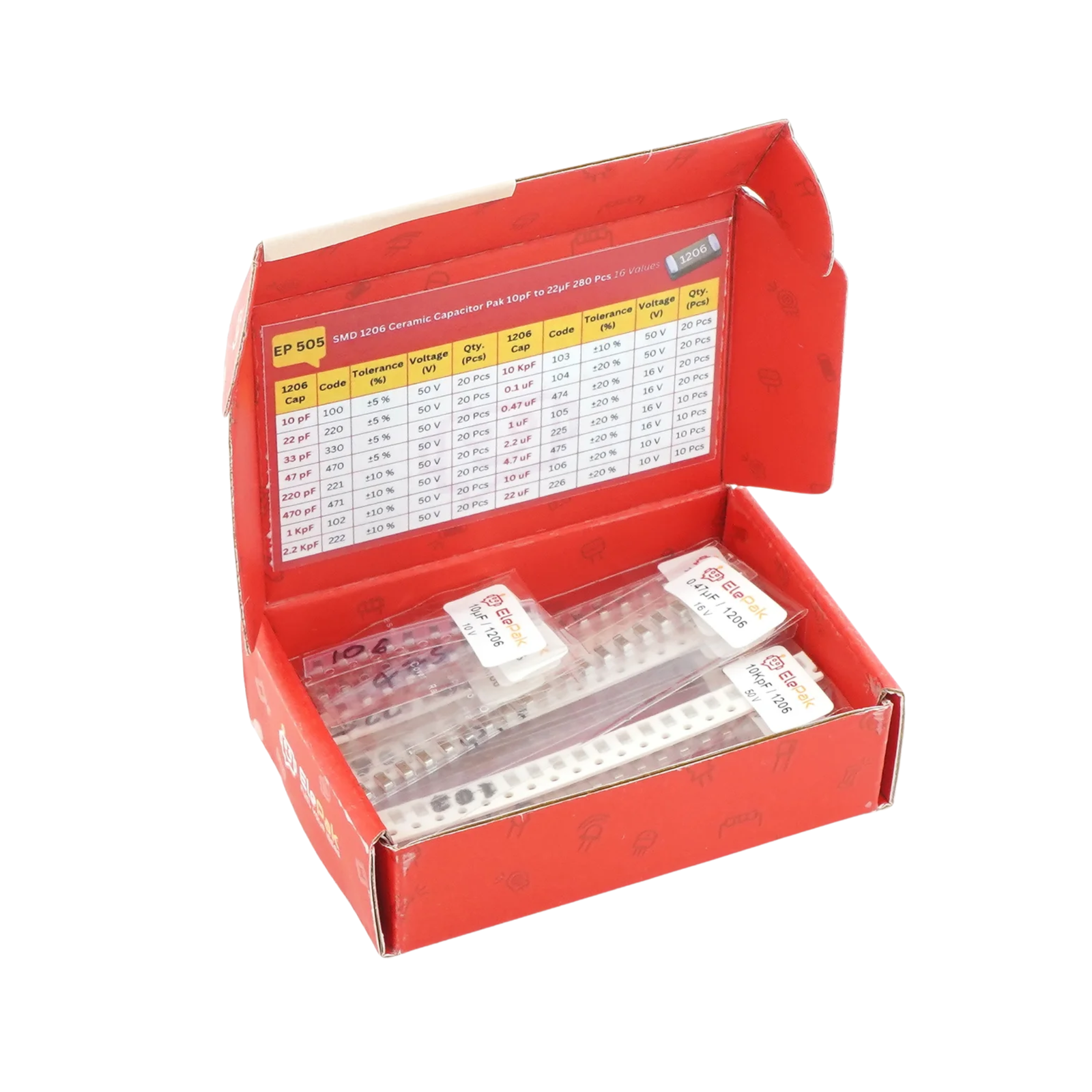

SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

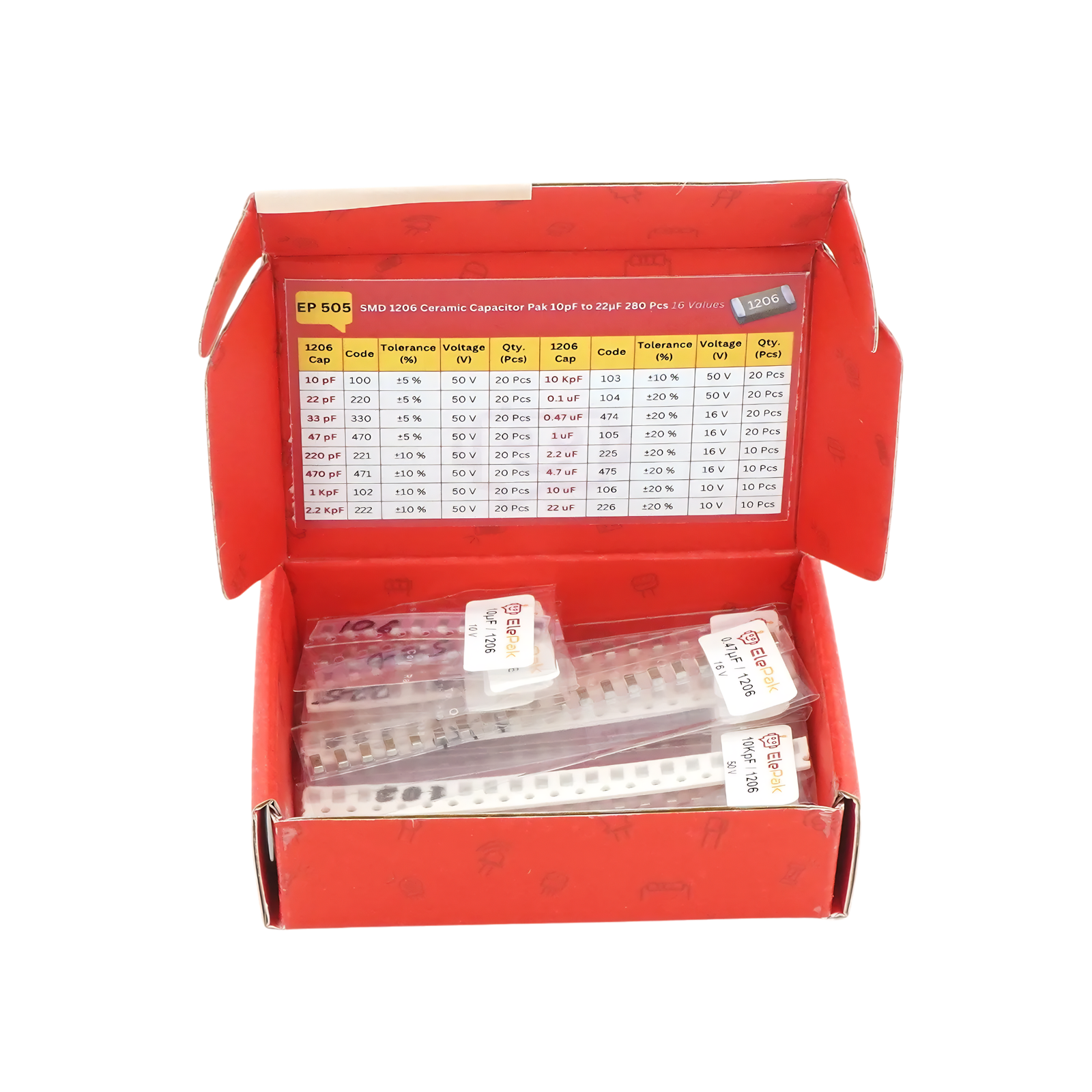

SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values - Image 2

360 product view

Click to enlarge

SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values - Image 4

SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

SKU: EP505

Technical Specification:

Type: SMD
Model: 0805 Capacitor
Package Type: 0805
Capacitance Range: 10 pF – 22 µF
Voltage Ratings: 10 V,16 V, 50 V
Tolerance:

- ±5% for high precision
- ±10% for standard tolerance
- ±20% for general-purpose use

Pak Weight: 60 gm
Pak Dimensions: 90 x 60 x 24 mm

₹565.00

Add to wishlist

Description

SMD 1206 Capacitor Pak 10pF to 22µF 280 Pcs 16 Values

The SMD 1206 Capacitor Pak is a useful assortment of ceramic surface-mount capacitors for designing, assembling and repairing electronic circuits. This pack contains 280 capacitors in 16 capacitance values ranging from 10pF to 22µF, providing a versatile selection for both signal and power applications.

Featuring the standard 1206 package size of approximately 3.2 × 1.6mm, these capacitors are compact while remaining convenient to handle during PCB assembly and rework. The SMD 1206 Capacitor Pak is suitable for filtering, decoupling, bypassing, noise suppression and voltage stabilisation in control boards, power supplies, communication circuits, consumer devices and DIY electronics projects.

1206 Capacitor Symbol:

1206 Capacitor Structure:

Explore a wide range of capacitors for electronic projects, repairs, prototyping and circuit applications.

Package Includes

280 SMD 1206 Capacitor 16 Types

10pF - 20 Pcs
22pF - 20 Pcs
33pF - 20 Pcs
47pF - 20 Pcs
220pF - 20 Pcs
470pF - 20 Pcs
1nF (102K) - 20 Pcs
2nF (222K) - 20 Pcs
10nF (103K) - 20 Pcs
1µF (104M) - 20 Pcs
47µF (474M) - 20 Pcs
1µF (105M) - 20 Pcs
2µF (225M) - 10 Pcs
7µF (475M) - 10 Pcs
10µF (106M) - 10 Pcs
22µF (226M) - 10 Pcs

Additional Information
FAQs

Features:

Compact size
High reliability and durability
Wide capacitance range
Good voltage handling
Low ESR & ESL (reduces power loss and noise)
Supports automated SMT assembly
Excellent thermal stability
Versatile applications (decoupling, filtering, signal processing)

Applications:

Power Supply Decoupling - Stabilizes voltage and reduces noise in circuits
Signal Filtering - Removes unwanted high-frequency interference
Timing Circuits - Helps set frequency in oscillators and timers
Energy Storage - Temporarily holds charge for power regulation
Consumer Electronics - Used in smartphones, laptops, and wearable

1. Can I use these capacitors in both AC and DC circuits?

⋙ Yes, these capacitors can be used in both AC and DC circuits, but their performance is optimized for specific applications.

2. What is the difference between 1206 and 0805 capacitors?

⋙ 1206 is larger and handles higher power, while 0805 is smaller with lower ratings.

3. How do I know which capacitor to use for my circuit?

⋙ Choose based on capacitance, voltage rating, and tolerance for your specific application needs.

4. Are 1206 capacitors polarized?

⋙ No, these are ceramic capacitors, which are non-polarized and can be placed in any orientation.

5. Can I use multiple 1206 capacitors in parallel?

⋙ Yes, it increases capacitance and reduces ESR for better power filtering.

6. Why are 1206 capacitors widely used in PCB design?

⋙ They offer a balance between size, capacitance, and ease of handling for automated assembly.

7. How do I measure the capacitance of a 1206 capacitor?

⋙ Yes, ceramic capacitors typically have a stable performance over a wide range of temperatures.

8. Are these capacitors compatible with all PCB designs?

⋙ Use an LCR meter or a digital multimeter with capacitance mode.

9. Are the capacitors labelled clearly in the pack?

⋙ Yes, each capacitor is clearly marked with its value (in pF, nF, or uF) and voltage rating.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
