SMD Electrolytic Capacitor Pak 1µF to 220µF 120 Pcs 13 Values

SKU: EP501

Technical Specification:

Type: SMD
Model: Electrolytic Capacitor
Capacitance Range: 1 µF – 220 µF
Voltage Ratings: 10 V, 16 V, 25 V, 50 V
Size: 4 x 5 mm, 5 x 5 mm, 6 x 5 mm
Pak Weight: 80 gm
Pak Dimensions: 150 x 100 x 35 mm

₹545.00

Add to wishlist

Description

SMD Electrolytic Capacitor Pak 1µF to 220µF 120 Pcs 13 Values

The SMD Electrolytic Capacitor Pak provides a useful assortment of compact capacitors for filtering, smoothing, coupling and energy-storage applications. It contains 120 capacitors in 13 capacitance values ranging from 1µF to 220µF, making it suitable for circuit prototyping, electronic repairs, testing and component replacement.

Designed for surface-mount installation, these electrolytic capacitors help save PCB space while supporting stable power-supply and signal circuits. The SMD Electrolytic Capacitor Pak is suitable for power modules, control boards, LED circuits, communication devices, consumer electronics and DIY projects.

Electrolytic Cap Symbol:

Electrolytic Cap Structure:

Electrolytic Cap Part Code:

Explore a wide range of capacitors for electronic projects, repairs, prototyping and circuit applications.

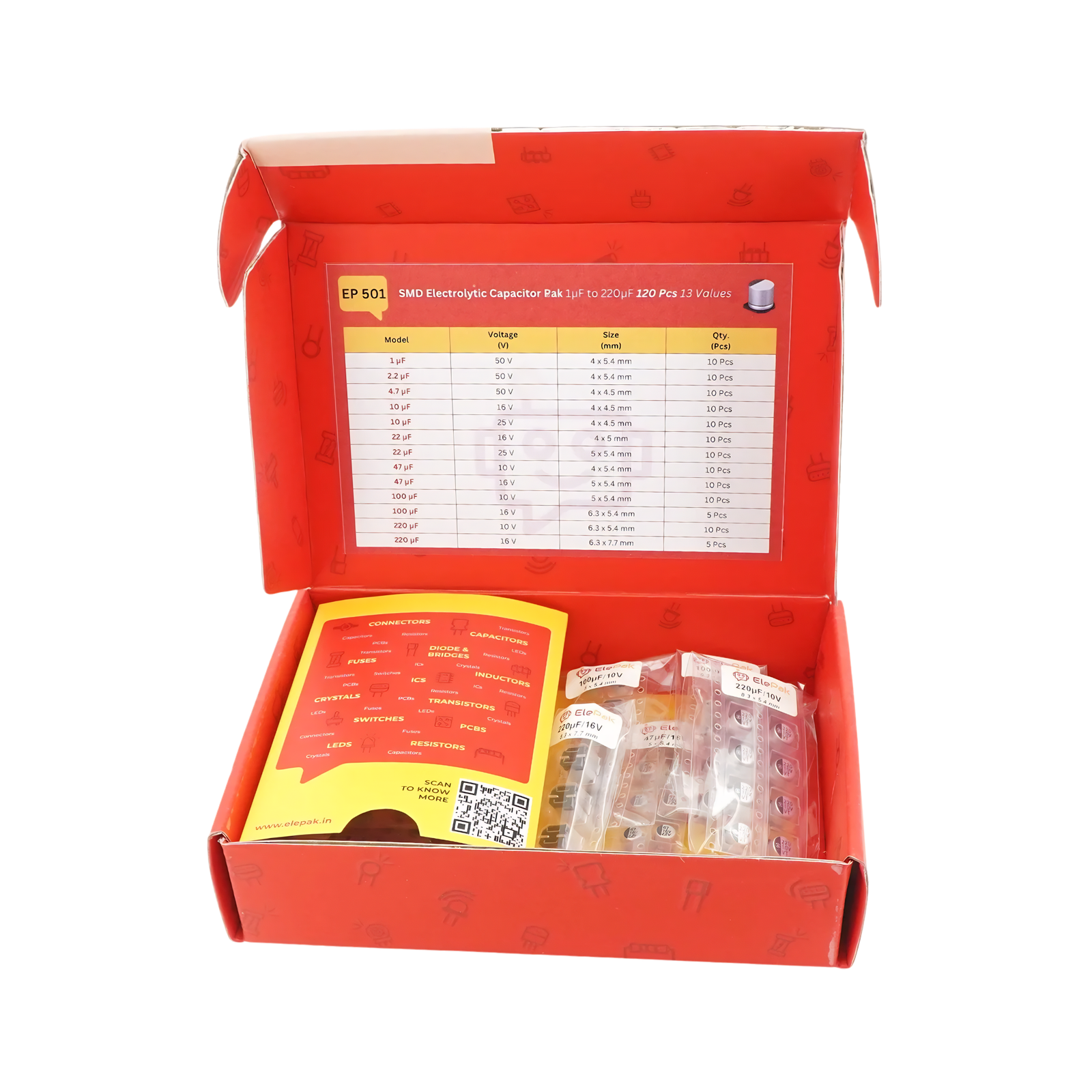

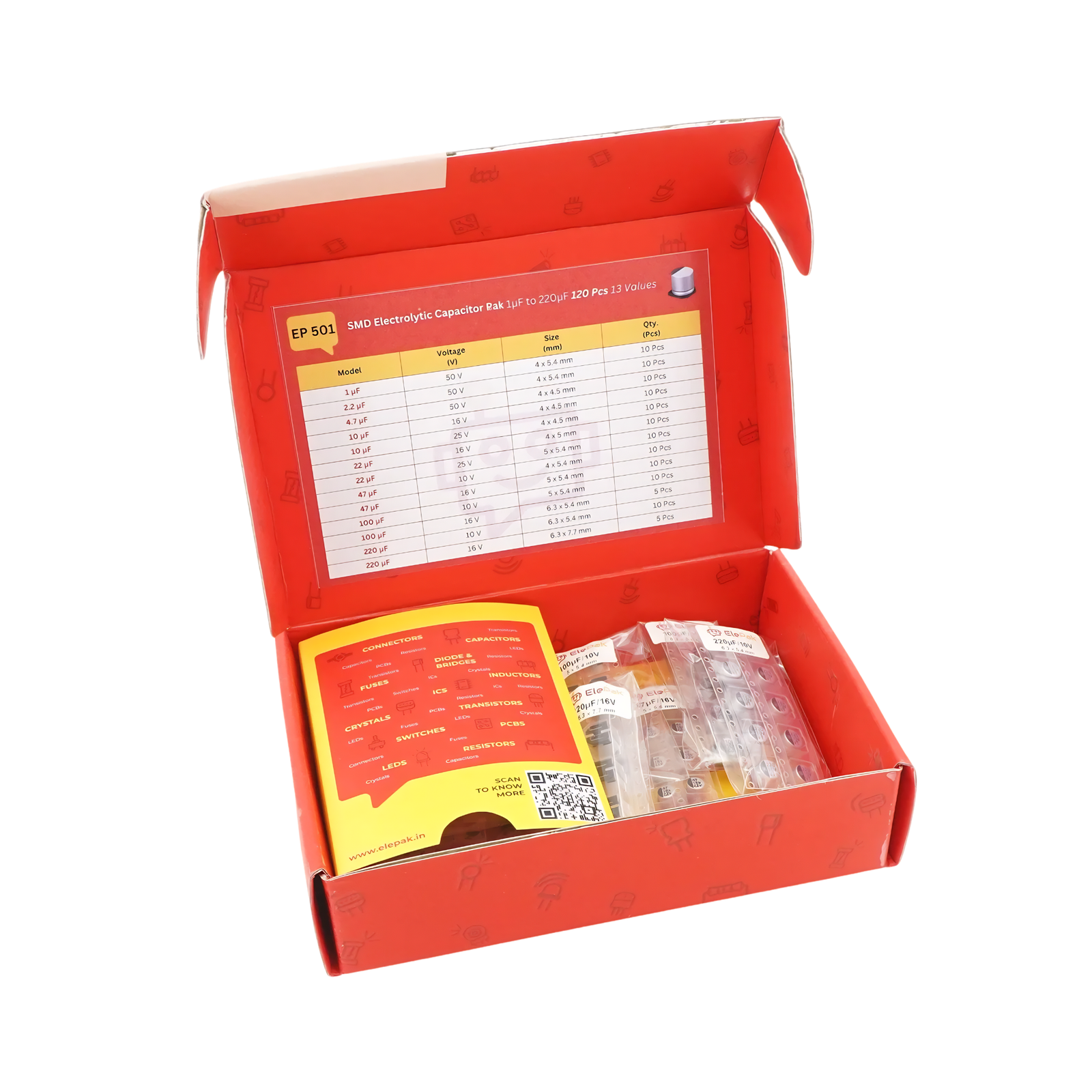

Package Includes

120 SMD Electrolytic Capacitor 13 Types

1µF / 50V - 4 x 5 mm - 10 Pcs
2.2µF / 50V - 4 x 5 mm - 10 Pcs
4.7µF / 50V - 4 x 5 mm - 10 Pcs
10µF / 16V - 4 x 5 mm - 10 Pcs
10µF / 25V - 4 x 5 mm - 10 Pcs
22µF / 16V - 4 x 5 mm - 10 Pcs
22µF / 25V - 4 x 5 mm - 10 Pcs
47µF / 10V - 5 x 5 mm - 10 Pcs
47µF / 16V - 5 x 5 mm - 10 Pcs
100µF / 10V - 6 x 5 mm - 10 Pcs
100µF / 16V - 6 x 5 mm - 5 Pcs
220µF / 10V - 6 x 5 mm - 10 Pcs
220µF / 16V - 6 x 5 mm - 5 Pcs

Additional Information
FAQs

Features:

Compact size
Wide capacitance range
High voltage ratings
Low ESR
High ripple current handling
Long lifespan
Stable performance
Automated PCB assembly compatible
Ideal for filtering & decoupling

Applications:

Power Supply Filtering: Smooths voltage fluctuations in power circuits
Voltage Regulation: Stabilizes voltage in regulator circuits
DC-DC Converters: Ensures efficient energy transfer in switching circuits
Signal Coupling & Decoupling: Blocks DC components while allowing AC signals
Embedded Systems & IoT Devices: Used in compact, low-power electronic devices
Consumer Electronics Repair: Replaces faulty capacitors in electronic gadgets
Automotive Electronics: Supports power management in vehicle control systems
Industrial Equipment: Used in control circuits and power electronics
Audio & RF Circuits: Reduces noise and improves signal quality
LED Drivers & Lighting Systems: Regulates power for stable LED operation

1. How do I choose the right SMD electrolytic capacitor?

⋙ Match capacitance, voltage rating, ESR, and physical size based on circuit requirements.

2. What happens if I install an electrolytic capacitor backward?

⋙ It may overheat, leak, or explode due to reversed polarity.

3. How do I test an SMD electrolytic capacitor?

⋙ Use a multimeter in capacitance mode or check for voltage drop using a continuity test.

4. What is the ESR of an electrolytic capacitor?

⋙ ESR (Equivalent Series Resistance) affects performance and should be low for power applications.

5. Can I parallel electrolytic capacitors?

⋙ Yes, this increases the total capacitance while maintaining the same voltage rating.

6. Can I series electrolytic capacitors?

⋙ Yes, this increases the voltage rating but reduces the total capacitance.

7. Are SMD electrolytic capacitors polarized?

⋙ Yes, they have a positive and a negative terminal, unlike ceramic capacitors.

8. Can an electrolytic capacitor be used in AC circuits?

⋙ Only if it is a non-polarized electrolytic capacitor; standard ones are for DC only.

9. Do SMD electrolytic capacitors have inductance?

⋙ Yes, but the inductance is lower compared to through-hole electrolytic capacitors.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
