    SMD Resistor 2512 2W ±1% Pak 0E01 to 1E 50 Pcs 10 Values

    SKU: EP524

    Technical Specification:

    • Type: SMD
    • Model: 2512 Resistor
    • Package Type: 2512
    • Resistance Range: 0E01 – 1E
    • Tolerance: ±1 %
    • Power Rating: 2 W
    • Pak Weight: 50 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹475.00

    Add to wishlist

    Description

    SMD Resistor 2512 2W ±1% Pak 0E01 to 1E 50 Pcs 10 Values

    The SMD Resistor 2512 2W ±1% Pak 0E01 to 1E is a useful assortment of high-power, low-resistance surface-mount resistors for accurate current sensing and power-management circuits. This pack contains 50 resistors in 10 resistance values ranging from 0.01Ω to 1Ω, with 5 pieces of each value.

    Featuring a 2512 package, 2W power rating and ±1% tolerance, these resistors provide stable performance and precise resistance control. The SMD Resistor 2512 2W ±1% Pak 0E01 to 1E is suitable for battery-management systems, power supplies, motor drivers, chargers, automotive electronics, circuit repairs, testing and PCB development.

    Resistor Symbol:

    2512 2W Resistor Structure:



    Explore a wide range of SMD resistors for current limiting, voltage division, circuit repair, testing and PCB applications.

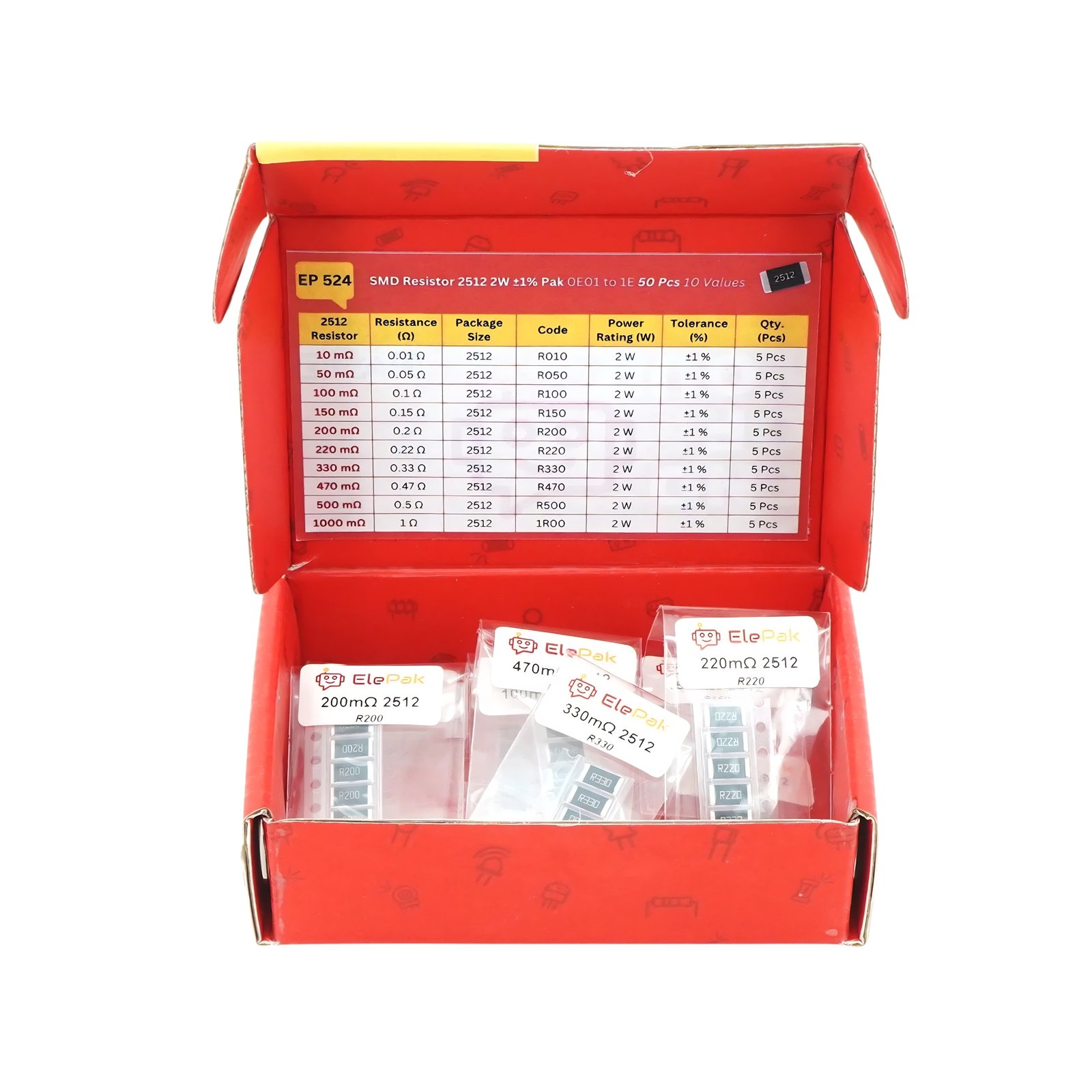

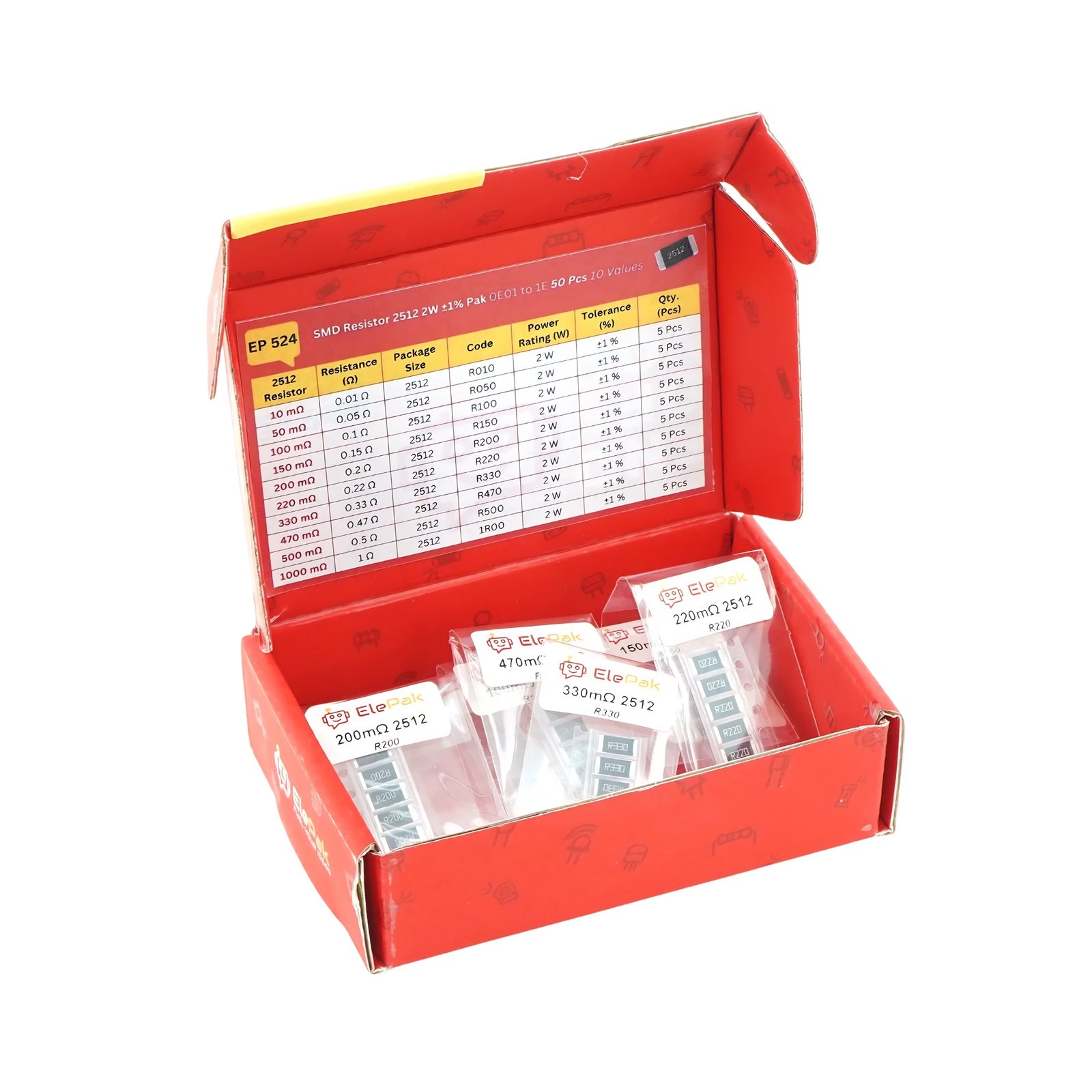

    Package Includes

    50 SMD Resistor 2512 2W ±1% 10 Values

    • 10 mΩ (R010) – 5 Pcs
    • 50 mΩ (R050) – 5 Pcs
    • 100 mΩ (R100) – 5 Pcs
    • 150 mΩ (R150) – 5 Pcs
    • 200 mΩ (R200) – 5 Pcs
    • 220 mΩ (R220) – 5 Pcs
    • 330 mΩ (R330) – 5 Pcs
    • 470 mΩ (R470) – 5 Pcs
    • 500 mΩ (R500) – 5 Pcs
    • 1000 mΩ (1R00) – 5 Pcs

    Features:

    • High Power Rating (2W)
    • Compact 2512 Package
    • Low Resistance Values (0.01Ω to 1Ω)
    • ±1% Tolerance for Accuracy
    • Low Inductance for High-Frequency Circuits
    • Good Thermal Stability
    • Durable and Reliable
    • Wide Application Range

    Applications:

    • Current Sensing - Used for measuring current in circuits
    • Battery Management Systems (BMS) - Monitors and controls battery performance
    • Motor Control - Provides accurate current feedback for efficient operation
    • Power Supply Circuits - Ensures stable voltage and current regulation
    • Automotive Electronics - Used in ECUs and other vehicle power applications
    1. Are these resistors suitable for PCB mounting?

    ⋙ Yes, they are surface-mount (SMD) components.

    2. Do these resistors work with AC and DC circuits?

    ⋙ Yes, they are compatible with both AC and DC applications.

    3. Do these resistors support automated assembly?

    ⋙ Yes, they are designed for SMT (Surface Mount Technology).

    4. Can these resistors be used in parallel or series configurations?

    ⋙ Yes, they can be combined for custom resistance values.

    5. How do I read the marking on an SMD resistor?

    ⋙ Usually marked with a 3- or 4-digit code or alphanumeric notation.

    6. Are these resistors suitable for DIY electronics projects?

    ⋙ Yes, but SMD soldering requires special tools and skills.

    7. How do I test the resistance of an SMD resistor?

    ⋙ Use a digital multimeter (DMM) in resistance mode.

    8. Are 2512 resistors polarized?

    ⋙ No, resistors are non-polarized components.

    9. Are these resistors individually labelled?

    ⋙ Yes, each value is clearly marked for easy identification.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
