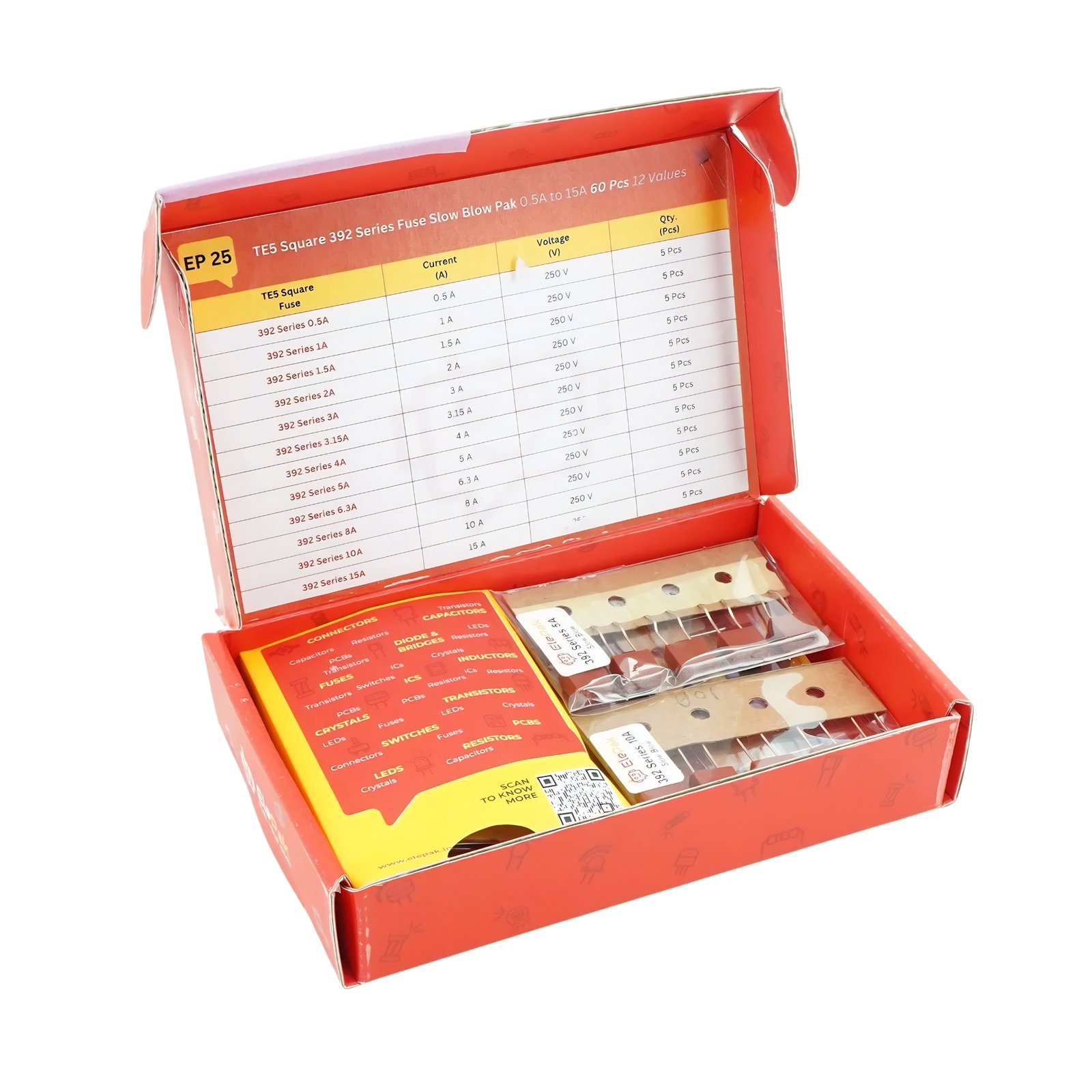

TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values

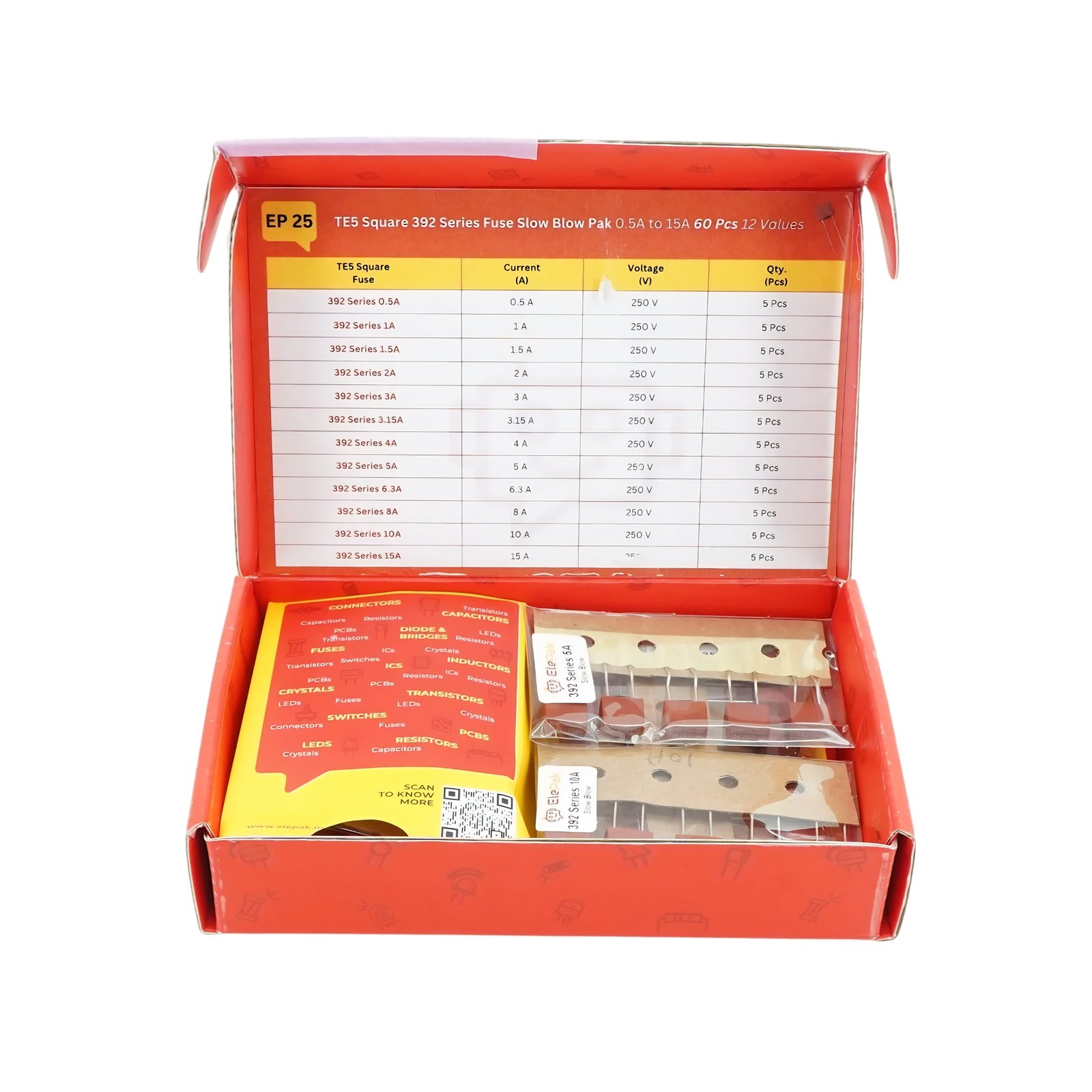

TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values - Image 2

360 product view

Click to enlarge

TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values - Image 4

TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values

SKU: EP25

Technical Specification:

Type: Through Hole
Product Type: TE5 Square 392 Series Fuse Slow Blow Pak
Model: Square Glass Fuse
Current Ratings: 0.5 A – 15 A
Voltage Rating: 250 VAC
Material:
- Base/Cap: Brown Thermoplastic Polyamide
- Round Pins: Copper, Sn plated
Pak Weight: 100 gm
Pak Dimensions: 127 x 80 x 24 mm

₹385.00

Add to wishlist

Description

TE5 Square 392 Series Fuse Slow Blow Pak 0.5A to 15A 60 Pcs 12 Values

Keep essential spare fuses organised and ready with the TE5 Square 392 Series Fuse Slow Blow Pak. This assortment contains 60 fuses divided across 12 current ratings from 0.5A to 15A, providing a convenient selection for circuit assembly, maintenance, replacement and electronic repair work.

Featuring a compact square body and radial leads, these TE5 fuses are suitable for direct PCB mounting. Their slow-blow characteristic allows brief startup currents and temporary surges to pass while providing protection against prolonged overload conditions. The TE5 Square 392 Series Fuse Slow Blow Pak is useful for power supplies, control boards, transformers, household appliances, industrial electronics and other circuits that experience short inrush currents.

Fuse Symbol:

Square Fuse Part Code:

Square Fuse Structure:

Explore quality fuses suitable for protecting electronic devices, circuits, appliances and DIY projects.

Package Includes

60 Square 392 Series TE5 Time Lag Fuse 12 Types

0.5 A - 5 Pcs
1 A - 5 Pcs
1.5 A - 5 Pcs
2 A - 5 Pcs
3 A - 5 Pcs
3.15 A - 5 Pcs
4 A - 5 Pcs
5 A - 5 Pcs
6.3 A - 5 Pcs
8 A - 5 Pcs
10 A - 5 Pcs
15 A - 5 Pcs

Additional Information
FAQs

Features:

Reduced PCB space requirements
Direct solderable or plug-in versions
Internationally approved
Low internal resistance
Shock safe casing
Vibration resistant

Applications:

Home appliances: Prevents damage from overcurrent in devices like refrigerators and microwaves
Automotive circuits: Protects electrical systems in vehicles from surges and faults
Power supply systems: Safeguards circuits from overloads and short circuits
Industrial machinery: Ensures machinery and motors are safe from electrical faults
Audio equipment: Protects audio systems from overcurrent damage
Consumer electronics: Shields devices like TVs and computers from power surges
Lighting systems: Prevents overload damage in lighting circuits and fixtures
Small electronic devices: Protects chargers and adapters from power issues
DIY electronics projects: Safeguards custom circuits from electrical faults

1. What is the purpose of fuses in this assortment?

Fuses protect electrical circuits by breaking the circuit when current exceeds safe levels.

2. How do I choose the right fuse for my application?

Choose a fuse with an amperage rating equal to or slightly higher than the device’s operating current.

3. Are these fuses reusable?

No, fuses are single-use and need replacing once they blow.

4. What happens if I use a fuse with the wrong rating?

Using an incorrect rating can cause either frequent fuse blowouts or inadequate protection, leading to potential damage.

5. Are these fuses compatible with all devices?

These fuses work with most low-voltage electrical devices but verify device compatibility first.

6. What type of fuse is the Square 392 Series?

The Square 392 Series is a radial-lead fuse designed for general overcurrent protection.

7. What is the difference between a 392 Series Square Fuse and a Glass Fuse?

A 392 Series Square Fuse has a ceramic body and is designed for durability, thermal resistance, and compactness, while a Glass Fuse has a transparent glass tube, is typically used in low-power circuits, and allows for visual inspection of the fuse element.

8. Are these fuses rated for AC or DC applications?

These fuses are suitable for both AC and DC applications, depending on the specific device.

9. How do I replace a blown 392 Series fuse?

Simply remove the blown fuse and replace it with one of the same amperage rating to restore circuit protection.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
