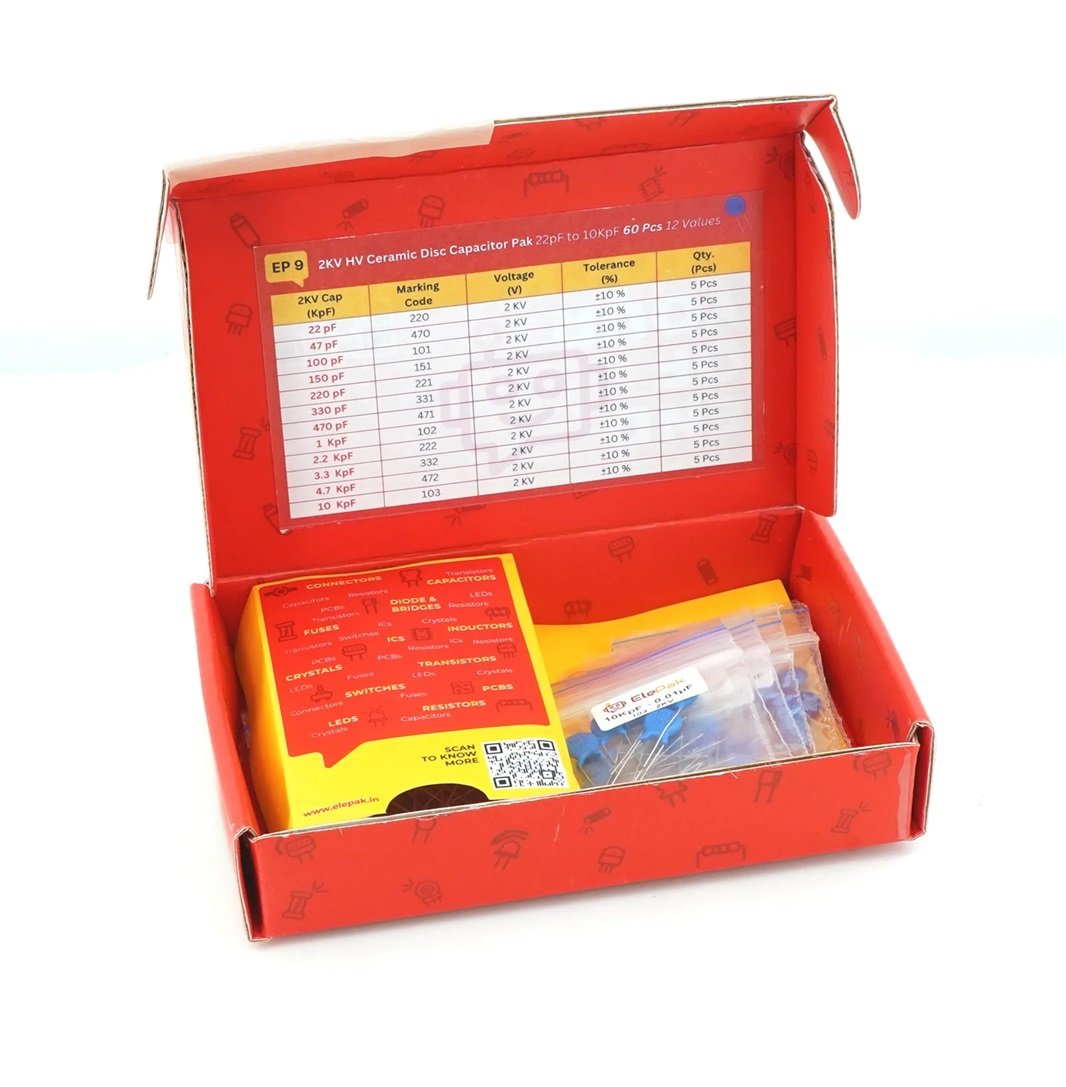

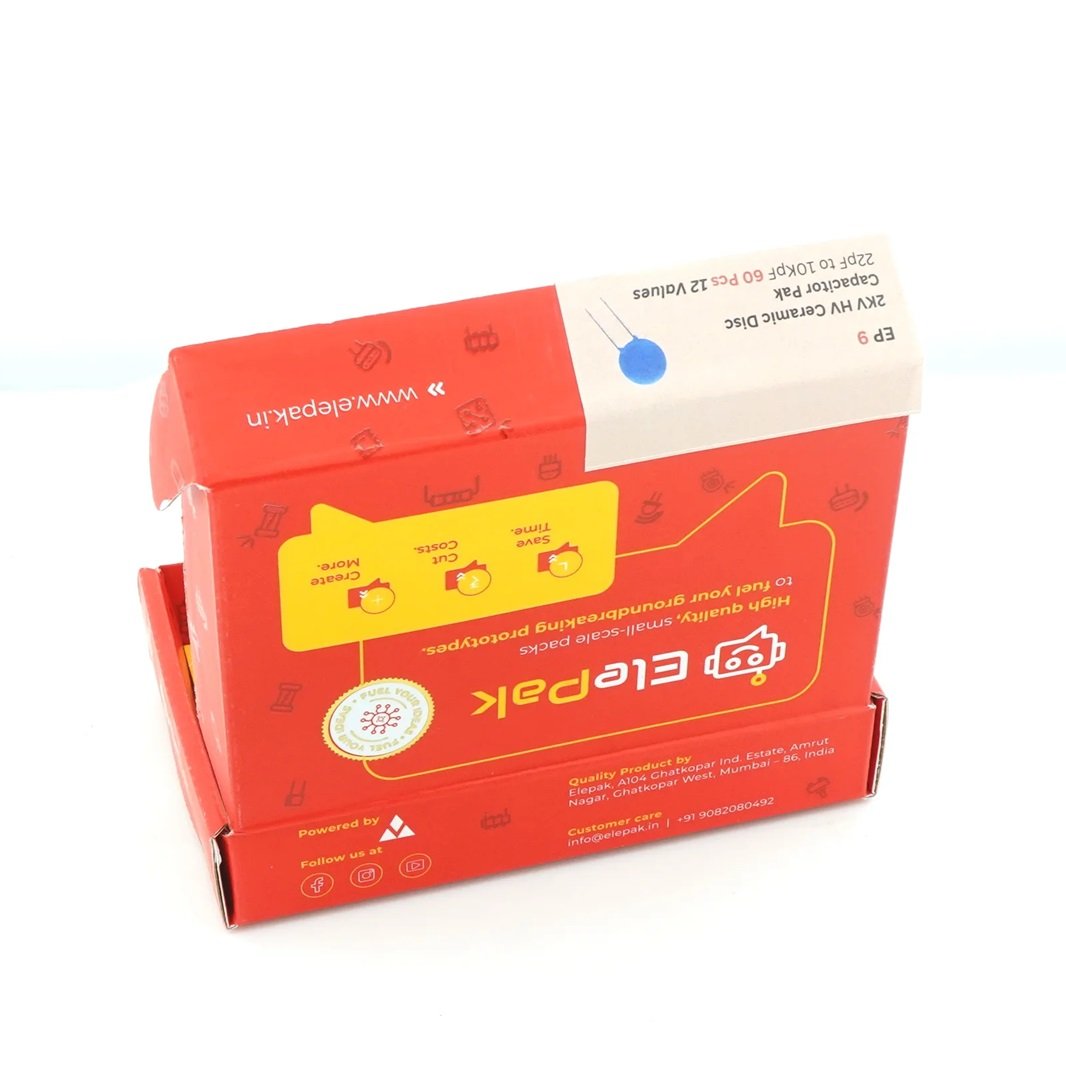

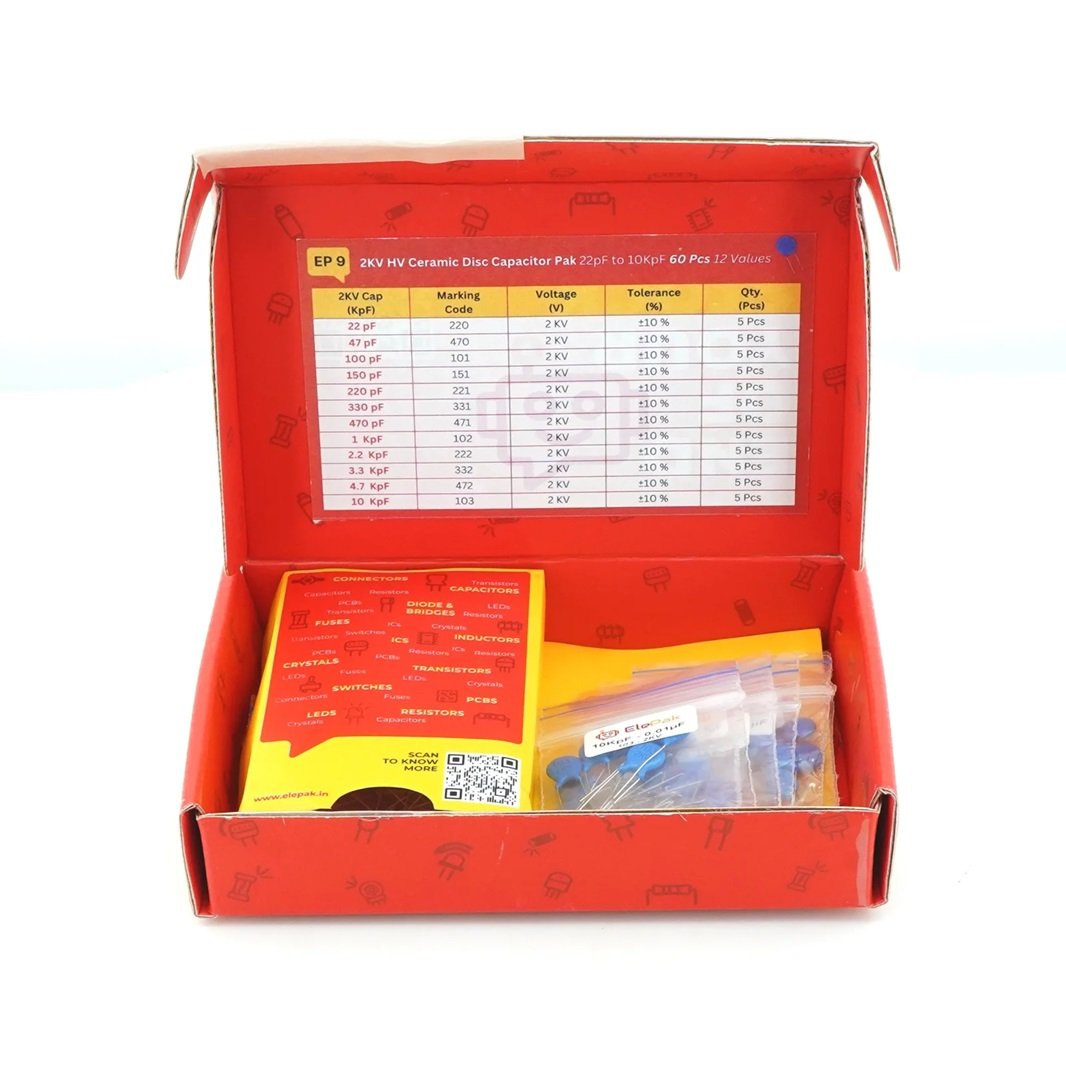

    2KV HV Ceramic Disc Capacitor Pak 22pF to 10KpF 60 Pcs 12 Values

    SKU: EP9

    Ceramic Disc Capacitor Technical Specification:

    • Type: Through Hole
    • Model: HV Disc Capacitor
    • Capacitance Range: 22 pF – 10 KpF
    • Voltage Rating: 2 KV
    • Tolerance: ±10 %
    • Pak Weight: 50 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹375.00

    Add to wishlist

    Description

    2KV HV Ceramic Disc Capacitor Pak 22pF to 10KpF 60 Pcs 12 Values

    The 2KV Capacitors is designed for high-voltage electronic circuits where stability, reliability, and safety are essential. This assortment pack includes 60 pieces of 2KV-rated disc capacitors, perfect for high-voltage applications in electronics projects, repairs, or prototyping.

    Capacitor Symbol:

    2KV Capacitor Structure:

    2KV Capacitor Part Code:



    Package Includes

    60 2KV HV Ceramic Disc Capacitor 12 Types

    • 22 pF – 5 Pcs
    • 47 pF – 5 Pcs
    • 100 pF – 5 Pcs
    • 150 pF – 5 Pcs
    • 220 pF – 5 Pcs
    • 330 pF – 5 Pcs
    • 470 pF – 5 Pcs
    • 1 KpF – 5 Pcs
    • 2.2 KpF – 5 Pcs
    • 3.3 KpF – 5 Pcs
    • 4.7 KpF – 5 Pcs
    • 10 KpF – 5 Pcs

    Features:

    • High voltage rating of 2KV
    • Excellent temperature and frequency stability
    • Low dissipation and minimal power loss
    • Compact ceramic disc design with radial leads
    • High insulation resistance for reliable performance

    Applications:

    • High-Voltage Power Supplies – Used for filtering and energy storage in HV circuits
    • CRT and Flyback Transformer Circuits – Ideal for use in legacy displays and HV switching
    • X-ray and Medical Equipment – Ensures insulation and reliability in high-voltage sections
    • RF and Oscillator Circuits – Maintains stability at high frequencies
    • Surge Suppression and Noise Filtering – Protects sensitive components from voltage spikes
    1. Are ceramic disc capacitors polarized?

    ⋙ No, ceramic capacitors are non-polarized and can be connected either way.

    2. How do I read the value codes like 102, 222, 103?

    ⋙ These are 3-digit codes representing capacitance in picofarads (e.g., 102 = 1000pF).

    3. Is a 2KV capacitor suitable for AC applications?

    ⋙ These are 3-digit codes representing capacitance in picofarads (e.g., 102 = 1000pF).

    4. Can I stack ceramic capacitors to increase capacitance?

    ⋙ Stacking capacitors is not recommended; use the correct rated value capacitor for your application.

    5. What is the difference between a 2KV ceramic capacitor and a 1KV ceramic capacitor?

    ⋙  A 2KV capacitor can withstand twice the voltage compared to a 1KV capacitor.

    6. What is the best way to mount a ceramic disc capacitor in a circuit?

    ⋙ They are typically mounted using radial leads for through-hole soldering.

    7. Can I use the 2KV ceramic disc capacitor pack for various electronic projects?

    ⋙ Yes, this pack provides a versatile range of values, ideal for multiple types of projects.

    8. Is this capacitor pack suitable for beginners or DIY projects?

    ⋙ Yes, it is perfect for hobbyists, students, and DIY electronics enthusiasts due to its variety and high voltage rating.

    9. Are these capacitors compatible with other types of electronic components?

    ⋙ Yes, they can be used in conjunction with other electronic components like resistors and inductors in circuits.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
